1997 OLDSMOBILE CUTLASS hood release

Your instrument panel is designed to let you know at a
glance how your vehicle is running. You’ll know how
fast you’re going, how much fuel you’re using, and
many other things you’ll need to drive safely and
economically.
The main components of your instrument panel are:
A. Fog Lamp Switch
B. Instrument Panel intensity Control
C. Turn SignalMultifunction Lever
D. Cruise Control Switches (If Equipped)
E. Supplemental Restraint System (SRS) and Horn
F. Instrument Panel Cluster
G. Windshield Wipermasher Lever
H. Ignition Switch
J. Hazard Warning Flashers Switch
K. Supplemental Restraint System (SRS)
L. Fuse Panels
M. Climate Control System
N. Accessory Power Outlets
0. Gear Shift Lever
P. Audio System
Q. Park Brake Pedal
R. Tilt Wheel Lever
S. Hood Release Lever
T. Trunk Release Button
U. Instrument Panel Cupholder
2-47
-
ProCarManuals.com

NOTICE:
If you need a new cap, be sure to get the right
type. Your retailer can get one
for you. If you get
the wrong type, it may not fit properly. This may
cause your malfunction indicator lamp to light and your fuel tank and emissions system may be
damaged. See “Malfunction Indicator Lamp” in
the Index.
Checking Things Under the Hood
An electric fan under the hood can start up and
injure you even when the engine
is not running.
Keep hands, clothing and tools away from any
underhood electric fan. Things
that burn can get on hot engine parts and
start a fire. These include liquids like gasoline,
oil, coolant, brake fluid, windshield washer and
other fluids, and plastic or rubber. You or others
could be burned. Be careful not to drop
OF spill
things that will burn onto a hot engine.
The following sections tell you how to check fluids,
lubricants and important parts under the hood.
Hood Release
To open the hood, first pull
the hood release handle
inside the vehicle.
ProCarManuals.com

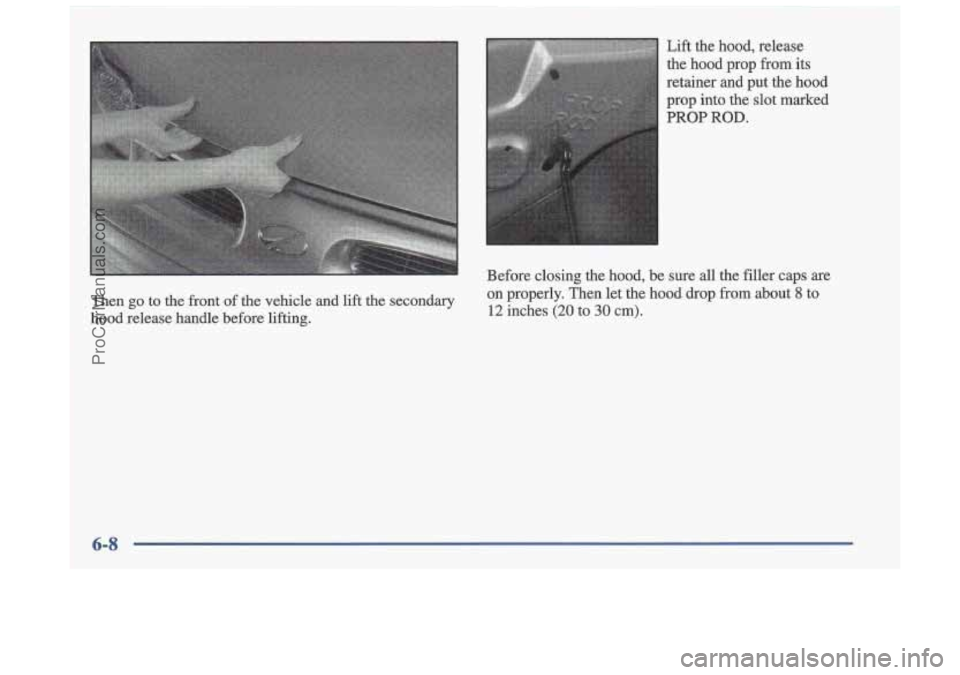

Then go to the front of the vehicle and lift the secondary
hood release handle before lifting. Lift the
hood, release
the hood prop from
its
retainer and put the hood
prop into the slot marked
PROP ROD.
Before closing the hood, be sure all the filler caps are
on properly. Then let the hood drop from about
8 to
12 inches (20 to 30 cm).
ProCarManuals.com

Part D: Recommended Fluids and
Lubricants
NOTE: Fluids and lubricants identified below by name,
part number
or specification may be obtained from your
GM retailer.
USAGE
Engine Oil
Engine Coolant
Hydraulic Brake
System
FLUIDLUBRICANT
Engine oil with the American
Petroleum Institute Certified For Gasoline Engines “Starburst”
symbol of the proper viscosity. To
determine the preferred viscosity
for your vehicle’s engine, see
“Engine
Oil“ in the Index, ~
50/50 mixture of clean water
(preferably distilled) and use only
GM Goodwrench@ DEX-COOL
Rul
or Havoline@ DEX-COOL TM
coolant. See “Engine Coolant” in
the Index.
Delco Supreme
11@ Brake Fluid
(GM Part
No. 12377967 or
equivalent DOT-3 brake fluid).
~~
USAGE
Power Steering
System
Automatic
Transaxle Key Lock
Cylinders
Windshield
Washer Solvent
Hood Latch
Assembly,
Pivots, Spring
Anchor and
Release Pawl
Hood and Door
Hinges
Weatherstrip Conditioning
FLUIDLUBRICANT
GM Power Steering Fluid (GM
Part No. 1052884 - 1 pint,
1050017
- 1 quart, or equivalent).
DEXRON@-III Automatic
Transmission Fluid.
Multi-Pu ose lubricant, Superlube
% (GM Part
No. 12346241 or equivalent).
GM Optikleen@) Washer Solvent (GM
Part No. 1051515)
or equivalent.
Lubriplate lubricant aerosol (GM
Part No. 12346293 or equivalent) or lubricant meeting requirements
of NLGI
# 2, Category LB
or GC-LB.
Multi-pu ose lubricant, Superlube
% (GM Part
No. 12346241 or equivalent).
Dielectric Silicone Grease (GM
Part No. 12345579 or equivalent).
See “Replacement
Parts” in the Index for recommended
replacement filters and spark plugs.
7-42
ProCarManuals.com

Hearing Impaired. Customer Assistance .............. 8-4
High-Beam Headlamps
.......................... 2-29
Highway Hypnosis
.............................. 4-22
Hill and Mountain Roads
......................... 4-22
Hitches. Trailer
................................. 4-35
Hood
Checking Things Under
......................... 6-7
Release
...................................... 6-7
Horn
......................................... 2-27
Hydroplaning
.................................. 4-18
Ignition Positions
.............................. 2- 13
Ignition Transaxle Lock Check
.................... 7-40
IlluminatedEntryExit
........................... 2-38
Inflation. Tire
.................................. 6-33
Inside Daymight Rearview Mirror
................. 2-39
Inspections
.................................... 7-41
Brake System
................................ 7-41
Exhaust Systems
............................. 7-41
Front-Wheel-Drive Axle Boot
.................. 7-41
Front-Wheel-Drive Axle Seal
................... 7-41
Radiator and Heater Hose
...................... 7-41
Steering
.................................... 7-41
Suspension
.................................. 7-41
Throttle Linkage
.............................. 7-41
Instrument Panel
............................... 2-46
Cleaning
.................................... 6-43
Cluster
............................ .. ........ 2-48
Fuse Block
........................ 6.51.6.52. 6.53
Intensity Control
............................. 2-37
Interior Lamps
................................. 2-37
Heating
........................................ 3-4
Jack. Tire
.................................... 5-22
Jump Starting
................................... 5-3
Key Lock Cylinders Service
..................... 7-38
Keys
.......................................... 2-2
Labels
....................................... 6-49
Certification
................................. 4-31
Service Parts Identification
..................... 6-49
Tire-Loading Information
...................... 4-30
Vehicle Identification Number
.................... 6-49
Lamps
........................................ 2-35
Exterior
.................................... 2-35
Fog
........................................ 2-37
Interior
..................................... 2-37
MirrorReading
............................... 2-38
OnReminder
................................ 2-35
Leaving
Your Vehicle ............................. 2-6
Leaving
Your Vehicle with the Engine Running ....... 2-23
Lights
Air Bag Readiness ....................... 1-22. 2-52
Anti-Lock Brake System Warning
............ 2.54. 4.7
Brake System Warning
.................... 2.53. 6.23
CheckEngine
................................ 2-55
CheckOil
.............................. 2.59. 6.10
Cruise
...................................... 2-60
DoorAjar
................................... 2-61
Engine Oil Pressure Warning
.................... 2-58
Interior ..................................... 2-37
Low Coolant Warning
.................... 2.55. 6.18
Charging System Indicator
...................... 2-52
ProCarManuals.com

Service Station Checkpoints
3100 ENGINE
OIL DIPSTICK
P6-10
-- lf
SECONDARY COOLANT
SURGE TANK
P5-
1 6
/ FUEL
I I I
WINDSHIELD
FLUID RESERVOIR // P6-21 BATERY
P6-25
I HOOD RELEASE P6-7
TRUNK RELEASE P2-10 TIRES
P6-32
i
1
I For detailed information, refer to the page number listed, or see the Index in the back of the owner’s manual.
1 9-12
1
ProCarManuals.com
