Safety Belt Warning Light and Chime
[IS02005(ALL)01/96]
This warning light and chime remind you to fasten your safety
belt.
[IS02010(ALL)05/96]
n
If the safety belt is not buckled when the ignition is turned
to the ON position, the chime will sound for four (4) to eight
(8) seconds and the light will remain on until the safety belt
is fastened.
*
[IS02025(ALL)01/96]
n
If the safety belt is buckled while the light is on and the
chime is sounding, both the light and chime will turn off.
[IS02035(ALL)05/96]
n
If the safety belt is buckled before the ignition is turned to
the ON position, the chime does not sound, and the warning
light will not illuminate.
[IS02100(ALL)01/96]
6 pica art:0040052-A
Safety belt warning light
%*
[IS02125(ALL)03/96]
Air Bag Readiness Light
[IS02140(ALL)05/96]
The supplemental air bag system uses a readiness light to
indicate the condition of the system. If the system is functioning
properly, the light will illuminate for about six (6) seconds when
the ignition switch is turned to the ON position.
[IS02145(ALL)01/96]
If there is a problem with the system, the readiness light may
fail to illuminate, continue to flash, or remain on. If any of these
conditions occur, have the system serviced as soon as possible.
Unless the system is serviced, the supplemental air bag system
may not function properly in the event of a collision.
File:03vxisn.ex
Update:Thu May 30 09:45:36 1996

12
[IS02150(ALL)04/96]
A problem with the system is indicated by one or more of the
following: the readiness light will either flash or stay lit, or it
will not light, or a group of five beeps will be heard.
*
[IS02160(ALL)05/96]
RWARNING
If any of these things happen, even intermittently, have
the air bag system serviced at your Ford or
Lincoln-Mercury dealer immediately.
[IS02180(ALL)01/96]
6 pica art:0040262-A
Supplemental air bag readiness light
%*
[IS02200(ALL)03/96]
Check Engine Warning Light
*
[IS02300(ALL)03/96]
This light illuminates when the electronic engine control system
is not working properly. This is the computer that controls the
operating conditions of the engine.
[IS02400(ALL)01/96]
6 pica art:0040053-A
Check engine warning light
[IS02500(ALL)05/96]
This light illuminates briefly when you turn the ignition key to
ON, but should turn off when the engine starts. If the light does
not come on when you turn the ignition to ON or if it
illuminates and stays on when you are driving, have your
File:03vxisn.ex
Update:Thu May 30 09:45:36 1996

Controls and Features
57
[CF01100(ALL)01/96]
RWARNING
Operating with the function selector control in off or in
the recirculated air mode for extended periods of time in
cold weather can result in fog buildup on interior glass
surfaces.
[CF01200(ALL)01/96]
n
The Mix (P) button directs approximately equal amounts of
air to the windshield and floor outlets with a small amount
to the side windows.
[CF01300(ALL)01/96]
n
The Defrost (V) button directs air to the windshield with a
small amount going to the floor outlets.
[CF01400(ALL)03/96]
n
The Panel (Q) button directs air to the instrument panel
outlets.
[CF01500(ALL)01/96]
n
The Panel/Floor (S) button directs approximately equal
amounts of air to the instrument panel outlets and the floor
outlets.
[CF01600(ALL)01/96]
n
The Floor (R) button directs most of the system's air
supply to the floor outlets with a small amount going to the
windshield and side window defrosters.
[CF01700(ALL)01/96]
Air Outlets
[CF01800(ALL)01/96]
Air intake selector button
[CF01900(ALL)01/96]
The typical air intake selection is outside air. However, for
recirculated air, the air intake selector button may be activated.
When the air intake selector button is activated (indicator light
is on), it prevents the intake of outside air. This is the typical
selection when using the air conditioner (if equipped). It
recirculates interior air for faster cooling. The recirculated air
function also helps to prevent the intake of dusty or unpleasant
air.
File:05vxcfn.ex
Update:Thu May 30 09:49:09 1996

58
[CF02000(ALL)01/96]
There are several air outlets on the instrument panel. There are
side outlets near the driver's window and passenger's window,
two center outlets, floor outlets, and windshield outlets. The
direction and amount of air flow from the center and side
instrument panel outlets can be adjusted for personal comfort.
[CF02050(ALL)03/96]
NOTE: Selection of the recirculated air mode under cold and
humid conditions may result in window fogging due
to entrapped humidity within the vehicle. To
counteract this circumstance, switch to the Defrost
mode and set fan speed to 3 or 4. Adjust air
temperature to a ªwarmº instead of ªhotº setting and
deactivate the air intake selector.
[CF02100(ALL)04/96]
Heating Only System (Without air conditioning)
[CF02200(ALL)01/96]
You can heat and ventilate the inside of your vehicle, or defrost
the windshield with the function selector buttons, the fan speed
knob and the temperature control knob.
[CF02300(ALL)01/96]
An additional push-on/push-off air intake selector button
provides for the selection of recirculated inside air (button
lighted) or outside air (button not lighted).
File:05vxcfn.ex
Update:Thu May 30 09:49:09 1996

60
*
[CF03100(ALL)01/96]
To defrost the windshield and side windows:
[CF03200(ALL)01/96]
n
Press the Defrost button, turn the temperature control knob
to the WARM (red) area and turn the fan speed knob to the
position of your choice. The recirculated air feature will be
automatically turned off in this setting (outside air will be
provided).
[CF03300(ALL)03/96]
n
To reduce window fogging under extreme conditions, select
defrost and high fan speed while reducing temperature to a
ªwarmº instead of ªhotº setting. Deactivating the air intake
selector may also help dry the interior window surfaces.
*
[CF03400(ALL)01/96]
To heat and defrost at the same time:
[CF03500(ALL)01/96]
n
Press the Mix function selector button, turn the temperature
control knob and the fan speed knob to provide the
temperature and fan speed you prefer. The recirculated air
feature will be automatically turned off in this setting
(outside air will be provided).
[CF03600(ALL)01/96]
Controlling the Temperature in Your Vehicle
[CF03700(ALL)01/96]
n
To ventilate your vehicle with outside air, make sure that the
air intake selector button is set for outside air. Open the
instrument panel registers enough to provide the amount of
air desired for your comfort.
[CF03800(ALL)01/96]
n
To vary the temperature inside your vehicle, move the
temperature control knob toward WARM (red) for warmer
temperatures and toward COOL (blue) for cooler
temperatures. The temperature control knob setting
determines the temperature of the air being discharged from
the system in all operating modes (heating or A/C).
File:05vxcfn.ex
Update:Thu May 30 09:49:09 1996

Controls and Features
61
[CF03900(ALL)01/96]
n
Do not place objects under the front seats unless your
vehicle is equipped with an underseat storage compartment.
Improperly stored objects will interfere with the flow of air
to the back seats.
*
[CF04000(ALL)01/96]
n
Remove any snow, ice, or leaves from the area below the
windshield on the outside of your vehicle. They could block
the air intake.
[CF04100(ALL)04/96]
Heating and Air Conditioning System (If equipped)
[CF04200(ALL)04/96]
Turning on the heat
[CF04300(ALL)01/96]
You can heat the inside of your vehicle and defrost the
windshield using the function selector buttons located in the
control assembly in the instrument panel.
[CF04400(ALL)03/96]
The six function selector buttons are: OFF, Mix (P), Defrost
(V), Panel (Q), Panel/Floor (S), and Floor (R). If your
vehicle is equipped with a rear seat climate control system, the
instrument panel will also include a rear seat climate control
lever. To turn on the rear passenger compartment control
system, select REAR, 1, 2, 3, or 4. With the lever set to REAR,
rear seat passengers will have control of rear fan speed on the
rear seat climate control panel. Positions 1, 2, 3, or 4 will control
rear fan speed from the front control panel. The temperature of
the air from the rear system is controlled by the rear passenger
compartment climate control system.
File:05vxcfn.ex
Update:Thu May 30 09:49:09 1996

62
[CF04500(ALL)03/96]
13-1/2 pica
art:0040301-B

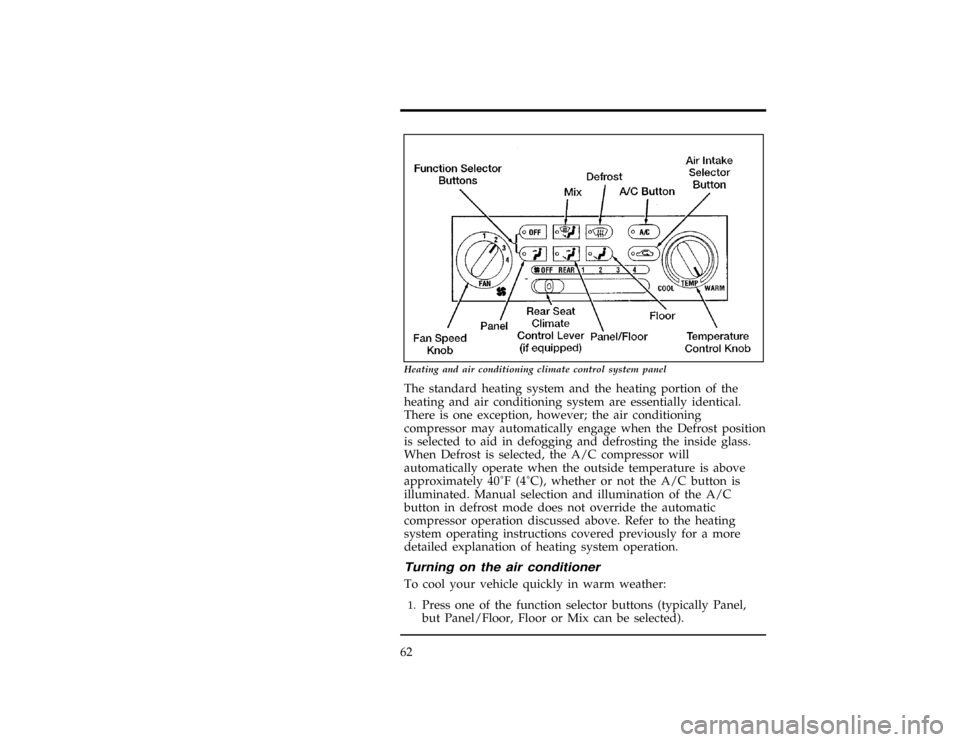

Heating and air conditioning climate control system panel
[CF04600(ALL)01/96]
The standard heating system and the heating portion of the
heating and air conditioning system are essentially identical.
There is one exception, however; the air conditioning
compressor may automatically engage when the Defrost position
is selected to aid in defogging and defrosting the inside glass.
When Defrost is selected, the A/C compressor will
automatically operate when the outside temperature is above
approximately40ÊF (4ÊC),whether or not the A/C button is
illuminated. Manual selection and illumination of the A/C
button in defrost mode does not override the automatic
compressor operation discussed above. Refer to the heating
system operating instructions covered previously for a more
detailed explanation of heating system operation.
[CF04700(ALL)01/96]
Turning on the air conditioner
*
[CF04800(ALL)01/96]
To cool your vehicle quickly in warm weather:
[CF04900(ALL)01/96]1.
Press one of the function selector buttons (typically Panel,
but Panel/Floor, Floor or Mix can be selected).
File:05vxcfn.ex
Update:Thu May 30 09:49:09 1996

Controls and Features
63
[CF05000(ALL)01/96]2.
Turn the temperature control knob to COOL.
[CF05100(ALL)01/96]3.
Press the A/C button. The indicator light on the A/C button
will illuminate.
[CF05200(ALL)03/96]4.
The air intake selector button may be in the outside air
mode or the recirculated air mode. The outside air mode is
recommended for best A/C performance when the vehicle
interior is very warm. As interior air comfort is reached, you
may decide to switch to the recirculated air mode.
[CF05300(ALL)01/96]5.
Turn the fan speed knob to the position of your choice.
[CF05400(ALL)01/96]6.
If your vehicle is equipped with the rear passenger
compartment air conditioning unit, it will be on when the
front A/C is on and the rear climate control lever is set to
REAR, 1, 2, 3, or 4. Refer to the previous section for an
explanation of the heating system.
[CF05500(ALL)01/96]7.
Adjust your instrument panel registers.
[CF05600(ALL)01/96]8.
If the inside of your vehicle is very warm, you may want to
drive for a few minutes with the windows down and the air
conditioner on. This forces most of the hot, stale air out of
the vehicle and allows the air conditioner to cool down the
interior more quickly.
*
[CF05700(ALL)01/96]
The air conditioner may be used to cool the outside air being
drawn into your vehicle, but using recirculated air is more
economical and cools your vehicle more quickly.
[CF05800(ALL)01/96]
NOTE: The A/C button independently toggles the A/C
system's compressor signal and indicator light ON and
OFF in the Panel, Panel/Floor, Floor, Defrost and Mix
functions. The A/C button will not operate or light
when the system is set in the OFF position. The A/C
button will operate in defrost but will not override
previously discussed automatic operation.
File:05vxcfn.ex
Update:Thu May 30 09:49:09 1996
