Page 821 of 4133
17 Introduction
Operating safety
Operating safety
Proper use of the vehicle
Proper use of the vehicle requires that you
are familiar with the following information
and rules:
the safety precautions in this manual
the “Technical data” section in this
manual
traffic rules and regulations
motor vehicle laws and safety stan-
dards
Warning!
G
Work improperly carried out on electronic
components and associated software could
cause them to cease functioning. Because
the vehicle’s electronic components are in-
terconnected, any modifications made may
produce an undesired effect on other sys-
tems. Electronic malfunctions could
seriously impair the operating safety of your
vehicle.
See your authorized Mercedes-Benz Light
Truck Center for repairs or modifications to
electronic components.
Other improper work or modifications on the
vehicle could also have a negative impact on
the operating safety of the vehicle.
Some safety systems only function while the
engine is running. You should therefore nev-
er turn off the engine while driving.
Warning!
G
Heavy blows against the vehicle underbody
or tires / wheels, for example when running
over an obstacle, road debris or a pothole,
may cause serious damage and impair the
o per at i ng s a fet y of yo ur veh ic l e. I f y ou f ee l a
sudden significant vibration or ride distur-
bance, or you suspect that damage to your
vehicle has occurred, you should turn on
your hazard warning flashers, carefully slow
down, and drive with caution to an area
which is a safe distance from the road.
Inspect the vehicle underbody and
tires / wheels for possible damage. If the ve-
hicle appears unsafe, have it towed to the
nearest authorized Mercedes-Benz Light
Truck Center or other qualified maintenance
or repair facility for further inspection or re-
pairs.
Warning!
G
Various warning labels are attached to your
vehicle. These warning labels are intended
to make you and others aware of various
risks. You should not remove any of these
warning labels unless explicitly instructed to
do so by information on the label itself. Re-
moval of any of these labels may cause you
and others to be unaware of certain risks
which may result in an accident and / or per-
sonal injury.
Page 1023 of 4133
219 Operation
Engine compartment
Checking engine oil level via display
When checking the oil level the vehicle
must
be parked on level ground
be at normal operating temperature
have been stationary for at least five
minutes with the engine turned off
To check the engine oil level via the display
in the speedometer, do the following:
Turn the key in the steering lock to
position2.
1Button
2Display in speedometer
Wait until the display
------
appears in
the speedometer display2.
Within one second press button1
twice.
One of the following messages will
subsequently appear in the display:
OIL i.OThe oil level is correct. Engine oil
does not to be added.
– 1.0 L
Add 1.0 liter of engine oil.
– 1.5 L
Add 1.5 liters of engine oil.
– 2.0 L
Add 2.0 liters of engine oil.
For adding engine oil see (
page 302).
More information on engine oil can be
found in the “Technical data” section
(
page 300) and (
page 301).Other display messages
If there is excess engine oil with the engine
at normal operating temperature, the
following message will appear in the
display:
OIL HIThe oil level is too high.
Have excess oil siphoned.!Excess oil must be siphoned or drained
off. It could cause damage to the
engine and catalytic converter not
covered by the Mercedes-Benz Limited
Warranty.
Page 1025 of 4133
221 Operation
Engine compartment
If necessary, add engine oil.
For adding engine oil see (
page 221).
More information on engine oil can be
found in the “Technical data” section
(
page 300) and (
page 301).
See the “Practical hints” section
(
page 253) if the low engine oil level
warning lamp in the instrument cluster
flashes.Adding engine oil
1Oil dipstick
2Filler cap
Unscrew filler cap2 from filler neck.
Add engine oil as required. Be careful
not to overfill with oil.
Be careful not to spill any oil when adding.
Avoid environmental damage caused by oil
entering the ground or water.
iThe filling quantity between the upper
and lower marks on the oil dipstick is
approximately 2.1 US qt. (2.0 l).
!Only use approved engine oils. For a
listing of approved engine oils, refer to
the Factory Approved Service Products
pamphlet in your vehicle literature port-
folio.
In addition, check the oil filler cap for
important information pertaining to the
engine oil needing to meet a specific
Mercedes-Benz specification
(e.g. MB 229.5). If such information is
printed on the oil filler cap, only use an
engine oil from the list of approved en-
gine oils in the Factory Approved Ser-
vice Products pamphlet that meets the
specification indicated on the oil filler
cap. Using engine oils of other specifi-
cation may cause the FSS to incorrect-
ly determine the next service interval
and will result in engine damage not
covered by the Mercedes-Benz Limited
Warranty.
Page 1026 of 4133
222 OperationEngine compartment
Screw filler cap2 back on filler neck.
More information on engine oil can be
found in the “Technical data” section
(
page 300) and (
page 301).
Transmission fluid level
The transmission fluid level does not need
to be checked. If you notice transmission
fluid loss or gear shifting malfunctions,
have an authorized Mercedes-Benz Light
Truck Center check the automatic trans-
mission.Coolant
The engine coolant is a mixture of water
and anticorrosion / antifreeze. To check
the coolant level, the vehicle must be
parked on level ground and the engine
must be cool.
!Excess oil must be siphoned or drained
off. It could cause damage to the
engine and catalytic converter not
covered by the Mercedes-Benz Limited
Warranty.
Warning!
G
In order to avoid any possibly serious burns:
Use extreme caution when opening the
hood if there are any signs of steam or
coolant leaking from the cooling system,
or if the coolant temperature gauge indi-
cates that the coolant is overheated.
Do not remove pressure cap on coolant
reservoir if engine temperature is above
194°F (90°C). Allow engine to cool
down before removing cap. The coolant
reservoir contains hot fluid and is under
pressure.
Using a rag, slowly open the cap approx-
imately ½ turn to relieve excess pres-
sure. If opened immediately, scalding
hot fluid and steam will be blown out un-
der pressure.
Do not spill antifreeze on hot engine
parts. Antifreeze contains ethylene gly-
col which may burn if it comes into con-
tact with hot engine parts.
Page 1027 of 4133
223 Operation
Engine compartment
1Cap
2COLD LEVEL mark
The coolant level should reach the COLD
LEVEL mark2 in the reservoir.
Using a rag, turn the cap slowly approx-
imately one half turn to the left to re-
lease any excess pressure.
Continue turning the cap to the left and
remove it.
Add coolant as required.
Replace and tighten cap.
More information on coolant can be found
in the “Technical data” section
(
page 304).
Battery
The battery is located in the engine com-
partment.
The battery should always be sufficiently
charged in order to achieve its rated ser-
vice life. Refer to Service Booklet for bat-
tery maintenance intervals.
If you use your vehicle mostly for
short-distance trips, you will need to have
the battery charge checked more frequent-
ly.When replacing batteries, always use bat-
teries approved by Mercedes-Benz.
If you do not intend to operate your vehicle
for an extended period of time, consult an
authorized Mercedes-Benz Light Truck
Center about steps you need to observe.
iIf the engine is already at its regular op-
erating temperature, the coolant may
be approximately 0.6 in (1.5 cm) above
the COLD LEVEL mark.
G
Observe all safety instructions
and precautions when handling
automotive batteries.
A
Risk of explosion
D
Keep flames or sparks away
from battery. Do not smoke.
B
Battery acid is caustic. Do not
allow it to come into contact
with skin, eyes or clothing.
In case it does, immediately
flush affected area with clear
water and seek medical help if
necessary.
Page 1029 of 4133
225 Operation
Engine compartment
More information can be found in the
“Technical data” section (
page 307).
Warning!
G
Washer solvent / antifreeze is highly flam-
mable. Do not spill washer
solvent / antifreeze on hot engine parts, be-
cause it may ignite and burn. You could be
seriously burned.
Page 1093 of 4133

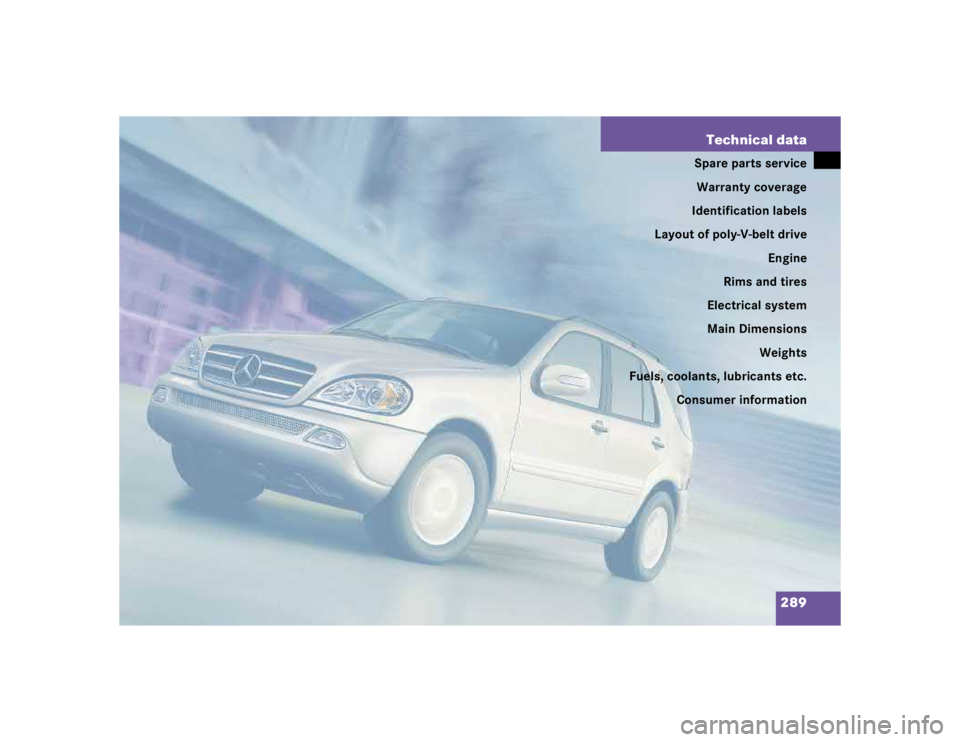

289 Technical data
Spare parts service
Warranty coverage
Identification labels
Layout of poly-V-belt drive
Engine
Rims and tires
Electrical system
Main Dimensions
Weights
Fuels, coolants, lubricants etc.
Consumer information
Page 1094 of 4133
290 Technical dataSpare parts service
The “Technical data” section provides the
necessary technical data for your vehicle.
Spare parts service
All authorized Mercedes-Benz Centers
maintain a stock of genuine
Mercedes-Benz Parts parts required for
maintenance and repair work. In addition,
strategically located parts distribution cen-
ters provide quick and reliable parts ser-
vice.
More than 300 000 different spare parts
for Mercedes-Benz models are available.
Genuine Mercedes-Benz spare parts are
subjected to stringent quality inspections.
Each part has been specifically developed,
manufactured or selected for and adapted
to Mercedes-Benz vehicles.
Therefore, genuine Mercedes-Benz spare
parts should be installed.
!The use of non-genuine Mercedes-Benz
parts and accessories not authorized
by Mercedes-Benz could damage the
vehicle, which is not covered by the
Mercedes-Benz Limited Warranty, or
could compromise the vehicle’s dura-
bility or safety.
