Page 217 of 514
specification. See CYLINDER HEAD and VALVES & VALVE SPRINGS tables under ENGINE
SPECIFICATIONS .
Installation
Install cylinder head gasket, cylinder head assembly and bolts. Tighten cylinder head bolts in 2 steps, and in
sequence, to specification. See Fig. 7
. See TORQUE SPECIFICATIONS . To complete installation, reverse
removal procedure.
Fig. 7: Cylinder Head Bolt Tightening Sequence
Courtesy of MAZDA MOTORS CORP.
CRANKSHAFT FRONT SEAL
Removal
Disconnect negative battery cable. Remove drive belts and crankshaft pulley. Remove water pump pulley,
timing belt covers and timing belt. See TIMING BELT
. Use Crankshaft Lock Tool (49-D011-102) to lock
crankshaft sprocket into position. Remove crankshaft sprocket bolt. Remove crankshaft sprocket usin
g steering
1997 Mazda MX-5 Miata
1997-98 ENGINES 1.8L 4-Cylinder
Microsoft
Sunday, July 05, 2009 1:55:15 PMPage 11 © 2005 Mitchell Repair Information Company, LLC.
Page 218 of 514

wheel puller. Pry out seal.
Installation
1. Apply light oil coat to seal lip. Using a hammer and seal installer, tap seal into oil pump body until it is
flush with edge of pump body. DO NOT bottom seal in pump body. Align keyway slots, and install
crankshaft sprocket and Woodruff key with tapered side toward oil pump body. Install crankshaft
sprocket bolt.
2. Using Crankshaft Lock Tool (49-D011-102), lock crankshaft sprocket into position. Tighten lock bolt to
specification. See TORQUE SPECIFICATIONS
.
3. Install timing belt. See TIMING BELT
under REMOVAL & INSTALLATION. Install timing belt
covers, pulleys and drive belts. Reconnect negative battery cable and ensure timing is correct.
TIMING BELT
Removal (Miata)
1. Disconnect negative battery cable. Drain cooling system. Remove radiator hose and by-pass hoses from
thermostat housing. Remove air cleaner intake duct assembly from between throttle body and air cleaner
filter housing.
2. Remove drive belts and water pump pulley. Align crankshaft pulley timing mark with cylinder No. 1 at
TDC of compression stroke. Hold crankshaft pulley stationary. Remove crankshaft pulley bolts and
pulley. Remove crankshaft pulley hub bolt and hub.
3. Remove cylinder head cover. Remove upper, center and lower timing belt cover. If timing belt is to be
reused, mark timing belt rotation direction. Ensure timing marks on camshaft sprockets are aligned. See
Fig. 8
. Loosen timing belt tensioner lock bolt, and move tensioner away from belt with spring fully
expanded. Remove timing belt.
Removal (Protege)
1. Disconnect negative battery cable. Raise and support vehicle. Remove right front wheel. Remove right
side cover and undercover.
2. Remove drive belts and water pump pulley. Align crankshaft pulley timing mark with cylinder No. 1 at
TDC of compression stroke. Hold crankshaft stationary. Remove crankshaft pulley bolts and pulley.
Remove crankshaft pulley hub bolt and hub.
3. Remove cylinder head cover. Remove upper, center and lower timing belt cover. If timing belt is to be
reused, mark timing belt rotation direction. Ensure timing marks on camshaft sprockets are aligned. See
Fig. 8
. Loosen timing belt tensioner lock bolt, and move tensioner away from belt with spring fully
expanded. Remove timin
g belt. NOTE: For 1997-98 vehicles, the manufacturer recommends the belt be replaced at
60,000 mile intervals for vehicles sold outside of California and Massachusetts.
For vehicles sold in California and Massachusetts, inspect timing belt at 60,000
and 90,000 miles, and replace timing belt at 105,000 miles.
1997 Mazda MX-5 Miata
1997-98 ENGINES 1.8L 4-Cylinder
Microsoft
Sunday, July 05, 2009 1:55:15 PMPage 12 © 2005 Mitchell Repair Information Company, LLC.
Page 219 of 514

Inspection (All Models)
Check timing belt for cracks, peeling, abrasion or other damage. Check tensioner bearing for looseness or
roughness of rotation. Inspect tensioner spring for stretching. Replace parts as necessary.
Installation (All Models)
1. Position notch on crankshaft sprocket to 12 o'clock position (aligned with mark on oil pump). Align
timing marks on camshaft sprockets. See Fig. 8
. Ensure crankshaft timing mark is at TDC. Install belt
around crankshaft sprocket, then working in a counterclockwise direction, route belt around camshaft
sprockets.
2. Loosen timing belt tensioner lock bolt and allow spring to apply tension on belt. Snug tensioner lock bolt.
Rotate crankshaft 2 complete turns in direction of normal engine rotation. Ensure timing marks align. If
timing marks are not aligned, remove belt, realign all timing marks, and repeat installation procedure.
3. Check timing belt deflection with 22 lbs. (10 kg) of pressure applied to belt. See Fig. 9
. Ensure timing
belt deflection is within specification. See TIMING BELT DEFLECTION
.
TIMING BELT DEFLECTION
Application(1) Deflection In. (mm)
Miata & Protege.35-.45 (9.0-11.5)
(1)Deflection measurement is with 22 lbs. (10 kg) of pressure applied to timing belt. See Fig. 9 .
1997 Mazda MX-5 Miata
1997-98 ENGINES 1.8L 4-Cylinder
Microsoft
Sunday, July 05, 2009 1:55:15 PMPage 13 © 2005 Mitchell Repair Information Company, LLC.
Page 220 of 514
Fig. 8: Aligning Camshaft Timing Marks
Courtesy of MAZDA MOTORS CORP.
1997 Mazda MX-5 Miata
1997-98 ENGINES 1.8L 4-Cylinder
Microsoft
Sunday, July 05, 2009 1:55:15 PMPage 14 © 2005 Mitchell Repair Information Company, LLC.
Page 221 of 514
Fig. 9: Measuring Timing Belt Deflection
Courtesy of MAZDA MOTORS CORP.
HYDRAULIC LASH ADJUSTER (HLA)
Removal
Disconnect negative battery cable. Remove camshaft. See CAMSHAFT . Mark location of each HLA for
reassembly reference. Remove HLA from cylinder head.
Inspection
Place HLA in palm of hand. Attempt to compress HLA plunger with thumb. If plunger compresses, replace
HLA.
NOTE: If hydraulic lash adjusters are persistently noisy, check with manufacturer for
availability of modified adjusters.
1997 Mazda MX-5 Miata
1997-98 ENGINES 1.8L 4-Cylinder
Microsoft
Sunday, July 05, 2009 1:55:15 PMPage 15 © 2005 Mitchell Repair Information Company, LLC.
Page 222 of 514

Installation
Insert HLA in original location. To complete installation, reverse removal procedure. Tighten camshaft bearing
caps evenly in sequence to specification. See Fig. 10
or Fig. 11 . See TORQUE SPECIFICATIONS .
CAMSHAFT
Removal
Remove cylinder head cover. Remove timing belt. See TIMING BELT. Remove distributor/camshaft position
sensor. Reference mark camshafts, caps and sprockets, and remove sprockets. Loosen camshaft bearing cap
bolts evenly in 5-6 steps, in sequence. See Fig. 10
or Fig. 11 . Remove camshafts.
Inspection
Check camshaft end play. Check camshaft journal diameters and bearing clearances. Check camshaft lobes for
wear. See CAMSHAFT
under ENGINE SPECIFICATIONS. If any measurement is not within specification,
replace camshaft and/or cylinder head.
Installation
To install, reverse removal procedure. On both camshafts, apply small amount of silicone sealant to contact area
of cylinder head/camshaft seal cover cap. Tighten camshaft bearing cap bolts evenly in sequence to
specification. See Fig. 10
or Fig. 11 . See TORQUE SPECIFICATIONS. NOTE: On Miata, exhaust camshaft has a slot for camshaft position sensor drive. On
Protege, exhaust camshaft has a slot for distributor drive. On all models, match
mark camshafts and sprockets for installation reference.
1997 Mazda MX-5 Miata
1997-98 ENGINES 1.8L 4-Cylinder
Microsoft
Sunday, July 05, 2009 1:55:15 PMPage 16 © 2005 Mitchell Repair Information Company, LLC.
Page 223 of 514
Fig. 10: Camshaft Bearing Cap Bolt Removal & Installation Sequence (Miata) Removal
Courtesy of MAZDA MOTORS CORP.
1997 Mazda MX-5 Miata
1997-98 ENGINES 1.8L 4-Cylinder
Microsoft
Sunday, July 05, 2009 1:55:15 PMPage 17 © 2005 Mitchell Repair Information Company, LLC.
Page 224 of 514

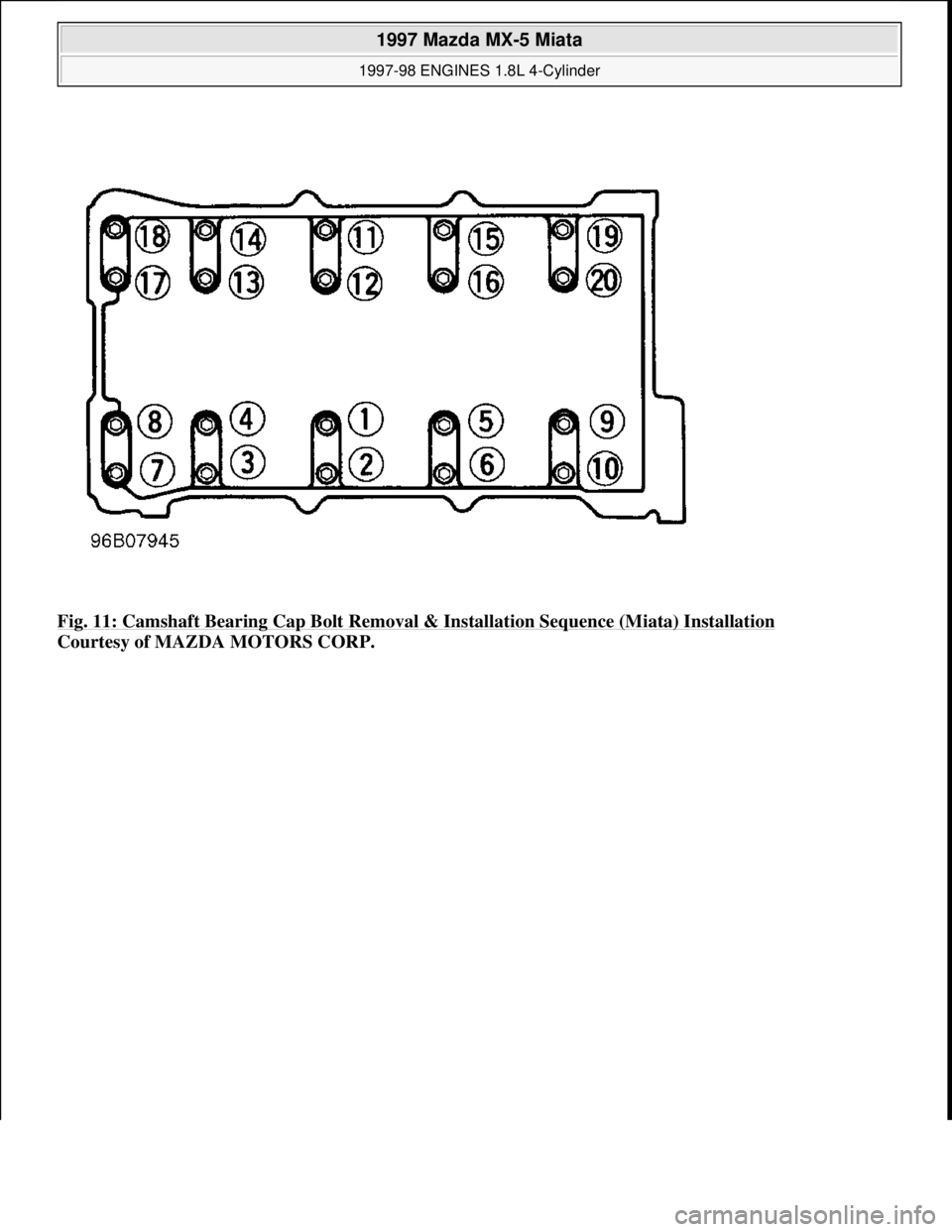

Fig. 11: Camshaft Bearing Cap Bolt Removal & Installation Sequence (Miata) Installation
Courtesy of MAZDA MOTORS CORP.
1997 Mazda MX-5 Miata
1997-98 ENGINES 1.8L 4-Cylinder
Microsoft
Sunday, July 05, 2009 1:55:15 PMPage 18 © 2005 Mitchell Repair Information Company, LLC.
