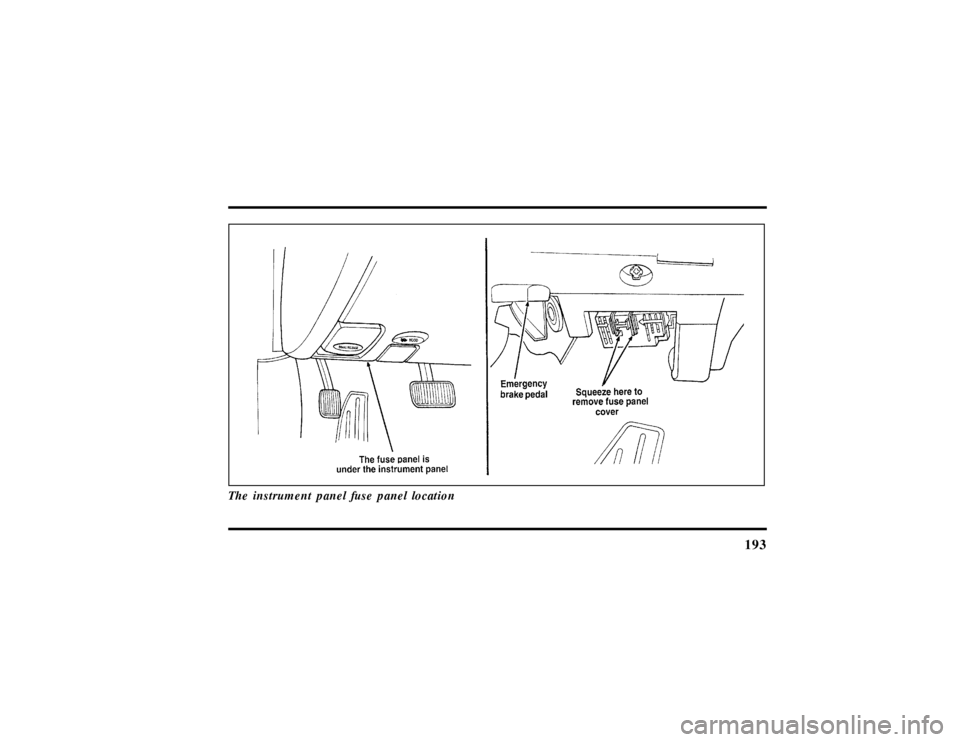

The instrument panel fuse panel location
File:10fnerc.ex
Update:Fri Sep 6 08:49:57 1996
Page 195 of 321
194The instrument panel fuse panel
File:10fnerc.ex
Update:Thu Jun 20 15:19:51 1996
Page 196 of 321
195

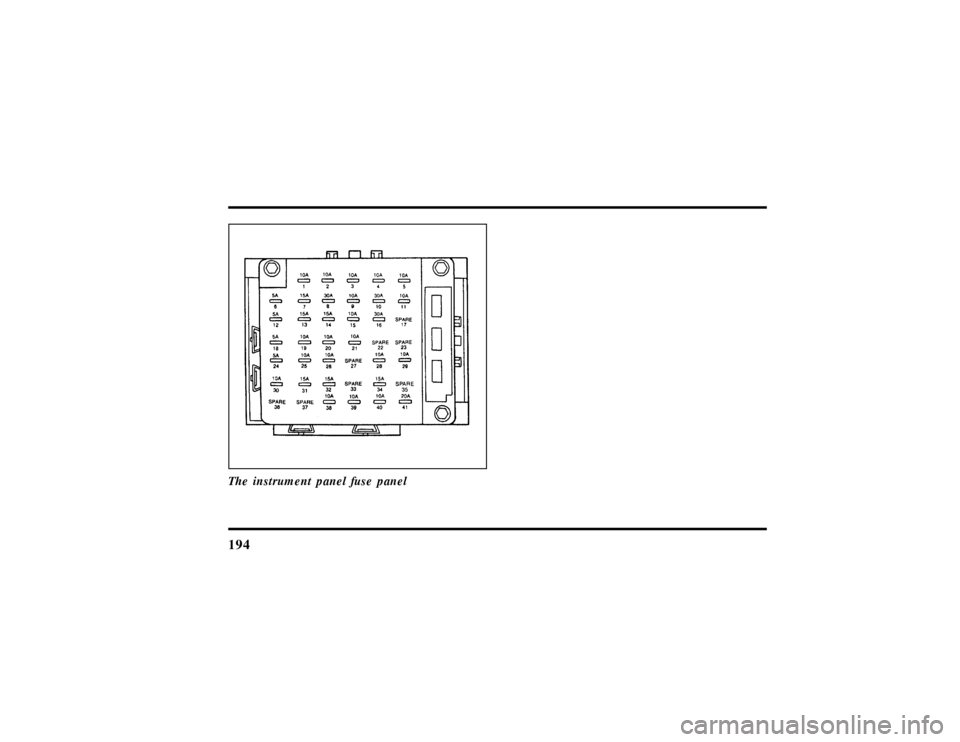

The Instrument Panel Fuses
File:10fnerc.ex
Update:Fri Sep 6 08:49:57 1996
Page 199 of 321
198
HighCurren tFuses
WARNING
Alway sdisconnec tth ebatter ybefore
Page 200 of 321
199

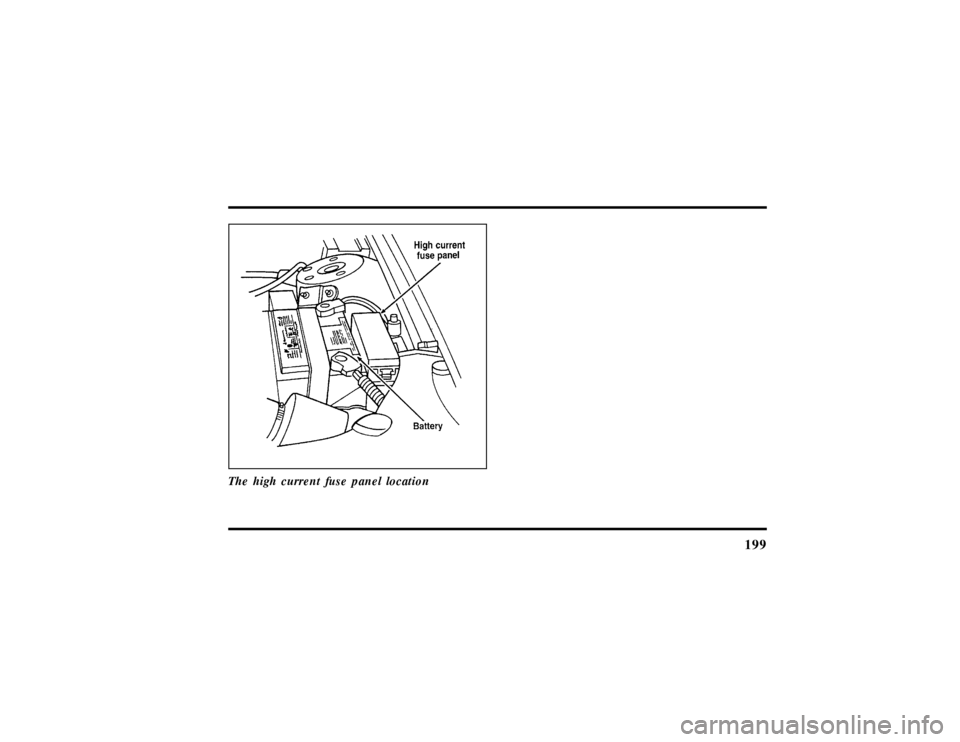

The high current fuse panel location
File:10fnerc.ex
Update:Fri Sep 6 08:49:57 1996
Page 201 of 321
200The high current fuse panel
File:10fnerc.ex
Update:Fri Sep 6 08:49:57 1996
Page 202 of 321
201

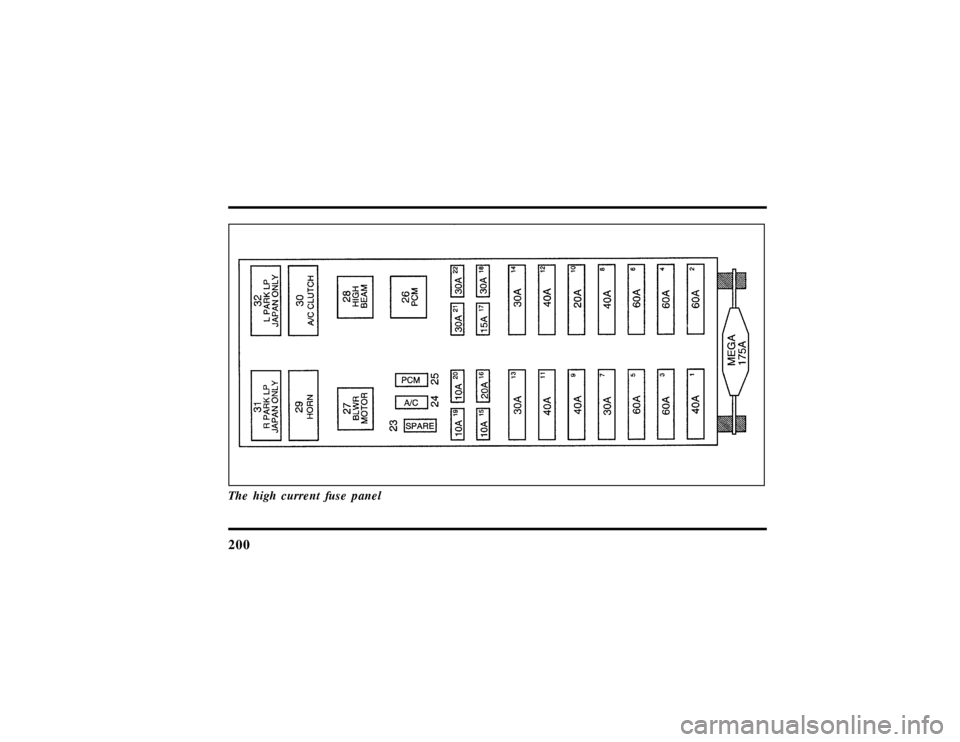

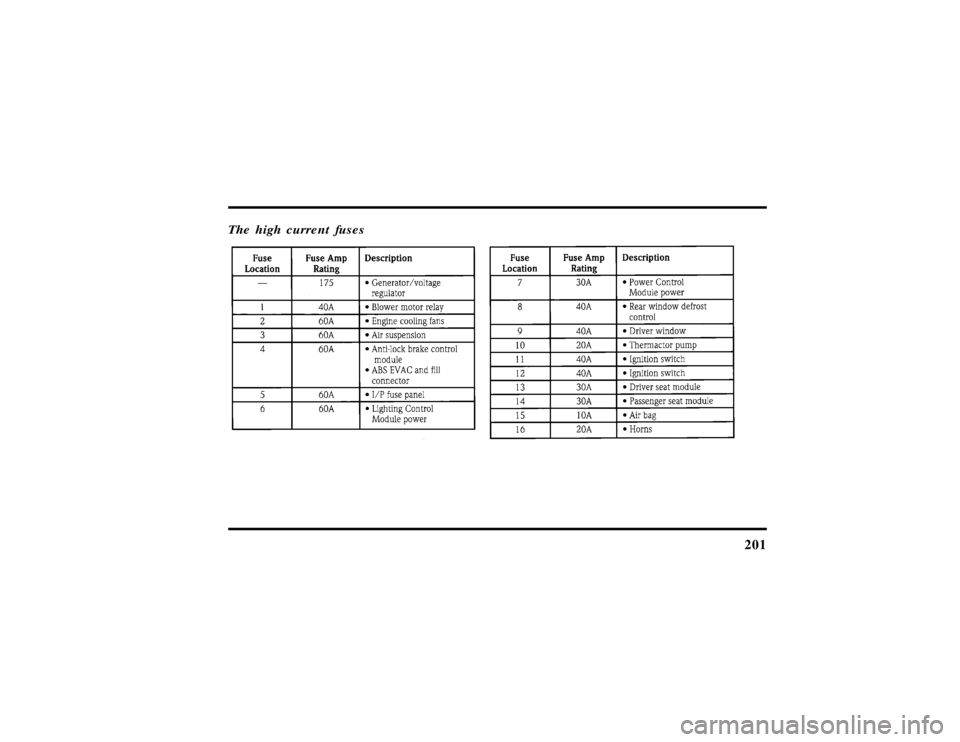

The high current fuses
File:10fnerc.ex
Update:Fri Sep 6 08:49:57 1996
Page 204 of 321
203
Checking and Replacing FusesIf you need to check a fuse, follow these steps:
1. Find the fuse panel underneath the instrument
panel to the left of the steering column.
Squeeze together the two areas indicated by
the arrows and pull down to remove the cover.
2. Find the fuse you want to check (fuses are
numbered on the fuse panel) and remove it
with the fuse pulling tool that is provided.

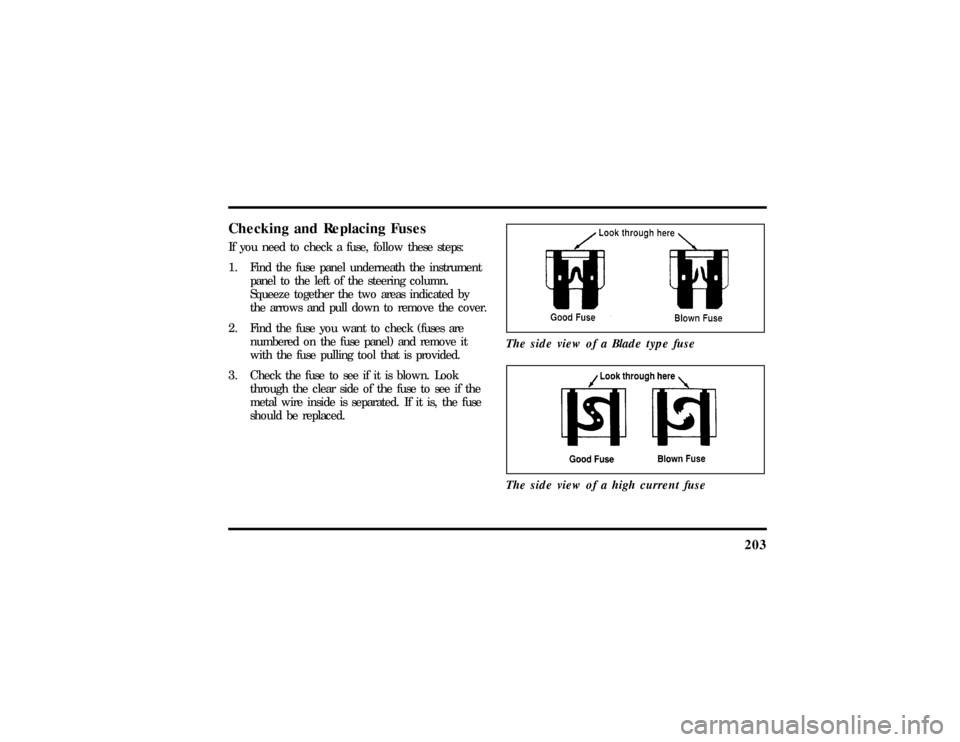

3. Check the fuse to see if it is blown. Look
through the clear side of the fuse to see if the
metal wire inside is separated. If it is, the fuse
should be replaced.The side view of a Blade type fuse
The side view of a high current fuse
