1997 CHEVROLET TRACKER headlamp

Headlamps
To replace the headlamp bulb:
1. Open the hood.
2. Push in on both sides of the electrical connector. Pull
up and rearward, to disconnect it from the bulb. The
plastic clip on the electrical connector may need
to
be lifted gently with a screwdriver.
3. Turn the lock ring counterclockwise to release
the bulb.
6-34
ProCarManuals.com

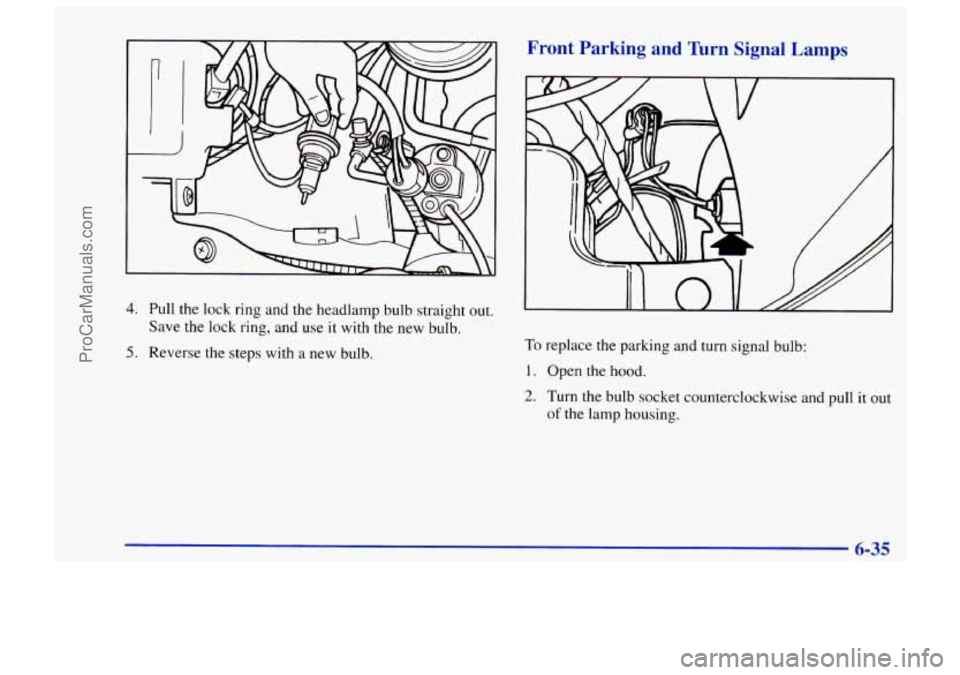

4. Pull the lock ring and the headlamp bulb straight out.
Save the lock ring, and use it with the new bulb.
5. Reverse the steps with a new bulb.
Front Parking and Turn Signal Lamps
To replace the parking and turn signal bulb:
I. Open the hood.
2. Turn the bulb socket counterclockwise and pull it out
of the lamp housing.
6-35
I
ProCarManuals.com

A CAUTION:
Using the wrong replacement wheels, wheel
bolts or wheel nuts on your vehicle can be
dangerous.
It could affect the braking and
handling of your vehicle, make your tires lose
air and make you lose control.
You could have
a collision in which you or others could be
injured. Always use the correct wheel, wheel
bolts and wheel nuts for replacement.
NOTICE:
The wrong wheel can also cause problems with
bearing life, brake cooling, speedometer or
odometer calibration, headlamp aim, bumper
height, vehicle ground clearance and tire or tire
chain clearance to the body and chassis.
See “Changing a Flat Tire” in the Index for
more information.
Used Replacement Wheels
I A CAUTION:
Putting a used wheel on your vehicle is
dangerous.
You can’t know how it’s been used
or how far it’s been driven.
It could fail suddenly
and cause an accident.
If you have to replace a
wheel, use a new GM original equipment 1 wheel.
6-47
ProCarManuals.com

Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by fuses, circuit breakers and thermal links
in the wiring itself.
This greatly reduces the chance of
fires caused by electrical problems.
Look at the silver-colored band inside the fuse.
If the
band is broken or melted, replace the fuse. Be sure you
replace a bad fuse with a new one of the correct size.
If you ever have a problem on the road and don’t
have a spare fuse, you can “borrow” one. Just pick
some feature of your vehicle that you can get along
without
-- like the radio or cigarette lighter -- and
use its fuse, if it is the size you need. Replace it as
soon as you can.
Before replacing
a fuse, turn every vehicle electrical
switch
off.
Instrument Panel Fuse Block
This fuse box is under the left side of the instrument
panel. The fuses here protect each separate circuit
There are two fuse blocks
in your vehicle: the instrument
including headlamps. If you have failure,
panel fuse block and the engine compartment fuse block.
check here
6-59
ProCarManuals.com

Main Fuse Block
The main fuse box in your engine compartment protects
all electrical loads.
For access
to the main fuses, pull off the cover. A spare
fuse
is also inside the fuse box.
Fuse
BATT
ABS
IG
LAMP
H/L,
R
H/L, L
FI
AIC
Usage
All Electrical Load
Anti-Lock Brake System
Ignition, Lighter, Radio, Wipermasher,
Rear Defogger, Turn Signals, Back-up
Lamps, Heater
Taillamps, Dome Lamps, Stop Lamps, Horn,
Hazard Lamps
Right Side Headlamp
Left Side Headlamp
Fuel Injection System
Air Conditioning
6-61
ProCarManuals.com

Replacement Bulbs
Center High-Mounted Stop ................. 921
Dome
........ GM Part No. 96051559 or equivalent
Front Parking and Turn Signal
........... 11 57 NA
Headlamp (Halogen) ..................... 9004
Rear Hazard and Turn Signal
............... 1156
Rear Parking and Stop
.................... 1157
Sidemarker
.............................. 194
Capacities and
Engine
Type ............
Specifications
........................ L4
Compression Ratio ....................... 9.5: 1
Firing Order
.......................... 1-3-4-2
Horsepower
.............................. 95
Fuel Delivery .................... Fuel Injection
Piston Displacement
............... 97 CTD (1.6L)
Valve Arrangement
............ In-Head “V” Type AC
Belt Tension
........ Deflect Belt 0.24-0.3 inch
(6-9 mm)
@ 22 lbs. (10 kg) Pressure
Fan Belt Tension
Inspection
.......... Deflect Belt 0.24-0.32 inch
(6-8 mm)
@ 22 lbs. (10 kg) Pressure
Replacement
........ Deflect Belt 0.20-0.28 inch
(5-7 mm)
@ 22 lbs. (10 kg) Pressure
Specification
................... 180” F (82 O C)
Thermostat Temperature
Replacement Parts
Air Cleaner Filter ................. 13780-58k20
GM Part No. 96068629 or equivalent
Battery
....... .................... 26R-50s
Engine
Oil Filter .......... GM Part No. 25014441
Fuel Filter
..................... AC Type GF571
GM Part No. 96058022 or equivalent
PCV Valve
............... GM Part No. 96058079
or equivalent
Radiator Pressure Cap
............ 13 psi (90 kPa)
Spark Plug
................... AC Type R43XLS
Gap: 0.028-0.032 inches
(0.7-0.8 mm)
ProCarManuals.com
