1997 CHEVROLET SUBURBAN CD changer

Horn Multifunction Lever
Push
on the air bag module in the center of the steering
wheel to sound the horn.
Tilt Wheel (If Equipped)
A tilt steering wheel allows
you to adjust the steering
wheel before you drive.
You can
also raise it to the highest level to give your
legs more room when you enter and exit the vehicle.
To tilt the wheel, hold the steering wheel and pull the
lever. Move the steering wheel to
a comfortable level,
then release the lever to lock the wheel in place. The lever
on the left side of the steering column
includes your:
0 Turn Signal and Lane Change Indicator,
0 Headlamp HighLow Beam Changer,
0 Windshield Wipers,
0 Windshield Washer and
0 Cruise Control (If Equipped).
2-33
ProCarManuals.com

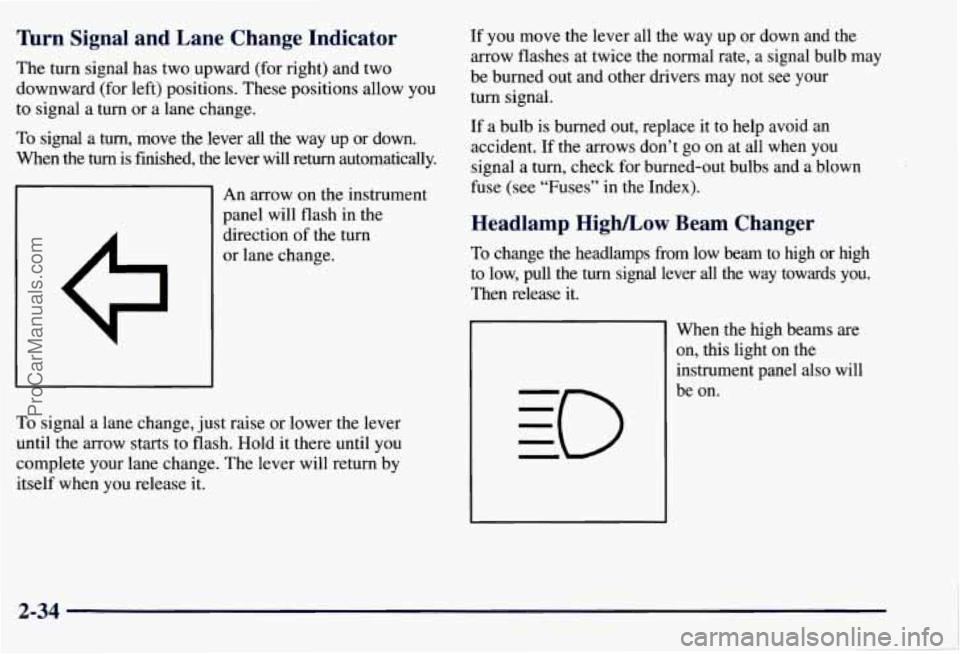

Thrn Signal and Lane Change Indicator
The turn signal has two upward (for right) and two
downward (for left) positions. These positions allow you
to signal a turn or a lane change.
To signal a turn, move the lever all the way up or down.
When the
turn is finished, the lever will return automatically.
Q
An arrow on the instrument
panel will flash in the
direction of the
turn
or lane change.
To signal a lane change, just raise or lower the lever
until the arrow starts to flash. Hold it there until
you
complete your lane change. The lever will return by
itself when you release it. If
you move the lever all the way up or down and the
arrow flashes at twice the normal rate, a signal bulb may
be burned out and other drivers may not see your
turn signal.
If a bulb is burned out, replace it to help avoid an
accident. If the arrows don’t go on at all when you
signal a
turn, check for burned-out bulbs and a blown
fuse (see “Fuses” in the Index).
Headlamp High/Low Beam Changer
To change the headlamps from low beam to high or high
to low, pull the turn signal lever
all the way towards you.
Then release it.
When the high beams are
on, this light on the
instrument panel also will
be on.
2-34
ProCarManuals.com

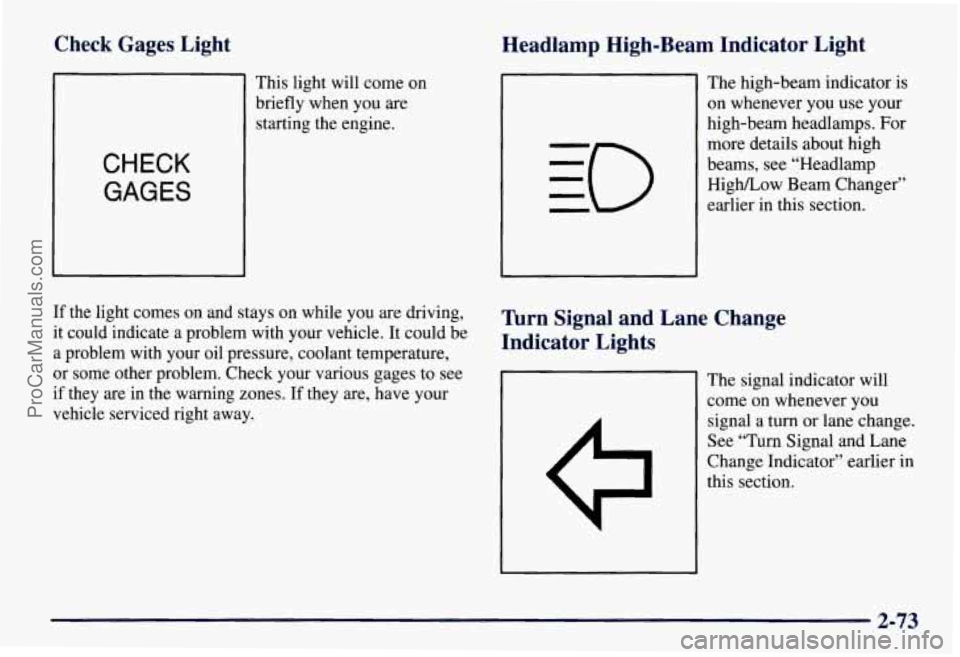

Check Gages Light Headlamp High-Beam Indicator Light
CHECK
GAGES
This light will come on
briefly when you are
starting the engine. The
high-beam indicator is
on whenever you use your
high-beam headlamps. For
more details about high
beams, see “Headlamp
HighLow Beam Changer”
earlier in this section.
If the light comes on and stays on while
YOU are driving, Turn Signal and Lane Change
it could indicate a problem with your vehicle. It could be
a problem with your oil pressure, coolant temperature,
or some other problem. Check your various gages
to see
signal a turn
or lane change.
vehicle serviced right
away. come on whenever
you
if they are in the warning zones. If they are, have your The signal indicator
will
See “Turn Signal and Lane
Change Indicator” earlier in
Indicator Lights
this section.
2-73
ProCarManuals.com

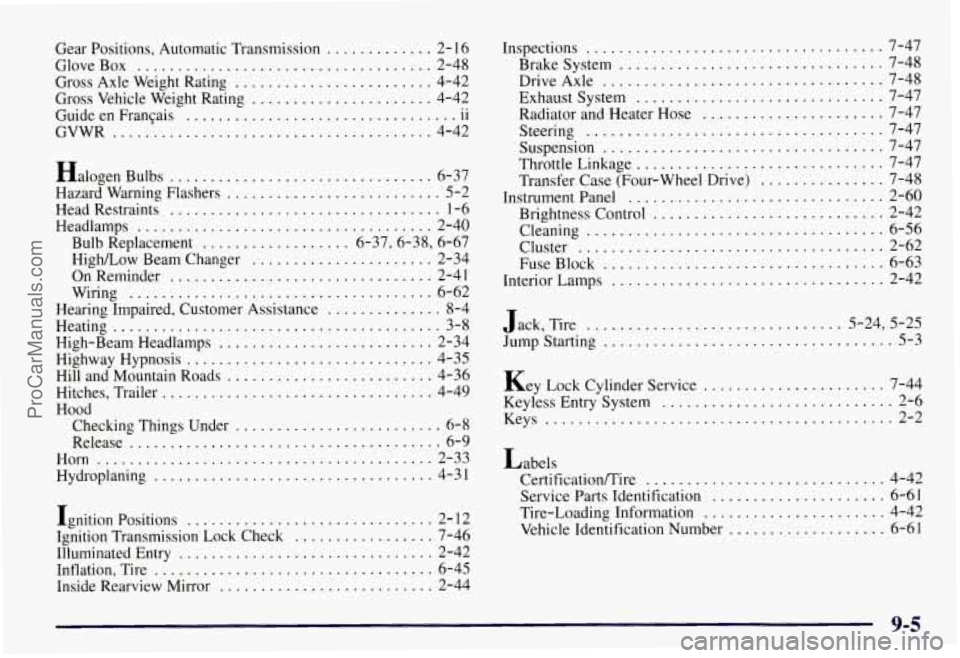

Gear Positions. Automatic Transmission ............. 2- 16
Gross Axle Weight Rating
........................ 4-42
Gross Vehicle Weight Rating
...................... 4-42
Guide en Franqais
11
GloveBox .................................... 2-48
.. .................................
GVWR ....................................... 4-42
Halogen Bulbs
................................ 6-37
Hazard Warning Flashers
.......................... 5-2
Head Restraints
................................. 1-6
Headlamps .................................... 2-40
Bulb Replacement
.................. 6-37,6-38, 6-67
High/Low Beam Changer
...................... 2-34
On Reminder
................................ 2-41
Wiring
..................................... 6-62
Hearing Impaired, Customer Assistance
.............. 8-4
Heating
........................................ 3-8
High-Beam Headlamps
.......................... 2-34
Highway Hypnosis
.............................. 4-35
Hill and Mountain Roads
......................... 4-36
Hitches, Trailer
................................. 4-49
Hood Checking Things Under
......................... 6-8
Release
...................................... 6-9
Horn
......................................... 2-33
Hydroplaning
.................................. 4-31
Ignition Positions
.............................. 2- 12
Ignition Transmission Lock Check
................. 7-46
Illuminated Entry
............................... 2-42
Inflation, Tire
.................................. 6-45
Inside Rearview Mirror
.......................... 2-44 Inspections
.................................... 7-47
Brakesystem
................................ 7-48
DriveAxle
.................................. 7-48
Exhaust System
.............................. 7-47
Radiator and Heater Hose
...................... 7-47
Steering
.................................... 7-47
Suspension
.................................. 7-47
Throttle Linkage
.............................. 7-47
Transfer Case (Four-wheel Drive)
............... 7-48
Instrumentpanel
............................... 2-60
Brightness Control
............................ 2-42
Cleaning
.................................... 6-56
Cluster
..................................... 2-62
FuseBlock
.................................. 6-63
Interior Lamps
..................... ....... 2-42
Jack, Tire
............................... 5-24, 5-25
Jump Starting
................................... 5-3
Key Lock Cylinder Service
...................... 7-44
Keyless Entry System
............................ 2-6
Keys
............... .................... 2-2
Labels Certificatioflire
............................. 4-42
Service Parts Identification
..................... 6-61
Tire-Loading Information
...................... 4-42
Vehicle Identification Number
................... 6-61
9-5
