1997 CHEVROLET S10 Owners Manual

Downloaded from www.Manualslib.com manuals search engine HOW to Add Fluid Manual TransmisSion Fluid
Referto- the. M-aintenance Schedule t~ dtztermirie. what
kind of- tram~ssion fluid to. me. See “Recommended
Fluids and Lubricants:” in. the Index.
Add fluid only after checking tktrmsmission fluid HOT.
(A COLD check is used .only as a reference.) If the fluid
levd is low, add Only enough of the proper flvid. to bring
the le,vel up t.0 the HOT area fora hat check. It doesdt
take much fluid, ,generally less than Qne pint (0.5 L).
Don t ove.$ll.
NOTICE:
We recommend you use only fluid labeled
DEXRON@-III, because. fluid with that label is
made especidy
for-. your automatic transmission.
.Damage caused.
by fluid other than DEXRON-111
is not covered by y.our new vehicle warranty.
After srddiag fluid-, recheck the fluid Ievel as
When the-correct fluid level Ls obtained, .push the
described under “How to Check.”
dipstick back
in all the way; then flip the handle
down
to lock the dipstick in place.
A good time to have it checked is when-the engine
oil is changed. However, the fluid in your manual
transmission doesn’t require charging..
How to Check
Because this operation can be a little difficult, you
may choose to have this done at.you-r GM dealership
Service Department.
‘If YOU do it yourself, be sure. to follow all the
instructions here, or
you could ge.t a false reading,
NOTICE:
Too much or too little-fluid can damage your
transmission.
Too much can mean that same: u1
the fluid could come; out and fall on hot engine.
parts
or exhaust system p-arts, starting a fire. Be
sure
to get an accurate reading if you check your
tranqmission fluid.

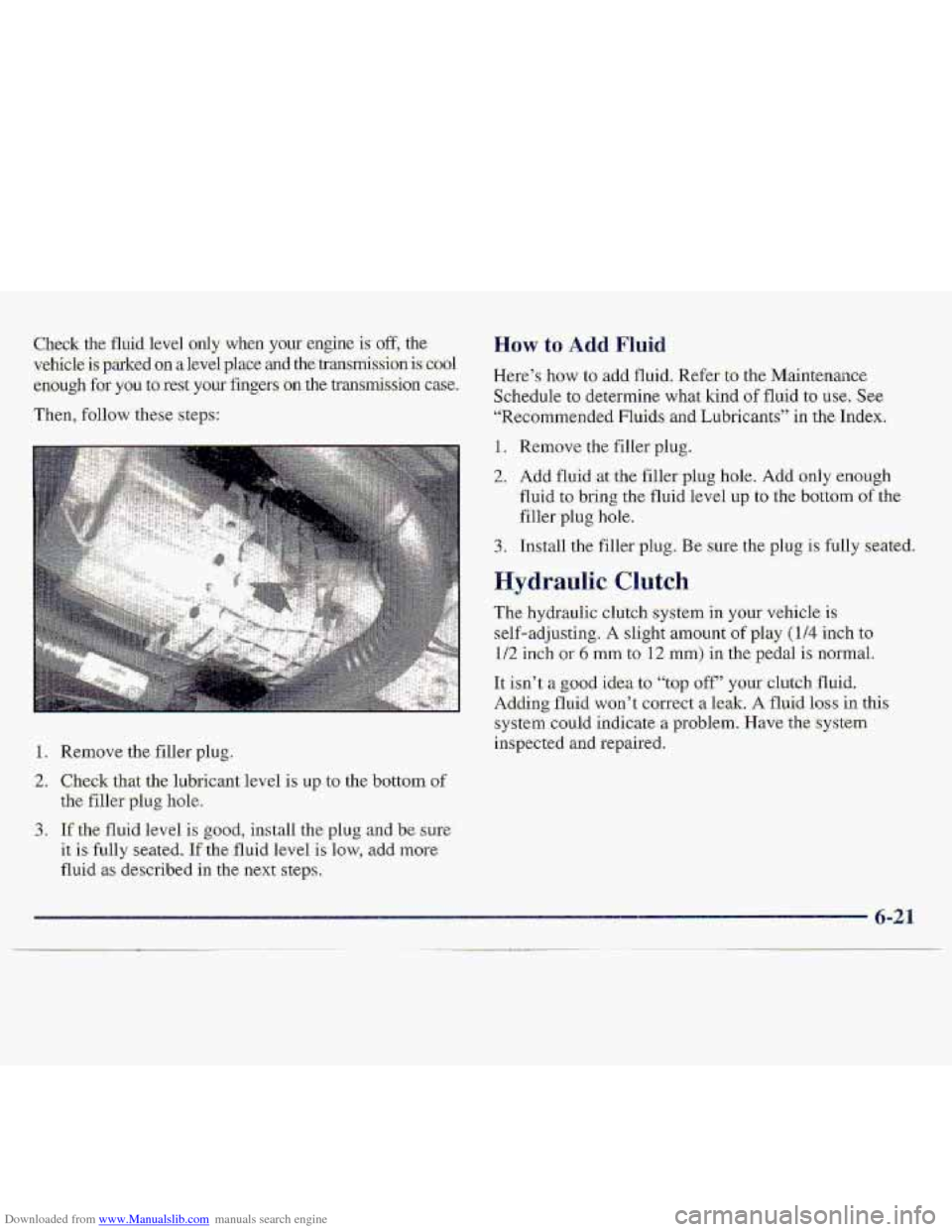

Downloaded from www.Manualslib.com manuals search engine %heck the fluid level only when your engine is .off, the
vehi-dle is parked on a level place and the lrtrarrsI’nissionisCool
e’nough
for you torest your fingers :on the transmissision case.
Then, follow these steps:
1. Remove the filler plug.
2. Check that the lubxicant level is up.to the bott,om ~f
the fill&- plug hdle.
H-OW to Add Fluid
Here’s how to add fluid. Refer-to the Mailiteaance
Schedule
to determine what kind of fluid to use. See
“Recommended Fluid-s and Lubricants” in the Index.
1. Remove the filler plug.
2. Add fluid at the filler plug ho1.e. Add ~nIy enough
fluid to bring the fluid level up to th-e bottom of the
filler plug-
hole.
3. Install the filler plug. Be sure the plug is fully seated.
Hydraulic Clutch
The hydfaulic clutch system in your vehicle is
self-adjusting. A slight amount of play (1/4 inch .to
1/2 inch or 6 rnm to 12 mm) in the p.edal is normal.
It isn’t a gaod ‘idea to “top off” your -clutch..fluid,,
Ad,dingfluid won’t correct a leak. A fluid loss in this
system could indicate-a poblem. Have the :syste.m
inspected and repaired.
5. If’b-fl uid level is good,. install the plug adbe. sur&.
it is .ft111y seated. Fthe fluid level is low, add more
fluid as described in the next steps.
-6-21

Downloaded from www.Manualslib.com manuals search engine When to Check and What to Use Rear Axle
When to Check and Change Lubricant
R.efer to the Maintenance Schedule to determine how
often
.to check the 1ubric.ant and when to chaage it. See
“ScheduIed Maintenance Services” in the 1ndk.x.
How to Check Lub.ricant
Refer to .the M-aintenance- Schedule, Owner Checks and
Services, to determine. how often you: should check the
fluid he1 in your clutch master cylinder reservoir and for
the
proper fluid. See “Owner Checks and Services” ad
“Fkcommended Fluids and Lubricants” In the Index.
How to Check
The proper fluid should be addeif$the‘levei does not
reach the battornof the diaphragm when it’s in place in
the reservoir. See the instructions on the re-servoir cap. If
the level
is below the bottom of.the filler plug hole,
you’ll need to add som lubricant. Add enough lubricant
to raise, the level to the bottom of the filler plug hole.
6-22

Downloaded from www.Manualslib.com manuals search engine What to Use
Refkr to the Mainteriance Schedule to determine- what
kind
of lubricant to use., See “Remmmended Fluids and
Lubricants” in the Index.
Four- Wheel Drive
Most lubricant checks in this section also apply to
four-wheel-drive vehicles. However, they have
two additional systems that need lubrication.
Transfer Case
When to Check Lubricant
Refer to the Maintenance Schedule to determine how
often to check the lubricant.
See “Periodic Maintenance
Inspections” in the Index.
How to Check Lubrimnt
If the level is below the bottom of the. filler plug hole,
you’ll need to add some lubricant. Add enough lubricant
to raise the level to the bottom of the filler plug hole.
What to Use
Refer to the Maintenance Schedule to determine what
kind
of lubrican-t-to use. See “Recommended Fluids and
Lubricants” in the Index.

Downloaded from www.Manualslib.com manuals search engine Front Axle

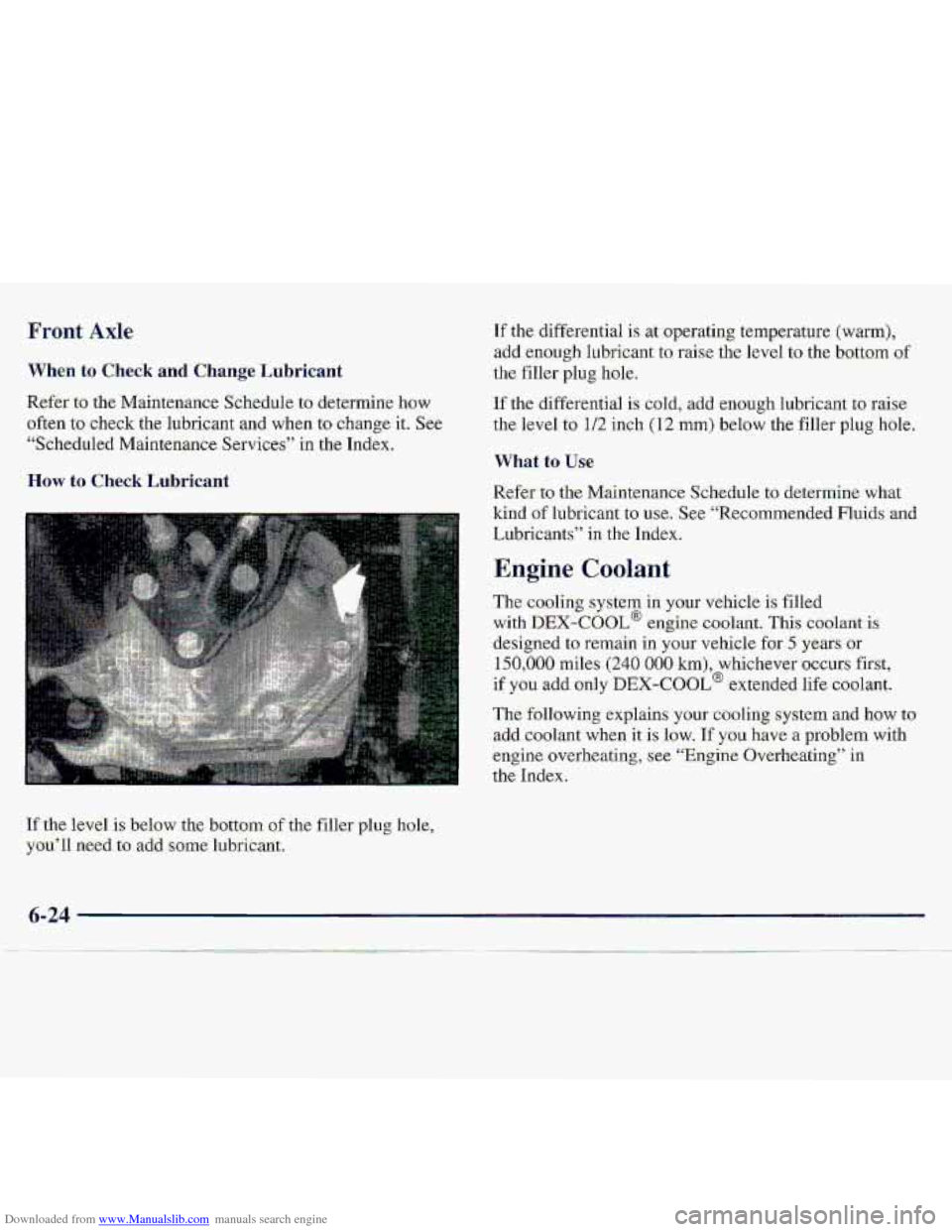

When to Check and Change Lubricant
Referto the Maitltenance Schedule -to determine haw
often to check the lubricant and when to change it. See
“Scheduled Maintenance S-ervic-es” in the Index.
HOW to Check Lubricant
If the 1ev.el is below -the bottom of the filler plug hole,
youfll need to add some lubricant.
If the differential is at aperating temperature (warm),
add enough lubricant to ,raise the level to the bottom of
the filler plug hole,
If the differe.ntia1 is. cold, add enough lubricant to raise-
the level
to 1/2 inch ( 12 mm) below the filler plug hole.
What to Use
Refer to the Maintenance Schedule to determirie what
kind
of lubricant to use. See “Recommended Fluids and
Lubricants” in the Index.
Engine C,oolant
The cooling system in your vehicle is filled
with
DEX-COOL@ engine coolant. This coolant is
designed to remain in your vehicle for:5 year$ or
150,000 miles (240 000 km), whicheveroccurs first,
if you add only DEX-COOL@ extended life coolant.
The fdIowing explains
your .coaling system and how to
add coolant when
it is-10~~ If YQU have a problem with
engine overheating,
see “Engine Overheating’’ in
the Index.
6-24

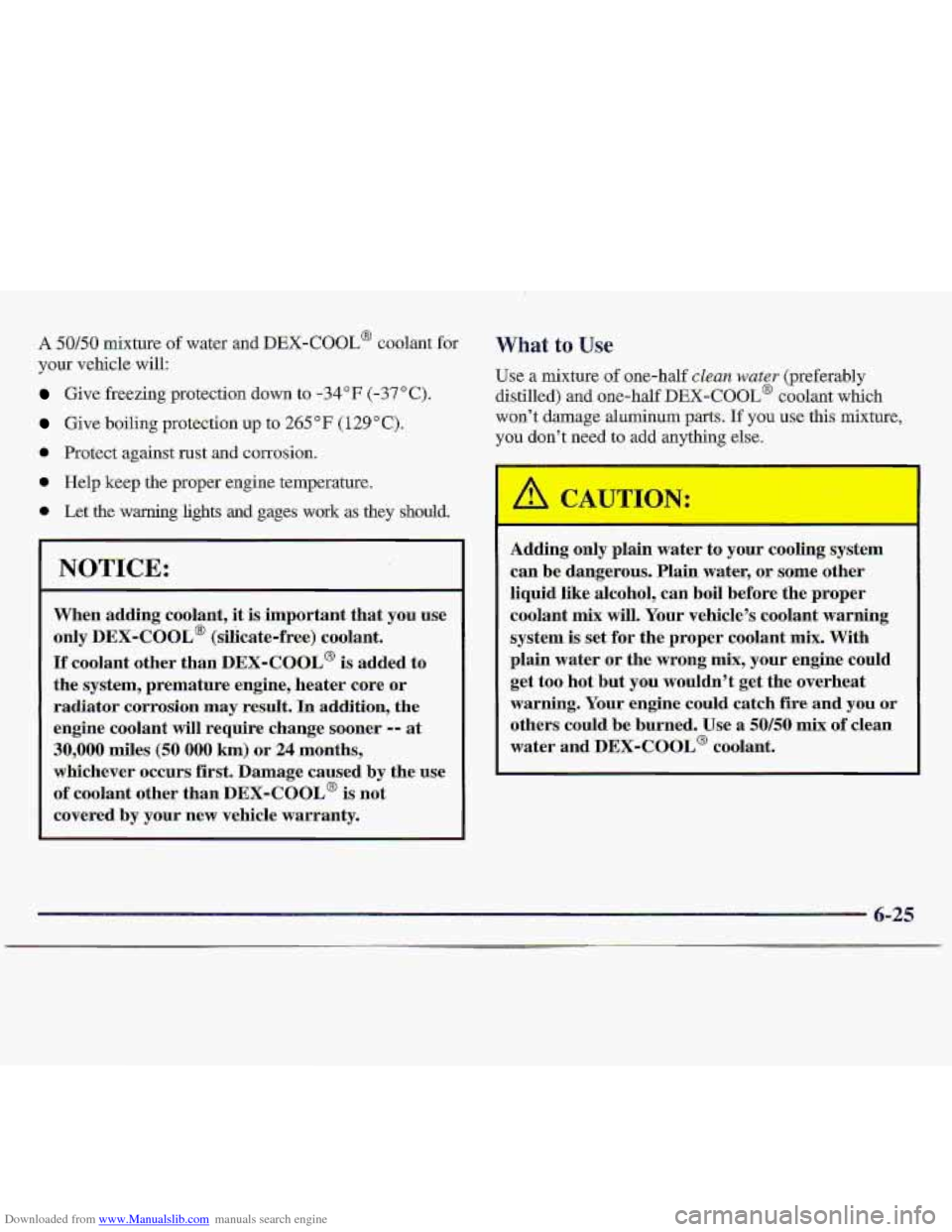

Downloaded from www.Manualslib.com manuals search engine A :50/50 mixture of water and DEX-COOL@ coolant far
your vehicle will:
Give freezing protection down to -34°F (-37°C).
Give boiling protection up to-265'0F (129 "C).
0 Protect against rust and corrosion.
0 Help keep the proper engine temperature.
0 Let the whg lights and gages work as they should.
NOTICE:
When adding. coolant, It is important that you use
only DEX--COOL@ (s&ate-&ee) coolant.
Tf co.olant other than DEX-COOL@ is added to
the system, premature. engine, heater core
or
radiator corrosion may result. In addition, the
engine coolant will require change sdoner
-- at
30,000 miles (SO 000 km) .or 24 months,
whichever occurs first. Damage caused by the use
of coolant other than DEX=COOL@ is not
covered by your new vehicle warranty.
W.hat to Use
Use a mixture of one-half clean water (preferably
distilled) and one-half
DEX-COOL' coolant which
won't
damage aluminum parts. If YOU use this mixture,
you don't need
to add anything else.
Adding only plain water to your co ng system
can be dangerous.
Plain water, or some other
Iiquid.like alcohol, can boil before the proper
coolant mix will. Your vehicle's coolant warning
system is set
for the proper coolant mix. With
plain water or the wrong mix, your engme could
get too hot but you wouldn't get the overheat
warning. Your engme
c:onld catch -6re and you or
others could be burned. Use a 50/50 mix of clean
water and
DEX=COOLQ coolant.
6-25

Downloaded from www.Manualslib.com manuals search engine NOTICE:
If you .use an improper coolant mix, your engine
conld overheat and be badly damaged.
The
repair cost wouldn’t be covered by pur
warranty.
Too much water in the mix can freeze
and crack the
engine, radiator, heater core and
other
parts.
If you have. to add. coolant more than four times a year,
have your dealer check. your cooling system.
NOTICE:
If yon use. the proper coolant, you don’t have to
add
extra inhibitors or additives which claim to
improve the system. These can
be harmful.

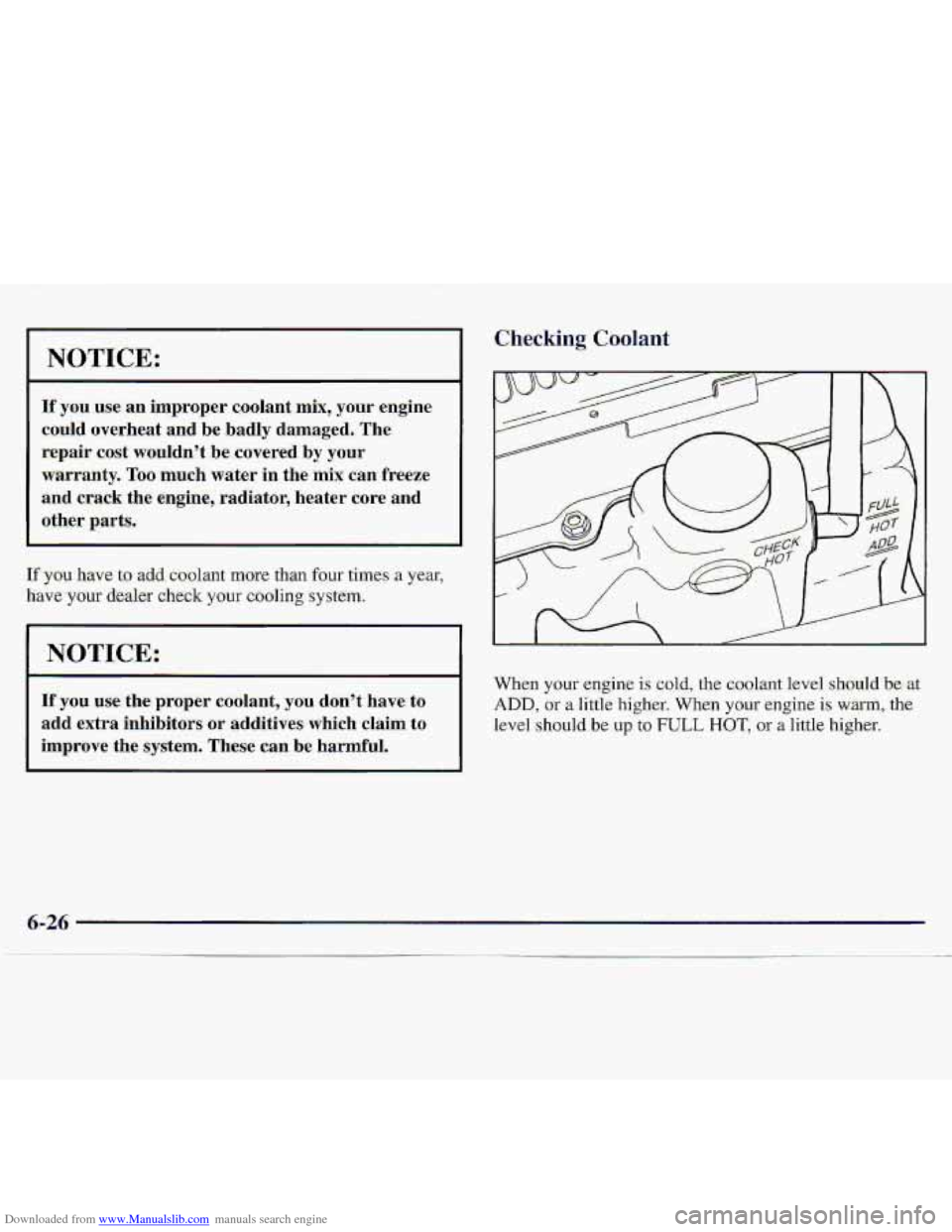

Checking Coolant
When your engine i.s cold, the coolant level should be at
ADD, or a little higher. When your engine is warln, the
level should be up to FULL H.OT, or a little higher.
6-26

Downloaded from www.Manualslib.com manuals search engine Turning the radiator. pre$sare c&p when the
engine and radiator are. hot can. allow steam and
scalding liquids to.-blow
out. and burn y,ou b-adly.
With
the coolant recovery tank, you will alm.ost
neve-r have- t.0 add coolant at the radiator.
Never turn the radiator? pressure cap -- even a
little -- when the engine and radiator are hot.
.Add coolant mixture at the recovery tank; bdt be c-ap$ul
riot to spill.it.
Yh an be Bmmd. if fl~~splsill coolant OM hot
engine parts.
Coolant contains ethylene glycol,
and it will b.urn if the -engine pafts are hot
enoggh. D.on’t
spill coolant-.on a hQt engine.,
