1997 CHEVROLET CAVALIER hood release

Downloaded from www.Manualslib.com manuals search engine Your instrument panel is designed to let you know at a glance how your vehicle is running. You’ll know how fast
you’re going, how much fuel is left
in the tank, and many other things you’ll need to drive safely and economically.
The main components
of your instrument panel are:
1. Instrument Panel Intensity Control
2. Turn Signal/Multifunction Lever
3. Hazard Warning Flashers Switch
4. Ignition Switch
5. Windshield Wipermasher Controls
6. Audio System
7. Climate Controls and Rear Window Defogger
8. Ashtray
9. Parking Brake Lever
10. Tilt Steering Wheel Lever (If Equipped)
1 1. Hood Release Lever
12. Fuse Panel

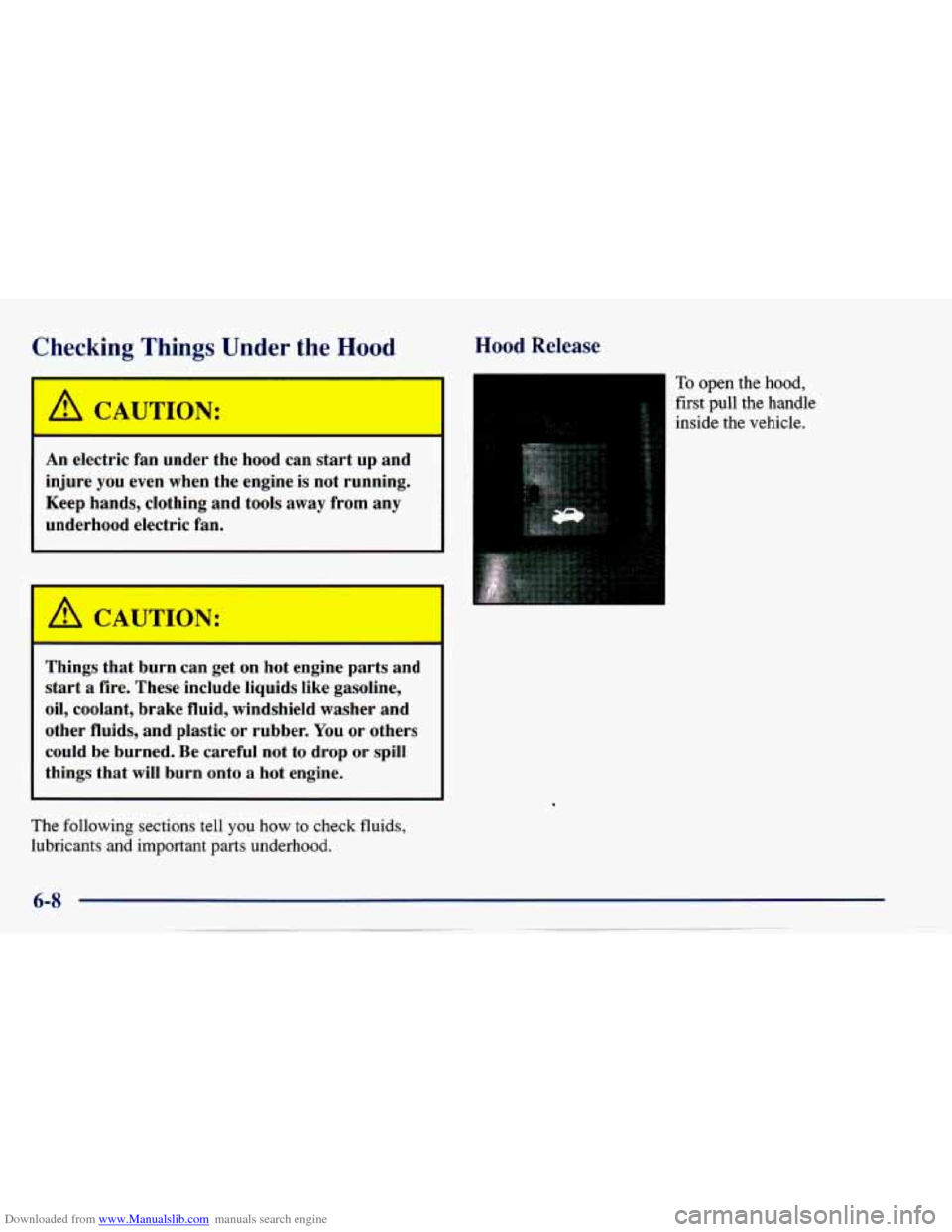

Downloaded from www.Manualslib.com manuals search engine Checking Things Under the Hood Hood Release
To open the hood,
first pull the handle
inside the vehicle. A CAUTION:
An electric fan under the hood can start up and
injure you even when the engine is not running.
Keep hands, clothing and tools away from any
underhood electric fan.
I A C IUTION:
that rn can get on hot t jne parts and
start a fire. These include liquids like gasoline,
oil, coolant, brake fluid, windshield washer and
other fluids, and plastic or rubber.
You or others
could be burned. Be careful not to drop or spill
things that will burn onto a hot engine.
The following sections tell you how to check fluids,
lubricants and important parts underhood.

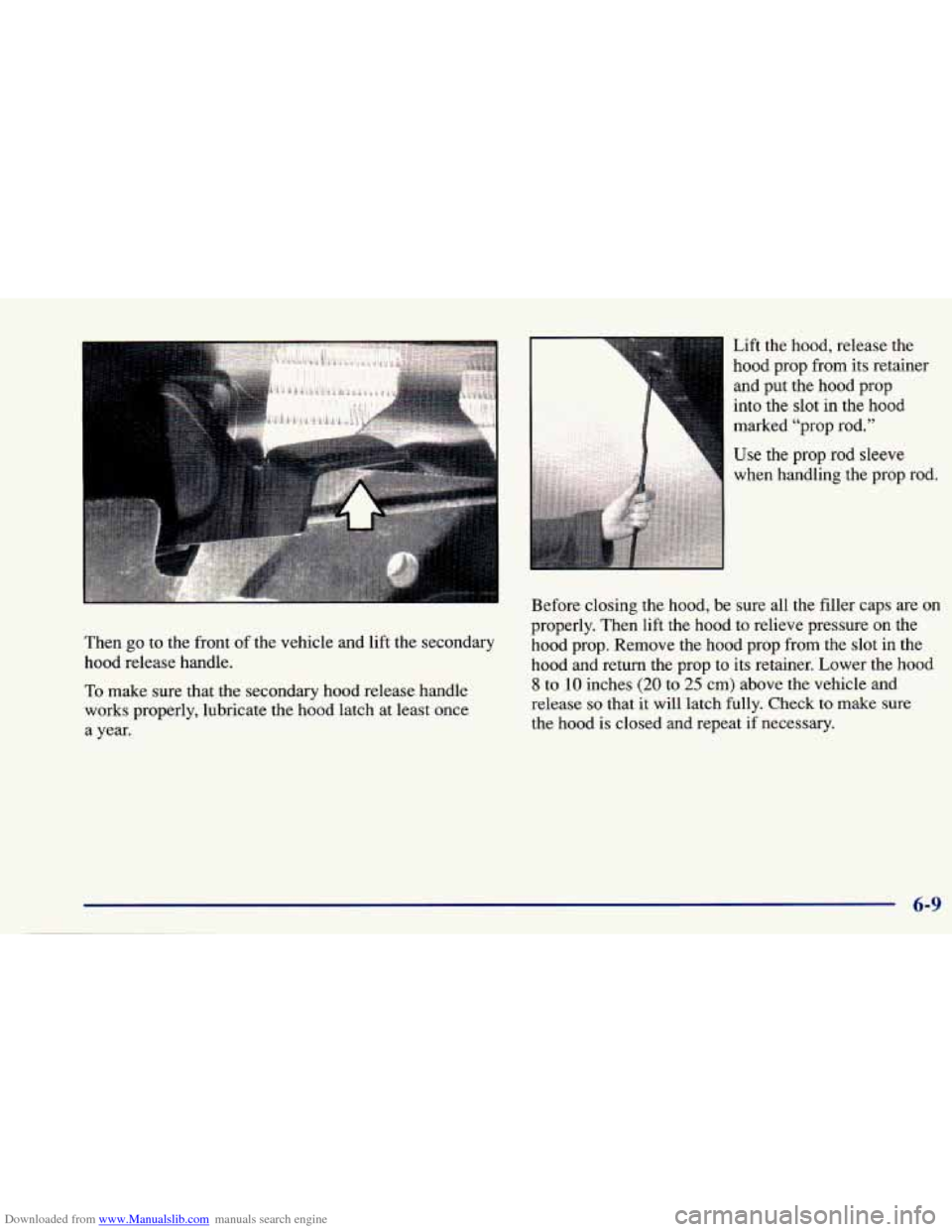

Downloaded from www.Manualslib.com manuals search engine Then go to the front of the vehicle and lift the secondary
hood release handle.
To make sure that the secondary hood release handle
works properly, lubricate the hood latch at least once
a year. properly.
Then lift the hood
to relieve pressure on the
hood prop. Remove the hood prop
from the slot in the
hood and return the prop to its retainer. Lower the hood
8 to 10 inches (20 to 25 cm) above the vehicle and
release
so that it will latch fully. Check to make sure
the hood
is closed and repeat if necessary.
6-9
-.

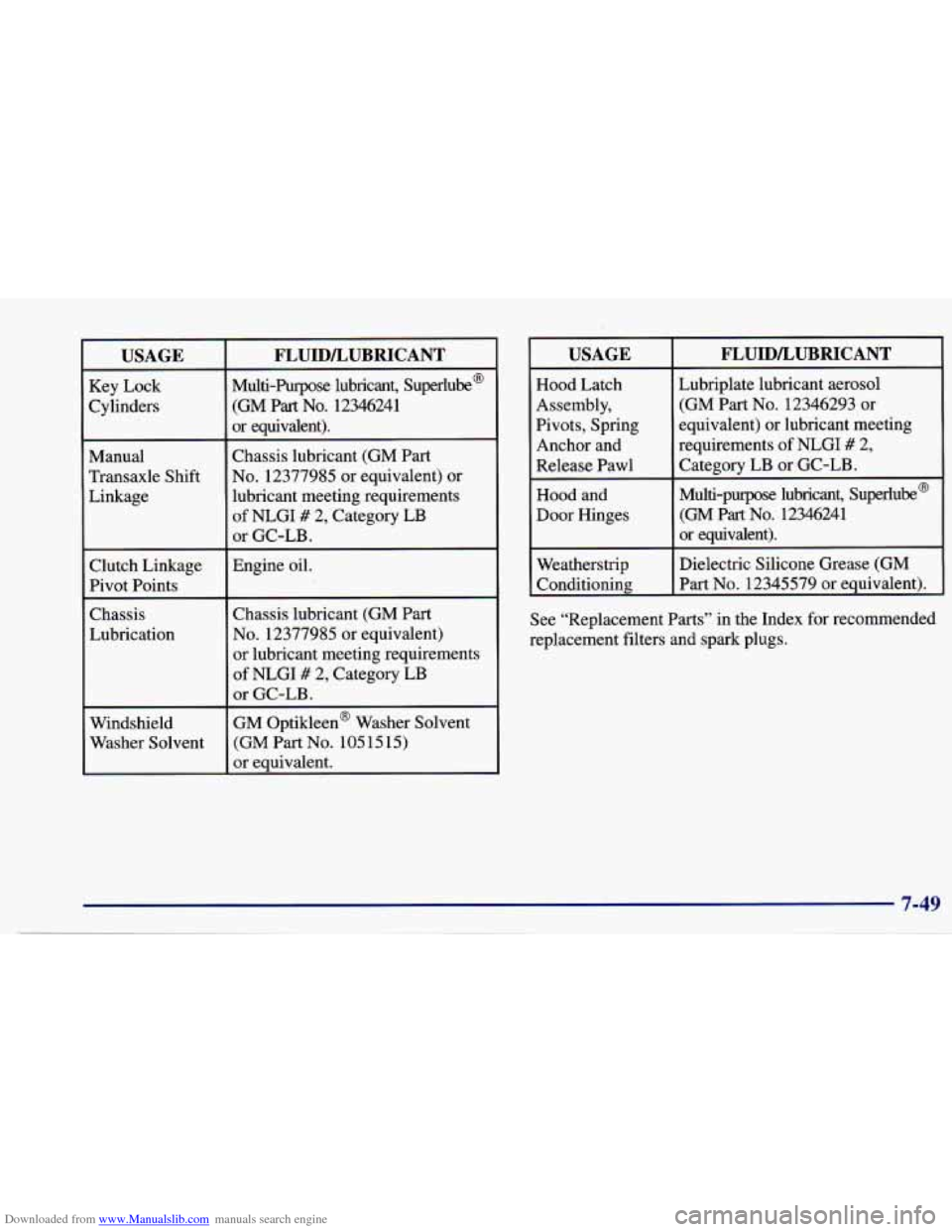

Downloaded from www.Manualslib.com manuals search engine USAGE
Key Lock
Cylinders
Manual
Transaxle Shift
Linkage
Clutch Linkage
Pivot Points Chassis
Lubrication
Windshield
Washer Solvent
FLUIDLUBRICANT
Multi-Purpose lubricant, Superlube@
(GM
Part No. 12346241
or equivalent).
Chassis lubricant (GM Part
No. 12377985 or equivalent) or
lubricant meeting requirements
of NLGI # 2, Category LB
or GC-LB.
Engine oil.
Chassis lubricant (GM Part
No. 12377985 or equivalent)
or lubricant meeting requirements
of NLGI
# 2, Category LB
or GC-LB.
GM Optikleen@ Washer Solvent
(GM Part No. 1051515)
or eauivalent.
USAGE
Hood Latch
Assembly,
Pivots, Spring
Anchor and Release Pawl
Hood and Door Hinges
Weatherstrip
Conditioning
FLUIDLUBRICANT
Lubriplate lubricant aerosol
(GM
Part No. 12346293 or
equivalent) or lubricant meeting
requirements of NLGI
# 2,
Category LB or GC-LB.
Multi-purpose lubricant, Superlube@ (GM
Part No. 12346241
or equivalent).
Dielectric Silicone Grease
(GM
Part No. 12345579 or equivalent).
See “Replacement Parts” in the Index for recommended
replacement filters and
spark plugs.

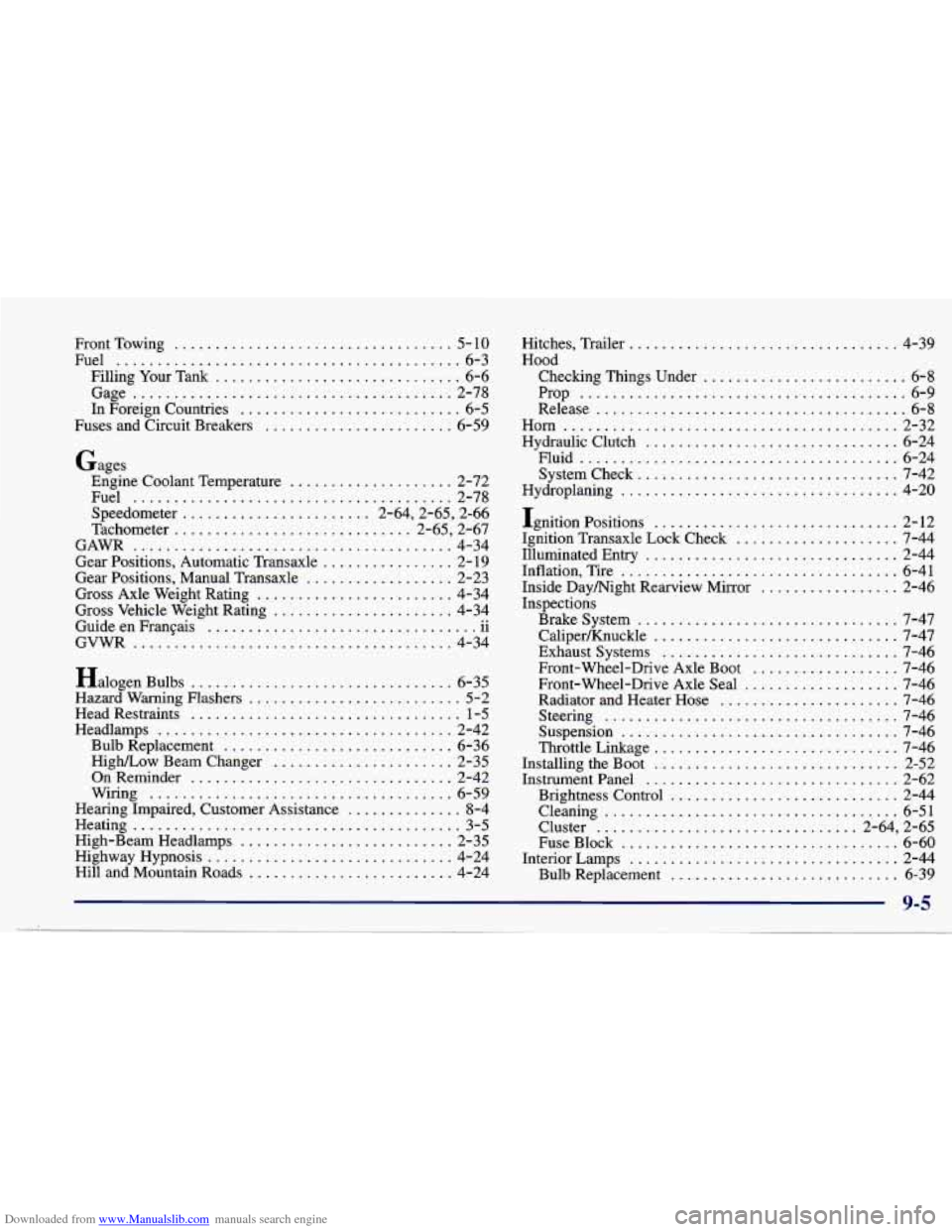

Downloaded from www.Manualslib.com manuals search engine FrontTowing .................................. 5-10
Fuel .......................................... 6-3
Filling Your Tank
.............................. 6-6
Gage ....................................... 2-78
In Foreign Countries
........................... 6-5
Fuses and Circuit Breakers ....................... 6-59
Gages Engine Coolant Temperature
.................... 2-72
Fuel
....................................... 2-78
Speedometer
....................... 2-64.2-65. 2.66
Tachometer
............................. 2.65. 2.67
GAWR
....................................... 4-34
Gear Positions. Automatic Transaxle
................ 2- 19
Gear Positions. Manual Transaxle
.................. 2-23
Gross Axle Weight Rating
........................ 4-34
Gross Vehicle Weight Rating
...................... 4-34
Guide en Frangais
11 .. .................................
GVWR ....................................... 4-34
Halogen Bulbs
................................ 6-35
Hazard Warning Flashers
.......................... 5-2
Head Restraints
................................. 1-5
Headlamps .................................... 2-42
Bulb Replacement
............................ 6-36
High/Low Beamchanger
...................... 2-35
OnReminder
................................ 2-42
Wiring
..................................... 6-59
Hearing Impaired. Customer Assistance
.............. 8-4
High-Beam Headlamps
.......................... 2-35
Highway Hypnosis
.............................. 4-24
Hill and Mountain Roads
......................... 4-24
Heating
........................................ 3-5 Hitches.
Trailer 4-39
Hood Checking Things Under
......................... 6-8
Release ...................................... 6-8
Hydraulic Clutch ............................... 6-24
Fluid
....................................... 6-24
..
.................................
Prop ........................................ 6-9
Horn ......................................... 2-32
System Check
................................ 7-42
Hydroplaning
.................................. 4-20
Ignition Positions
.............................. 2-12
Ignition Transaxle Lock Check
.................... 7-44
Inflation, Tire
.................................. 6-41
Inside Daymight Rearview Mirror
................. 2-46
Inspections Brakesystem
................................ 7-47
Caliper/Knuckle
.............................. 7-47
Exhaust Systems
............................. 7-46
Front-Wheel-Drive Axle Boot
.................. 7-46
Front-Wheel-Drive Axle Seal
................... 7-46
Radiator and Heater Hose
...................... 7-46
Steering
.................................... 7-46
Suspension
.................................. 7-46
Throttle Linkage
.............................. 7-46
InstrumentPanel
............................... 2-62
Brightness Control
............................ 2-44
Cleaning
.................................... 6-51
Cluster
................................ 2-64, 2-65
FuseBlock
.................................. 6-60
Interior Lamps ................................. 2-44
Bulb Replacement ............................ 6-39
Illuminated Entry
............................... 2-44
Installing the Boot
.............................. 2-52
9-5
