1997 CADILLAC DEVILLE key

Downloaded from www.Manualslib.com manuals search engine 4. Replace the bulb by pressing and turning it
counterclockwise.
5. Once you have installed the new bulb and socket into
the lamp housing, insert the tab on the lower portion
of the lamp housing first, then gently fit the rest of
the housing in place.
Windshield Wiper Blade Replacement
It’s a good idea to clean or replace the wiper blade
assembly on a regular basis or when worn. For proper
windshield wiper blade length and type, see “Normal Maintenance Replacement Parts” later in this section.
To
replace the wiper blade assembly:
1. Turn the ignition key to ACCESSORY and turn the wipers on. Position the wipers
on the windshield in
the
“mid” wipe position. Then with the door open,
turn the key to
OFF.
2. Insert a screwdriver into the slot as shown and press
down to release the wiper blade assembly.
3. Align the wiper arm pin with the hole on the wiper
blade assembly and snap it into place to install.
6-39

Downloaded from www.Manualslib.com manuals search engine Rear Compartment Fuse Block
The fuse block is located on the front wall of the trunk
(behind the rear seat) on the driver’s side. Loosen the
four trunk trim fasteners and pull the trim away from the
fuse block to gain access.
, RLY IGN 1 I I SIR I , ELC I I TURN I lGONSOLE1 I BRAKE I I ,
, RSS I IGN , 0-BODY I I COMFORT I I AMP I I PZM I RT/PHOT lCLUSTER,
HTD MIR HTD SEAT R HTD SEAT L PULL DOWN HDLP WASH
, ANTENNA I I RSS I lCONVENCl I BAT I I RSS , I RT PARK I I LT PARK ,
Fuse
RLY IGN1*
SIR
ELC
Usage
Cluster, Cruise in Stalk, PZM, Catalytic Converter Overtemp
Amplifier (Export), TCC Switch
SDM, Left and Ri
.t Door
Sensor
ELC Relay, Vacuum Pump,
ALC Sensor
Electronic Flasher,
Turn/Hazard Switch
- ~~
Fuse
CONSOLE
- -
BRAKE
RSS
IGN 0-BODY
COMFORT
Usage
Rear Zone Blower, Right and
Left Heated Seat Switches
(Optional)
Brake, Vacuum
Pump (VP)
Relay,
VP Motor,
VP Pressure Switch
CV-RTD (CV-RSS)(DeVille Concours Only)
PRNDL, Dual Zone Switch,
PZM, Cluster, Air Control
Module (ACM), Upper Zone
Motor, Lower Zone Motor (Optional), HVAC Solenoids,
Climate Control Panel Analog
Cluster (Console Shift Only),
Rear Defog Relay, ELC Relay
CD Player, Remote Keyless
Entry (RKE), Controlled Power Relay, Air Control Module
(ACM), PZM
6-66

Downloaded from www.Manualslib.com manuals search engine -a*
Section 7 Customer Assistance Information
Here you will find out how to contact Cadillac if you need assistance. This section also tells you how to obtain service
publications and how to report any safety defects.'
7-2
7-4
7-4
7-5
7-7
7-8
7-9 Customer Satisfaction Procedure
Address for Writing to Cadillac
Assistance for Text Telephone (TTY) Users
Cadillac Roadside Service
Roadside Service for the Hearing or
Speech Impaired
Gold Key Courtesy Transportation
Transportation Options 7-11
7- 12
7- 12
7-
13
7- 13
7- 13
7- 14
7- 15
BBB Autoline Information
Warranty Infomation
Reporting Safety Defects to the United States
Reporting Safety Defects to Canada
Reporting Safety Defects to General Motors
Ordering Service Publications in Canada
How to Order Service Publications
Order
Form for Service Publications
7-1

Downloaded from www.Manualslib.com manuals search engine I
Our Cadillac Dealer Technician network is ready and
able to assist Cadillac customers at roadside.
Gold Key Courtesy Transportation
One of your Cadillac Owner Privileges is Gold Key
Courtesy Transportation.
It is just one more example of
Cadillac’s commitment to provide the services you
expect and deserve as a Cadillac owner.
Gold Key Courtesy Transportation helps you get where
you need to be when your Cadillac is in the dealership
for warranty service.*
In Canada, please consult your GM dealer for
information on Courtesy Transportation.
7-8
i I

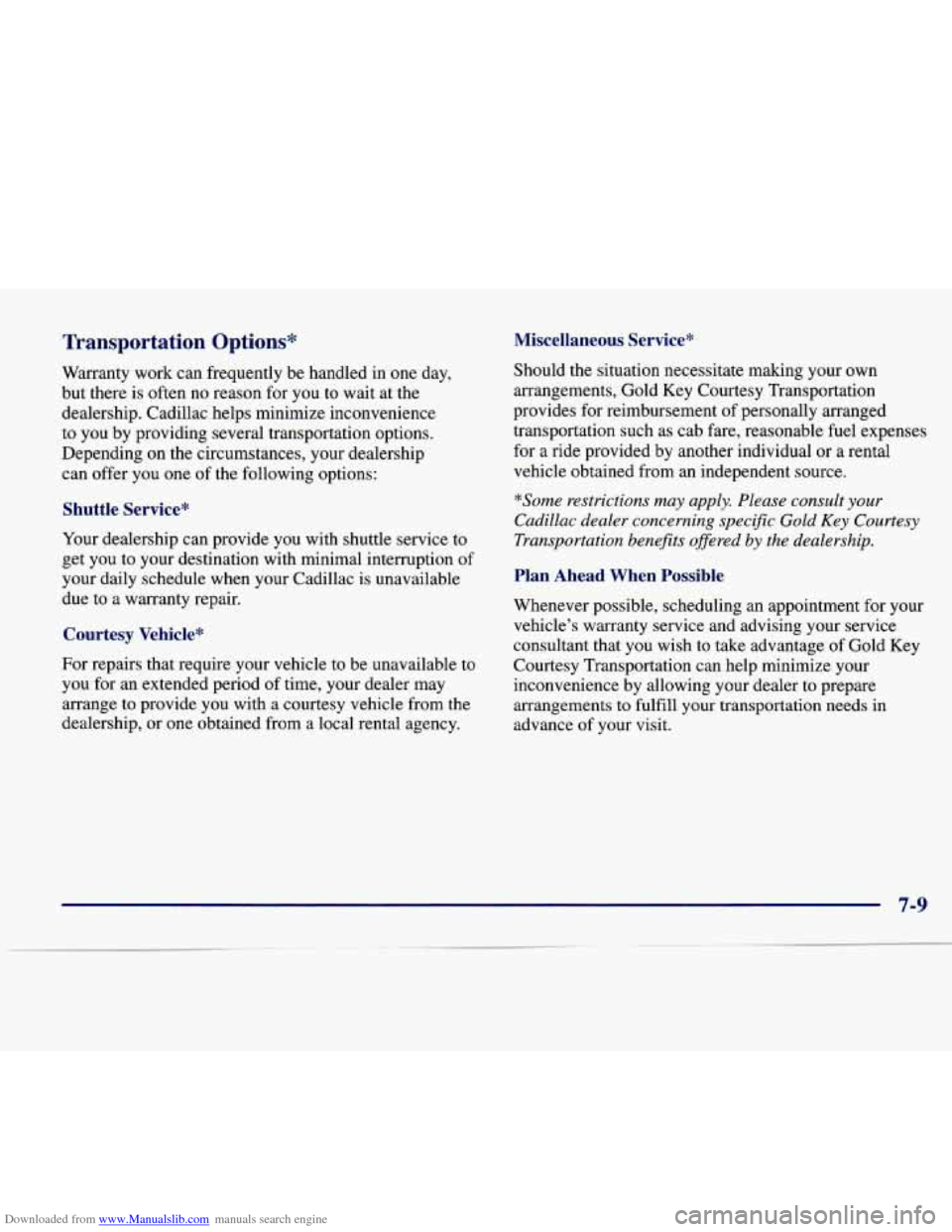

Downloaded from www.Manualslib.com manuals search engine Transportation Options*
Warranty work can frequently be handled in one day,
but there is often no reason for you to wait at the
dealership. Cadillac helps minimize inconvenience
to you by providing several transportation options.
Depending
on the circumstances, your dealership
can offer you one of the following options:
Shuttle Service*
Your dealership can provide you with shuttle service to
get you to your destination with minimal interruption of
your daily schedule when your Cadillac is unavailable
due to a warranty repair.
Courtesy Vehicle*
For repairs that require your vehicle to be unavailable to
you for an extended period
of time, your dealer may
arrange to provide you with a courtesy vehicle from the
dealership, or one obtained from
a local rental agency.
Miscellaneous Service*
Should the situation necessitate making your own
arrangements, Gold Key Courtesy Transportation
provides for reimbursement of personally arranged
ses
transportation
such as cab fare, reasonable fuel expen
for a ride provided by another individual or
a rental
vehicle obtained from an independent source.
*Some restrictions may apply. Please consult your
Cadillac dealer concerning specific Gold Key Courtesy
Transportation benefits ofered by the dealership.
Plan Ahead When Possible
Whenever possible, scheduling an appointment for your
vehicle’s warranty service and advising your service
consultant that you wish to take advantage of Gold Key
Courtesy Transportation can help minimize your
inconvenience by allowing your dealer to prepare
arrangements to
fulfill your transportation needs in
advance of your visit.
7-9
_.

Downloaded from www.Manualslib.com manuals search engine Owner Responsibilities
You are responsible for primary insurance coverage of
the vehicle provided. In many cases, your own auto
insurance policy may provide this coverage under
provisions for rental car agreements. Please consult your
insurance carrier to be certain of what’s covered.
While your dealership will cover the rental expense of
a vehicle provided under the provisions of Gold Key
Courtesy Transportation, you
are responsible for
charges incurred for such items as fuel used, additional
insurance coverage and any taxes or fees levied by state
or local governmental agencies. It
is important that your vehicle be picked up from the
dealership promptly following the completion of your
repairs.
If your vehicle is not picked up from the
dealership within
a reasonable amount of time following
notification from the dealer, you may be responsible
for any additional rental charges incurred as a result
of this delay.
For Canadian Vehicles
In Canada, for warranty repairs during the Complete
Vehicle Coverage period in the New Vehicle Limited
Warranty, interim transportation may be available under
the Courtesy Transportation Program. Please consult your dealer for details.
7-10

Downloaded from www.Manualslib.com manuals search engine Battery ...................................... 6-30
Jump Starting
................................. 5-4
No Charge Message
........................... 2-89
Replacement. Remote Keyless Entry
.............. 2- 11
Volts High Message ........................... 2-89
Volts Low Message
........................... 2-89
Warnings
................................ 5.4. 5.6
Battery Guard Storage ........................... 2-52
Battery Saver
.................................. 2-50
Exterior Lighting
............................. 2-50
Inadvertent Power
............................ 2-52
BBB Auto Line ................................ 7-11
Better Business Bureau Mediation
.................. 7- 11
Brake Adjustment
.................................. 6-29
Fluid
....................................... 6-27
Master Cylinder
.............................. 6-27
Parking
..................................... 2-28
PedalTravel
................................. 6-29
Replacing System Parts
........................ 6-30
System Warning Light
......................... 2-76
Trailer
...................................... 4-36
Transaxle Shift Interlock
....................... 2-33
Wear
....................................... 6-29
Brake Vacuum Problem Message
.................. 2-90
Brakes. Anti-Lock
............................... 4-7
Braking
........................................ 4-6
Braking
in Emergencies .......................... 4- 10
Break-Iny New Vehicle
.......................... 2-20
Brightness Control .............................. 2-50
Bulb Replacement .............................. 6-3 1
BTSI ......................................... 2-33 Capacities
and Specifications
.................... 6-69
Carbon Monoxide
.................... 2.34.4.29. 4.36
Cassette Tape Player
.................. 3.17.3.20. 3.24
Cassette Tape Player Care
........................ 3-31
CeUularTelephone
.............................. 2-63
Center Console Storage Area
...................... 2-60
Center High-Mounted Stoplamp. Bulb Replacement
... 6-37
Central Door Unlocking System
.................... 2-4
Certification Label
.............................. 4-31
Chains. Tire
................................... 6-48
Change Engine Oil Message
...................... 2-90
Change Trans Fluid Message
...................... 2-90
Changing a Flat Tire
............................. 5-25
Charging System Indicator Light
................... 2-75
Check Brake Fluid
Level Message ................. 2-90
Check Coolant Level Message
..................... 2-90
Check Fuel Gage Message
........................ 2-90
Check Oil Level Message
........................ 2-90
Check Washer Fluid Message
..................... 2-91
Checking Your Restraint Systems
.................. 1-48
Chemical Paint Spotting
.......................... 6-56
Child Restraints
................................ 1-37
Securing in a Rear Outside Seat Position
........... 1-39
Securing in the Center Rear Seat Position
.......... 1-41
Securing in
the Right Front Seat Position .......... 1-43
TopStrap
................................... 1-38
Where to Put
................................ 1-37
Chrome Wheels. Cleaning
........................ 6-54
Cassette Tape Player Errors
............. 3.17. 3.20.
3-24
Center Passenger Position
........................ 1-30
Chains. Safety
................................. 4-36
CHMSL
...................................... 6-37

Downloaded from www.Manualslib.com manuals search engine Ethanol ........................................ 6-4
Express-Down Window
.......................... 2-36
Exterior Lighting
............................... 2- 10
Exterior Lighting Battery Saver .................... 2-50
Exhaust, Engine
................................ 2-34
Fabric Cleaning
.......................... 6-49, 6-50
Fan Button
................................. 3-2, 3-6
Filling Your Tank
................................ 6-5
Finish Care
.................................... 6-54
Finish Damage
................................. 6-55
First Gear, Automatic Transaxle
................... 2-28
Flashers, Hazard Warning
......................... 5-2
Flash-To-Pass Feature
........................... 2-38
Flat Tire, Changing
............................. 5-25
Floor Mats
.................................... 2-63
Fluid Capacities
................................ 6-69
Foreign Countries, Fuel
........................... 6-4
Front Storage Armrest
........................... 2-59
Front Towing
.............................. 5-9, 5-11
Front Turn Signal Lamps, Bulb Replacement ......... 6-36
Door Release
............................. 6-5, 6-6
Filling Your Tank
.............................. 6-5
In Foreign Countries ........................... 6-4
Level Low Message
........................... 2-91
Fuses and Circuit Breakers ....................... 6-62
FogLamps
.................................... 2-47
FrenchLanguageManual
........................... ii
Fuel
.......................................... 6-3
DataPanel
.................................. 2-84
Gage
....................................... 2-83 Gages
Engine Coolant Temperature
.................... 2-79
Fuel
....................................... 2-83
Gear Positions, Automatic Transaxle
................ 2-25
Gold Key Courtesy Transportation
.................. 7-8
Gross Axle Weight Rating
........................ 4-31
Gross Vehicle Weight Rating
...................... 4-31
GVWR
....................................... 4-31
Handles, Assist
................................. 2-63
Hazard Warning Flashers
.......................... 5-2
Head Restraints
................................. 1-7
Bulb Replacement
............................ 6-31
High/Low Beam Changer
...................... 2-37
Suggested Message
...................... 2-47, 2-48
Wiper Activated
.............................. 2-46
Hearing Impaired, Customer Assistance
.............. 7-4
Heatedseats
.................................... 1-5
Heating ....................................... 3-11
High-Beam Headlamps
.......................... 2-37
Highway Hypnosis
.............................. 4-24
Hill and Mountain Roads
......................... 4-24
Hitches, Trailer
................................. 4-36
Tachometer
.................................. 2-73
GAWR
....................................... 4-31
GloveBox
.................................... 2-59
Guide
en FranGais 11 .. .................................
Halogen Bulbs ................................ 6-31
Headlamps
.................................... 2-46
Aiming
..................................... 6-33
OnReminder
................................ 2-46
Wiring
..................................... 6-59
