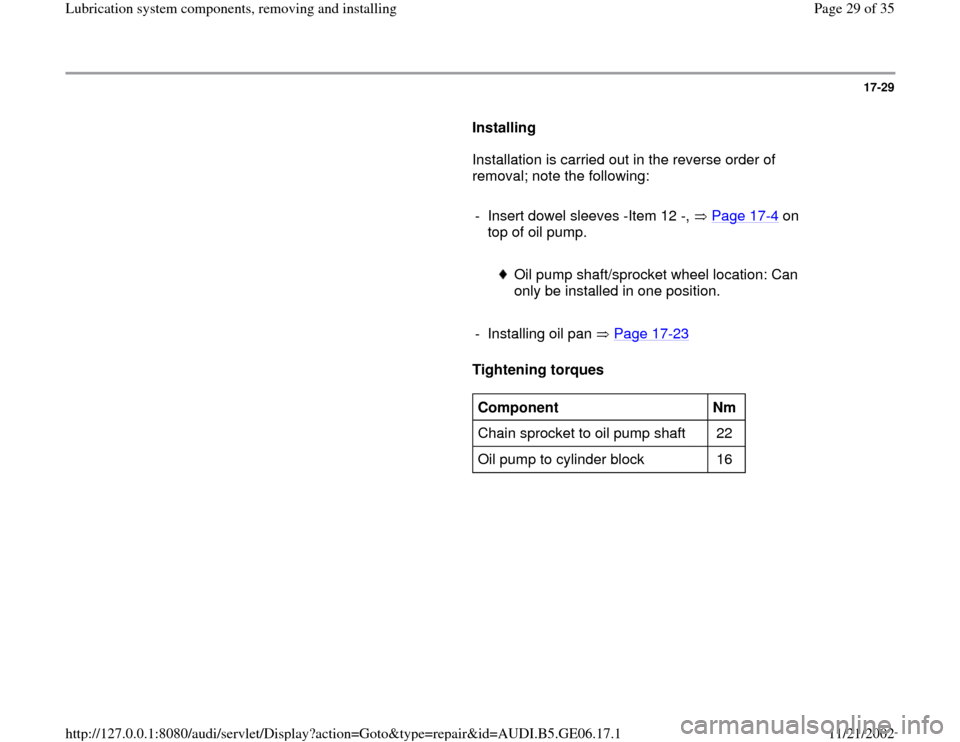

17-29
Installing
Installation is carried out in the reverse order of
removal; note the following:
- Insert dowel sleeves -Item 12 -, Page 17
-4 on
top of oil pump.
Oil pump shaft/sprocket wheel location: Can
only be installed in one position.
- Installing oil pan Page 17
-23
Tightening torques
Component
Nm
Chain sprocket to oil pump shaft 22
Oil pump to cylinder block 16
