1997 AUDI A4 manual transmission

26-5


15 -
Mounting
Individual parts of mounting for manual
transmission Fig. 3
, Page 26
-16

Individual parts of mounting for automatic 5
speed transmission Fig. 4
, Page
26
-17

16 -
Front clamp
Align exhaust system so it is free of stress
before tightening clamp Page 26
-34

Installation position Fig. 1
, Page
26
-8
Tighten bolted connections evenly.
17 -
40 Nm
18 -
Mounting
19 -
25 Nm
Pa
ge 5 of 41 Exhaust s
ystem com
ponents, removin
g and installin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE06.26.1

26-12


14 -

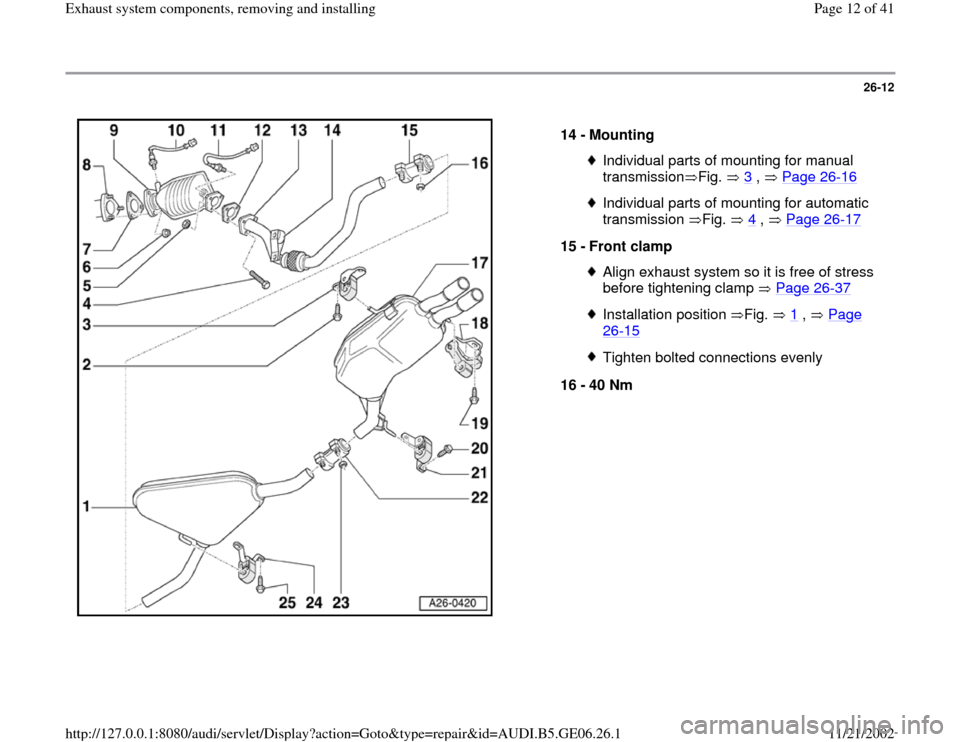

Mounting
Individual parts of mounting for manual
transmission Fig. 3
, Page 26
-16

Individual parts of mounting for automatic
transmission Fig. 4
, Page 26
-17

15 -
Front clamp
Align exhaust system so it is free of stress
before tightening clamp Page 26
-37

Installation position Fig. 1
, Page
26
-15

Tighten bolted connections evenly
16 -
40 Nm
Pa
ge 12 of 41 Exhaust s
ystem com
ponents, removin
g and installin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE06.26.1

26-16

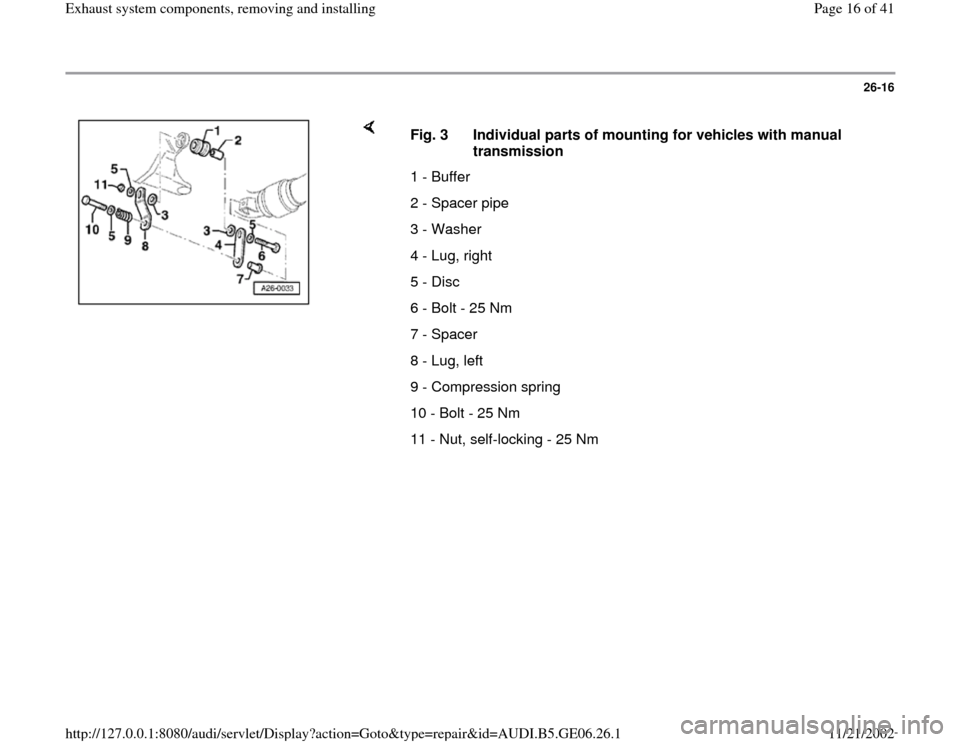

Fig. 3 Individual parts of mounting for vehicles with manual
transmission
1 - Buffer
2 - Spacer pipe
3 - Washer
4 - Lug, right
5 - Disc
6 - Bolt - 25 Nm
7 - Spacer
8 - Lug, left
9 - Compression spring
10 - Bolt - 25 Nm
11 - Nut, self-locking - 25 Nm
