17-12

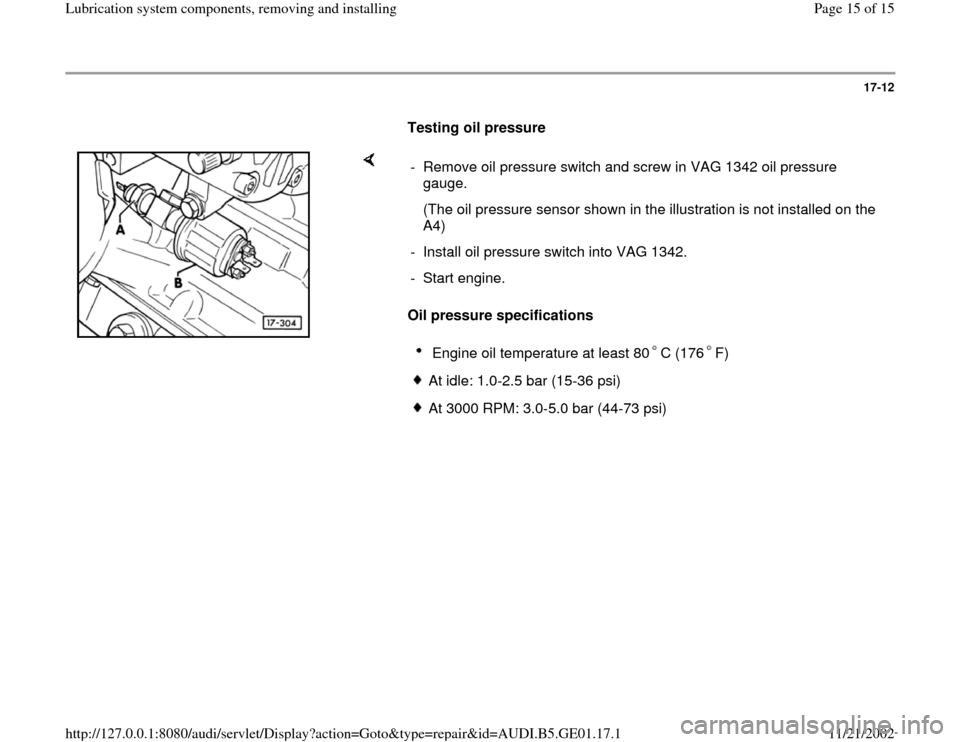

Testing oil pressure
Oil pressure specifications - Remove oil pressure switch and screw in VAG 1342 oil pressure
gauge.
(The oil pressure sensor shown in the illustration is not installed on the
A4)
- Install oil pressure switch into VAG 1342.
- Start engine.
Engine oil temperature at least 80 C (176 F) At idle: 1.0-2.5 bar (15-36 psi)At 3000 RPM: 3.0-5.0 bar (44-73 psi)
