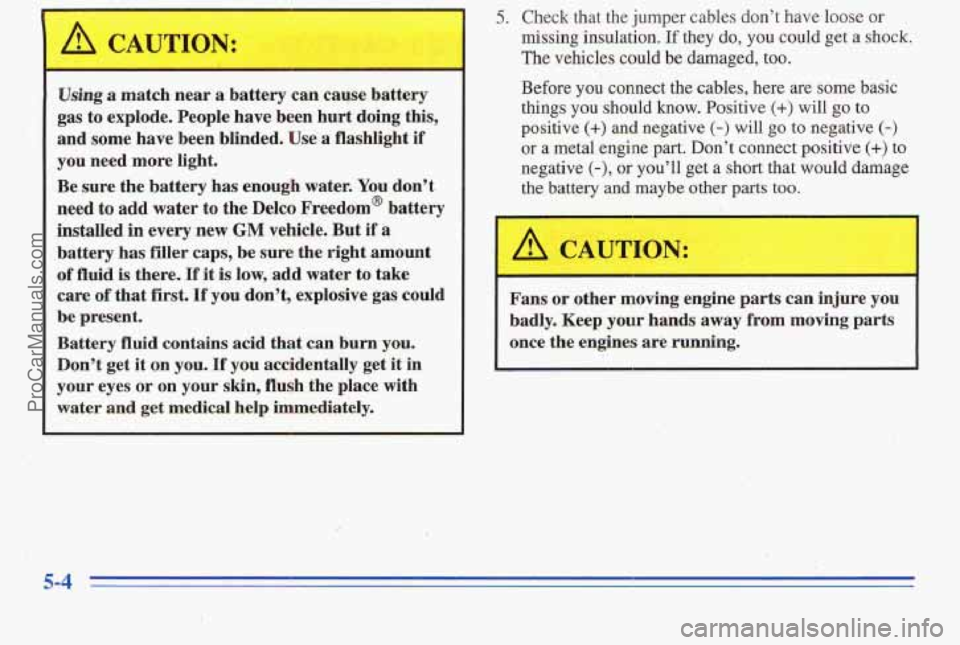

~~ Using a match
near a battery can cause battery
gas
to explode. People have been hurt doing this,
and some have been blinded. Use a flashlight if
you need more light.
Be sure the battery has enough water.
You don’t
need
to add water to the Delco Freedom@ battery
battery has filler caps, be sure the right amount
of fluid is there. If it-is low, add water to take
care
of that first. If you don’t, explosive gas could
be present.
Battery
fluid contains a&d that can burn you.
Don’t get
it on you. If you accidentally get it in
your eyes or
on your skin, flush the place with
water
and get medical help ibediately.
~ installed in every new GM vehicle. But if a
5. Check that the jumper cables don’t have loose or
missing insulation. If they do, you could get a shock.
The vehicles could be damaged, too.
Before you connect the cables, here are some basic
things you should know. Positive (+) will go to
positive
(+) and negative (-) will go to negative (-)
or a metal engine part. Don’t connect positive (+) to
negative (-), or you’ll get a short that would damage
the battery and maybe other parts too.
Fans or other moving engine parts can injure you
badly. Keep your
hands away from moving parts
once the engines are running.
5-4
ProCarManuals.com

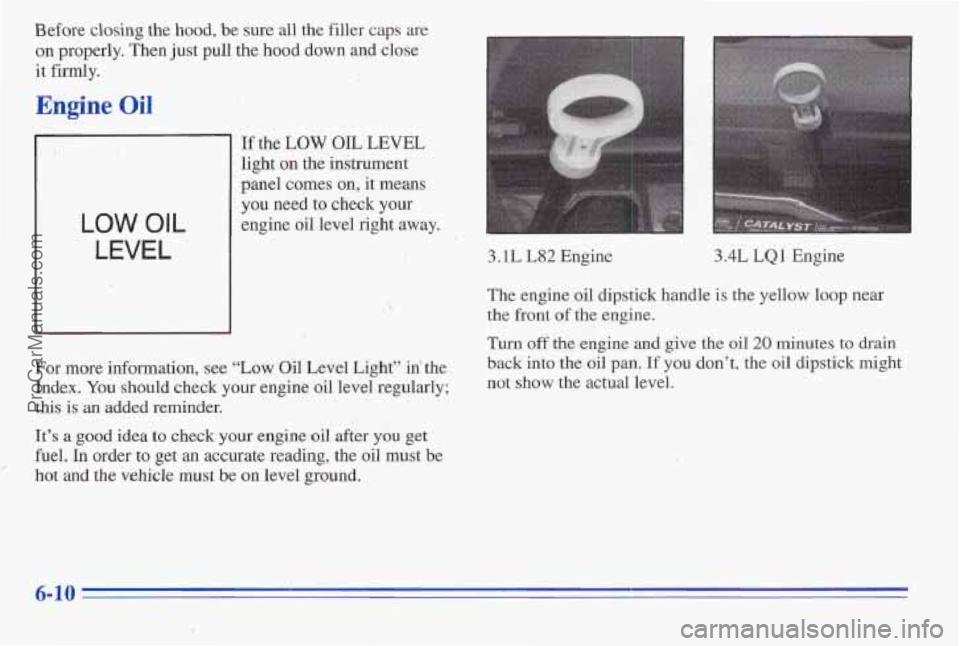

Before closing the hood, be sure all the filler caps are
on properly. Then just pull the hood down and close
it firmly.
Engine Oil
I
LOW OIL
LEVEL
If the LOW OIL LEVEL
light on the instrument
panel comes on, it means
you need to check your
engine oil level right away.
3.1L L82 Engine 3.4L LQl Engine
For .more information, see
“Low Oil Level Light” in‘ the
Index. You should check
your engine oil level regularly;
this is
an added reminder.
It’s
a good idea to check your engine oil after you get
fuel.
In order to get an accurate reading, the oil must be
hot
and the vehicle must be on level ground, I-
The engine oil dipstick handle is the yellow loop near
the front of the engine.
Turn off the engine and give the oil 20 minutes to drain
back into the oil pan. If you don’t, the oil dipstick might
not
show the actual level.
6-10
ProCarManuals.com

How to Add Fluid
Refer to the Maintenance Schedule to determine what
kind of transaxle fluid to use. See “Recommended
Fluids
and Lubricants” in the Index.
If the fluid level is low, add only enough of the proper
fluid to bring the level into the cross-hatched area on
the dipstick.
1. Pull out the dipstick.
2. Using a long-neck funnel, add enough fluid at the
It doesn’t take much fluid, generally less than a pint
(0.5 L). Don’t oveflll. We recommend you use only
fluid /labeled DEXRON@-HI, because fluid with that
label
is made especially for your automatic transaxle.
Damage caused by fluid other than
DEXRON-111 is
not covered by your new vehicle warranty.
0 After adding fluid, recheck the fluid level as
0 When the correct fluid level is obtained, push the
dipstick hole to bring
it to the
proper level.
described under “How to Check.”
dipstick
back in all the way.
Engine Coolant
The cooling system in your vehicle is filled with new
DEX-COOL (orange-colored, silicate-free) engine
coolant. This coolant is designed
to remain in your
vehicle for 5 years or 100,000 miles (166 000 km), ,
whichever occurs first.
The following explains your cooling system and how to
add coolant when it is low.
If you have a problem with
engine overheating or
if you need to add coolant to your
radiator, see “Engine Overheating” in the Index.
A 50/50 mixture of water and the proper coolant for
your Pontiac will:
0
0
0
0
0
Give freezing protection down to -34°F (-37°C).
Give boiling protection up to 265 “F (129°C).
Protect against rust
and corrosion.
Help keep the proper engine temperature.
Let the warning lights lights and gages work as
they should.
ProCarManuals.com

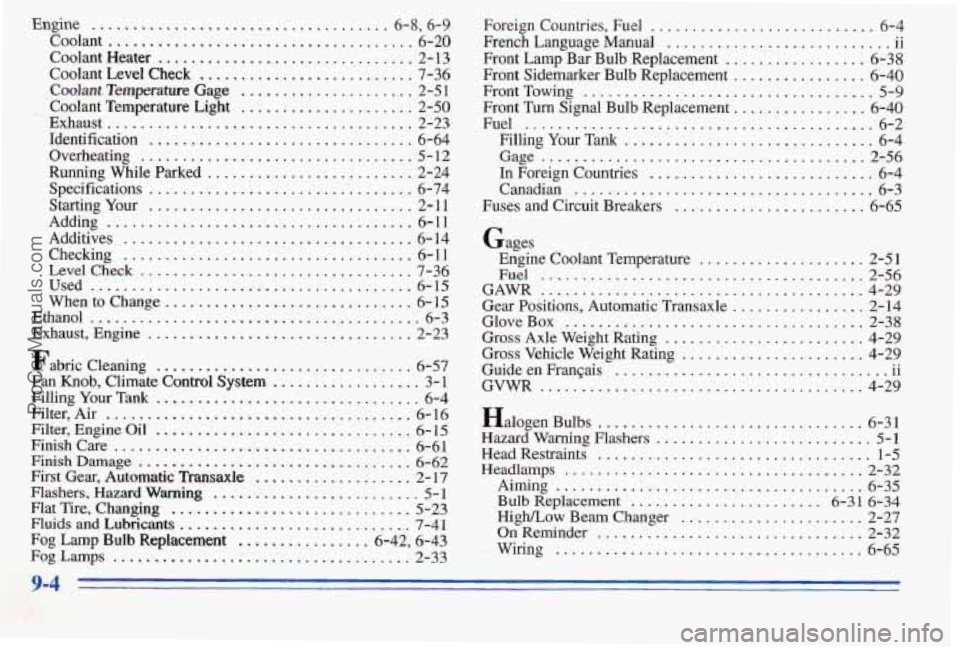

Engine .................................... 6.8. 6.9
Coolant ..................................... 6-20
Coolant Heater ............................... 2-13
Coolant Level Check .......................... 7-36
Cmhzt Temperatere Gage ..................... 2-5 1
Coolant Temperature Light ..................... 2-50
Exhaust ..................................... 2-23
Identification ................................ 6#-64
Overheating ................................. 5-12
Specifications ................................ 6-74
Starting Your ................................ 2- 11
Adding
..................................... 6-11
Additives ................................ ; .. 6-14
Checking ................................... 6-11
LevelCheck ................................. 7-36
Used ....................................... 6-15
Whentochange .............................. 6-15
Ew~l 6-3 Exhaust, Engine ................................ 2-23
Fan Knob, Climate Control System .................. 3-1
Filter, Engine Oil ............................... 6- 15
First Gear, Automatic Transaxle ................... 2-17
Flashers, Hazard Warning ......................... 5-1
FlatTue, Changing ............................. 5-23 Fluids and Lubricants ............................. 7-41
Fog Lamp Bulb Replacement ................ 6-42, 6-43
Fog Lamps ..................................... 2-33
Running While Parked ......................... 2-24
........................................
Fabric Cleaning ............................... 6-57
FillingYourTank
................................ 6-4
Filter, Air ..................................... 6-16
Finishcare ..................................... 6-61
FinishDmage
................................. 6-62
Foreign Countries. Fuel ......................... 6-4
French Language Manual ........................... ii
Front Lamp
Bar Bulb Replacement ................. 6-38
Front Sidemarker Bulb Replacement ................ 6-40
Front Turn Signal Bulb Replacement ................ 6-40
FrontTowing ................................... 5-9
Fuel .......................................... 6-2
Filling Your Tank ............................... 6-4
Gage ....................................... 2-56
Canadian .................................... 6-3
In Foreign Countries ........................... 6-4
Fuses and Circuit Breakers ..................... 6-65
bages
Engine Coolant Temperature ................ 2-51
Fuel
....................................... 2-56
GAM ....................................... 4-29
Gear Positions, Automatic Transaxle ................ 2-14
Gross Axle Weight Rating ........................ 4-29
Gross Vehicle Weight Ratmg ...................... 4-29
Guide en Francpis .................. ............ ii
GVWR
......................... ....... 4-29
Hazard Warning Flashers .......................... 5-1
Headlamps ..................................... 2-32
Bulb Replacement ........................ 6-31 6-34
High/Low Beam Changer ...................... 2-27
Wiring ..................................... 6-65
GloveBox .................................... 2-38
Halogen Bulbs ................................ 6-31
HeadRestraints ................................. 1-5
Aiming ..................................... 6-35
OnReminder ................................. 2-32
9-4 --
ProCarManuals.com

Head-Up Display ............................. 2-58
Hearing Impaired. Customer Assistance
.............. 8-4
Heating
........................................ 3-3
High-Beam Headlamps
.......................... 2-27
Highway Hypnosis
.............................. 4-22
Hill and Mountain Roads
......................... 4-22
Hitches. Trailer
................................. 4-33
Hood Checking Things Under
......................... 6-6
Release
.................................... 6-7
Horn
.................. .................. 2-25
HUD .................. .................. 2-58
Hydroplaning
........... .................. 4-18
Ignition Positions
.............................. 2- 10
Inflation, Tire .................................. 6-49
Inside Daymight Rearview Mirror
.................. 2-37
Inspections Brakesystem
................................ 7- 40
Exhaust Systems
............................. 7-40
Front-Wheel-Drive Axle Boot
.................. 7-40
Front-Wheel-Drive Axle Seal
................... 7-40
Radiator and Heater Hose
...................... 7-40
Steering
.................................... 7-40
Suspension
.................................. 7-40
Throttle Linkage
.............................. 7-40
Instrumentpanel
............................... 2-43
Brightness Control
............................ 2-34
Cleaning
.................................... 6-59
Cluster
..................................... 2-44
FuseBlock
.................................. 6-65
Interior Lamps ................................. 2-34 Jack. Tire
..... ... ..... 5-23
Jump Starting
... ................ 5-2
Key Lock Cylinders Service ..................... 7-37
Key Reminder Warning
.......................... 2-11
Keys
.......................................... 2-1
Labels Certification
................................. 4-29
Service Parts Identification
..................... 6-64
Tire-Loading Information
...................... 4-28
Vehicle Identification Number
................... 6-64
Lamps
........................................ 2-32
Courtesy
..................................... 2-34
Dome
...................................... 2-36
Interior
..................................... 2-34
OnReminder
................................ 2-32
Sustained Interior Illumination
.................. 2-34
Latches. Seatback ................................ 1-5
Leaving Your Vehicle
............................. 2-4
Leaving Your Vehicle With the Engine Running
....... 2-21
Lighter
....................................... 2-41
Lights
Air Bag Readiness
....................... 1-25. 2.47
Anti-Lock Brake System Active
............. 2.50. 4.8
Anti-Lock Brake System Warning
............ 2.49. 4.7
Brake System Warning
......................... 2-48
Charging System
............................. 2-47
Engine Coolant Temperature
.................... 2-50
Interior
..................................... 2-34
Low Coolant Warning
......................... 2-51
LowFuel
................................... 2-57
9-5
. . ProCarManuals.com

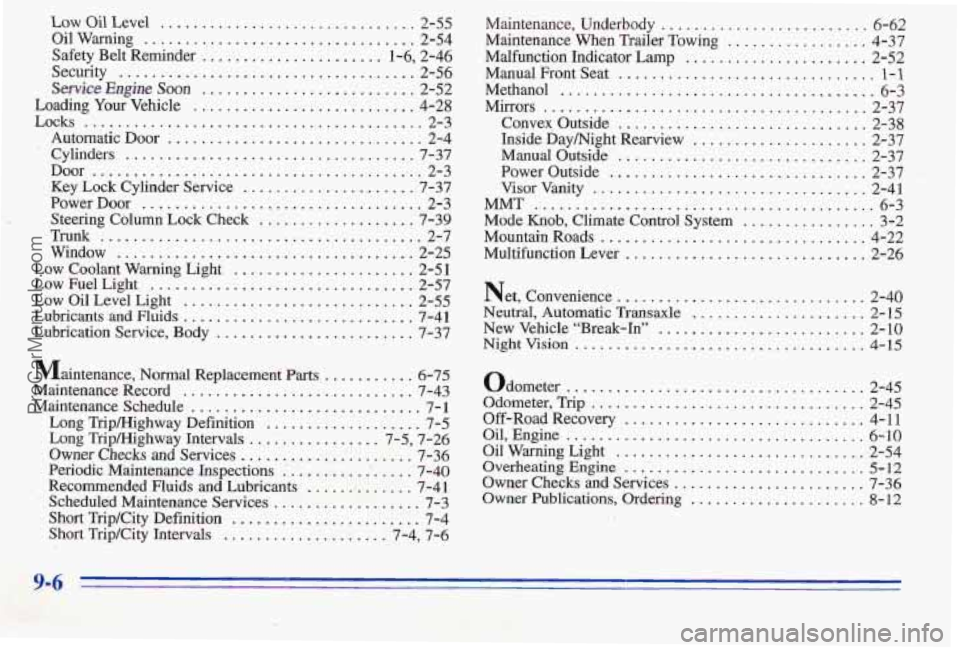

Low Oil Level ............................. 2-55
Safety Belt Reminder ...................... 1-6, 2-46
Service Engine Soon .......................... 2-52
Loading
Your Vehicle ........................... 4-28
Automatic Door ............................... 2-4
. Cylinders ................................... 7-37
Key Lock Cylinder Service ...................... 7-37
Steering Column Lock Check ................... 7-39
Trunk ....................................... 2-7
Low Coolant Warning Light ...................... 2-51
Low Fuel Light
.............. ................. 2-57
Lubricants and Fluids ............................ 7-41
Lubrication Service,
Body ........................ 7-37
Oilwarning
................................. 2-54
Security .................................... 2-56
Locks
......................................... 2-3
Door ......................................... 2-5
PowerDoor .................................. 2-3
Window
.................................... 2-25
LowOilLevelLight
............................ 2-55
Maintenance. Normal Replacement Parts ........... 6-75
Maintenance Record ............................ 7-43
Maintenance Schedule
............................ 7-1
Long TripkIighway Definition
.................... 7-5
Long Trip/Highway Intervals ................ 7.5. 7-26
Owner Checks and Services ..................... 7-36
Recommended Fluids
and Lubricants ............. 7-41
Scheduled Maintenance Services
.................. 7-3
ShorCTrip/City Definition ....................... 7-4
Short Trip/City Intervals
.................... 7-4. 7-6
Periodic Maintenance Inspections .................. 7-40 Maintenance. Underbody
......................... 6-62
Maintenance When Trailer Towing ................. 4-37
Malfunction Indicator Lamp ...................... 2-52
Manual Front
Seat ............................... 1-1
Methanol ...................................... 6-3
Mhn ....................................... 2-37
ConvexOutside
.............................. 2-38
Inside Daymight Rearview
..................... 2~37
Manualoutside
.............................. 2-37
Power Outside
............................... 2-37
Visor Vanity
.......................... : ...... 2-41
MMT ...................................,..... 6-3
Mode Knob, Climate Control System ................. 3-2
MountainRoads ................................ 4-22
Multifunction Lever
............................. 2-26
Net. Convenience
.............................. 2-40
Neutral. Automatic Transaxle
..................... 2-15
New Vehicle "Break-In" ......................... 2-10
Nightvision
................................... 4-15
Odometer .................................... 2-45
Odometer.
Trip ................................. 2-45
Off-Road Recovery
............................. 4-11
Oil. Engine .................................... 6-10
Oil Warning Light .............................. 2-54
Overheating Engine ............................. 5-12
Owner Checks and Services ....................... 7-36
Owner Publications, Ordering ..................... 8-12
ProCarManuals.com
