Be careful not to spill gasoline. Clean gasoline from
painted surfaces as soon as possible! See “Cleaning the
Outside
of Your Pontiac” in the Index.
When
you plat the cap back on, turn it to the right until
you hear at least three clicks. Make sure you fully install
the cap. The diagnostic system can determine if the fuel
cap
has been left of or improperly installed. This would
allow fuel to evaporate into
the atmosphere. See
“Malfunction Indicator
Lamp” in the Index.
NOTICE:
If you need a new cap, be sure to get the right
type. Your dealer can get one for you, If you get
the
wrong type, it may not fit and your fuel tank
and emissions system might
be damaged.
.j
Checking Things Und-- the Hoop
An electric fan under the hood can start up and
injure you even when the engine is not running.
Keep hands, clothing and tools away
from any
underhood electric fan.
Things that burn can get on hot engine
parts and
start a fire. These include liquids like gasoline,
oil,
coolant, brake fluid, windshield washer and
other fluids, and plastic or rubber. You or others
could be burned. Be careful not to drop or spill
things
that will burn onto a hot engine.
6-6 .:
ProCarManuals.com

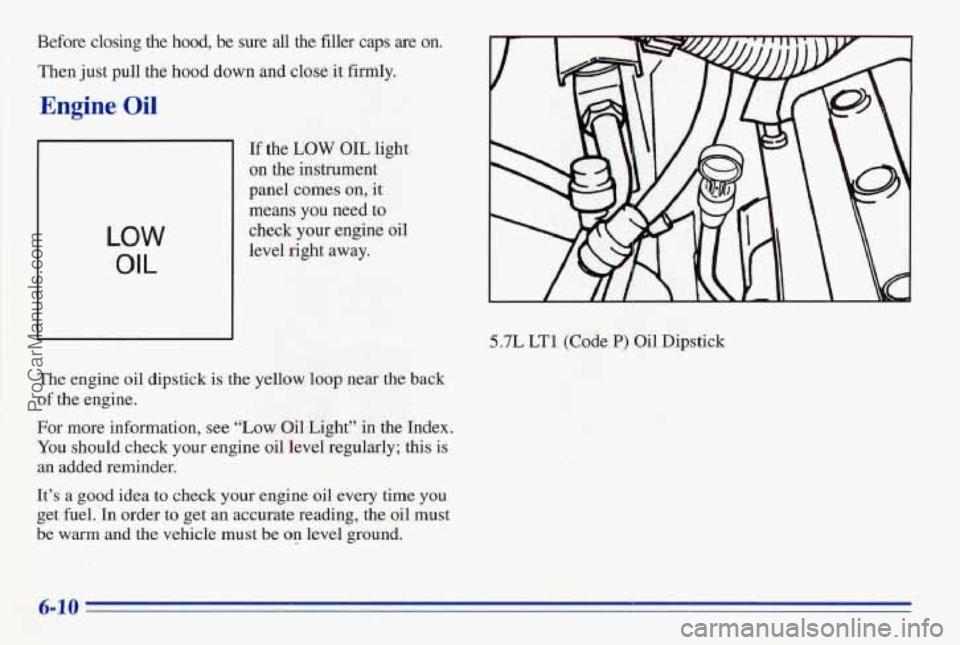

Before closing the hood, be sure all the filler caps are on.
Then just pull the hood down and
close it firmly.
Engine Oil
LOW
OIL
If the LOW OIL light
on the instrument
panel comes on, it
means you need to
check your engine oil
level right away.
5.7L LT1 (Code P) Oil Dipstick
The engine oil dipstick is the yellow
loop near the back
of the engine.
For more information, see
"Low 0il.Light" in the Index.
You
should check your engine oil level regularly; this is
an added reminder.
It's a good idea to check your engine oil every time you
get fuel. In order to get an accurate reading, the oil must
be
warm and'the vehicle must be on level ground.
ProCarManuals.com

3800 L36 (Code K) Oil Dipstick
Turn off the engine and give the oil a few minutes to
drain back into the oil pan.
If you don't, the oil dipstick
might not show the actual level.
Checking Engine Oil
Pull out the dipstick and clean it with a paper towel or
cloth, then push it back in all the way. Remove it again,
keeping the tip down, and check the level.
3800 L36 (Code K) Engine
~
5.7L LT 1 (Code P) Engine
6-11
ProCarManuals.com

Automatic Transmission Fluid
When to Check and Change
A good time to check your automatic transmission fluid
level is when the engine oil
is changed.
Change both
the fluid and filter every 15,000 miles
(25 000 km) if the vehicle is mainly driven under one
or more
of these conditions:
In heavy city traffic where the outside temperature
regularly reaches
90°F (32°C) or higher.
In hilly or mountainous terrain.
When doing frequent trailer towing.
Uses such as found in taxi, police or delivery service.
If you do not use your vehicle under any of these
con’ditions, change
the fluid and filter every 100,000 miles
(166 000 km).
See “Scheduled Maintenance Services” in the Index.
How to Check
Because this operation can be a little difficult, you
may choose to have this done at your Pontiac dealership
Service Department.
If you do it yourself, be sure to follow all the instructions
here, or you could get a false reading on the dipstick.
NOTICE:
Too much or too little fluid can damage your
transmission. Too much can mean that some of
the fluid could come out and fall on hot engine
parts or exhaust system parts, starting a fire.
Be
sure to get an accurate reading if you check your
transmission fluid.
Wait at least 30 minutes before checking the
transmission fluid level if
you have been driving:
When outside temperatures are above 90°F (32 ” C).
At high speed for quite a while.
0 In heavy traffic -- especially in hot weather.
0 While pulling a trailer.
To get the right reading, the fluid should be at normal
operating temperature, which
is 180°F to 200°F
(82°C to 93°C).
ProCarManuals.com

Checking Transmission Fluid Hot
Get the vehicle warmed up by driving about 15 miles
(24 km) when outside temperatures are above 50°F
(10°C). If it's colder than 50°F (lO"C), drive the
vehicle in DRIVE
(D) until the engine temperature gage
moves and then remains steady for 10 minutes. Then
follow the hot check procedures.
Checking Transmission Fluid Cold
A cold check is made after the vehicle has been sitting
for eight hours
or more with the engine off and is used
only
as a reference. Let the engine run at idle for five
minutes if outside temperatures
are 50°F (10" C) or
more. If it's colder than
50°F (lO"C), you may have to
idle the engine longer. Should the fluid level be low
during a cold check, you must perform a hot check
before adding fluid. This will give you a more accurate
reading of the fluid level.
Checking the Fluid Hot or Cold ,
0 Park your vehicle on a level place. Keep the engine
0 With the parking brake applied, place the shift lever
running.
in
PARK (P).
0 With your foot on the brake pedal, move the shift
lever through each gear range, pausing for about
three seconds in each range. Then, position the shift
lever in
PARK (P).
0 Let the engine run at idle for three minutes or more.
Then, without shutting
off the engine, follow
these steps:
3800 L36 Engine Transmission Dipstick
6-21
ProCarManuals.com

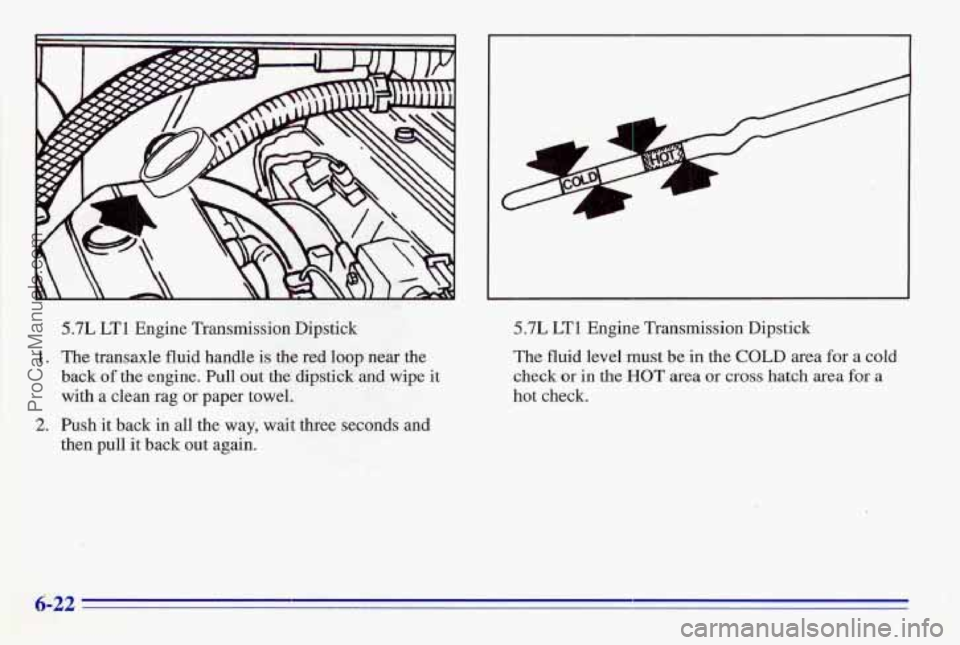

5.7L LT1 Engine Transmission Dipstick-
back
of the engine. Pull out the dipstick and wipe it
with a clean rag or paper towel.
then pull it back out again.
1. The transaxle fluid handle is the red loop near the
2. Push it back in all the way, wait three seconds and
5.7L LT1 Engine Transmission Dipstick
The fluid level
must be in the COLD area for a cold
check QT in the HOT area or cross hatch area for a
hot check.
L 33
ProCarManuals.com

3800 L36 Engine Transmission Dipstick
3. Check both sides of the dipstick, and read the lower
level. The fluid
level must be in the COLD area for a
cold check or in the HOT area or cross-hatched area
for a hot check.
4. If the fluid level is in the acceptable range, push the
dipstick back in all the way.
How to Add Fluid
Refer to the Maintenance Schedule to determine what
kind
of transmission fluid to use. See “Recommended
Fluids and Lubricants” in the Index.
Add fluid only after checking the transmission fluid
HOT. (A COLD check is used only as a reference.) If
the fluid level is low, add only enough
of the proper
fluid to bring the level up
to the HOT area for a hot
check. It doesn’t take much fluid, generally less than a
pint
(0.5 L). Don’t overfill. We recommend you use only
fluid labeled DEXRON@-111, because fluid with that
label
is made especially for your automatic transmission.
Damage caused by fluid other
than DEXRON-111 is not
covered by your new vehicle warranty.
0 After adding fluid, recheck the fluid level as
described under “How to
Check.”
0 When the correct fluid level is obtained, push the
dipstick back in all the way.
ProCarManuals.com

Manual Transmission Fluid
When to Check
A good time to have it checked is when the engine oil is
changed. However, the fluid in your manual
transmission doesn’t require changing.
How to Check
Because this operation can be difficult, you may choose
to have this done at your Pontiac dealership Service
Department.
If you do it yourself, be sure to follow all the
instructions here, or you could get a false reading.
NOTICE:
Too much or too little fluid can damage your
transmission. Too much can mean that some of
the fluid could come out and fall on
hot engine
parts or exhaust system parts, starting a fire. Be
sure to get an accurate reading if you check your
transmission fluid.
Check the fluid level only when your engine is off, the
vehicle is parked on a level place and the transmission
is
cool enough for you to rest your fingers on the
transmission case.
Then, follow these steps:
1. Remove the filler plug.
2. Check that the lubricant level is up to the bottom of
the filler plug hole.
3. If the fluid level is good, install the plug and be sure
it
is fully seated. If the fluid level is low, add more
fluid as described in the next steps.
How to Add Fluid
Here’s how to add fluid. Refer to the Maintenance
Schedule to determine what kind of fluid to use. See
“Recommended Fluids and Lubricants” in the Index.
1. Remove the filler plug.
2. Add fluid at the filler plug hole. Add only enough
fluid to bring the fluid level up to the bottom
of the
filler plug hole.
3. Install the filler plug. Be sure the plug is fully seated.
6-24
