1996 OLDSMOBILE AURORA climate control

Disabling the Theft-Deterrent Feature
Enter your secret code as follows; pause no more than
15 seconds between steps:
1. Turn the ignition to the ACCESSORY or
RUN position.
2. Turn the radio off.
3. Press the 1 and 4 buttons together. Hold them down
until SEC shows on the display.
4. Press MN and 000 will appear on the display.
5. Press MN again to make the last two digits agree
6. Press HR to make the first one or two digits agree
7. Press AM-FM after you have confirmed that the
with
your code.
with your code.
code matches the secret code you have written down.
The display will show
---, indicating that the radio is
no longer secured.
If the code entered is incorrect, SEC will appear on the
display. The radio will remain secured until the correct
code is entered.
When battery power is given to a secured radio, the
radio won’t turn on and
LOC will appear on the display.
Steering Wheel Controls for Audio
System (Option)
If your vehicle has this
feature, you can control
certain radio functions using
the buttons on your steering
wheel.
Some steering wheel controls operate climate controls.
See “Steering Wheel Controls for Climate Control”
earlier in this section.
VOL: Press the up arrow to increase the volume and the
down arrow to decrease volume.
SEEK: Press this button to tune to a higher radio station.
When playing a cassette tape or compact disc, press
SEEK to hear the next selection. There must be at least a
four-second gap between selections on a cassette tape.
PROG: Press this button to tune in a higher preset radio
station. When playing a cassette tape, press PROG
to
hear the other side of a tape that is playing.
3-25
ProCarManuals.com

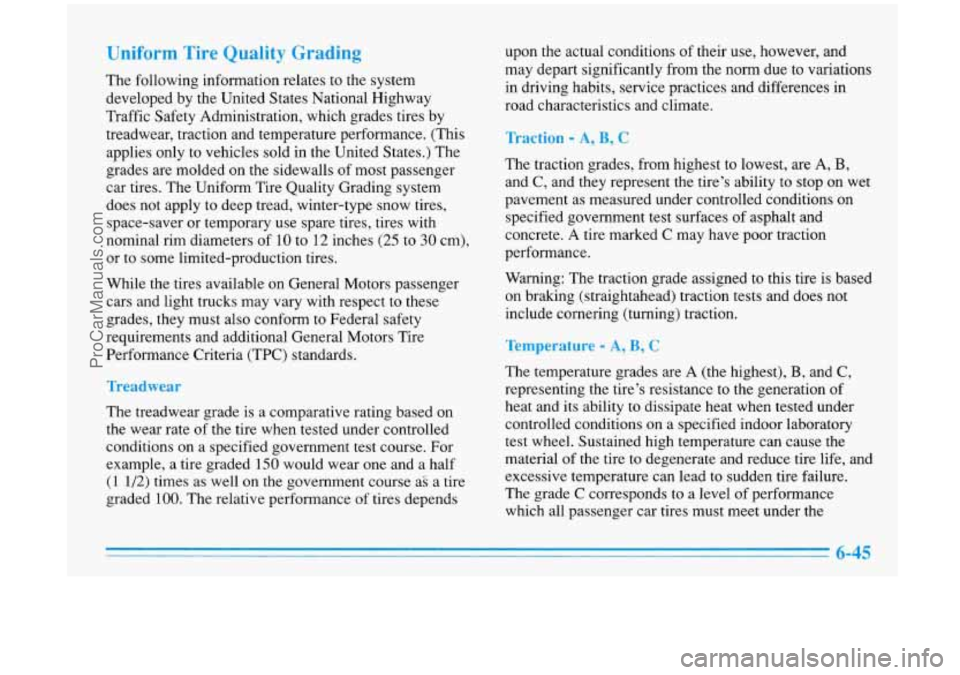

Uniform Tire Quality Grading
The following information relates to the system
developed by the United States National Highway
Traffic Safety Administration, which grades tires by
treadwear, traction and temperature performance. (This
applies only to vehicles sold in the United States.) The
grades are molded on the sidewalls of most passenger
car tires. The Uniform Tire Quality Grading system
does not apply to deep tread, winter-type snow tires,
space-saver or temporary use spare tires, tires with
nominal rim diameters of
10 to 12 inches (25 to 30 cm),
or to some limited-production tires.
While the tires available on General Motors passenger
cars and light trucks may vary with respect to these
grades, they must also conform to Federal safety
requirements and additional General Motors Tire
Performance Criteria (TPC) standards.
Treadwear
The treadwear grade is a comparative rating based on
the wear rate of the tire when tested under controlled
conditions on a specified government test course. For example, a tire graded
150 would wear one and a half
(1 1/2) times as well on the government course as a tire
graded
100. The relative performance of tires depends upon
the actual conditions of their use, however, and
may depart significantly from the norm due to variations
in driving habits, service practices and differences in
road characteristics and climate.
Traction - A, B, C
The traction grades, from highest to lowest, are A, B,
and C, and they represent the tire’s ability to stop on wet
pavement as measured under controlled conditions on
specified government test surfaces of asphalt and
concrete.
A tire marked C may have poor traction
performance.
Warning: The traction grade assigned to this tire is based
on braking (straightahead) traction tests and does not
include cornering (turning) traction.
Temperature - A, B, C
The temperature grades are A (the highest), B, and C,
representing the tire’s resistance to the generation of
heat and its ability to dissipate heat when tested under
controlled conditions on a specified indoor laboratory
test wheel. Sustained high temperature can cause the
material of the tire to degenerate and reduce tire life, and
excessive temperature can lead to sudden tire failure.
The grade
C corresponds to a level of performance
which all passenger car tires must meet under the
6-45
ProCarManuals.com

/ INSTRUMENT PANEL
FUSE BLOCK
F! BAG
5
TURN ~
LPS
9
CHIME
SHIFT
I DIS I i
21 HVAC RELAY
PERIM LIGHTS
Fuse
1
2
3
4
5
6
7
8
9
10
11
12
13 14
15
16
Usage
Supplemental Inflatable Restraint
(Air Bag)
Injectors
Anti-Lock Brake System
Left Exterior Lamps
Turn Signal Lamps
Injectors Climate Controls, Magnetic Speed
Right Exterior Lamps
Chime (Ignition
I), Memory Set
Powertrain Control Module,
VATS PASS-Key@II
Auxiliary Power
Interior
Lamps
Shift Sols
Linear EGR
Cruise Control
Perimeter Lights
6-59
ProCarManuals.com

Fuse
17
18
19
20
21
22
23
24
25
26
27
28 Usage
Driver Information
Center
Converter Oxygen Sensors
Radio
Open
Climate Control Relay
Open
Windshield Wipers Open
TMNSS
Cigarette Lighter
Crank,
Air Bag Module
Climate Control Blower
Removing the Rear Seat Cushion
To access the battery and rear compartment fuse panels,
the rear seat cushion must be removed.
This procedure is
somewhat difficult. You may wish to have your retailer
do this for you.
I NOTICE:
The battery and main fuse boxes are located under
the rear seat cushion. The battery’s ground
terminal and some relay wires are exposed. To help
avoid damage to the battery and wires, be careful
when removing
or reinstalling the seat cushion. Do
not remove covers from covered parts. Do not store
anything under the seat,
as objects could touch
exposed wires and cause a short.
To Remove the Rear Seat Cushion
1. Pull up on the front of the cushion to release the
front hooks.
2. Pull the cushion up and out toward the front of the
vehicle.
6-60
ProCarManuals.com

Accessory Power Outlet ......................... 2-54
AirBag
....................................... 1-18
How Does it Restrain
........................... 1-22
How it Works
................................ 1-20
Location
.................................... 1-20
Readiness Light ......................... 1 . 19, 2-64
Servicing
................................... 1-23
What Makes it Inflate
.......................... 1-21
What Will
You See After it Inflates ............... 1-22
When Should it Inflate
......................... 1-21
Air Cleaner
.................................... 6-14
Air Conditioning
................................ 3-5
Air Conditioning Refrigerants ..................... 6-69
Air Control. Climate Control System
............. 3.3. 3.4
Alarm. Universal Theft-Deterrent .................. 2- 15
Alignment and Balance. Tire
...................... 6-46
Aluminum Wheels. Cleaning
...................... 6-53
Antenna. Power
................................ 3-28
Antifreeze
...................................... 6-20
Anti-Lock
Brakes
...................................... 4-6
Brake System Warning Light
................ 2.66. 4.6
Anti-LockoutFeature
............................ 2-7
Anti.Theft. Radio
.............................. 3-23
Appearance Care
................................ 6-48
Appearance Care Materials
....................... 6-55
Arbitration Program
............................... 8-6 Ashtrays
....................................... 2-52
Audio Equipment, Adding
........................ 3-26
Audio Systems
................................. 3-10
Automatic
DoorLocks
................................... 2-4
Electronic Climate Control
...................... 3-1
Overdrive
................................... 2-25
Check
...................................... 7-39
Fluid
....................................... 6-17
Operation
................................... 2-23
Park Mechanism Check
........................ 7-41
Auto-Push Knob, Climate Control
.................. 3-2
Averagespeed
................................. 2-76
Battery
........................ : ............. 6-30
Jump Starting ................................. 5-2
Replacement
.................................. 2-11
Saver
...................................... 2-47
Audio
Controls, Steering Wheel Touch Control
....... 3-25
Automatic Transaxle
WarningLight
............................... 2-64
Warnings
................................ 5-2, 5-5
Belt, Engine Accessory
.......................... 6-70
Battery
Voltage Message
......................... 2-76
BBB Auto Line
................................. 8-6
Better Business Bureau Mediation
................... 8-6
9-1
ProCarManuals.com

Brake Adjustment
.................................. 6-29
Fluid
....................................... 6-26
Master Cylinder
.............................. 6-26
PedalTravel ................................. 6-29
Replacing System Parts
........................ 6-29
System Warning Light
......................... 2-65
Trailer
...................................... 4-35
Transaxle Shift Interlock Check
.................. 7-40
Wear
....................................... 6-28
Brakes. Anti-Lock
............................... 4-6
Braking
........................................ 4-5
Braking in Emergencies
.......................... 4-10
Break-In. New Vehicle
.......................... 2-18
Brightness Control
.............................. 2-45
BTSICheck
................................... 7-40
Bulb Replacement
.............................. 6-32
Parking
..................................... 2-26
Canadian Roadside Assistance
.................... 8-5
Capacities and Specifications ...................... 6-68
Carbon Monoxide
.................... 2.30.4.28. 4.34
Cassette Deck Service
........................... 7-38
Cassette Tape Player
....................... 3- 12. 3. 19
Cassette Tape Player Care
........................ 3-26
Cassette Tape Player Errors
.................. 3.13. 3.20
Center Passenger Position
........................ 1-30
Central Door Unlocking System
.................... 2-3
Certification Label
.............................. 4-30
Chains. Safety
................................. 4-35
Chains. Tire
................................... 6-47
Change Oil Soon Message
........................ 2-77 Changing
a Flat Tire ............................. 5-24
Checking Your Restraint Systems
.................. 1-45
CheckOilLevel
................................ 2-77
Chemical Paint Spotting
.......................... 6-54
Child Restraints
................................ 1-34
Securing in a Rear Outside Seat Position
........... 1-36
Securing in the Center Rear Seat Position
.......... 1-38
Securing in
the Right Front Seat Position .......... 1-40
TopStrap
................................... 1-35
WheretoPut
................................ 1-34
Cigarette Lighter
............................... 2-52
Circuit Breakers and Fuses
....................... 6-58
Cleaner. Air
................................... 6-14
Cleaning Aluminum or Chrome Wheels
................... 6-53
Fabric
...................................... 6-49
Glass
....................................... 6-51
Inside
of Your Aurora ......................... 6-48
Instrument Panel
............................. 6-51
Leather
..................................... 6-51
Outside of Your Aurora
........................ 6-52
Special Problems
............................. 6-50
Stains
...................................... 6-50
Tires
....................................... 6-54
Vinyl
....................................... 6-50
Wheels
..................................... 6-53
Windshield
and Wiper Blades ................... 6-52
Climate Control, Steering Wheel Controls
........... 3-10
Clock. Setting the
............................... 3-10
Comfort Controls
................................ 3-1
Compact Disc Care
............................. 3-27
Compact Disc Player
....................... 3-14, 3-21
Compact Disc Player Errors
.................. 3-17. 3-22
ProCarManuals.com

Compact Spare Tire ............................. 5-34
Control of a Vehicle
.............................. 4-5
Convenience Net
............................... 2-51
Convex Outside Mirror
........................... 2-49
Coolant
....................................... 6-20
Heater, Engine
............................... 2-22
Surge Tank
............................. 5-17, 5-18
CoolingSystem
................................ 5-17
Cornering Lamps
............................... 2-44
CourtesyLamps
................................ 2-45
Courtesy Transportation
........................... 8-5
Cruise Control
................................. 2-37
Customer Assistance for Text Telephone Users
......... 8-3
Customer Assistance Information ................... 8-1
Customer Satisfaction Procedure
.................... 8-1
Damage, Finish
............................... 6-54
Damage, Sheet Metal
............................ 6-54
Date Display
................................... 2-79
Daytime Running Lamps
......................... 2-42
Dead Battery
................................... 5-2
Defects, Reporting Safety
.......................... 8-7
Defensive Driving
............................... 4-1
Defogger, Rear Window .......................... 3-8
Delayed Illumination
............................ 2-45
Delayed Locking
............................... 2-10
Dimensions, Vehicle
............................ 6-69
Distance to Destination
.......................... 2-78
Dolby' B Noise Reduction
.................. 3-13, 3-20
Defogging
...................................... 3-8
Defrosting
...................................... 3-8
DIC .......................................... 2-74 Door
Ajar Reminder
................................ 2-4
Central Unlocking System
....................... 2-3
Locks
....................................... 2-3
Drive Position, Automatic Transaxle
................ 2-25
Driver Information Center
........................ 2-74
Driver Position
................................. 1-11
Driving
City
........................................ 4-20
Defensive
.................................... 4-1
Drunken
..................................... 4-2
Freeway
.................................... 4-21
InaBlizzard
................................. 4-27
IntheRain
.................................. 4-17
Night
...................................... 4-15
OnCurves
.................................. 4-10
On Grades While Towing a Trailer
............... 4-37
On Hill and Mountain Roads
.................... 4-23 .
On Snow and Ice ............................. 4-26
Throughwater
............................... 4-19
WetRoads
.................................. 4-17
Winter
...................................... 4-25
Wi.th a Trailer
................................ 4-35
Drunken Driving
................................ 4-2
Elapsed Time Indicator
......................... 2-79
Electrical Equipment. Adding
.............. : . 3.26. 6.57
Electrical.System
............................... 6-57
Electrochromic Daymight Rearview Mirror
.......... 2-48
Electronic Climate Control
........................ 3-1
Electronic Level Control
......................... 4-31
ProCarManuals.com

Engine ................................... 2.76. 6.9
Accessory Belt
............................... 6-70
Coolant Heater
............................... 2-22
Coolant Level Check
.......................... 7-38
Coolant Temperature Gage
..................... 2-68
Exhaust
..................................... 2-30
Fuse Blocks
................................. 6-66
Identification
................................ 6-56
OilLevelCheck
.............................. 7-38
Overheating
................................. 5-14
Running While Parked
......................... 2-3 1
Specifications
................................ 6-69
StartingYour
................................ 2-20
Engineoil
.................................... 6-10
Adding
..................................... 6-11
Additives
................................... 6-12
Checking
................................... 6- 10
Life Monitor ................................. 2-76
Pressure Light
............................... 2-72
Used
....................................... 6-13
Whentochange
.............................. 6-13
Estimated Time
of Arrival ........................ 2-78
Exhaust. Engine
................................ 2-30
Exit Lighting
.................................. 2-46
Express-Down Window
.......................... 2-32
Coolant
..................................... 6-20
Fabric Cleaning
............................... 6-49
Fan Knob. Climate Control System
.................. 3-2
FillingYourTank
................................ 6-4
Filter. Air
..................................... 6-14
Finish Care .................................... 6-53
Finish Damage
................................. 6-54
First Gear. Automatic Transaxle
................... 2-25
Flash-to-Pass Feature
........................... 2-36
Flashers. Hazard Warning
......................... 5-1
Flat Tire. Changing
............................. 5-24
Fluid Capacities
................................ 6-68
Fluids and Lubricants
............................ 7-43
Foreign Countries. Fuel
........................... 6-3
French LanguageManual
11
Front Storage Armrest ........................... 2-50
FrontTowing
.................................. 5-11
Fuel
.......................................... 6-2
Canada
...................................... 6-3
Filling Your Tank
.............................. 6-4
Gage
....................................... 2-73
In Foreign Countries ........................... 6-3
RangeDisplay
............................... 2-76
UsedDisplay
................................ 2-75
Used Reset, Driver Information Center
............ 2-75
FogLamps
.................................... 2-43
.. ...........................
Fuses and Circuit Breakers ....................... 6-58
Gages Engine Coolant Temperature
.................... 2-68
Fuel
....................................... 2-73
GAWR
....................................... 4-30
GloveBox
.................................... 2-50
Gross Axle Weight Rating ........................ 4-30
Gross Vehicle Weight Rating
...................... 4-30
Guide en FranGais
-11 .. ................................
GVWR ....................................... 4-30
ProCarManuals.com
