1996 FORD MUSTANG light

112 % [FV08575(M )08/93]Using the Illuminated Entry System
[FV08600(M )08/93]
If your vehicle has this option, the interior lights
turn on when you lift the outside door handle
on either front door, or when you press
UNLOCK, TRUNK, or PANIC on a programmed
remote entry transmitter if your vehicle is
equipped with remote entry.
[FV08625(M )09/95]
These lights automatically turn off after 25
seconds or when you turn the ignition key to
ON or ACC. The inside lights will not turn off if
you have turned them on manually or if a door
is opened.
% [FV08650(M )08/93]
Battery Saver (With Remote Entry)
*
[FV08675(M )09/95]
When the ignition is turned off, the vehicle will
turn off battery voltage to the interior lights
after 45 minutes.
[FV08700(M )08/93]
This will prevent draining of the battery if those
lights have been left on inadvertently or if a
door is not completely closed. Battery voltage to
these lamps will be restored when the outside
front door handles are lifted, the Remote Entry
transmitter is used to unlock the doors, activate
the personal alarm or open the trunk, or the
ignition key is turned on again.
%*
[FV08725( ALL)02/95]
Replacing the batteries
*
[FV08750(MBC )02/95]
The remote entry transmitter is powered by two
coin type three-volt lithium 2016
batteries (included) that should last for several
years of normal use. If you notice a significant
decrease in operating range, the batteries should
be replaced. Replacement batteries can be
purchased at most pharmacies, watch stores or
at your Ford or Lincoln-Mercury dealer.
File:08rcfvm.ex
Update:Wed Mar 27 09:32:34 1996

124 % [FV20450(M )12/93]Folding Rear Seat (Coupe only)
[FV20455(M )12/93]
To fold down the rear seats, gently pull on the
release straps.
[FV20460(M )12/93]
NOTE: It may be necessary to apply slight
hand pressure to top of seatback while
pulling on release strap.
[FV20465(M )12/93]

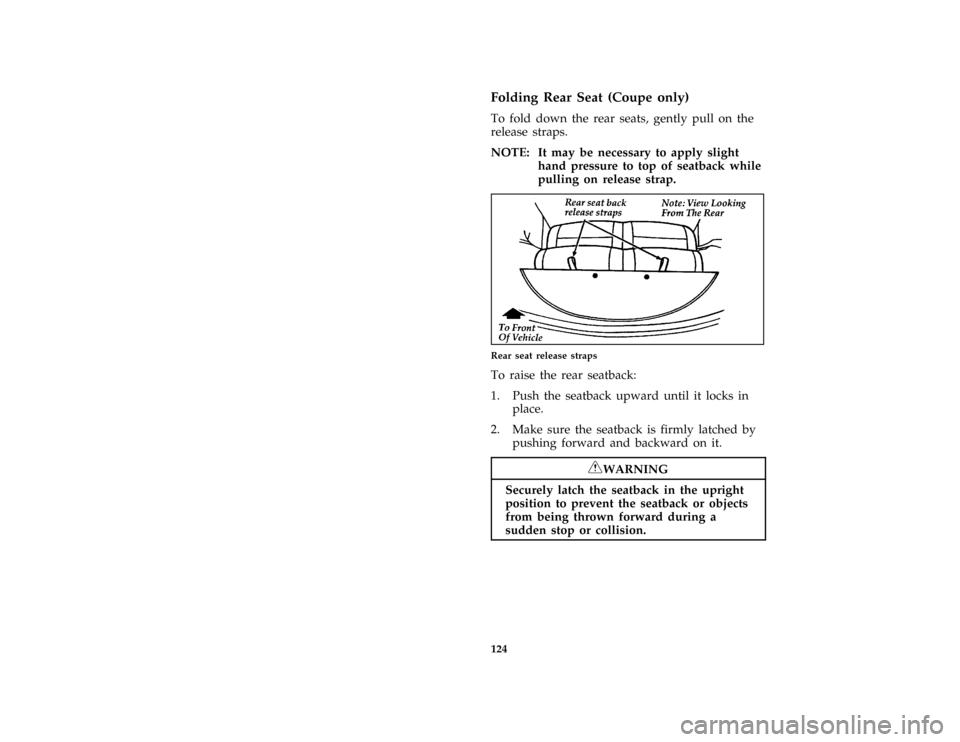

one third page art:0011249-A
Rear seat release straps
*
[FV20470(M )12/93]
To raise the rear seatback:
*
[FV20475(M )12/93]
1. Push the seatback upward until it locks in
place.
[FV20480(M )12/93]
2. Make sure the seatback is firmly latched by
pushing forward and backward on it.
*
[FV20485(M )05/95]
RWARNING
Securely latch the seatback in the upright
position to prevent the seatback or objects
from being thrown forward during a
sudden stop or collision.
File:08rcfvm.ex
Update:Wed Mar 27 09:32:34 1996

128 [FV28700( ALL)01/89]The Right Side Convex Mirror
*
[FV28800( ALL)02/94]
The side view mirror on the right is a convex
mirror. This mirror gives you a wider view of
the lanes on your right and behind you.
*
[FV28900( ALL)05/95]
RWARNING
The side view mirror on the right makes
objects appear smaller and farther away
than they actually are.
%
*
[FV28950( ALL)05/95]
Sun Visors
%*
[FV29100( ALL)05/94]
Turning on the Mirror Light on the Sun
Visors (If equipped)
[FV29300( ALL)06/93]
To turn on the visor mirror light, lift the mirror
cover.
[FV29700(M )08/93]

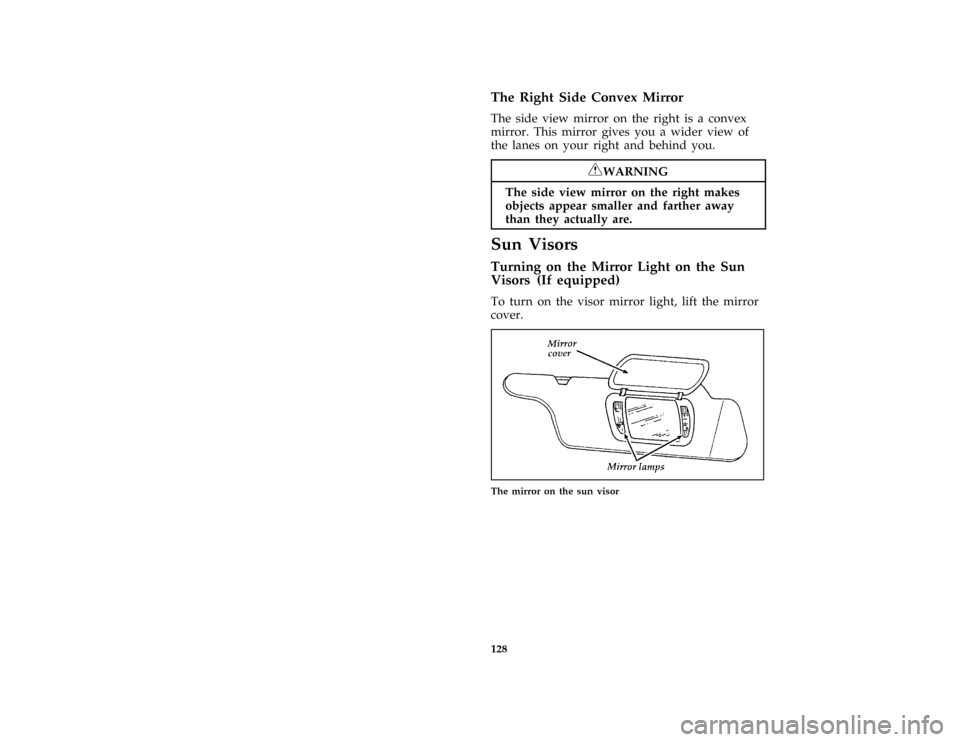

one third page art:0010276-B
The mirror on the sun visor
File:08rcfvm.ex
Update:Wed Mar 27 09:32:34 1996

130
%*
[FV32725(M GV)03/95]
Power Point Electrical Outlet
[FV32750(M )10/95]
The power point outlet is located on the console
to the right of the shift lever. This outlet should
be used in place of the cigarette lighter for
optional electrical accessories.
[FV32775(M )09/95]
NOTE: Do not plug optional electrical
accessories into the cigarette lighter.
Electrical system damage could occur.
[FV32801(M )08/93]

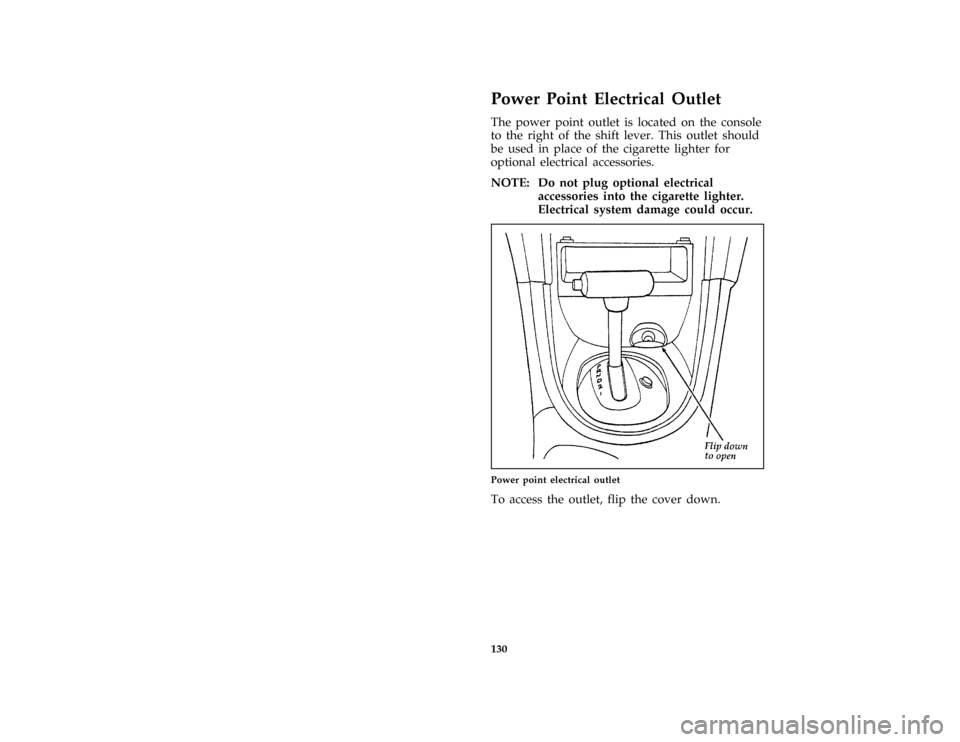

half page art:0011193-A
Power point electrical outlet
[FV32825(M )08/93]
To access the outlet, flip the cover down.
File:08rcfvm.ex
Update:Wed Mar 27 09:32:34 1996

133 [FV38855(M )06/93]
2. Check the convertible top stowage
compartment behind the rear seat to be sure
it is empty and ready to receive the top.
[FV38900(M )06/93]
3. Unclamp the top from the windshield header
at both the right and left sides by pulling
each clamp rearward until the hook in the
windshield header is free. The clamps are
flush with the header when in the closed
position.
[FV39000(M )06/93]
4. Close the windshield header clamps
immediately after disengagement, to avoid
cutting the top material and to permit
installation of the vinyl boot.
[FV39100(M )06/93]
5. If the top has not been lowered for some
time and sticks to the windshield header,
push the front of the top up slightly with
your hand to loosen it.
[FV39200(M )05/94]
one third page art:0010289-C
Convertible top header clamps
[FV39700(M )05/94]
6. Push the convertible top switch on the
console in front of the armrest and hold
until the top is completely stored.
File:08rcfvm.ex
Update:Wed Mar 27 09:32:34 1996

147
*
[AS27500(MBC )08/95]
Push thek/memory preset #3 button to
activate. Push again to deactivate.
*
[AS27600(MBC )08/95]
Tips on Caring for the Cassette Player and
Tapes
*
[AS27700(MBC )08/95]
In order to keep your cassette tape player
performing the way it was meant to, read and
follow these simple precautions:
*
[AS27750(MBC )08/95]
q
Using a Ford Cassette Cleaning Cartridge to
clean the tape player head after 10-12 hours
of play will help maintain the best playback
sound and proper tape operation.
*
[AS27800(MBC )08/95]
q
Only cassettes that are 90 minutes long or
less should be used. Tapes longer than 90
minutes are thinner and subject to breakage
or may jam the tape player mechanism.
*
[AS27900(MBC )08/95]
q
Protect cassettes from exposure to direct
sunlight, high humidity and extreme heat or
cold. If they are exposed to extreme
conditions, allow them to reach a moderate
temperature before playing.
*
[AS28001(MBC )08/95]
q
If a tape is loose inside the cassette, tighten it
before playing by putting your finger or a
pencil into one of the holes and turning the
hub until the tape is tight.
*
[AS28101(MBC )08/95]
q
Loose labels on cassette tapes can become
lodged in the mechanism. Remove any loose
label material before inserting a cassette.
*
[AS28200(MBC )08/95]
q
Do not leave a tape in the cassette tape
player when not in use. High heat in the
vehicle can cause the cassette to warp.
File:09rcasm.ex
Update:Wed Mar 27 09:33:20 1996

152 % [AS30700(M )11/94]How To Take Care of and Clean Your
Mini Disc Player and Discs
[AS30800(M )05/94]
To ensure the continued performance, of your
Ford Mini Disc Player carefully read the
following precautions.
*
[AS30900(M )08/95]
q
Always handle the disc by its edge. Never
touch the playing surface.
*
[AS31100(M )08/95]
q
Do not clean discs with solvents such as
benzine, thinner, commercially available
cleaners or antistatic spray intended for
analog records.
*
[AS31200(M )08/95]
q
Do not expose the disc to direct sunlight or
heat sources such as defroster and floor
heating ducts. Do not leave any discs in a
parked car in direct sunlight where there may
be a considerable rise in temperature or
damage may result.
*
[AS31300(M )08/95]
q
After playing, store the disc in its case.
*
[AS31400(M )08/95]
q
If a disc has already been inserted, do not try
to insert another disc. Doing so may damage
the disc player.
*
[AS31500(M )08/95]
q
Do not insert anything other than a disc into
the disc player.
*
[AS31600(M )08/95]
CAUTION:The use of optical instruments with
this product will increase eye hazard as the laser
beam used in this compact disc player is
harmful to the eyes. Do not attempt to
disassemble the case. Refer servicing to qualified
personnel only.
File:09rcasm.ex
Update:Wed Mar 27 09:33:20 1996

155
*
[AS38075(M )05/95]
Ford Compact Disc Player
*
[AS38100(M )03/95]
The Ford Compact Disc Player operates when
the Audio System is on and a disc is inserted
(label side up). Handle the disc by its edge
only. (Be sure to read and follow all of the care
and cleaning instructions underHow To Take
Care of and Clean Your CD Player and Discsin this
section.)
*
[AS38200(M )06/95]
The digital display on your CD player shows the
track (selection) number and the elapsed time.
Indicators for play
a, stop
X, compression on
(ªCOMPº) and shuffle on (ªSHUFº) are also in
the display. (These features are described later.)
[AS38210(M )06/95]
Once a disc is inserted, operation of the CD
player will override that of the cassette player or
radio.
%*
[AS38250(M )10/95]
Using the Controls on Your New Compact
Disc Player
[AS38270(M )09/95]
NOTE: The volume, bass, treble, balance and
fader controls on the radio are also
used with the CD player. Refer to
Using the Controls on Your New Radio
in this section for operating
instructions on these controls.
*
[AS38300(M )10/95]
How to insert a disc and begin play
[AS38310(M )03/95]
Insert one disc,label side upinto the disc
opening. When inserted, the disc automatically
loads into the unit and play starts at the
beginning of the first track (selection). The play
indicator (
a) lights up and the number ª1º
(track) and ª0:00º (elapsed time) are shown in
the digital display.
*
[AS38320(M )10/95]
When the disc reaches the end, the disc player
automatically returns to the beginning of the
disc and resumes playing.
File:09rcasm.ex
Update:Wed Mar 27 09:33:20 1996
