93
*
[IP19350( F )09/93]

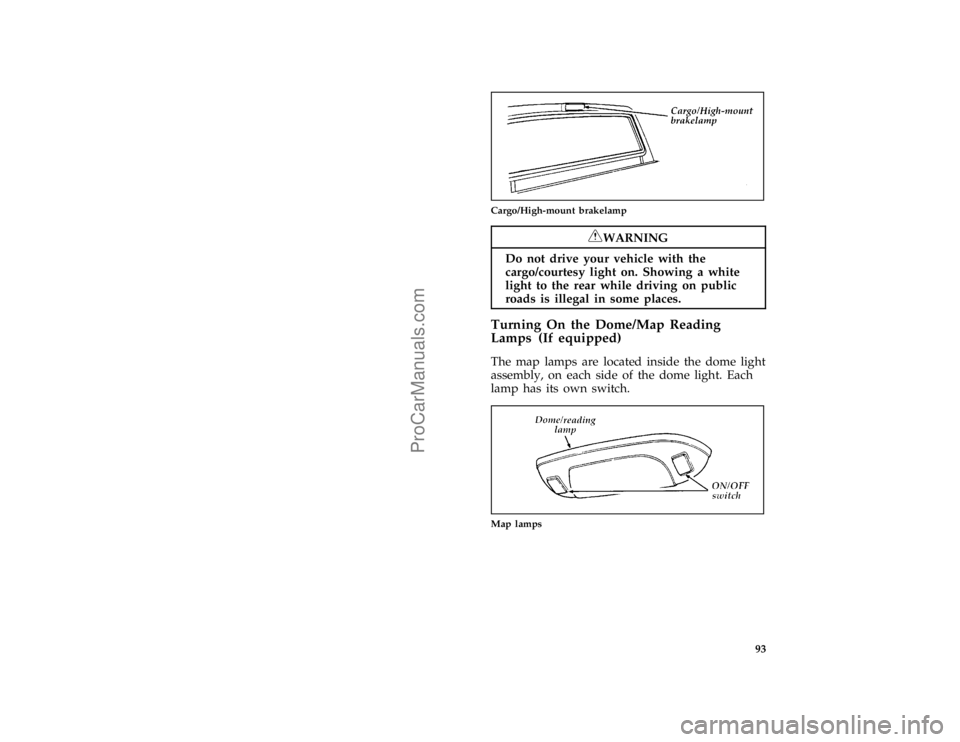

quarter page art:0020902-B
Cargo/High-mount brakelamp
*
[IP19400(B F )05/91]
RWARNING
Do not drive your vehicle with the
cargo/courtesy light on. Showing a white
light to the rear while driving on public
roads is illegal in some places.
*
[IP19705(B F )07/94]
Turning On the Dome/Map Reading
Lamps (If equipped)
*
[IP19805(B F )07/94]
The map lamps are located inside the dome light
assembly, on each side of the dome light. Each
lamp has its own switch.
*
[IP19900(B F )05/94]
quarter page art:0020127-B
Map lamps
File:ltipf.ex
Update:Thu May 9 15:21:29 1996
ProCarManuals.com

99
*
[SC05400( ALL)01/93]
RWARNING
In freezing weather, the washer solution
may freeze on the windshield and obscure
your vision. Always warm up the
windshield with the defroster before you
use the washer fluid. If you cannot see
through the windshield clearly, it can
increase the risk of being involved in a
collision.
*
[SC05500(BEF )04/95]
For information about refilling the washer fluid
or replacing your windshield wiper blades, see
Windshield washer fluid and Wipersin the Index.
%
*
[SC05510( ALL)03/95]
Hazard Flasher
*
[SC05520( ALL)04/95]
The hazard flasher is used to alert other drivers
to hazardous situations.
*
[SC05525( FM)10/92]
The flashers will continue to flash with the brake
pedal depressed.
*
[SC05530( ALL)03/95]
The flashers work whether your vehicle is
running or not. The flashers work for up to two
hours when the battery is fully charged and in
good condition without draining the battery
excessively. If the flashers run for longer than
two hours or if the battery is not fully charged,
the battery can be drained.
*
[SC05540( ALL)09/93]
To use the hazard flasher:
*
[SC05550( ALL)10/92]
1. Push in the flasher button; it will pop out
and the lamps will begin to flash.
*
[SC05560( ALL)10/92]
2. To stop the flashers, push in the flasher
button again.
*
[SC05562( ALL)10/92]
NOTE: The flasher button will be sticking up
slightly higher when ON than when
OFF.
File:ltscf.ex
Update:Thu May 9 15:25:14 1996
ProCarManuals.com

104
*
[SC09325( ALL)05/95]
RWARNING
Do not shift the transmission into N
(Neutral) with the speed control on.
*
[SC09350( ALL)03/94]
To maintain a preset speed under the above
conditions, with electronically controlled
transmissions Ð press the Transmission Control
Switch. The indicator light will turn on and
illuminate the word ªOFF.º This will cancel
ªOverdriveº. You can press the Transmission
Control Switch on or off at any speed. For the
best fuel economy during normal driving
conditions, press the Transmission Control
Switch to turn off the light. This allows
overdrive operation.
*
[SC09375( ALL)05/95]

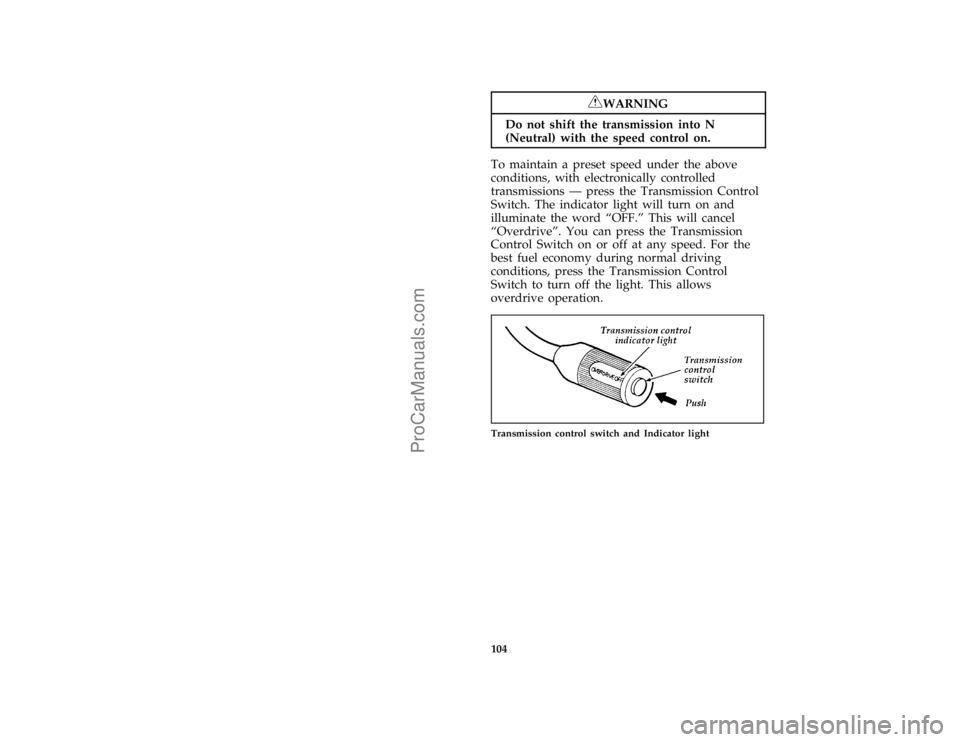

quarter page art:0020771-C
Transmission control switch and Indicator light
File:ltscf.ex
Update:Thu May 9 15:25:14 1996
ProCarManuals.com

175
*
[DR08915(BEF )06/94]
one third page art:0021081-A
The positions of the column-mounted gearshift
*
[DR08925( ALL)05/95]
quarter page art:0020771-C
Transmission Control Switch and indicator light (located
on the gearshift lever)
*
[DR09000( ALL)01/93]
RWARNING
Hold the brake pedal down while you
move the gearshift lever from position to
position. If you do not hold the brake
pedal down, your vehicle may move
unexpectedly and injure someone.
*
[DR09100( ALL)01/95]
Once you place the gearshift securely into
position, gradually release the brake pedal and
use the accelerator as necessary.
File:ltdrf.ex
Update:Thu May 9 15:17:55 1996
ProCarManuals.com

202
*
[DR21900(BEF )10/94]
Rear Drum Brakes
*
[DR22000(BEF )03/95]
The rear drum brakes are self-adjusting.
Automatic adjustment occurs when the brakes
are applied while ªbacking up.º If normal
operation does not include much backing, adjust
the brakes when they seem ªlow,º using the
procedure underIf Brakes Do Not Grip Well or
Pedal is Lowin this chapter.
*
[DR22025( F )03/91]
Rear Disc Brakes (F-Super Duty and
F-Series Stripped Chassis Only)
*
[DR22050( EFM)04/95]
The rear disc brakes are self-adjusting. They do
not require service other than periodic
lubrication of the caliper slide rails and
inspection for pad wear.
*
[DR22100( ALL)11/89]
Hydraulic Power Brakes
*
[DR22200(BEF )08/94]
The hydraulic brake system is made up of two
independent hydraulic circuits. One hydraulic
circuit supplies fluid to the front disc brakes and
the other hydraulic circuit supplies fluid to the
rear drum brakes. These two circuits are
supplied by a common hydraulic brake fluid
reservoir, with a fluid level sensor.
*
[DR22300( ALL)11/89]
The brake light in the instrument cluster will
light for low brake fluid in the common brake
fluid reservoir.
*
[DR22400( ALL)05/95]
RWARNING
An increase in pedal travel will result in
reduced braking capability. The brake
system should be checked immediately.
File:ltdrf.ex
Update:Thu May 9 15:17:55 1996
ProCarManuals.com

203
*
[DR22500( F )10/94]
Rear Anti-lock Brakes
*
[DR22600( F )02/92]
Except for F-Super Duty and F-Series
Commercial and Motorhome Stripped Chassis,
F-Series Light Trucks are equipped with a Rear
Antilock Brake System. This system prevents at
least one and often both rear wheels from
locking up when the brakes are applied in a
panic stop, for example.
*
[DR22800( EF )07/94]
Even with the Anti-lock Brake System, you
should be careful when braking. Front brake
lock up on any surface, even on smooth
pavement causes loss of steering control. Heavy
braking on roads with loose surfaces such as
snow or gravel, or severe pavement irregularities
could also cause you to lose steering control of
your vehicle.
*
[DR22900( EF )05/95]
RWARNING
If the anti-lock brake system warning
light remains on or comes on while
driving, have the braking system checked
by a qualified service technician as soon
as possible.
*
[DR22902( EF )05/95]
NOTE: If a fault occurs in the anti-lock
system, and the brake warning light is
not lit, the anti-lock system is disabled
but normal brake function remains
operational.
*
[DR23100( F )11/89]
If Brakes Do Not Grip Well or Pedal is
ªLowº (F-150/350 Only)
*
[DR23200(BEF )11/89]
If brakes do not grip well, it may indicate the
rear drum brakes need adjustment. To do this,
drive the vehicle in reverse at 5 mph (8 km/h)
on level, dry pavement. Stop the vehicle by
firmly applying the brakes. Repeat this
procedure four or five times.
File:ltdrf.ex
Update:Thu May 9 15:17:55 1996
ProCarManuals.com

204
*
[DR23250( ALL)11/89]
If during normal operation the brake pedal
seems ªlowº, it may indicate the need for a
brake system inspection and/or service. You
should have your brakes checked as soon as
possible.
*
[DR23300( ALL)02/95]
Occasional brake squeal during light to moderate
stops does not affect the function of the brake
system and is normal. However, if the squeal
becomes annoyingly loud or increases
significantly in frequency of occurrence, return
the vehicle to your dealer for inspection.
*
[DR23400(BEF )11/89]
RWARNING
Modifications to the suspension spring
rates and/or vehicle ride height may
adversely affect vehicle stopping ability.
*
[DR23500(BEF )07/92]
If Brakes Pull
*
[DR23600(BEF )07/92]
q
Check tire pressure
*
[DR23700(BEF )07/92]
q
Perform the self-adjustment procedure
described underIf Brakes Do Not Grip Well or
Pedal is ªLow.º
*
[DR23800(BEF )05/95]
If pull occurs during the first 500 miles
(800 km), make 10 moderately fast stops from
40 mph (65 km/h) and then perform the
self-adjustment procedure above. It may be
necessary to repeat this operation to properly
seat new brake linings and pads.
*
[DR24000( ALL)01/93]
Stopping Distances
*
[DR24100( ALL)11/89]
Stopping distances vary with different loads and
driving conditions. Use caution when
encountering new conditions and acquaint
yourself with vehicle performance. Take full
advantage of engine braking power when
slowing down.
File:ltdrf.ex
Update:Thu May 9 15:17:55 1996
ProCarManuals.com

207
*
[DR24975(B F )05/95]
RWARNING
Do not leave the vehicle unattended with
the transfer case in the N (Neutral)
position. Always set the parking brake
fully and turn off the ignition when
leaving the vehicle.
*
[DR25000(B FM)03/93]
To release the parking brake, press the service
brake pedal with your right foot and pull the
parking brake release lever.
*
[DR25050( ALL)01/93]
RWARNING
If the parking brake is fully released, but
the Brake System light remains on, have
the brakes checked immediately. They
may not be working properly.
*
[DR25100( ALL)01/95]
The parking brake is not designed to stop a
moving vehicle, but you can use the parking
brake to stop your vehicle in an emergency if
the normal brakes fail. However, since the
parking brake applies only the rear brakes, the
stopping distance will increase greatly and the
handling of your vehicle will be adversely
affected.
*
[DR25200( ALL)01/95]
Driving Under Special Conditions
*
[DR25250( ALL)01/95]
Tips for Safe Driving
*
[DR25301( ALL)05/95]
As with any new vehicle, yours may drive and
handle differently from your previous vehicle.
Use care until you become accustomed to its
various features and driving characteristics.
*
[DR25350( ALL)03/95]
Operate your vehicle within reasonable limits.
Sudden acceleration, deceleration, turning, or
combinations of these maneuvers can cause a
vehicle to behave differently than anticipated.
File:ltdrf.ex
Update:Thu May 9 15:17:55 1996
