1996 FORD F150 ignition

179
*
[DR10500( ALL)01/95]
P (Park)
*
[DR10600( ALL)03/94]
Always come to a complete stop before you shift
into P (Park). This position locks the
transmission and prevents the rear wheels from
turning. To securely latch the gearshift in the P
(Park) position, pull it toward you, push it
completely counterclockwise against the stop,
and then push it toward the instrument panel.
*
[DR10650( ALL)03/94]
The gearshift is securely latched in P (Park) if
you cannot rotate it in a clockwise direction
without lifting it toward you.
*
[DR10700( ALL)05/95]
RWARNING
Always set the parking brake fully and
make sure that the gearshift is securely
latched in P (Park).
[DR10725(B F )05/95]
When the transfer case is in the N (Neutral)
position, the engine and transmission are
disconnected from the rest of the driveline.
Therefore, the vehicle is free to roll even if the
automatic transmission is in P (Park) or the
manual transmission is in gear.
*
[DR10750(B F )05/95]
RWARNING
Do not leave the vehicle unattended with
the transfer case in the N (Neutral)
position. Always set the parking brake
fully and turn off the ignition when
leaving the vehicle.
*
[DR10800( ALL)05/95]
RWARNING
Never leave your vehicle unattended
while it is running.
File:ltdrf.ex
Update:Thu May 9 15:17:55 1996

185
*
[DR15300(B F )03/95]
When you come to a stop, do not downshift
through each gear. Disengage the clutch and use
the brake as necessary. Downshifting through
the gears decreases your vehicle's fuel economy.
*
[DR15400(B F )05/95]
RWARNING
Continued use of a damaged or worn
clutch, prolonged clutch slippage or
downshifting at excessive speeds can
result in a failure of the engine,
transmission or clutch components.
*
[DR15500(B F )03/91]
Transmission Function
*
[DR15600(B F )03/91]
Upshift at the speeds specified in the chart
available for your engine and transmission. All
forward gears are synchronized allowing you to
shift into them with your vehicle in motion. The
clutch pedal should be fully depressed when
shifting.
*
[DR15625(B F )04/94]
NOTE: Shifting during extremely low rpm's
can result in a momentary audible
rattle which disappears as vehicle
rpm's are increased. Shifting at higher
speeds will eliminate this sound.
*
[DR15700(B F )03/95]
Parking
*
[DR15800(B F )01/95]
To park your vehicle, apply the service brake
pedal, and shift into N (Neutral) while still
maintaining pressure on the service brake. Set
the parking brake fully. Shift into first and turn
off the ignition.
*
[DR15900(B F )05/95]
RWARNING
Do not park your vehicle in Neutral, it
may move unexpectedly and injure
someone. Use 1 (First) gear and set the
parking brake fully.
File:ltdrf.ex
Update:Thu May 9 15:17:55 1996

186 [DR15903(B F )05/95]When the transfer case is in the N (Neutral)
position, the engine and transmission are
disconnected from the rest of the driveline.
Therefore, the vehicle is free to roll even if the
automatic transmission is in P (Park) or the
manual transmission is in gear.
*
[DR15906(B F )05/95]
RWARNING
Do not leave the vehicle unattended with
the transfer case in the N (Neutral)
position. Always set the parking brake
fully and turn off the ignition when
leaving the vehicle.
*
[DR15915( ALL)01/95]
Steering Your Vehicle
%*
[DR15945( ALL)01/95]
Your vehicle comes with power steering. Power
steering uses energy from the engine to help
steer your vehicle.
%*
[DR15950( ALL)04/95]
If the amount of effort needed to steer your
vehicle changes at a constant vehicle speed, have
the power steering system checked. If the power
steering system breaks down (or if the engine is
turned off), you can steer the vehicle manually
but it takes more effort.
*
[DR15960( ALL)01/95]
Never hold the steering wheel to the extreme
right or left for more than five seconds if the
engine is running. This can damage the power
steering pump.
*
[DR15985( ALL)05/90]
NOTE: After any severe impact such as
striking large potholes, sliding into
curbs on icy roads, or a collision
involving the front end, observe the
steering wheel alignment. If the spokes
of the steering wheel seem to be in a
different position while going straight
down the road, have the front
suspension and steering checked for
possible damage.
File:ltdrf.ex
Update:Thu May 9 15:17:55 1996

188
*
[DR16230(B F )05/95]
RWARNING
Do not leave the vehicle unattended with
the transfer case in the N (Neutral)
position. Always set the parking brake
fully and turn off the ignition when
leaving the vehicle.
*
[DR16250(B F )12/91]

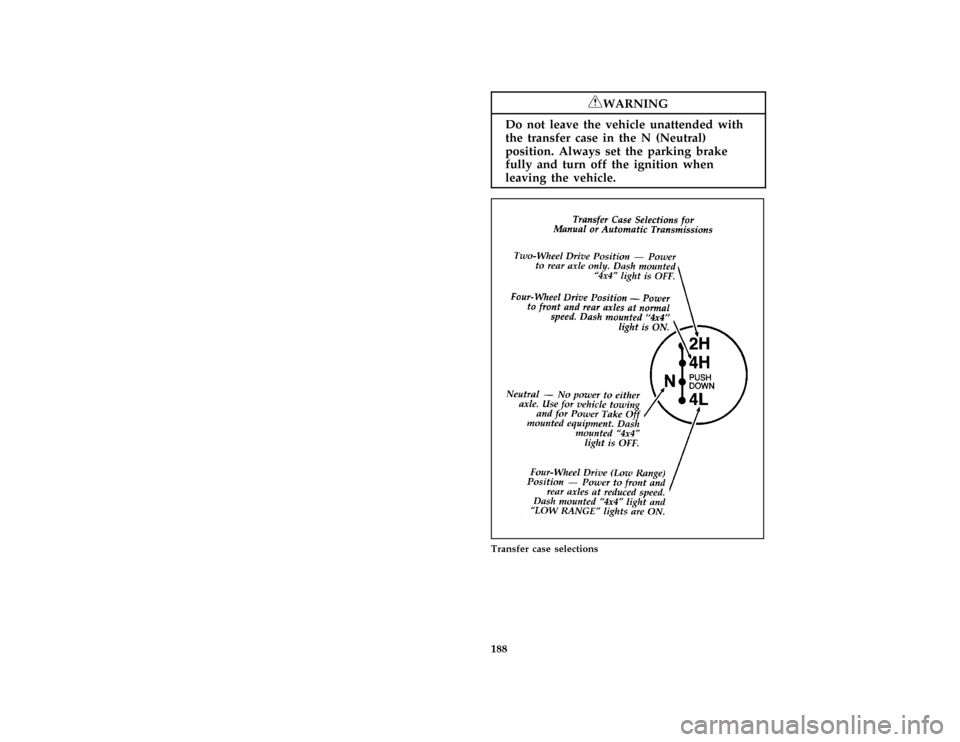

two third page art:0020792-C
Transfer case selections
File:ltdrf.ex
Update:Thu May 9 15:17:55 1996

199
*
[DR19700(B F )08/94]
q
Manual locking hubs must be in LOCK
position before shifting into four-wheel drive.
*
[DR19800(B F )11/89]
When using four-wheel drive, maintain steering
wheel control at all times, especially in rough
terrain. Since sudden changes in terrain can
result in abrupt steering wheel motion, make
sure you grip the steering wheel rim from the
outside. Do not grip the spokes.
*
[DR19900(B F )05/90]
Drive cautiously to avoid vehicle damage from
concealed objects such as rocks and stumps.
Know the terrain or examine maps of the area in
question before driving. Map out your route
beforehand. To maintain steering and braking
control of your vehicle, you must have all four
tires on the ground, and they must be rolling,
not sliding or spinning.
*
[DR19925(B F )11/89]
Transmission upshift in 4x4 with transfer case in
4L may be quite firm due to large total gear
reduction. This condition is normal.
*
[DR20000(B F )11/89]
Sand
*
[DR20100(B F )11/89]
When driving over sand, try to keep all four
wheels of the vehicle on the most solid area of
the trail. Do not reduce the tire pressures but
shift to a lower gear and drive steadily through
the terrain. Apply accelerator slowly and avoid
spinning the wheels.
*
[DR20200(B F )11/89]
Mud and Water
*
[DR20300(B F )12/89]
When driving through water, determine the
depth; avoid water higher than the bottom of
the hubs (if possible) and proceed slowly. If the
ignition system gets wet, the vehicle may stall.
*
[DR20400(B F )11/89]
Once through water, always try the brakes. Wet
brakes do not stop the vehicle as effectively as
dry brakes. Drying can be improved by moving
your vehicle slowly, while applying light
pressure on the brake pedal.
File:ltdrf.ex
Update:Thu May 9 15:17:55 1996

207
*
[DR24975(B F )05/95]
RWARNING
Do not leave the vehicle unattended with
the transfer case in the N (Neutral)
position. Always set the parking brake
fully and turn off the ignition when
leaving the vehicle.
*
[DR25000(B FM)03/93]
To release the parking brake, press the service
brake pedal with your right foot and pull the
parking brake release lever.
*
[DR25050( ALL)01/93]
RWARNING
If the parking brake is fully released, but
the Brake System light remains on, have
the brakes checked immediately. They
may not be working properly.
*
[DR25100( ALL)01/95]
The parking brake is not designed to stop a
moving vehicle, but you can use the parking
brake to stop your vehicle in an emergency if
the normal brakes fail. However, since the
parking brake applies only the rear brakes, the
stopping distance will increase greatly and the
handling of your vehicle will be adversely
affected.
*
[DR25200( ALL)01/95]
Driving Under Special Conditions
*
[DR25250( ALL)01/95]
Tips for Safe Driving
*
[DR25301( ALL)05/95]
As with any new vehicle, yours may drive and
handle differently from your previous vehicle.
Use care until you become accustomed to its
various features and driving characteristics.
*
[DR25350( ALL)03/95]
Operate your vehicle within reasonable limits.
Sudden acceleration, deceleration, turning, or
combinations of these maneuvers can cause a
vehicle to behave differently than anticipated.
File:ltdrf.ex
Update:Thu May 9 15:17:55 1996

254 %
*
[RE00900( ALL)05/95]
RWARNING
Batteries contain sulfuric acid which burns
skin, eyes, and clothing.
*
[RE00925( ALL)05/95]
If the acid touches someone's skin, eyes, or
clothing, immediately flush the area with water
for at least 15 minutes. If someone swallows the
acid, have him or her drink lots of milk or water
first, then Milk of Magnesia, a beaten egg, or
vegetable oil. Call a doctor immediately.
*
[RE00950( ALL)12/89]
RWARNING
Do not push-start your vehicle. You could
damage the catalytic converter. For further
information, seeJumper Cablesin the
Index.
*
[RE01000( ALL)03/95]
To avoid damaging your vehicle or your battery,
and to avoid injury to yourself, follow these
directions for preparing your vehicle to
jump-start and connecting the jumper cables in
the order they are given. If in doubt, call for
road service.
*
[RE01100( ALL)03/95]
Preparing Your Vehicle
*
[RE01200( ALL)03/95]
1. Your vehicle has a 12-volt starting system, so
you need to use a 12-volt jumper system.
You will damage your starting motor,
ignition system, and other electrical parts if
you connect them to a 24-volt power supply
(either two 12-volt batteries in series or a
24-volt generator set).
*
[RE01300( ALL)03/95]
2. Do not disconnect the battery of the disabled
vehicle. You could damage the vehicle's
electrical system.
File:ltref.ex
Update:Thu May 9 15:24:41 1996

258
%*
[RE03600( ALL)03/95]
Changing a Tire
*
[RE03700( ALL)01/95]
If you get a flat tire while you are driving, do
not apply the brake heavily. Instead, gradually
decrease the speed. Hold the steering wheel
firmly and slowly move to a safe place on the
side of the road. Park on a level spot, turn off
the ignition, set the parking brake, and turn on
the hazard flashers.
*
[RE03800( ALL)03/95]
The Conventional Spare Tire
*
[RE03900(BEF )01/95]
If you have the conventional spare tire, you can
use it as a spare or as a regular tire. This spare
tire is identical to the other tires that come with
your vehicle, although the wheel may not match.
*
[RE04275(BEF )05/95]
RWARNING
To avoid injury, never run the engine
with one wheel off the ground, such as
when changing a tire.
*
[RE04280(BEF )10/94]
Extended use of other than matching size spare
tires on a Traction-Lok axle could result in a
permanent reduction in effectiveness. This loss of
effectiveness does not affect normal driving and
should not be noticeable to the driver.
File:ltref.ex
Update:Thu May 9 15:24:41 1996
