1996 FORD ESCORT key

128 [LG10450(ALL)02/94]
one inch art:0070205-AThe anti-lock brake system light
%*
[LG20000(ALL)02/95]
Engine Oil Pressure Warning Light
[LG20025(ALL)06/95]
This light indicates low oil pressure,not low oil
level. However, if your engine's oil level is low,
it could affect the oil pressure. This light comes
on every time your ignition key is turned to ON
or START. The light should turn off after a few
seconds. If the light stays on when the engine is
running, you have lost oil pressure and
continued operation will cause severe engine
damage.
[LG20050(ALL)03/93]
one inch art:0000839-A
The engine oil pressure light
*
[LG20100(ALL)03/95]
1. Pull off the road as soon as safely possible.
*
[LG20125(ALL)11/94]
2. Shut off the engine immediately. If you do
not stop the engine as soon as safely
possible, severe engine damage could result.
*
[LG20150(ALL)11/94]
3. Check the engine's oil level, following the
instructions on checking and adding engine
oil in this Owner Guide. (SeeEngine oilin
the Index.) If you do not follow these
instructions, you or others could be injured.
To ensure an accurate reading, your vehicle
should be on level ground.
File:05ctlge.ex
Update:Tue Sep 19 14:44:43 1995

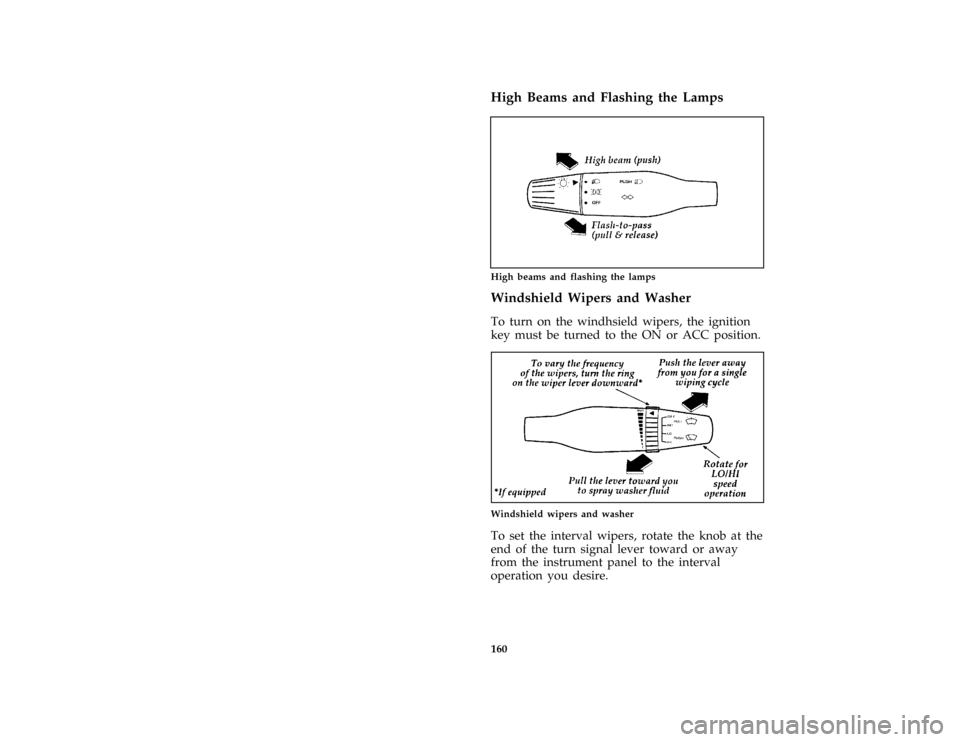

160 [SC01250(ALL)08/95]High Beams and Flashing the Lamps
[SC01300(ALL)08/95]
one third page art:0070281-A
High beams and flashing the lamps
[SC01350(ALL)08/95]
Windshield Wipers and Washer
[SC01400(ALL)08/95]
To turn on the windhsield wipers, the ignition
key must be turned to the ON or ACC position.
[SC01450(ALL)08/95]
one third page art:0070159-C
Windshield wipers and washer
[SC01500(ALL)08/95]
To set the interval wipers, rotate the knob at the
end of the turn signal lever toward or away
from the instrument panel to the interval
operation you desire.
File:07ctsce.ex
Update:Tue Sep 19 14:47:40 1995

170 %
*
[FV00825(ALL)04/95]
Power Door Locks (If equipped)
[FV00835(ALL)08/95]
When you close the doors after you lock them
with the power door locks, the doors remain
locked. If the power mechanism ever fails, the
manual door locks will override the power locks.
[FV00850(ALL)08/95]
NOTE: Vehicles equipped with power locks
have a safety feature which allows you
to unlock one or both front doors from
either door lock key cylinder.
[FV00900(ALL)08/95]
one third page art:0070283-B
Locking and unlocking doors with the key
[FV01701(ALL)03/95]
Childproof Locks for the Rear Doors
(4-door and wagon models)
*
[FV01800(ALL)03/95]
In addition to standard or power locks, your
vehicle has childproof locks for the rear doors. If
you set these locks, the rear doors cannot be
opened from the inside of the vehicle. The doors
can still be opened from the outside when the
lock knobs are raised.
File:08ctfve.ex
Update:Tue Sep 19 14:50:19 1995

185 %
*
[FV24800(ALL)05/95]
Side View Mirrors
[FV24850(ALL)11/93]
The standard side mirror is manually adjusted
by using the remote lever.
[FV24875(ALL)03/93]
one third page art:0070012-C
The side view mirror
[FV24900(ALL)06/93]
Electric Remote Control Mirrors
(If equipped)
[FV24925(ALL)04/94]
If your vehicle has dual electric remote control
mirrors, you can control both side view mirrors
with one switch. The ignition key must be in the
ACC or ON position to operate the electric
remote control mirror switch.
[FV24960(ALL)04/94]
one third page art:0000914-A
The electric remote control mirror switch
File:08ctfve.ex
Update:Tue Sep 19 14:50:19 1995

205
*
[AS06400(ALL)08/95]
How to insert a disc and begin play
*
[AS06450(ALL)08/95]
Insert one disc,label side upinto the disc
opening. When inserted, the disc automatically
loads into the unit and play starts at the
beginning of the first track (selection).
*
[AS06500(ALL)08/95]
When the disc reaches the end, the disc player
automatically returns to the beginning of the
disc and resumes playing.
*
[AS06550(ALL)08/95]
NOTE: Once a disc is inserted, the disc
opening is secured to prevent the
accidental insertion of a second disc.
*
[AS06600(ALL)08/95]
NOTE: The CD player has heat protection
circuitry to protect the laser diode. If
the temperature of the player reaches
167ÊF (75ÊC), theheat detection circuit
will shut off the player and ªTOO
HOTº will scroll in the display for
approximately five seconds (radio will
resume playing). When the temperature
returns to normal operating range, the
CD player will again be operational.
*
[AS06650(ALL)08/95]
How to stop and restart the CD player
*
[AS06700(ALL)08/95]
When a disc is loaded, the unit automatically
enters the play mode and the play indicator
a
illuminates. To stop temporarily, press the
ªPLAY/STOPº button or the ªAM/FMº button.
The stop indicator
Xin the display illuminates
and operation returns to the radio mode. To
resume CD play, press the ªPLAY/STOPº
button once again.
*
[AS06750(ALL)08/95]
NOTE: If the ignition key is turned OFF
during play and then is set to the ON
or ACCESSORY position, the CD
player will resume playing in the mode
it was in when ignition was turned off.
File:09ctase.ex
Update:Tue Sep 19 14:51:59 1995

224 %
*
[DR03800(ALL)01/95]
Putting Your Vehicle in Gear
*
[DR04001(ALL)05/95]
RWARNING
Hold the brake pedal down while you
move the gearshift lever from position to
position. If you do not hold the brake
pedal down, your vehicle may move
unexpectedly and injure someone.
*
[DR04025(ALL)07/93]
Using a Console-Mounted Gearshift
[DR04050(ALL)08/95]
Since your vehicle has a console-mounted
gearshift, you must depress the brake pedal,
then push in the thumb button to move the
gearshift to the position you choose.
*
[DR04900(ALL)11/94]
Once the gearshift is secure in the desired
position, release the brake pedal and use the
accelerator as necessary.
[DR04950(ALL)06/94]
one third page art:0070193-C
The automatic console-mounted gearshift lever
[DR05010(ALL)08/95]
To move the gearshift out of P (Park), the
ignition must be turned to the ON position and
the brake pedal must be depressed. When the
gearshift is in any other position except P (Park),
the ignition key cannot be turned to LOCK or be
removed from the steering column. To remove
the key, the gearshiftmustbe in P (Park).
File:10ctdre.ex
Update:Tue Sep 19 14:53:34 1995

234with your anti-lock brake system, you may not
have total control of your vehicle when braking
on roads with loose surfaces such as snow or
gravel, holes in the pavement, or alternating
patches of slippery and dry surfaces.
[DR17350(ALL)04/94]
Each time you turn the ignition key to the ON
position, the anti-lock brake system will function
through one test cycle. When this happens, the
anti-lock light (ABS) will come on for up to six
seconds. If the light stays on longer than six
seconds, shut off the engine and restart. If it
remains on, it means the anti-lock brake system
is disabled and should be serviced immediately
to restore the benefits of the anti-lock feature.
Normal braking is not affected unless the red
brake warning light is also lit.
[DR17400(ALL)02/94]
The anti-lock brake system has self-check
capabilities. As described above, the system
turns on the anti-lock light each time you start
your engine. After the engine is started and the
anti-lock light turns off, the system performs
another test the first time the vehicle reaches
7 mph (11 km/h). The system turns on the ABS
pump motor for approximately 1/2 second. At
this time, a mechanical noise may be heard. This
is a normal part of the self-check feature. If a
malfunction is found during this check the
anti-lock light will come on.
*
[DR17500(ALL)08/95]
Ford Motor Company has not found any
negative effects of mobile radio transmitting
equipment installed on vehicles with the ABS
system providing that the radio is installed
according to the radio manufacturer's
instructions. However, if you have had a mobile
radio transmitter installed and the ABS light
comes on (at any time other than immediately
File:10ctdre.ex
Update:Tue Sep 19 14:53:34 1995

235
after turning the key to the ON position) have
your mobile radio dealer inspect the radio
installation. Also, if the ABS system is activated
other than during maximum braking, have your
mobile radio installation checked.
%*
[DR17800(ALL)03/95]
Parking Brake
*
[DR17900(ALL)01/95]
The parking brake should be used whenever
you park your vehicle.
[DR17950(ALL)06/93]
half page art:0070057-B
The parking brake lever (automatic transaxle shown)
*
[DR18100(ALL)11/93]
The parking brake lever is located between the
front seats. To set the parking brake, put your
foot on the brake pedal while pulling the
parking brake handle fully and firmly upward.
*
[DR18300(ALL)12/89]
To release the parking brake, put your foot on
the brake pedal, pull the handle upward and
push the button. Then lower the handle to the
released position while holding the button in.
File:10ctdre.ex
Update:Tue Sep 19 14:53:34 1995
