1996 CHEVROLET MONTE CARLO Owners Manual

Downloaded from www.Manualslib.com manuals search engine When the DRL are on, only your low-beam headlamps
will be on. The taillamps, sidemarker and other lamps
won’t be on. Your instrument panel won’t be lit
up either.
When it’s dark enough outside, your low-beam
headlamps will change to
full brightness. The other
lamps that come
on with your headlamps will also
come on.
When it’s bright enough outside, the regular lamps will
go out, and your low-beam headlamps change to the
reduced brightness of DRL.
To idle your vehicle with the DRL off, set the parking
brake while the ignition is
in OFF or LOCK. Then start
your vehicle. The DRL will stay off
until you release the
parking brake.
As with any vehicle, you should turn on the regular
headlamp system when you need
it.
Interior Lamps
Instrument Panel Brightness Control
You can brighten or dim the instrument panel lamps by
moving the dial
(A). If you turn the dial all the way up,
your courtesy or interior lamps will come on.
Courtesy Lamps
When any door is opened, several lamps come on. These
lamps are courtesy lamps. They make
it easy for you to
enter and leave your vehicle. You can also turn these
lamps on by moving the dial near the headlamp knob
all the way up.
Some of the lamps have switches so you can turn them
on,
even when the doors are closed. These lamps are
reading lamps. To avoid draining your battery, be sure
to turn off all reading lamps when leaving your vehicle.
2-31
._

Downloaded from www.Manualslib.com manuals search engine Sustained Interior Illumination
Your courtesy lamps will come on and stay on for a set
time whenever you:
Open a door.
Press UNLOCK on the Remote Lock Control
transmitter (if equipped).
0 Press DOOR on the Remote Lock Control
transmitter (if equipped).
If you open
a door, the lamps will stay on while it’s open
and
then turn off automatically about 18 seconds after
you close it. If you don’t open
a door, the lamps will
turn off after about 18 seconds, unless you pressed
UNLOCK on the Remote Lock Control transmitter. If
you pressed UNLOCK and don’t open a door, the lamps
will turn off after about
55 seconds.
Sustained interior illumination includes a feature called
theater dimming. With theater dimming,
the lamps don’t
just turn off at the end
of the delay time. Instead, they
slowly dim during the delay time until they go out. The
delay time
is cancelled if you turn the ignition key to
RUN or START, so the lamps will go out right away.
When the ignition is on, sustained interior illumination
is inactive, which means the courtesy lamps won’t
come on.
Rearview Mirror Reading Lamps
These lamps go on when you open the doors. When the doors
are closed,
turn the lamps on and off with the switches.
Battery Saver
Your vehicle has a feature to help prevent you fiom draining
the battery,
in case you accidentally leave the courtesy lamps
on. If you leave the dial turned all the way up, or if you leav\
e
a door open, the lamps will automatically turn
off after
10 minutes if the ignition is off.
This feature will not turn off the reading lamps, only the
lamps controlled by the dial. Be sure to turn
off any reading
lamps using the switch before you leave the vehicle.
2-32

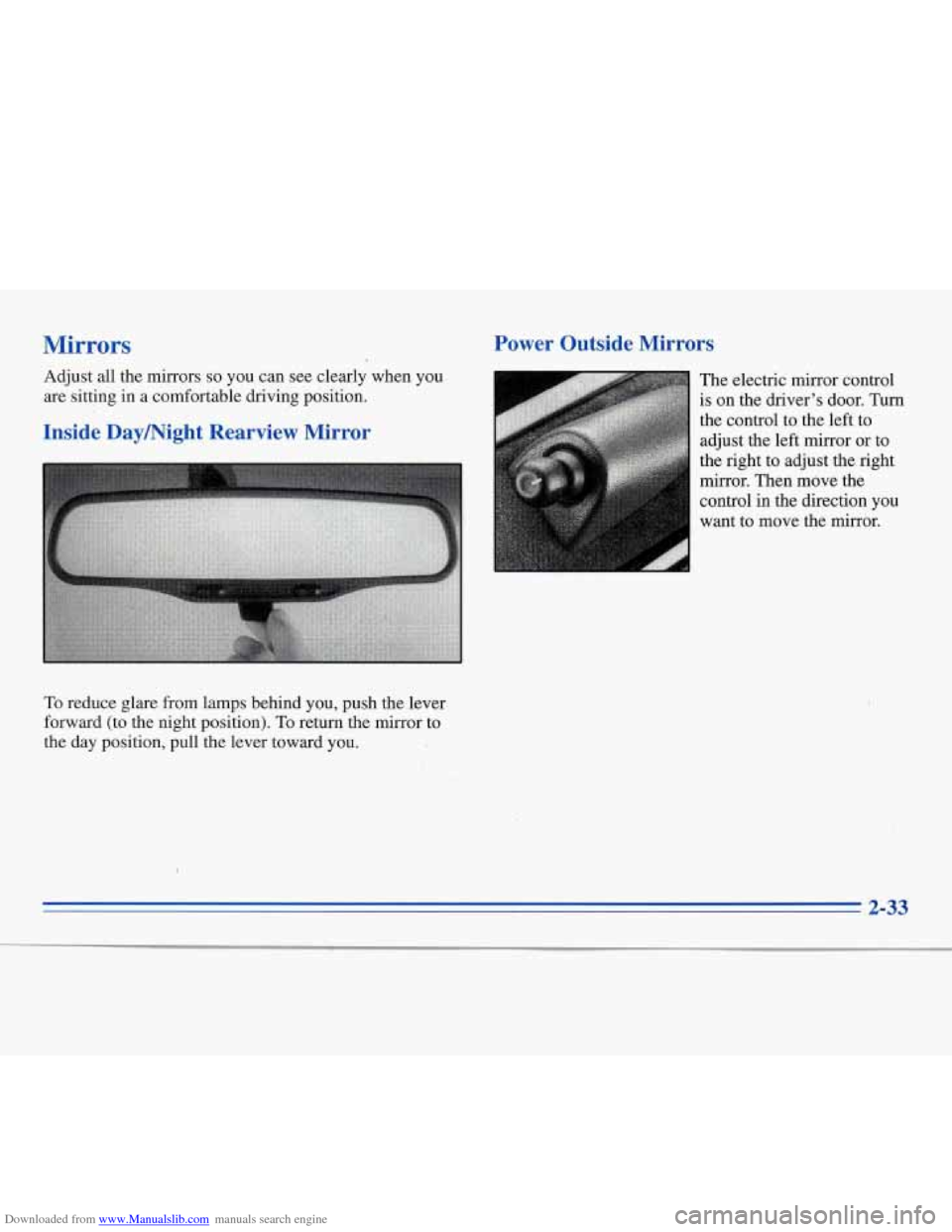

Downloaded from www.Manualslib.com manuals search engine Mirrors
Adjust all the mirrors so you can see clearly when you
are sitting in a comfortable driving position.
Inside DayNight Rearview Mirror
To reduce glare from lamps behind you, push the lever
forward (to the night position).
To return the mirror to
the day position, pull the lever toward you.
Power Outside Mirrors
The electric mirror control
is on the driver's door. Turn
the control to the left to
adjust
the left mirror or to
the right to adjust the right
mirror. Then move the
control in the direction you
want to'move the mirror.
2-33

Downloaded from www.Manualslib.com manuals search engine Convex Outside Mirror
Your p;lW%ger’s side mirror is convex. A convex
mirror’s surface
is curved so you can see more from the
driver’s seat.
U
A convex mirror can make things (like other
vehicles)
look farther away than they really are.
If you cut too sharply into the right lane, you
could hit
a vehicle on your right. Check your
inside mirror or glance over your shoulder before
changing lanes.
Storage Compartments
Glove Box
Use the door key to lock and unlock the glove box. To
open, lift the latch.
Storage Ar---lrest
To use the storage area, fold
down the armrest.
Press the
latch
on the front edge
and pull
up. To use the
cupholder, flip it forward.
Instrument Panel Cupholder
To use this cupholder,
slide
it out of the
instrument panel.
2-34

Downloaded from www.Manualslib.com manuals search engine Door Storage Compartments
Each of the doors has a storage compartment.
Center Console
To open the storage area, press the button and lift the
cover. The console has a cassette and
CD storage bin
and a cupholder. To use the cupholder for large cups,
remove the insert.
Convenience Net (Option)
ii, ’
Your vehicle may have a convenience net. You’ll see it
just inside the back wall
of the trunk.
Put small loads, like grocery bags, behind the net. It can
help keep them from falling over during sharp turns or
quick starts and stops.
The net isn’t for larger, heavier loads. Store theln
in the
trunk as far forward as
you can.
You can unhook the net so that it will lie flat when
you’re not using it.

Downloaded from www.Manualslib.com manuals search engine Ashtrays and Lighter
The center front ashtray may be on the instrument panel
or
on the console. To iemove the instrument panel
ashtray, open it, push down on the locking tab and pull
out the ashtray.
For the console ashtray, open the lid and lift out
the
ashtray’using the snuffer.
Your vehicle may have a rear ashtray.
To remove the
rear ashtray, open it, push down on the snuffer and pull
the ashtray out.
NOTICE:
Don’t put papers and other things that burn into
your ashtrays.
If you do, cigarettes or other
smoking materials could set them on fire,
causing damage.
To use the lighter, just push it in all the way and let go.
When it’s ready, it will pop back by itself.
NOTICE:
Don’t hold a cigarette lighter in with your hand
while it is heating.
If you do, it won’t be able to
back away
from the heating element when it’s
ready. That can make
it overheat, damaging the
lighter and the heating element.
2-36

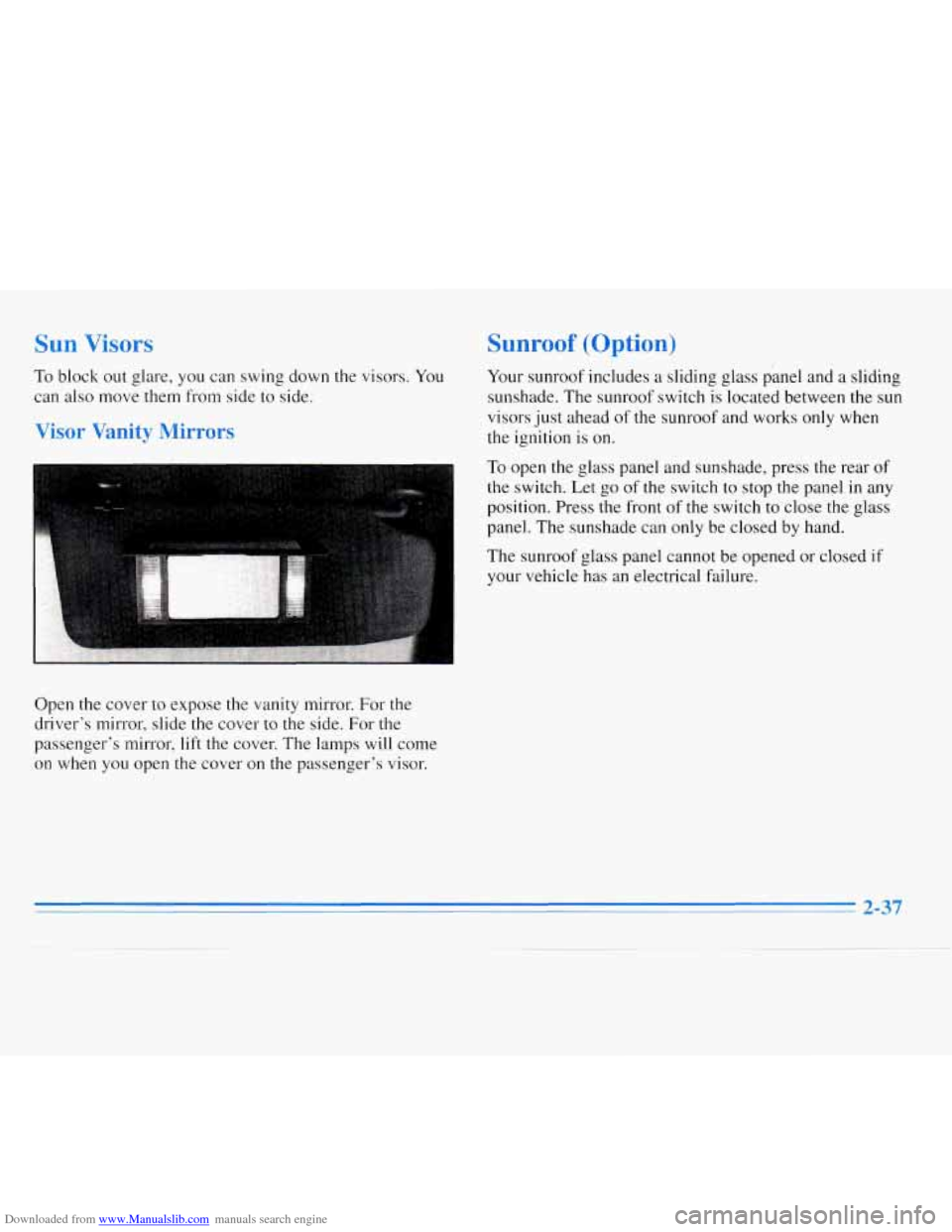

Downloaded from www.Manualslib.com manuals search engine Sunroof (Option) Sun Visors
To block out glare, you can swing down the visors. You
can
also move them from side to side.
Visor .Vanity Mirrors
Open the cover to expose the vanity mirror. For the
driver’s mirror, slide
the cover to the side. For the
passenger’s mirror, lift the cover. The lamps will come
on when
you open the cover on the passenger’s visor. Your
sunroof includes
a sliding glass panel and a sliding
sunshade. The sunroof switch is located between the sun
visors just ahead of the sunroof and works
only when
the ignition is on.
To open
the glass panel and sunshade, press the rear of
the switch. Let go of the switch to stop the panel in any
position. Press the front of the switch
to close the glass
panel. The sunshade can only be closed by hand.
The sunroof glass panel cannot be opened or closed if
your vehicle has an electrical failure.
2-37

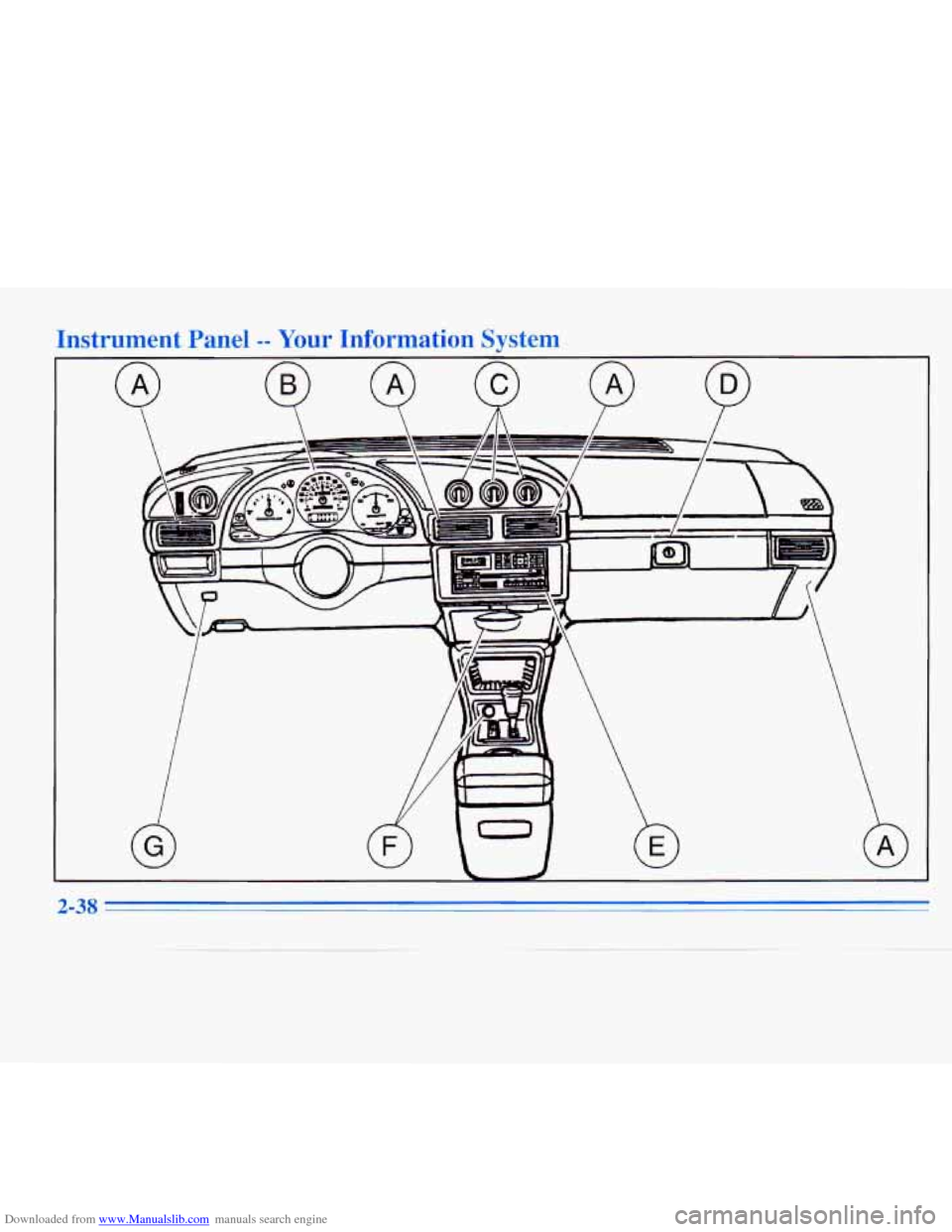

Downloaded from www.Manualslib.com manuals search engine Instrument Panel -- Your Information System
2-38
