Downloaded from www.Manualslib.com manuals search engine Run your engine only as long as you must. This saves
fuel. When you run the engine, make it go a little faster
than just idle. That is, push the accelerator slightly. This
uses
less fuel for the heat that you get and it keeps the
battery charged. You will need a well-charged battery to
restart the vehicle, and possibly for signaling later on
with your headlamps. Let the heater
run for awhile.
Then, shut the engine
off and close the window almost
all the way to preserve the heat. Start the engine again
and repeat this only when you feel really uncomfortable
from the cold. But do it as little as possible. Preserve the
fuel as long as you can. To help keep warm, you can get
out of the vehicle and do some fairly vigorous exercises
every half hour or
so until help comes.
Loading Your Vehicle
Fm OCCUPANTS
VEHICLE CAP. WT.
TIRE-LOADING INFORMATION 7
FRT. CTR. RR. TOTAL LBS. KG
MAX. LOADING & GVWR SAME AS VEHICLE
CAPACITY WEIGHT
XXX COLD TIRE
TIRE SIZE SPEED PRESSURE RTG PSVKPa
FRT.
RR.
SPA.
IF TIRES ARE HOT, ADD 4PS1/28KPa
SEE OWNER'S MANUAL FOR ADDITIONAL
INFORMATION
Two labels on your vehicle show how much weight it
may properly carry. The Tire-Loading Information label
found on the driver's door tells you the proper size,
speed rating and recommended inflation pressures
for
the tires on your vehicle. It also gives you important
information about the number
of people that can be in
your vehicle and the total weight that you can carry.
This weight is called the Vehicle Capacity Weight and
includes the weight of all occupants, cargo and all
options not installed
in the factory.
4-29

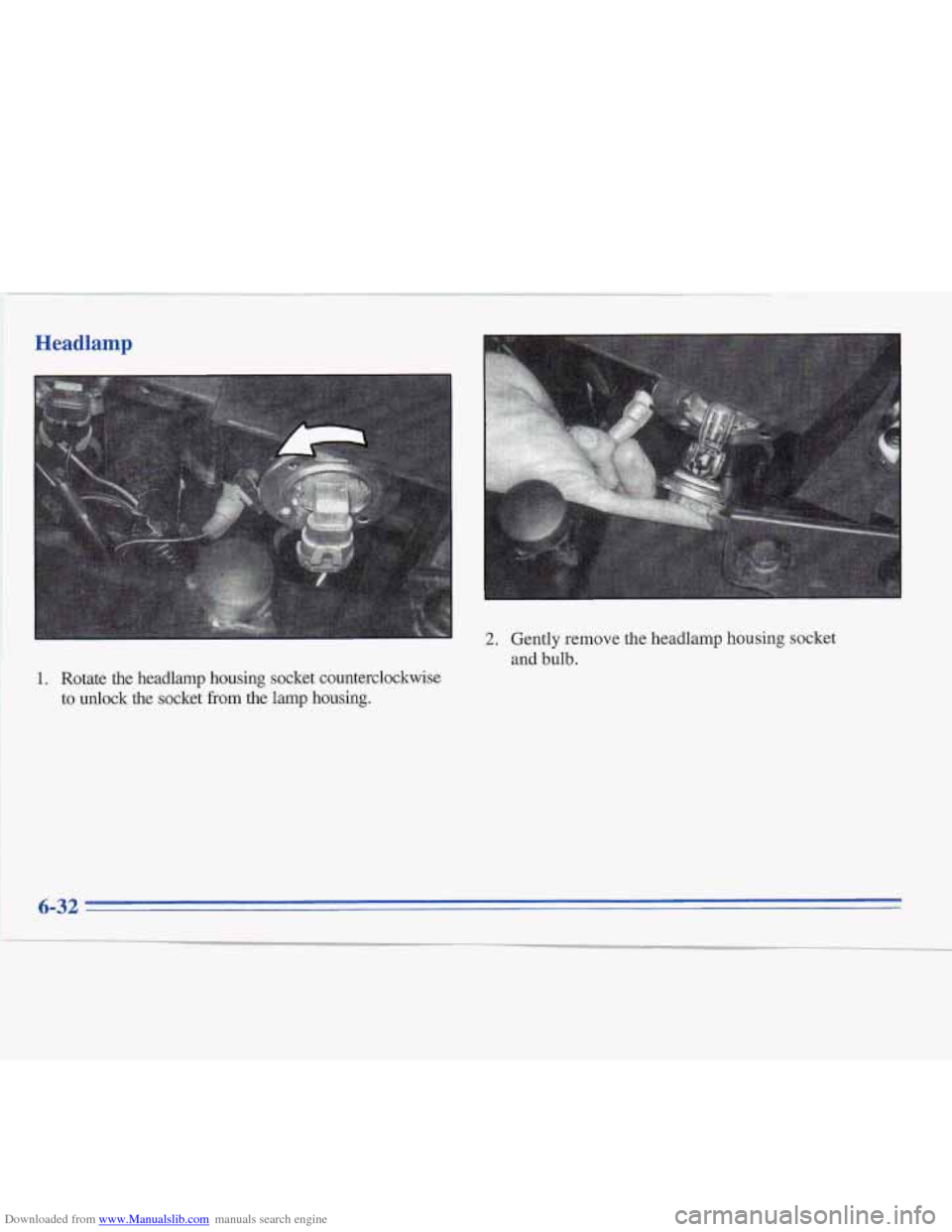

Downloaded from www.Manualslib.com manuals search engine Headlamp
2.
1. Rotate the headlamp housing socket counterclockwise to unlock
the socket from the lamp housing. Gently remove
the headlamp housing socket
and bulb.
6-32

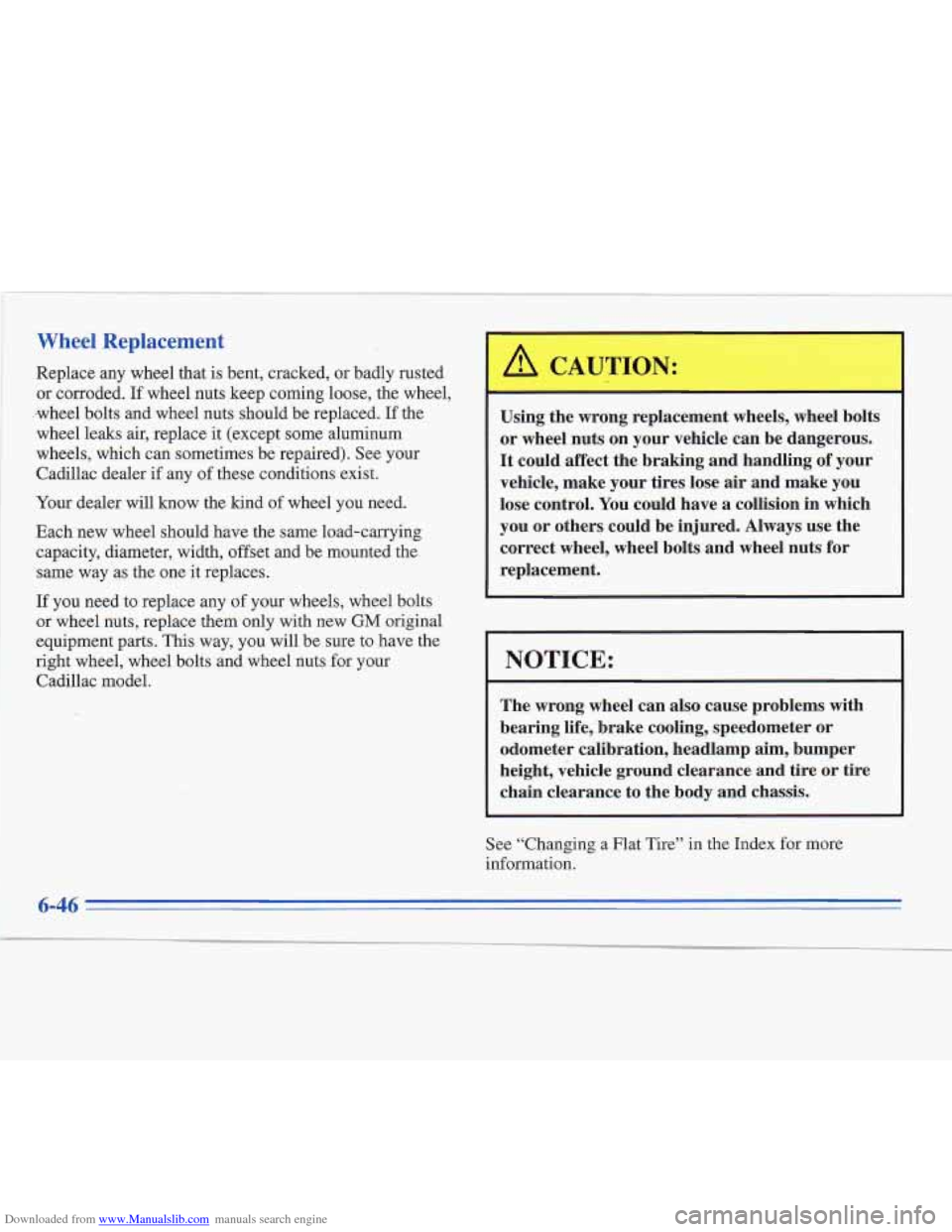

Downloaded from www.Manualslib.com manuals search engine Wheel Replacement
Replace any wheel that is bent, cracked, or badly rusted
or corroded.
If wheel nuts keep coming loose, the wheel,
-wheel bolts and wheel nuts should be replaced.
If the
wheel
leaks air, replace it (except some aluminum
wheels, which can sometimes be repaired). See your
Cadillac dealer if any
of these conditions exist.
Your dealer will know the kind
of wheel you need.
Each new.whee1 should have the same load-carrying
capacity, diameter, width, offset and be mounted the
same way as the one it replaces.
If you need to replace any of your wheels, wheel bolts
or wheel nuts, replace them only with new
GM original
equipment parts. This way, you will be sure to h.ave the
right wheel, wheel bolts and wheel nuts for your
Cadillac model.
Using the wrong replacement w
or wheel nuts on your vehicle can be dangerous.
It could affect the braking and handling of your
vehicle, make your tires lose
air and make you
lose control. You could have
a collision in which
you or others could be injured. Always use the
correct wheel, wheel bolts and wheel nuts for
replacement.
NOTICE:
The wrong wheel can also cause problems with
bearing life, brake cooling, speedometer or
odometer calibration, headlamp aim, bumper
height, vehicle ground clearance and tire or tire
chain clearance to the body and chassis.
See “Changing a Flat Tire” in the Index for more
information.
6-46

Downloaded from www.Manualslib.com manuals search engine Electrical System
Add-on Electrical Equipment
1 NOTICE:
Don’t add anything electrical to your Cadillac
unless you check with your dealer first. Some
electrical equipment can damage your vehicle
and the damage wouldn’t be covered by your
warranty. Some add-on electrical equipment
can keep other components from working as they should.
I I
Your vehicle has an air bag system. Before attempting to
add anything electrical to your Cadillac, see “Servicing
Your Air Bag-Equipped Cadillac”
in the Index.
Headlamps
The headlamp wiring is protected by an internal circuit
breaker.
An electrical overload will cause the lamps to go
on and
off, or in some cases to remain off. If this happens,
have your headlamp wiring checked right away.
Windshield Wipers
The windshield wiper motor is protected by an internal
circuit breaker and a
fuse. If the motor overheats due to
heavy snow, etc., the wipers will stop until the motor
cools. If the overload is caused by some electrical
problem, be sure to get it fixed.
Power Windows and Other Power Options
Circuit breakers protect the power windows and other
power accessories. When the current load is
too heavy,
the circuit breaker opens and closes, protecting the
circuit until the problem is fixed or goes away.
6-57

Downloaded from www.Manualslib.com manuals search engine Fuse
20
21
22
23
24 25
26
27
28 29
31 32
33
Usage
A/C Compressor Relay, Primary Engine
Cooling Fan Relay
Component Center (RAP Wiper) Relay
Fuse
34
35
Blower Motor Control Module
Rear Compartment Lid Release Switch
Theft-Deterrent Relay, Air Bag System
Instrument Cluster, Heater-A/C Control,
VacuundElectric Solenoid, Electric Actuator
Automatic Level Control Sensor, Rear
Compartment Courtesy Lamp
Component Center Relay
Front Cigarette Lighter
Rear Cigarette Lighters
Parking Lamp Relay
Horn Relay
Warning Alarm, Heater and A/C Control,
Instrument Cluster, Headlamp Switch, Radio Receiver
36
37
38
39
40
41
42
43
44
Usage
Center Control Module (CCM)
Door Lock Switches, Outside Rearview
Mirrors, Ignition Key Disable Relay
Assembly
Rear Compartment Lid Pull-Down Actuator
Hazard Lamp Flasher
Stoplamp Switch
Door Lock Relay
Heated Driver’s and Passenger’s Seat Control
Modules
Instrument Cluster, Radio Control, Cornering
Lamps, Turn Signal Switch, Front Parking
Lamps
Headlamp Switch Control for Interior Lamps,
Dimming
Rear Taillamps, Rear Sidemarker Lamps,
License Lamp
Outside Rearview Mirror Defoggers
6-60
~
~ r

Downloaded from www.Manualslib.com manuals search engine Circuit Usage
Breaker
1 Lumbar, Power Antenna
2
3
4
5
Accessory Time Delay Cut-Off (RAP
Power) Relay
Driver’s and Passenger’s Seat Adjuster
Switches, Driver’s Seat Adjuster Memory
Module, Driver’s and Passenger’s Seats
Recline Switches
Rear Defogger Relay
Headlamp Relay, Daytime Running Lamps
(DRL) Relay
Engine Compartment Fuse Block
Remove the cover to gain access to this fuse block.
6-61

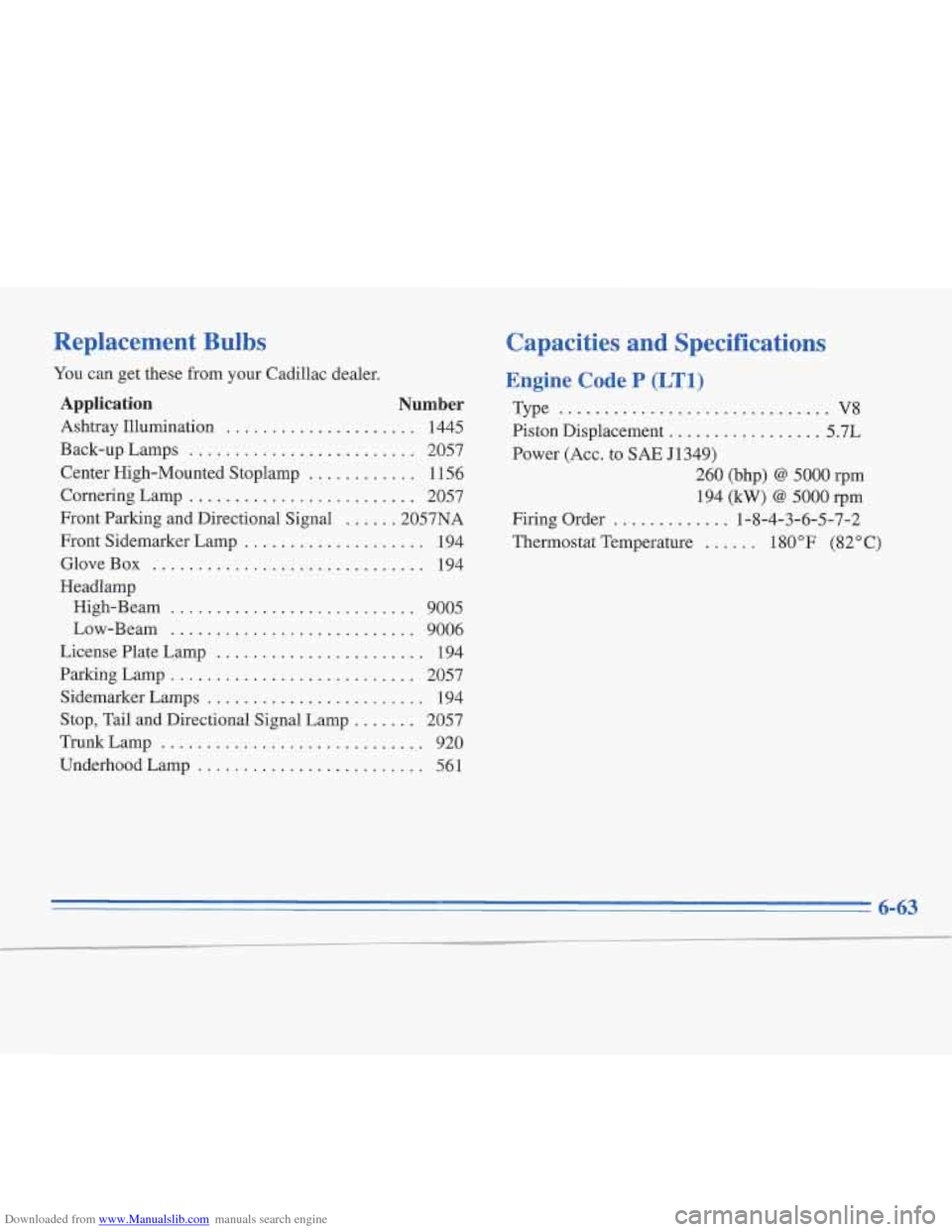

Downloaded from www.Manualslib.com manuals search engine Replacement Bulbs
You can get these from your Caddlac dealer .
Application Number
Ashtray Illumination ..................... 1445
Back-up Lamps
......................... 2057
Center High-Mounted Stoplamp
............ 1156
Cornering Lamp
......................... 2057
Front Parking and Directional Signal
...... 2057NA
Front Sidemarker Lamp
.................... 194
GloveBox
.............................. 194
Headlamp High-Beam
........................... 9005
Low-Beam
........................... 9006
License Plate Lamp
....................... 194
Parking Lamp
........................... 2057
Sidemarker Lamps
........................ 134
Stop. Tail and Directional Signal Lamp
....... 2057
Trunk Lamp
............................. 920
Underhood Lamp
......................... 561
Capacities and Specifications
Engine Code P (LTl)
Type .............................. V8
Piston Displacement
................. 5.71
Power (Acc . to SAE J1349)
260 (bhp)
@ 5000 rpm
194
(kW) @ 5000 rpm
Firing Order
............. 1-8-4-3-6-5-7-2
Thermostat Temperature
...... 180 "F (82" C)
6-63
