1996 BUICK PARK AVENUE turn signal bulb

Turn Signal and Lane Change Indicator
The turn signal has two upward (for right) and two,
downward (for left) positions. These positions allow you
to signal a turn or
a lane change.
To signal a turn, move the lever all the way up
or down. When the turn is finished, the lever
will
return automatically.
An arrow on the instrument
panel will flash in the
direction of the turn or
lane change.
To signal a lane change, just raise or lower the lever
until the arrow starts to flash. Hold it there until you
complete your lane change. The lever will return by
itself when you release it.
As you signal a turn or a lane change, if the arrows don’t
flash but just stay on, a signal bulb may be burned out
and other drivers won’t see your turn signal.
If a bulb is burned out, replace it to help avoid an
accident. If the arrows don’t go on at all when you
signal a
turn, check the fuse (see “Fuses’ and Circuit
Breakers” in the Index) and for burned-out bulbs.
2-35
ProCarManuals.com

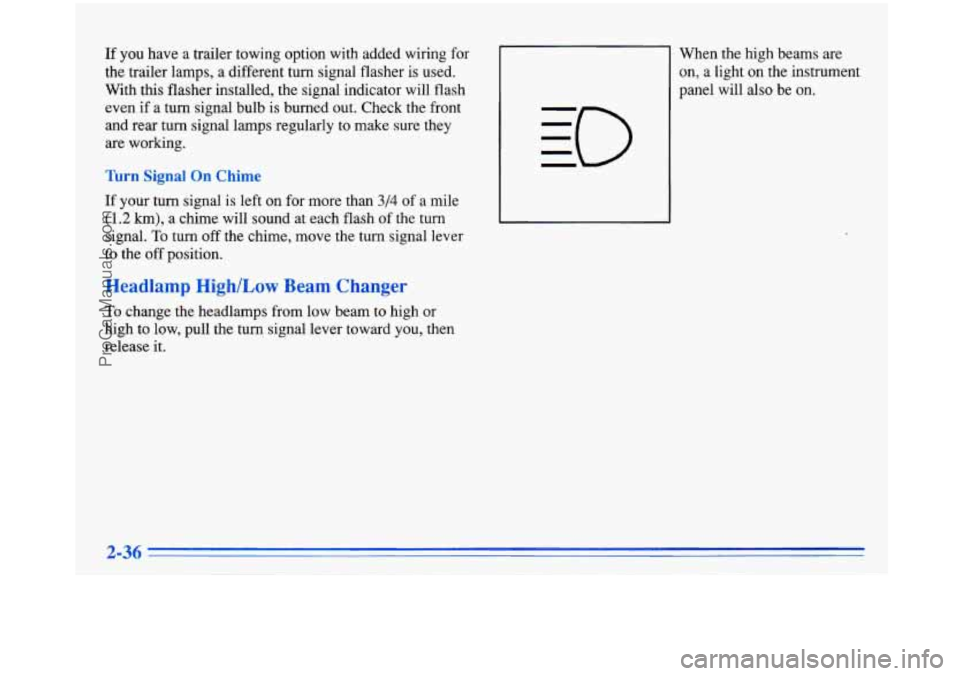

If you have a trailer towing option with added wiring for
the trailer lamps,
a different turn signal flasher is used.
With this flasher installed, the signal indicator will flash
even if
a turn signal bulb is burned out. Check the front
and rear turn signal lamps regularly
to make sure they
are working.
lbm Signal On Chime
If your turn signal is left on for more than 3/4 of a mile
(1.2 km), a chime will sound at each flash of the turn
signal.
To turn off the chime, move the turn signal lever
to the
off position. When the
high beams are
on, a light on the instrument
panel will also be on.
Headlamp High/Low Beam Changer
To change the headlamps from low beam to high or
high to low, pull the
turn signal lever toward you, then
release it.
2-36
ProCarManuals.com

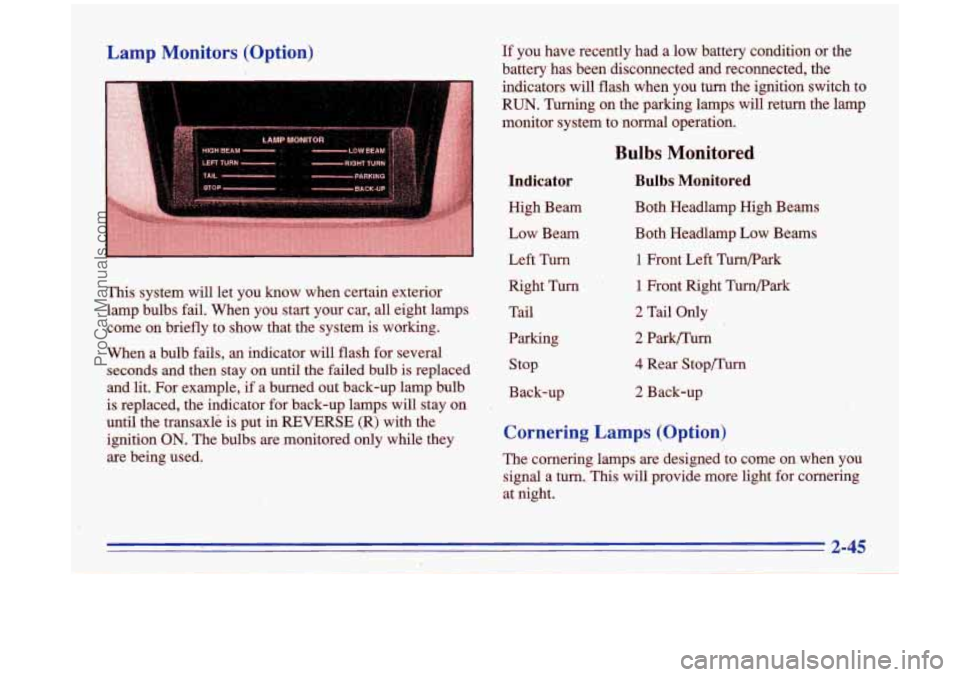

Lamp Monitors (Option)
This system will let you know when certain exterior
lamp bulbs fad. When you start your car, all eight lamps
come
on briefly to show that'the system is working.
When a bulb
fails, an indicator will flash for several
seconds and then
stay on until the failed bulb is replaced
and lit.
For example, if a burned out back-up,lamp bulb
is replaced, the indicator for back-up lamps will stay on
until the transaxle is put in REVERSE (R) with the
ignition
ON. The bulbs are monitored only while they
are being used.
If you.have recently had a low battery condition or the
battery has been disconnected and reconnected, the
indicators
will flash when you turn the ignition switch to
RUN. Turning on the parking lamps will return the lamp
monitor system to normal operation.
Bulbs Monitored
Indicator
High Beam
Low Beam
Left Turn
Right Tun
Tail
Parking
stop
Back-up
Bulbs Monitored
Both Headlamp High Beams
Both Headlamp Low Beams
1 Front Left Turn/Pwk
1 Front Right Turnpark
2 Tail Only
2 Park/TUm
4 Rear StopDurn
2 Back-up
Cornering Lamps (Option)
The cornering lamps are designea 10 come on when you
signal a turn.
This will provide more light for cornering
at night.
2-45
ProCarManuals.com

Tbrn Signals When Towing a Trailer
The arrows on your instrument panel will flash
whenever you signal a turn or lane change. Properly
hooked up, the trailer lamps will also flash, telling other
drivers you’re about
to turn, change lanes or stop.
When towing a trailer, the arrows on your instrument
panel will flash for turns even if the bulbs on the trailer
are burned out. Thus, you may think drivers behind you
are seeing your signal when they are not. It’s important
to check occasionally to be sure the trailer bulbs are still
working.
Your vehicle
has bulb warning lights. When you plug a
trailer lighting system into your vehicle’s lighting
system, its bulb warning lights may not let you know if
one of your lamps goes out.
So, when you have a trailer
lighting system plugged in, be sure
to check your
vehicle and trailer lamps from time to time to be sure
they’re all working. Once you disconnect the trailer
lamps, the bulb warning lights again can tell you if one
of your vehicle lamps
is out.
Driving On Grades
Reduce speed and shift to a lower gear before you start
down a long or steep downgrade.
If you don’t shift
down, you might have to use your brakes
so much that
they would get hot and no longer work well.
On a long uphill grade,
shift down to THIRD (3) and
reduce your speed to around
45 mph (70 km/h) to reduce
the possibility of engine and transaxle overheating.
Parking on Hills
You really should not park your vehicle, with a trailer
attached, on a hill.
If something goes wrong, your rig
could start to move. People can be injured, and both
your vehicle and the trailer can
be damaged.
But if you ever have to park your rig on a hill, here’s
how
to do it:
1. Apply your regular brakes, but don’t shift into
PARK (P) yet.
2. Have someone place chocks under the trailer wheels.
3. When the wheel chocks are in place, release the
regular brakes until the chocks absorb the load.
4. Reapply the regular brakes. Then apply your parking
5. Release the regular brakes.
brake, and the shift
to PARK
(P).
4-36
ProCarManuals.com

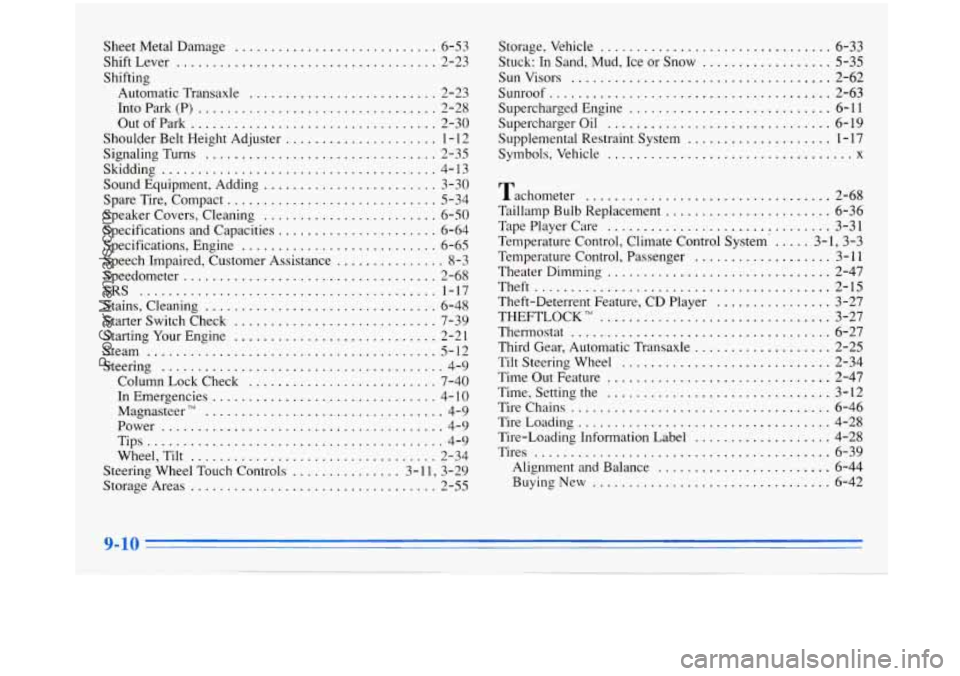

Sheet Metal Damage ............................ 6-53
ShiftLever
.................................... 2-23
Shifting Automatic Transaxle
.......................... 2-23
Into Park (P)
................................. 2-28
OutofPark
.................................. 2-30
Shoulder Belt Height Adjuster
..................... 1-12
Signaling Turns
................................ 2-35
Skidding
...................................... 4-13
Spare Tire. Compact
............................. 5-34
Specifications. Engine
........................... 6-65
Speech Impaired. Customer Assistance
............... 8-3
SRS ......................................... 1-17
Stains. Cleaning
................................ 6-48
Starter Switch Check
............................ 7-39
Starting Your Engine
............................ 2-21
Steam
........................................ 5-12
Steering
....................................... 4-9
Column Lock Check
.......................... 7-40
In Emergencies
............................... 4- 10
Magnasteer
................................. 4-9
Power
....................................... 4-9
Tips
......................................... 4-9
Wheel. Tilt
.................................. 2-34
Storage Areas
.................................. 2-55
Sound Equipment. Adding ........................ 3-30
Speaker Covers. Cleaning
........................ 6-50
Specifications and Capacities
...................... 6-64
Speedometer
................................... 2-68
Steering Wheel Touch Controls
............... 3- 11. 3-29 Storage.
Vehicle
................................ 6-33
Stuck: In Sand. Mud. Ice or Snow
.................. 5-35
Sunvisors
.................................... 2-62
Sunroof
....................................... 2-63
Supercharged Engine
............................ 6-11
Supercharger
Oil ............................... 6-19
Supplemental Restraint System
.................... 1-17
Symbols. Vehicle
.................................. x
Tachometer .................................. 2-68
Taillamp Bulb Replacement
....................... 6-36
Tape Player Care
............................... 3-31
Temperature Control. Climate Control System”
..... 3- 1. 3-3
Temperature Control. Passenger
................... 3-11
TheaterDimming
............................... 2-47
Theft
......................................... 2-15
Theft-Deterrent Feature. CD Player ................ 3-27
THEFTLOCK
................................ 3-27
Thermostat
.................................... 6-27
Third Gear. Automatic Transaxle
................... 2-25
Tilt Steering Wheel
............................. 2-34
Time Out Feature
............................... 2-47
Time. Setting the
............................... 3-12
Tirechains
.................................... 6-46
TireLoading
................................... 4-28
Tire-Loading Information Label
................... 4-28
Tires
......................................... 6-39
Alignment and Balance
........................ 6-44
BuyingNew
................................. 6-42
9-10 ~
ProCarManuals.com
