1996 AUDI A4 sensor

01-417
DTC table; DTCs from 01435 to 01542

Printed output from
VAG1551 Scan Tool
(ST) Possible cause
Corrective action
DTC
01435
Sender 1 for brake
booster -G201-
The brake light switch is not adjusted
correctly or is not installed correctly.
Repair Manual, Brake System, Repair Group 45
- Check the installation position of the brake light
switch.
- Check brake light switch -F-, "Read measuring
value block" function 08 page 01
-256
, display
group 2
- Check sensor for brake pressure -G201-, "Read
measuring value block" function 08 page 01
-256
,
display group 5




See continuation on
next page
Open circuit in signal wire of sender
1 for brake booster -G201-.
Short circuit to B+ or Ground (GND)
in signal wire to sender 1 for brake
booster -G201-. Electrical Wiring Diagrams, Troubleshooting &
Component Locations - Check signal line between sensor for brake
pressure -G201- (terminal 2) and ABS control
module -J104- (terminal 68).
Pa
ge 68 of 96 Electronic Stabilization Pro
gram
(ESP
) DTC table
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU02.01.17

01-418

Printed output from
VAG1551 Scan Tool
(ST) Possible cause
Corrective action
DTC
01435
Sender 1 for brake
booster -G201-

Continuation:
Sensor for brake pressure -G201-
malfunctioning.
Repair Manual, Brake System, Repair Group 45

Repair Manual, Brake System, Repair Group 47 - If none of the causes listed are causing the
malfunction, replace hydraulic pump for traction control
V-156- and sensor for brake pressure -G201-.
- Bleed brake system.





See continuation on
next page
Open circuit in one of the voltage
supply wires to sensor for brake
pressure -G201-.
Electrical Wiring Diagrams, Troubleshooting &
Component Locations - Check Ground (GND) between sensor for brake
pressure -G201- (terminal 1) and ABS control module -
J104- (terminal 67).
- Check voltage supply between sensor for brake
pressure -G201- (terminal 3) and ABS control module -
J104- (terminal 69).
Pa
ge 69 of 96 Electronic Stabilization Pro
gram
(ESP
) DTC table
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU02.01.17

01-420

Printed output from
VAG1551 Scan Tool
(ST) Possible cause
Corrective action
DTC
01435
Continuation:
Sender 1 for brake booster
-G201-
Failure in electrical circuit
Open circuit in signal wire of sender
1 for brake booster -G201-.
Short circuit to B+ or Ground (GND)
in signal wire to sender 1 for brake
booster -G201-. Electrical Wiring Diagrams, Troubleshooting &
Component Locations - Check signal line between sensor for brake
pressure -G201- (terminal 2) and ABS control
module -J104- (terminal 68).






See continuation on next
page
Open circuit in one of the voltage
supply wires to sensor for brake
pressure -G201-.
Electrical Wiring Diagrams, Troubleshooting &
Component Locations - Check Ground (GND) between sensor for brake
pressure -G201- (terminal 1) and ABS control
module -J104- (terminal 67).
- Check voltage supply between sensor for brake
pressure -G201- (terminal 3) and ABS control
module -J104- (terminal 69).
Pa
ge 71 of 96 Electronic Stabilization Pro
gram
(ESP
) DTC table
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU02.01.17

01-421

Printed output from
VAG1551 Scan Tool (ST) Possible cause
Corrective action
DTC
01435
Sender 1 for brake booster
-G201-
Failure in electrical circuit

Continuation:
Sensor for brake pressure -
G201- malfunctioning.
Repair Manual, Brake System, Repair Group 45

Repair Manual, Brake System, Repair Group 47 - If none of the causes listed are causing the malfunction,
replace hydraulic pump for traction control V-156- and
sensor for brake pressure -G201-.
- Bleed brake system.


See continuation on next
page Note: Only replace the control
module as a last resort.
ABS control module -J104-
malfunctioning
Repair Manual, Brake System, Repair Group 45
- If the malfunction cannot be fixed, replace the ABS control
module -J104-. Pa
ge 72 of 96 Electronic Stabilization Pro
gram
(ESP
) DTC table
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU02.01.17

01-422

Printed output from
VAG1551 Scan Tool
(ST) Possible cause
Corrective action
DTC
01435
Continuation:
Sender 1 for brake
booster -G201-
Implausible signal








The hydraulic pump for traction control -V156- was
switched on but is not producing more than 2 bar
and less than 30 bar of pressure in the master
brake cylinder.
Repair Manual, Brake System, Repair
Group 45

Repair Manual, Brake System, Repair
Group 47
- Erase DTC memory page 01
-15
- End Output page 01
-16
.
- Road test vehicle page 01
-250
- If malfunction occurs again, replace
hydraulic pump for traction control -
V156- and sensor for transverse
acceleration -G201-. - Bleed brake system.
01435
Sender 1 for brake

Master brake cylinder malfunctioning.
- Check the master brake cylinder, and
Pa
ge 73 of 96 Electronic Stabilization Pro
gram
(ESP
) DTC table
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU02.01.17

01-423

Printed output from
VAG1551 Scan Tool (ST) Possible cause
Corrective action
DTC
01435
Continuation:
Sender 1 for brake booster
-G201-
- voltage supply
Voltage supply has a short circuit
to B+.
Voltage supply has a short circuit
to Ground (GND).
Open circuit in one of the voltage
supply wires to sensor for brake
pressure -G201-.
Electrical Wiring Diagrams, Troubleshooting &
Component Locations - Check Ground (GND) between sensor for brake
pressure -G201- (terminal 1) and ABS control module
-J104- (terminal 67).
- Check voltage supply between sensor for brake
pressure -G201- (terminal 3) and ABS control module
-J104- (terminal 69).
Pa
ge 75 of 96 Electronic Stabilization Pro
gram
(ESP
) DTC table
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU02.01.17

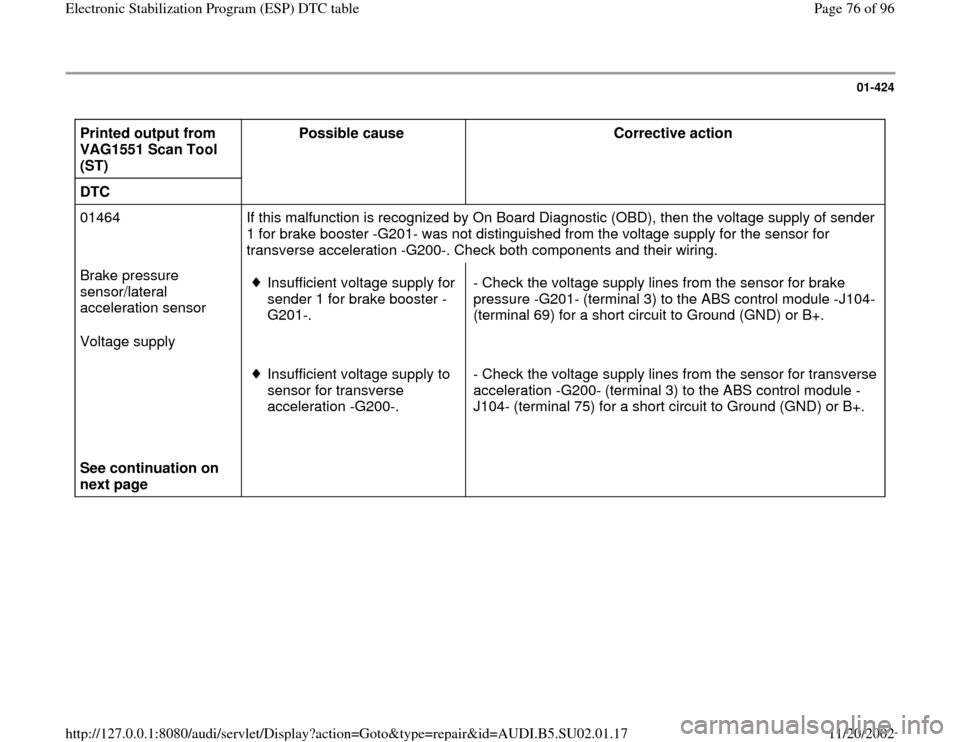

01-424

Printed output from
VAG1551 Scan Tool
(ST) Possible cause
Corrective action
DTC
01464 If this malfunction is recognized by On Board Diagnostic (OBD), then the voltage supply of sender
1 for brake booster -G201- was not distinguished from the voltage supply for the sensor for
transverse acceleration -G200-. Check both components and their wiring.
Brake pressure
sensor/lateral
acceleration sensor
Voltage supply
Insufficient voltage supply for
sender 1 for brake booster -
G201-. - Check the voltage supply lines from the sensor for brake
pressure -G201- (terminal 3) to the ABS control module -J104-
(terminal 69) for a short circuit to Ground (GND) or B+.



See continuation on
next page Insufficient voltage supply to
sensor for transverse
acceleration -G200-. - Check the voltage supply lines from the sensor for transverse
acceleration -G200- (terminal 3) to the ABS control module -
J104- (terminal 75) for a short circuit to Ground (GND) or B+.
Pa
ge 76 of 96 Electronic Stabilization Pro
gram
(ESP
) DTC table
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU02.01.17

01-425

Printed output from
VAG1551 Scan Tool
(ST) Possible cause
Corrective action
DTC
01464 If this malfunction is recognized by On Board Diagnostic (OBD), then the voltage supply of
sender 1 for brake booster -G201- was not distinguished from the voltage supply for the sensor
for transverse acceleration -G200-. Check both components and their wiring.
Brake pressure
sensor/lateral
acceleration sensor
Voltage supply

Continuation:
One of the two sensors is
malfunctioning. If you do not find any malfunctions in the voltage supply
lines, then:
Repair Manual, Brake System, Repair Group 45
- Erase DTC memory page 01
-15
- End Output page 01
-16
.
- Ignition off
- Disconnect one sensor and then the other.
- Replace the sensor for which the DTC is no longer
recognized after the ignition is switched on.

Note: Only replace the control module
as a last resort.
ABS control module -J104-
malfunctioning
Repair Manual, Brake System, Repair Group 45
- If the malfunction cannot be fixed, replace the ABS
control module -J104-.
Pa
ge 77 of 96 Electronic Stabilization Pro
gram
(ESP
) DTC table
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU02.01.17
