21-6
Test conditions:
Check DTC memory Repair Manual, 1.8
Liter 4-Cyl. 5V Turbo Fuel Injection &
Ignition, Repair Group 01
Perform output diagnostic test mode
(function 03)
Minimum engine oil temperature: 60 C
(140 F)
All vacuum connections are free of leaks
Test procedure
- Using T-fitting, connect VAG1397A turbocharger tester test hose to
front of intake manifold.
- Guide test hose over rear corner of hood through right window opening
into vehicle interior.
Pa
ge 7 of 50 Turbochar
ger s
ystem
11/18/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE02.21.1

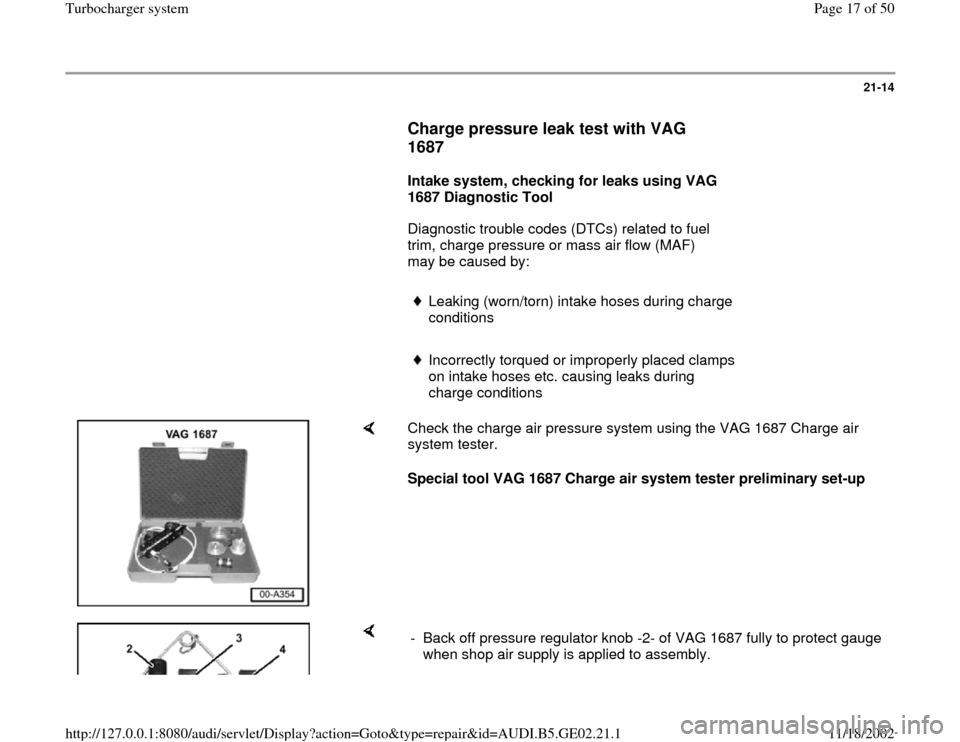

21-14
Charge pressure leak test with VAG
1687
Intake system, checking for leaks using VAG
1687 Diagnostic Tool
Diagnostic trouble codes (DTCs) related to fuel
trim, charge pressure or mass air flow (MAF)
may be caused by:
Leaking (worn/torn) intake hoses during charge
conditions
Incorrectly torqued or improperly placed clamps
on intake hoses etc. causing leaks during
charge conditions
Check the charge air pressure system using the VAG 1687 Charge air
system tester.
Special tool VAG 1687 Charge air system tester preliminary set-up
- Back off pressure regulator knob -2- of VAG 1687 fully to protect gauge
when shop air supply is applied to assembly.
