15-27
- Insert cylinder head bolts and hand tighten.
Note:
It is not necessary to re-tighten the bolts.
Note:
Follow all procedures for removing and installing toothed belt Page 13
-
29

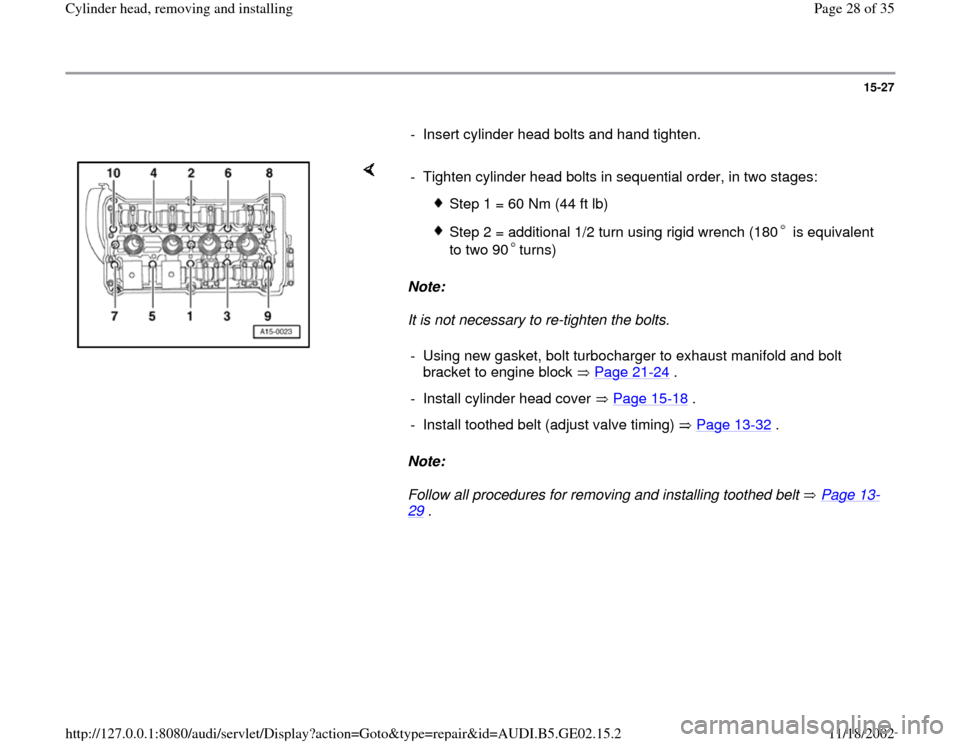

. - Tighten cylinder head bolts in sequential order, in two stages:
Step 1 = 60 Nm (44 ft lb)
Step 2 = additional 1/2 turn using rigid wrench (180 is equivalent
to two 90 turns)
- Using new gasket, bolt turbocharger to exhaust manifold and bolt
bracket to engine block Page 21
-24
.
- Install cylinder head cover Page 15
-18
.
- Install toothed belt (adjust valve timing) Page 13
-32
.
