1996 AUDI A4 ABS

37-26

Installing:

Installation is the reverse of removal. The
following points must also be observed:

Note: - Insert connector -1- into cover opposite direction of arrow -B- before
they are clipped into the shift mechanism.
- Clip cover onto shift mechanism.

When clipping on, make sure the retaining straps (arrow A) are not being
bent inward. Retaining tabs of shift mechanism must engage on outside
without excessive force.

Pa
ge 29 of 75 Selector lever mechanism, servicin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.AT01.37.1

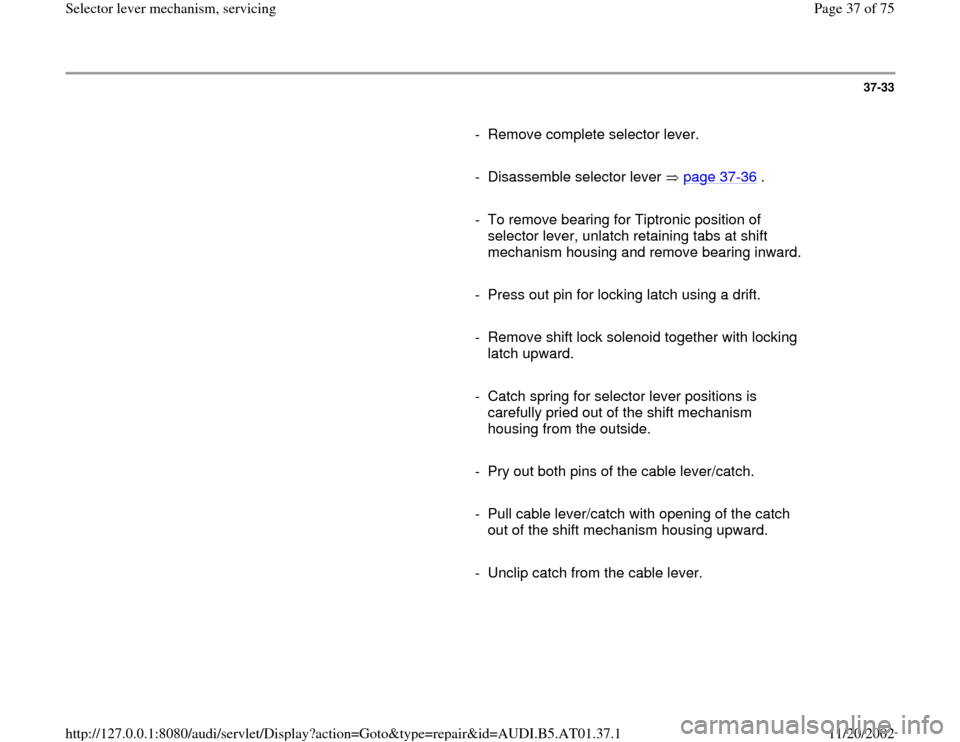

37-33

- Remove complete selector lever.

- Disassemble selector lever page 37
-36
.

- To remove bearing for Tiptronic position of
selector lever, unlatch retaining tabs at shift
mechanism housing and remove bearing inward.

- Press out pin for locking latch using a drift.

- Remove shift lock solenoid together with locking
latch upward.

- Catch spring for selector lever positions is
carefully pried out of the shift mechanism
housing from the outside.

- Pry out both pins of the cable lever/catch.

- Pull cable lever/catch with opening of the catch
out of the shift mechanism housing upward.

- Unclip catch from the cable lever.
Pa
ge 37 of 75 Selector lever mechanism, servicin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.AT01.37.1

37-53


3 -
Cover
With gear display and display for shift lock
solenoid To remove, disengage retaining tabs for
shift mechanism housing Remove upward together with item 4 and
5 .
4 -
Light track With wiring harness and LEDs for base
illumination Wire routing Fig. 4
, page 37
-61
5 -
Guide
With masking panel and mirror for
individual gear display Mechanism can be loosened from the
cover by disengaging the four retaining
tabs at interior.
