1995 OLDSMOBILE AURORA load capacity

Loading Your Vehicle
TIRE-LOADING INFORMATION
OCCUPANTS VEHICLE CAP. WT
FRT. CTR. RR. TOTAL
LBS. KG
MAX. LOADING & GVWR SAME AS VEHICLE
CAPACITY
WEIGHT XXX COLD TIRE
TIRE SIZE SPEED PRESSURE
RTG PSI;KPa
FRT.
RR.
SPA.
IF TIRES ARE HOT, ADD 4PSI.'28KPa
SEE OWNER'S MANUAL FOR ADDITIONAL
[ INFORMATION
Two labels on your vehicle show how much weight it
may properly carry. The Tire-Loading Information label
found on the rear edge of the driver's door tells
you the
proper size, speed rating and recommended inflation
pressure for the tires on your vehicle.
It also gives YOLI
important information about the number of people that
can be
in your vehicle and the total weight that you can
carry. This weight is called the Vehicle Capacity Weight
and includes the weight of
all occupants, cargo, and all
nonfactory-installed options.
MFD BY GENERAL MOTORS CORP
DATE GVWR GAWR
FRT GAWR RR
THIS VEHICLE CONFORMS TO ALL APPLI-
CABLE U.S. FEDERAL MOTOR VEHICLE
SAFETY, BUMPER, AND THEFT PREVENTION
STANDARDS IN EFFECT
ON THE DATE OF
MANUFACTURE SHOWN ABOVE.
The other label is the Certification label, found on the
rear edge of the driver's door.
It tells you the gross
weight capacity
of your vehicle, called the GVWR
(Gross Vehicle Weight Rating). The GVWR includes
the weight of the vehicle, all occupants, f~~el and cargo.
Never exceed the GVWR for your vehicle, or the Gross
Axle Weight Rating (GAWR) for either the
front of rear
axle.
And,
if you do have a heavy load, you should spread
it out. Don't carry more than I76 lbs. (80 kg) in your
trunk.
ProCarManuals.com

Towing a Trailer
NOTICE:
Pulling a trailer improperly can damage your
vehicle and result in costly repairs not covered by
your warranty.
To pull a trailer correctly, follow
the advice in this part, and see your Aurora
retailer for important information about towing
a trailer with your vehicle.
Your vehicle can tow a trailer. To identify what the
vehicle trailering capacity is for your vehicle,
you
should read the information in "Weight of the Trailer"
that appears later
in this section. But trailering is
different
than just driving your vehicle by itself.
Trailering means changes
in handling, durability, and
fuel economy. Successful, safe trailering takes correct
equipment, and
it has to be used properly.
That's the reason for this part.
In it are many
time-tested, important trailering tips and safety rules.
Many
of these are important for your safety and that of
your passengers. So please read this section carefully
before
you pull a trailer.
Load-pulling components such as the engine, transaxle,
wheel assemblies, and tires are forced to work harder
against the drag
of the added weight. The engine is
required to operate at relatively higher speeds and under
greater loads, generating extra heat. What's more, the
trailer adds considerably
to wind resistance, increasing
the pulling requirements.
4-30
ProCarManuals.com

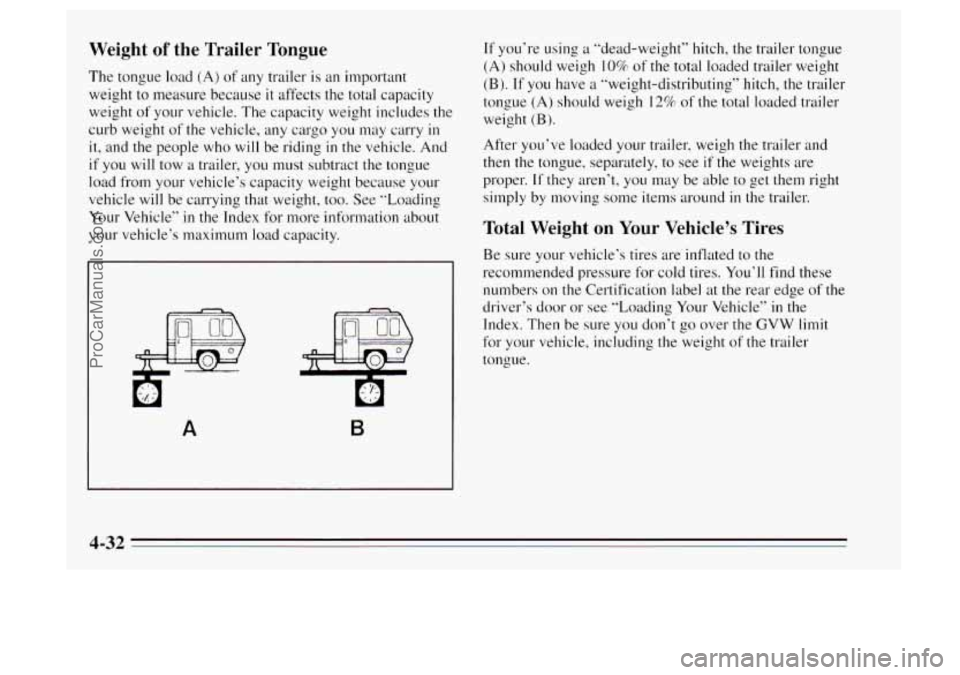

Weight of the Trailer Tongue
The tongue load (A) of any trailer is an important
weight to measure because
it affects the total capacity
weight of your vehicle. The capacity weight includes the
curb weight of the vehicle, any cargo you may carry
in
it, and the people who will be riding in the vehicle. And
if you will tow a trailer, you must subtract the tongue
load from your vehicle’s capacity weight because your
vehicle will be carrying that weight, too. See “Loading
Your Vehicle”
in the Index for more information about
your vehicle’s maximum load capacity.
B A
If you’re using a “dead-weight” hitch, the trailer tongue
(A) should weigh 10% of the total loaded trailer weight
(B). If you have a “weight-distributing” hitch, the trailer
tongue
(A) should weigh 12% of the total loaded trailer
weight (B).
After you’ve loaded your trailer, weigh the trailer and
then the tongue, separately, to see
if the weights are
proper.
If they aren’t, YOLI may be able to get them right
simply by moving some items around
in the trailer.
Total Weight on Your Vehicle’s Tires
Be sure your vehicle’s tires are inflated to the
recommended pressure for cold tires. You’ll find these
numbers on the Certification label at the rear edge of the
driver’s door or see “Loading Your Vehicle”
in the
Index. Then be sure you don’t go over the
GVW limit
for your vehicle, including the weight of the trailer
tongue.
4-32
ProCarManuals.com

Wheel Replacement
Replace any wheel that is bent, cracked, or badly rusted
or corroded. If wheel nuts keep coming loose, the wheel,
wheel bolts, and wheel nuts should be replaced.
If the
wheel leaks air, replace it (except some aluminum
wheels, which can sometimes
be repaired). See your
Aurora retailer if any
of these conditions exist.
Your retailer will know the kind
of wheel you need.
Each new wheel should have the same load carrying
capacity, diameter, width, offset, and be mounted the
same way as the one it replaces.
If you need
to replace any of your wheels, wheel bolts,
or wheel nuts, replace them only with new
GM original
equipment parts. This way, you will be sure to have the
right wheel, wheel bolts, and wheel nuts for your Aurora
model.
I NOTICE:
The wrong wheel can also cause problems with
bearing life, brake cooling,
speedometer/odometer calibration, headlamp aim, bumper height, vehicle ground clearance,
and tire
or tire chain clearance to the body and
chassis.
6-41
ProCarManuals.com

Parking Brake Indicator ....................... 2-66
Removing and Replacing Bulbs
............ 6.30. 6.32
Replacement Bulbs
........................... 6-62
Safety Belt Reminder
......................... 2-64
Service Engine Soon
.......................... 2-70
Traction Control System Active
................. 2-68
Traction Control System Warning
............... 2-67
Loading Your Vehicle
........................... 4-28
Locks
......................................... 2-3
Long Distance Driving
........................... 4-20
Low Coolant Warning Message
.................... 2-69
Low Fuel Message
.............................. 2-71
Lubricants and Fluids. Recommended
............... 7-4 1
Lumbar Controls
................................ 1-3
Magnasteer
TM ................................ 4. 10
Maintenance Inspections
................................. 7-40
Materials
................................... 6-61
Record
..................................... 7-43
Schedule
.................................... 7-1
Underbody
................................. 6-49
Malfunction Indicator Lamp (Service Engine
Soon) .... 2-70
Master Cylinder. Brake .......................... 6-23
MaxifuseRelay Center
.......................... 6-59
Memory Seat and Mirrors
......................... 1-3
Methanol In Gasoline
............................. 6-3 Mirrors
Convex Outside
............................. 2-51
Electrochromic Daymight Rearview
............. 2-50
Power Remote Control
........................ 2-51
Visor Vanity
................................ 2-53
Net. Convenience .............................. 2-52
Neutral Gear Position
............................ 2-21
New Vehicle “Break-In”
......................... 2-14
NightDriving
.................................. 4-14
Number. Vehicle Identification (VIN)
............... 6-51
Octane Requirements
........................... 6-2
Odometer and Trip Odometer
..................... 2-61
Off-Road Recovery
............................. 4-11
Oil. Engine
.................................... 6-10
Change Oil Message
.......................... 2-75
Life Monitor
................................ 2-75
Warning Light
............................... 2-70
Overdrive, Automatic
........................... 2-22
Overheated Engine
.............................. 5-13
Capacity
................................... 6-60
Quality
.................................... 6-12
9-7
