1995 Lexus LS400 lights

SECTION 1 – 4
35
INSTRUMENTS AND CONTROLS
Interior equipment
Vanity mirrors36 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior lights37 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Personal lights38 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition switch light38 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Clock39 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside temperature display39 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cigarette lighter and ashtray40 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Glovebox41 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cup holder41 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Coin box42 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Penlight43 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Luggage stowage precautions43 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

INTERIOR EQUIPMENT
37

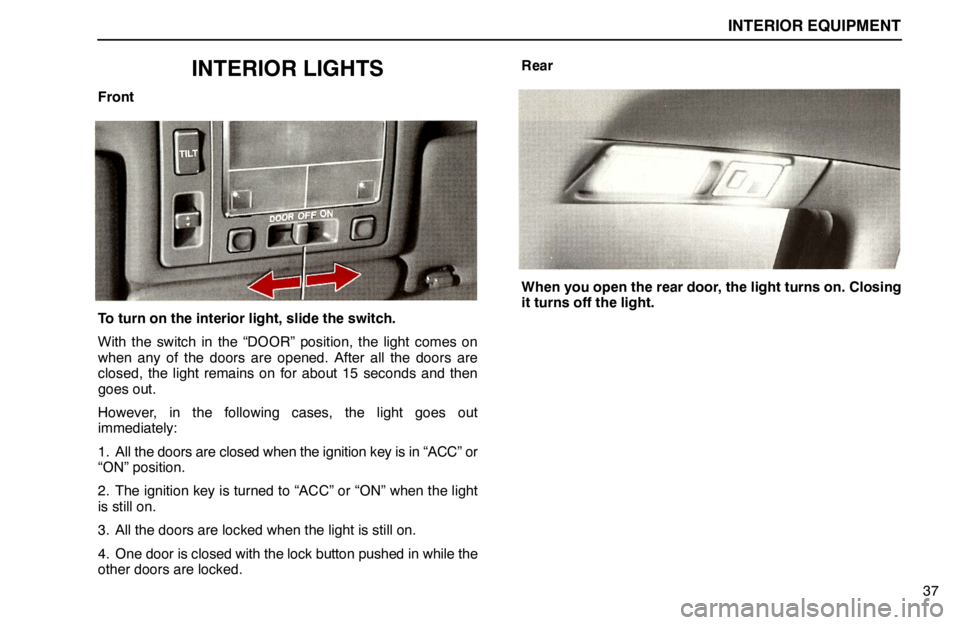

INTERIOR LIGHTS
Front
To turn on the interior light, slide the switch.
With the switch in the “DOOR” position, the light comes on
when any of the doors are opened. After all the doors are
closed, the light remains on for about 15 seconds and then
goes out.
However, in the following cases, the light goes out
immediately:
1. All the doors are closed when the ignition key is in “ACC” or
“ON” position.
2. The ignition key is turned to “ACC” or “ON” when the light
is still on.
3. All the doors are locked when the light is still on.
4. One door is closed with the lock button pushed in while the
other doors are locked.Rear
When you open the rear door, the light turns on. Closing
it turns off the light.

INTERIOR EQUIPMENT
38

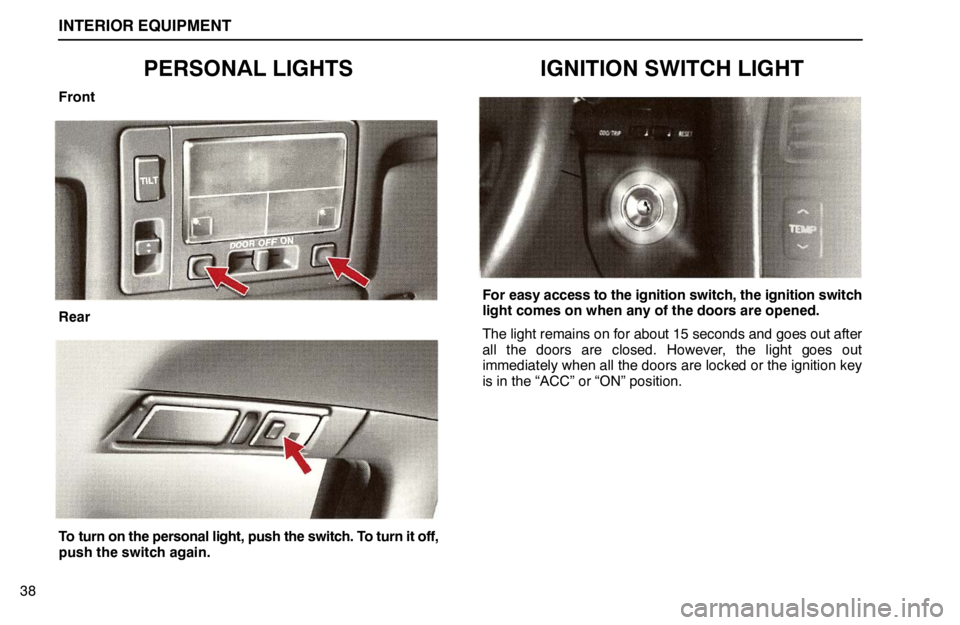

PERSONAL LIGHTS
Front
Rear
To turn on the personal light, push the switch. To turn it off,
push the switch again.
IGNITION SWITCH LIGHT
For easy access to the ignition switch, the ignition switch
light comes on when any of the doors are opened.
The light remains on for about 15 seconds and goes out after
all the doors are closed. However, the light goes out
immediately when all the doors are locked or the ignition key
is in the “ACC” or “ON” position.

INTERIOR EQUIPMENT
41
GLOVEBOX
 1
Unlock 2
Open 3
Lock
To open the glovebox door, pull the lever. To lock the
glovebox door, insert the master key and turn it clockwise.
With the tail lights on, the glovebox light will come on when the
glovebox door is open.
CAUTION
To reduce the chance of injury in case of an accident or
a sudden stop, always keep the glovebox door closed
while driving.
CUP HOLDER
Front
To use the cup holder, push the top of the cup holder
portion of the console box.
The cup holder is designed so that cups or cans fit snugly in the
holes.
CAUTION
Do not place anything else on the cup holder, as such
items may be thrown about and possibly injure
people in the vehicle during sudden braking or an
accident.
Keep the cup holder shut when not in use.
