COMFORT ADJUSTMENT
62
INSIDE REAR VIEW MIRROR
Pushing the switch changes the mode between “AUTO”
and “DAY”.
The indicator comes on when the “AUTO” mode is selected.
“DAY” mode: The mirror surface is normal.
“AUTO” mode: If the mirror detects light from the
headlights of the vehicle behind you, the mirror surface
darkens slightly to reduce the reflected light.
When the inside rear view mirror surface changes, the outside
rear view mirror surfaces will also become darker.
When the ignition key is inserted and turned on, the inside rear
view mirror always turns on in the “AUTO” mode.
Adjust it before driving so that the rear view is the best.
When the outside air temperature is low, it may take a little
longer for the mirror to darken in response to the detection of
headlights.
SEAT BELTS
Seat belt precautions
Lexus recommends that the driver and passengers in the
vehicle be properly restrained at all times with the seat belts
provided. Failure to do so could increase the chance of injury
and / or the severity of injury in accidents.
Baby or small child. Use a child restraint system which fits
your vehicle. See “Child restraint” for details.
Child. If a child is too large for a child restraint system, the child
should sit in the rear seat and must be restrained using the
vehicle’s seat belts. According to accident statistics, the child
is safer when properly restrained in the rear seat than in the
front seat. Do not allow the child to stand up or kneel both on
rear and front seats. If the shoulder belt falls across the child’s
neck or face, have the child sit slightly closer to the buckle so
that the belt lays across the shoulder.
Pregnant woman. Lexus recommends the use of a seat belt.
Ask your doctor for specific recommendations. The lap belt
should be worn securely and as low as possible over the hips
and not on the waist.
Injured person. Lexus recommends the use of a seat belt.
Depending on the injury, however, first check with your doctor.

COMFORT ADJUSTMENT
64
Fastening front and reat seat belts
Adjust the seat as needed and sit up straight and well back
in the seat. To fasten your belt, pull it out of the retractor
and insert the tab into the buckle.
You will hear a click when the tab locks into the buckle.
The seat belt length automatically adjusts to your size and the
seat position.
The retractor will lock the belt during a sudden stop or on
impact. It also may lock if you lean forward too quickly. A slow,
easy motion will allow the belt to extend, and you can move
around freely.When a passenger’s shoulder belt is completely extended and
is then retracted even slightly, the belt is locked in that position
and cannot be extended. This feature is used to hold the child
restraint system securely. (For details, see “Child restraint” on
page 76.) To free the belt again, fully retract the belt and then
pull the belt out once more.
If the seat belt cannot be pulled out of the retractor, firmly pull
the belt and release it. You will then be able to smoothly pull the
belt out of the retractor.
CAUTION
After inserting the tab, make sure the tab and buckle are
locked and that the belt is not twisted.

COMFORT ADJUSTMENT
67
Seat belt extender
If the front or rear outside seat belts cannot be fastened
securely because it is not long enough, a personalized seat
belt extender is available from your Lexus dealer free of
charge.
Please contact your local Lexus dealer so that the dealer can
order the proper required length for the extender. Bring the
heaviest coat you expect to wear for proper measurement and
selection of length. Additional ordering information is available
at your Lexus dealer.

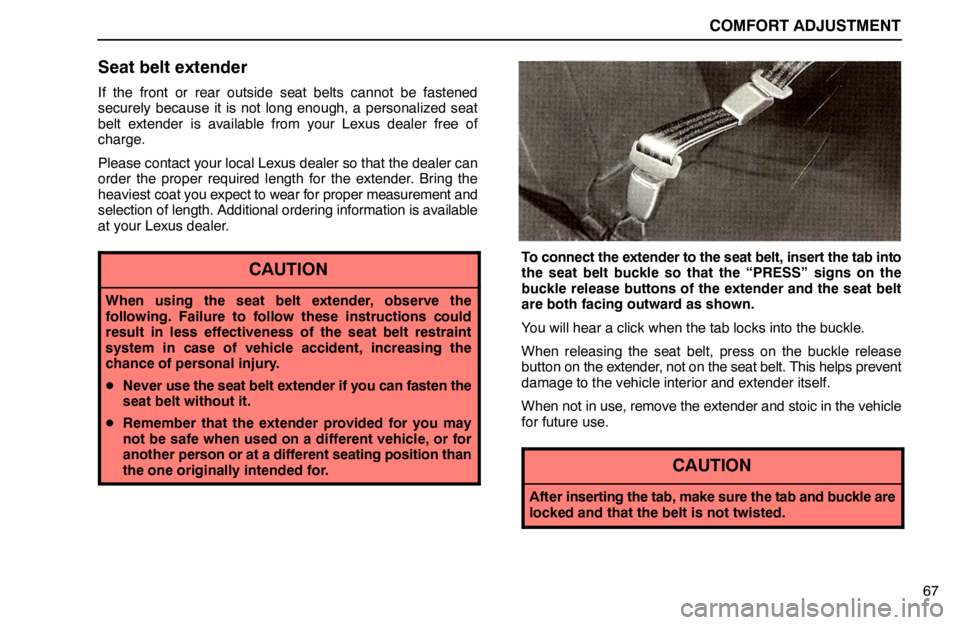

CAUTION
When using the seat belt extender, observe the
following. Failure to follow these instructions could
result in less effectiveness of the seat belt restraint
system in case of vehicle accident, increasing the
chance of personal injury.

Never use the seat belt extender if you can fasten the
seat belt without it.

Remember that the extender provided for you may
not be safe when used on a different vehicle, or for
another person or at a different seating position than
the one originally intended for.
To connect the extender to the seat belt, insert the tab into
the seat belt buckle so that the “PRESS” signs on the
buckle release buttons of the extender and the seat belt
are both facing outward as shown.
You will hear a click when the tab locks into the buckle.
When releasing the seat belt, press on the buckle release
button on the extender, not on the seat belt. This helps prevent
damage to the vehicle interior and extender itself.
When not in use, remove the extender and stoic in the vehicle
for future use.
CAUTION
After inserting the tab, make sure the tab and buckle are
locked and that the belt is not twisted.

COMFORT ADJUSTMENT
72Deployment of the airbags happen in a fraction of a second, so
the airbags must inflate with considerable force. While the
system is designed to reduce serious injuries, it may also
cause minor burns or abrasions and swellings.
Parts of the airbag module (steering wheel hub, dashboard)
may be hot for several minutes, but the airbags themselves will
not be hot. The airbags are designed to inflate only once.
A crash severe enough to inflate the airbags may break the
windshield as the vehicle buckles. In vehicles with a passenger
airbag the windshield may also be damaged by absorbing
some of the force of the inflating airbag.

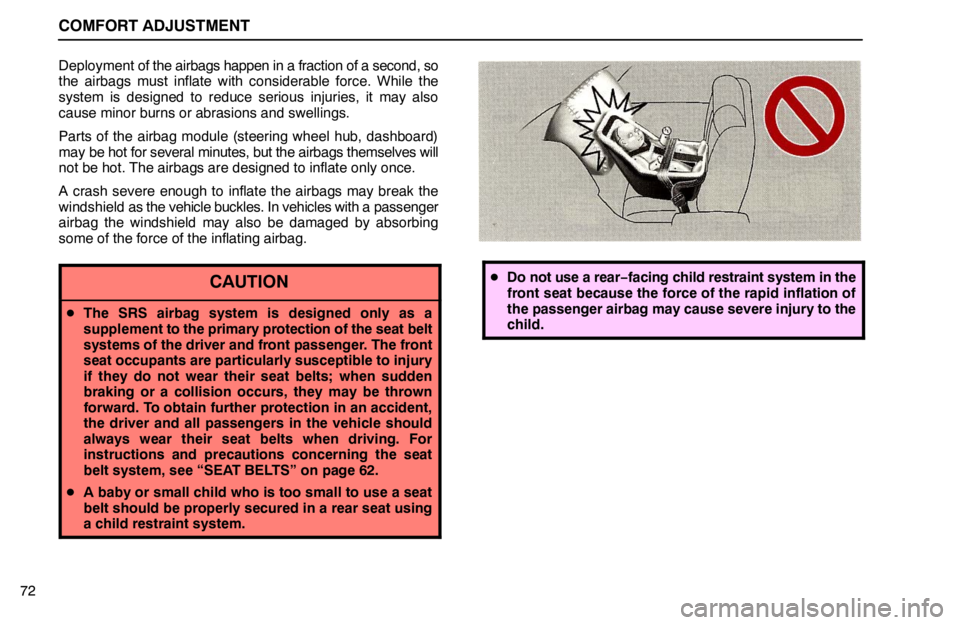

CAUTION

The SRS airbag system is designed only as a
supplement to the primary protection of the seat belt
systems of the driver and front passenger. The front
seat occupants are particularly susceptible to injury
if they do not wear their seat belts; when sudden
braking or a collision occurs, they may be thrown
forward. To obtain further protection in an accident,
the driver and all passengers in the vehicle should
always wear their seat belts when driving. For
instructions and precautions concerning the seat
belt system, see “SEAT BELTS” on page 62.

A baby or small child who is too small to use a seat
belt should be properly secured in a rear seat using
a child restraint system.

Do not use a rear−facing child restraint system in the
front seat because the force of the rapid inflation of
the passenger airbag may cause severe injury to the
child.

COMFORT ADJUSTMENT
77 When installing a child restraint system, refer to the
instructions provided by its manufacturer and follow the
directions under the following illustrations.

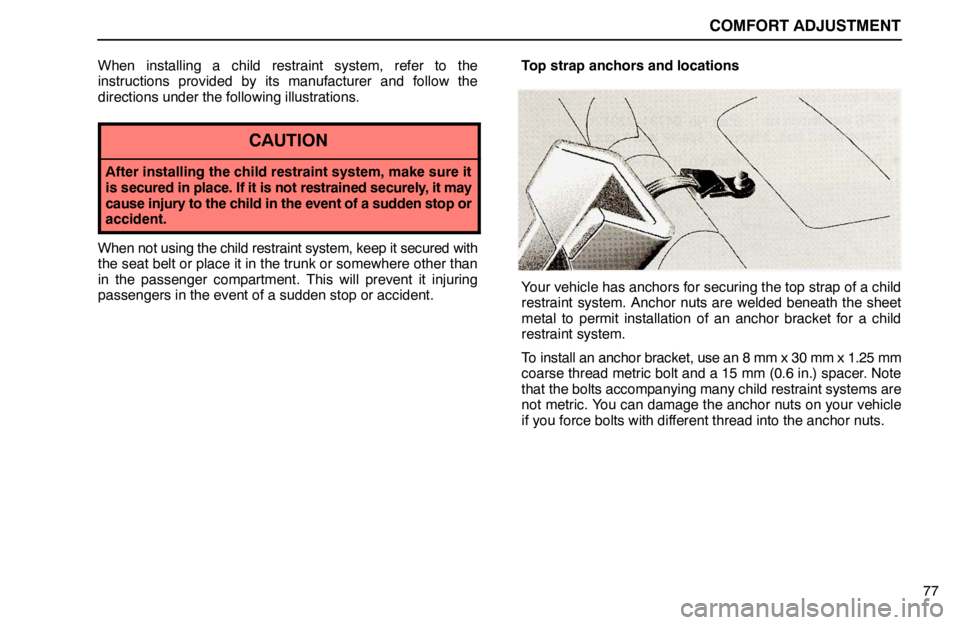

CAUTION
After installing the child restraint system, make sure it
is secured in place. If it is not restrained securely, it may
cause injury to the child in the event of a sudden stop or
accident.
When not using the child restraint system, keep it secured with
the seat belt or place it in the trunk or somewhere other than
in the passenger compartment. This will prevent it injuring
passengers in the event of a sudden stop or accident.Top strap anchors and locations
Your vehicle has anchors for securing the top strap of a child
restraint system. Anchor nuts are welded beneath the sheet
metal to permit installation of an anchor bracket for a child
restraint system.
To install an anchor bracket, use an 8 mm x 30 mm x 1.25 mm
coarse thread metric bolt and a 15 mm (0.6 in.) spacer. Note
that the bolts accompanying many child restraint systems are
not metric. You can damage the anchor nuts on your vehicle
if you force bolts with different thread into the anchor nuts.

COMFORT ADJUSTMENT
80
Fully extend the shoulder belt to put it in the lock mode.
Place the shoulder bolt between the vehicle seatback and the
child restraint system and allow it to retract. To hold the child
restraint system securely, let the shoulder belt retract as far as
it will go while firmly pushing down the child restraint system.
If your child restraint system requires the use of a top strap,
latch the hook onto the anchor bracket and tighten the top
strap.

81
CAUTION
Make sure the seat belt is securely locked. Also make
sure the child restraint system is secure by pushing and
pulling it in different directions.
To remove the child restraint system, press the buckle release
button and allow the belt to retract. Unhook the top strap.

COMFORT ADJUSTMENT
83
Faster the lap and shoulder belt over the child restraint system
following the instructions provided by its manufacturer. Keep
the lap portion of the belt tight.
Fully extend the shoulder belt to put it in the lock mode.
Place the shoulder belt between the vehicle seatback and child
restraint system and allow it to retract. To hold the child
restraint system securely, let the shoulder belt retract as far as
it will go while firmly pushing down the child restraint system.
