Page 2 of 7
EXTERIOR EQUIPMENT
46
HOOD
To open the hood, pull the hood lock release lever under
the dash. The hood will spring up slightly.
Insert your fingers under the hood, push up the auxiliary
catch lever and lift the hood.Before closing the hood, check to see that you have not
forgotten any tools, rags, etc. Then lower the hood and make
sure it locks.
TRUNK LID
To open the trunk lid, insert the master key and turn it
clockwise.
To close the trunk lid, lower it and press down on it. After
closing the trunk lid, try pulling it up to make sure it is securely
closed.
The trunk lid can be unlocked using the wireless remote control
transmitter. For details, see page 10.
Page 3 of 7
EXTERIOR EQUIPMENT
47

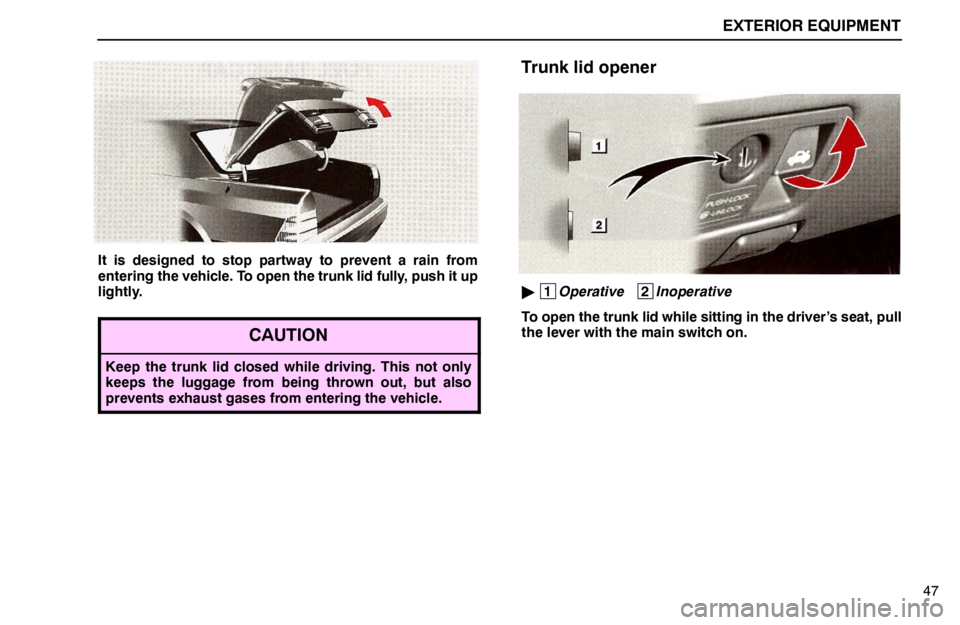

It is designed to stop partway to prevent a rain from
entering the vehicle. To open the trunk lid fully, push it up
lightly.
CAUTION
Keep the trunk lid closed while driving. This not only
keeps the luggage from being thrown out, but also
prevents exhaust gases from entering the vehicle.
Trunk lid opener
1
Operative 2
Inoperative
To open the trunk lid while sitting in the driver’s seat, pull
the lever with the main switch on.
Page 5 of 7
EXTERIOR EQUIPMENT
49

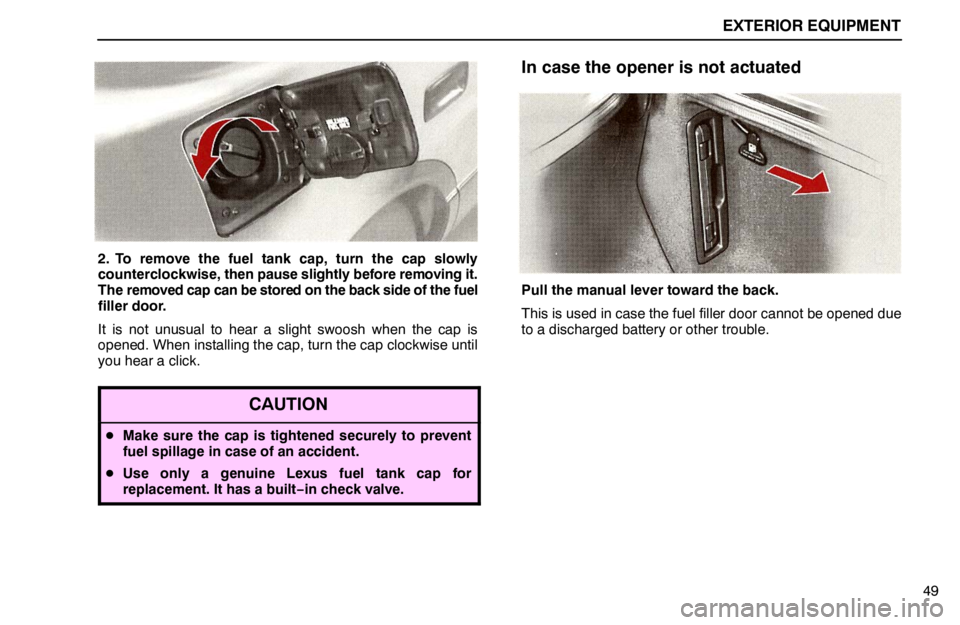

2. To remove the fuel tank cap, turn the cap slowly
counterclockwise, then pause slightly before removing it.
The removed cap can be stored on the back side of the fuel
filler door.
It is not unusual to hear a slight swoosh when the cap is
opened. When installing the cap, turn the cap clockwise until
you hear a click.
CAUTION
Make sure the cap is tightened securely to prevent
fuel spillage in case of an accident.
Use only a genuine Lexus fuel tank cap for
replacement. It has a built−in check valve.
In case the opener is not actuated
Pull the manual lever toward the back.
This is used in case the fuel filler door cannot be opened due
to a discharged battery or other trouble.
