Page 1 of 10

SECTION 1 – 4
35
INSTRUMENTS AND CONTROLS
Interior equipment
Vanity mirrors36 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior lights37 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Personal lights38 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition switch light38 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Clock39 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside temperature display39 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cigarette lighter and ashtray40 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Glovebox41 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cup holder41 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Coin box42 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Penlight43 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Luggage stowage precautions43 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page 3 of 10
INTERIOR EQUIPMENT
37
INTERIOR LIGHTS
Front
To turn on the interior light, slide the switch.
With the switch in the “DOOR” position, the light comes on
when any of the doors are opened. After all the doors are
closed, the light remains on for about 15 seconds and then
goes out.
However, in the following cases, the light goes out
immediately:
1. All the doors are closed when the ignition key is in “ACC” or
“ON” position.
2. The ignition key is turned to “ACC” or “ON” when the light
is still on.
3. All the doors are locked when the light is still on.
4. One door is closed with the lock button pushed in while the
other doors are locked.Rear
When you open the rear door, the light turns on. Closing
it turns off the light.
Page 4 of 10
INTERIOR EQUIPMENT
38
PERSONAL LIGHTS
Front
Rear
To turn on the personal light, push the switch. To turn it off,
push the switch again.
IGNITION SWITCH LIGHT
For easy access to the ignition switch, the ignition switch
light comes on when any of the doors are opened.
The light remains on for about 15 seconds and goes out after
all the doors are closed. However, the light goes out
immediately when all the doors are locked or the ignition key
is in the “ACC” or “ON” position.
Page 5 of 10
INTERIOR EQUIPMENT
39

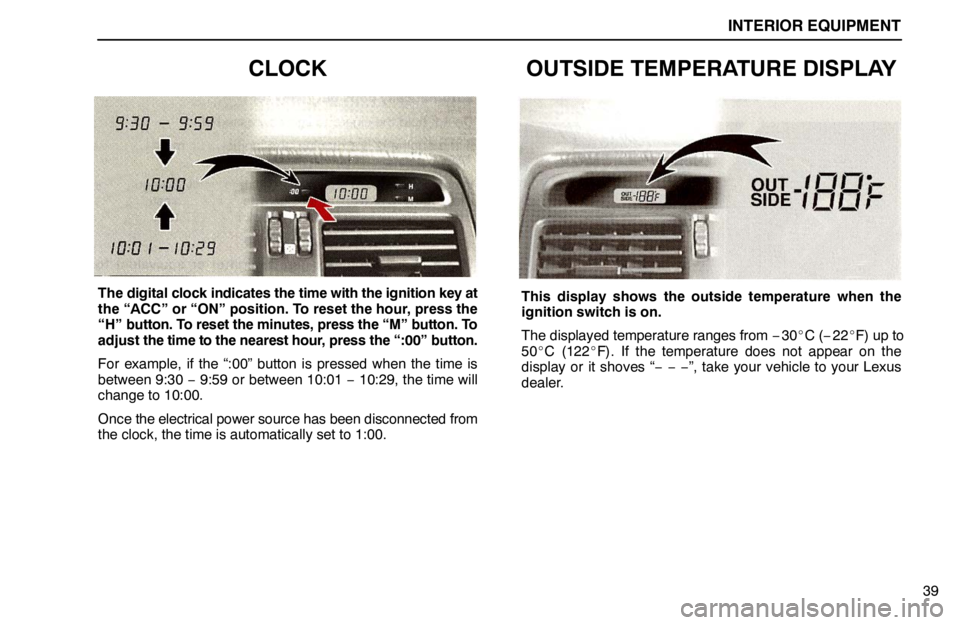

CLOCK
The digital clock indicates the time with the ignition key at
the “ACC” or “ON” position. To reset the hour, press the
“H” button. To reset the minutes, press the “M” button. To
adjust the time to the nearest hour, press the “:00” button.
For example, if the “:00” button is pressed when the time is
between 9:30 − 9:59 or between 10:01 − 10:29, the time will
change to 10:00.
Once the electrical power source has been disconnected from
the clock, the time is automatically set to 1:00.
OUTSIDE TEMPERATURE DISPLAY
This display shows the outside temperature when the
ignition switch is on.
The displayed temperature ranges from −30C (−22F) up to
50C (122F). If the temperature does not appear on the
display or it shoves “− − −”, take your vehicle to your Lexus
dealer.
Page 6 of 10
INTERIOR EQUIPMENT
40
CIGARETTE LIGHTER AND
ASHTRAY
Front cigarette lighter and ashtray
Rear cigarette lighter and ashtrayOpen the ashtray cover. To use the cigarette lighter, press
in the cigarette lighter. When it becomes heated, it
automatically pops out ready for use.
Do not hold the cigarette lighter pressed in.
If the engine is not running, the ignition key must be in the
“ACC” position.
When finished with your cigarette, thoroughly extinguish it in
the ashtray to prevent other cigarette butts from catching fire.
After using the ashtray, push it back in completely.
To remove the ashtray, just pull it up.
Use a Lexus genuine cigarette lighter or equivalent for
replacement.
