1995 JEEP CHEROKEE spark plug

line. However, these could result in a rich or lean
condition causing an oxygen sensor DTC to be stored
in the PCM.
Secondary Ignition Circuit:The PCM cannot
detect an inoperative ignition coil, fouled or worn
spark plugs, ignition cross firing, or open circuited
spark plug cables.
Engine Timing:The PCM cannot detect an incor-
rectly indexed timing chain, camshaft sprocket or
crankshaft sprocket. The PCM also cannot detect an
incorrectly indexed distributor. However, these could
result in a rich or lean condition causing an oxygen
sensor DTC to be stored in the PCM.
Cylinder Compression:The PCM cannot detect
uneven, low, or high engine cylinder compression.
Exhaust System:The PCM cannot detect a
plugged, restricted or leaking exhaust system.
Fuel Injector Malfunctions:The PCM cannot de-
termine if the fuel injector is clogged, or the wrong
injector is installed. However, these could result in a
rich or lean condition causing an oxygen sensor DTC
to be stored in the PCM.
Excessive Oil Consumption:Although the PCM
monitors exhaust stream oxygen content through ox-
ygen sensor (closed loop), it cannot determine exces-
sive oil consumption.
Throttle Body Air Flow:The PCM cannot detect
a clogged or restricted air cleaner inlet or air cleaner
element.
Evaporative System:The PCM will not detect a
restricted, plugged or loaded EVAP canister.
Vacuum Assist:Leaks or restrictions in the vac-
uum circuits of vacuum assisted engine control sys-
tem devices are not monitored by the PCM. However,
a vacuum leak at the MAP sensor will be monitored
and a diagnostic trouble code (DTC) will be gener-
ated by the PCM.
Powertrain Control Module (PCM) System
Ground:The PCM cannot determine a poor system
ground. However, a DTC may be generated as a re-
sult of this condition.
Powertrain Control Module (PCM) Connector
Engagement:The PCM cannot determine spread or
damaged connector pins. However, a DTC may be
generated as a result of this condition.
HIGH AND LOW LIMITS
The powertrain control module (PCM) compares in-
put signal voltages from each input device. It will es-
tablish high and low limits that are programmed into
it for that device. If the input voltage is not within
specifications and other Diagnostic Trouble Code
(DTC) criteria are met, a DTC will be stored in mem-
ory. Other DTC criteria might include engine rpm
limits or input voltages from other sensors or
switches. The other inputs might have to be sensed
by the PCM when it senses a high or low input volt-
age from the control system device in question.
ACCESSING DIAGNOSTIC TROUBLE CODES
A stored diagnostic trouble code (DTC) can be dis-
played by cycling the ignition key On-Off-On-Off-On
within three seconds and observing the malfunction
indicator lamp. This lamp is displayed on the instru-
ment panel as the CHECK ENGINE lamp (Figs. 45
or 46).
They can also be displayed through the use of the
Diagnostic Readout Box (DRB) scan tool. The DRB
scan tool connects to the data link connector in the
engine compartment (Figs. 47 or 48). For operation of
the DRB, refer to the appropriate Powertrain Diag-
nostic Procedures service manual.
Fig. 45 Check Engine LampÐXJ ModelsÐTypical
Fig. 46 Check Engine LampÐYJ ModelsÐTypical
JFUEL SYSTEM GENERAL DIAGNOSIS 14 - 53

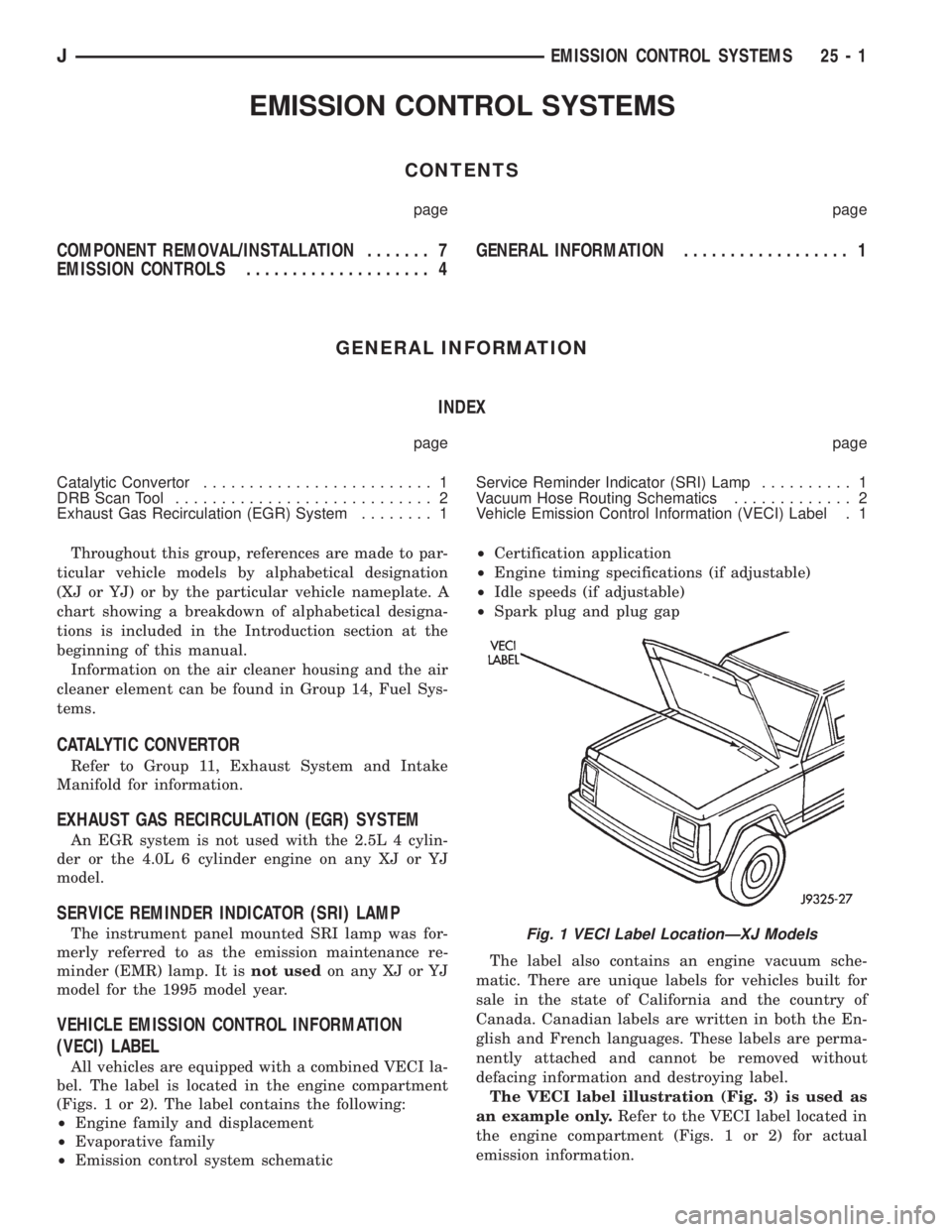

EMISSION CONTROL SYSTEMS
CONTENTS
page page
COMPONENT REMOVAL/INSTALLATION....... 7
EMISSION CONTROLS.................... 4GENERAL INFORMATION.................. 1
GENERAL INFORMATION
INDEX
page page
Catalytic Convertor......................... 1
DRB Scan Tool............................ 2
Exhaust Gas Recirculation (EGR) System........ 1Service Reminder Indicator (SRI) Lamp.......... 1
Vacuum Hose Routing Schematics............. 2
Vehicle Emission Control Information (VECI) Label . 1
Throughout this group, references are made to par-
ticular vehicle models by alphabetical designation
(XJ or YJ) or by the particular vehicle nameplate. A
chart showing a breakdown of alphabetical designa-
tions is included in the Introduction section at the
beginning of this manual.
Information on the air cleaner housing and the air
cleaner element can be found in Group 14, Fuel Sys-
tems.
CATALYTIC CONVERTOR
Refer to Group 11, Exhaust System and Intake
Manifold for information.
EXHAUST GAS RECIRCULATION (EGR) SYSTEM
An EGR system is not used with the 2.5L 4 cylin-
der or the 4.0L 6 cylinder engine on any XJ or YJ
model.
SERVICE REMINDER INDICATOR (SRI) LAMP
The instrument panel mounted SRI lamp was for-
merly referred to as the emission maintenance re-
minder (EMR) lamp. It isnot usedon any XJ or YJ
model for the 1995 model year.
VEHICLE EMISSION CONTROL INFORMATION
(VECI) LABEL
All vehicles are equipped with a combined VECI la-
bel. The label is located in the engine compartment
(Figs. 1 or 2). The label contains the following:
²Engine family and displacement
²Evaporative family
²Emission control system schematic²Certification application
²Engine timing specifications (if adjustable)
²Idle speeds (if adjustable)
²Spark plug and plug gap
The label also contains an engine vacuum sche-
matic. There are unique labels for vehicles built for
sale in the state of California and the country of
Canada. Canadian labels are written in both the En-
glish and French languages. These labels are perma-
nently attached and cannot be removed without
defacing information and destroying label.
The VECI label illustration (Fig. 3) is used as
an example only.Refer to the VECI label located in
the engine compartment (Figs. 1 or 2) for actual
emission information.
Fig. 1 VECI Label LocationÐXJ Models
JEMISSION CONTROL SYSTEMS 25 - 1

BUMPERÐXJ, LIFTGATE LICENSE PLATE
SCREW ANCHOR.....................23-65
BUMPERÐXJ, REAR SEATBACK LATCH
STRIKER...........................23-84
BUMPERS......................13-16,13-5
BUS, CCD; FUEL/IGNITION (XJ).......8W-30-5
BUSHING AND PISTON CLEARANCE,
AW-4 .............................21-339
BUSHING REPLACEMENT, AXLE......2-12,2-34
BUSHING REPLACEMENT, LEAF SPRING
EYE; FRONT SUSPENSION AND AXLE.....2-17
BUSHING REPLACEMENT, LEAF SPRING
EYE; REAR SUSPENSION AND AXLES . . . 3-5,3-7
BUSHINGS, CLUTCH AND BRAKE PEDAL . . . 0-22
BUZZER, COMBINATION; INTERIOR
LIGHTING (YJ)....................8W-44-1
BUZZER MODULE.................8U-1,8U-2
BUZZER MODULE SCHEMATIC - YJ.......8U-4
CABLE, ACCELERATOR PEDAL AND
THROTTLE.....................14-17,14-58
CABLE ADJUSTMENT, PARK INTERLOCK . 21-195
CABLE ADJUSTMENT, SHIFT...........21-195
CABLE ADJUSTMENT, TRANSMISSION
THROTTLE.........................21-194
CABLE ADJUSTMENT, TRANSMISSION
THROTTLE VALVE....................21-71
CABLE ADJUSTMENT (XJ), PARK
INTERLOCK........................21-101
CABLE ADJUSTMENT (XJ), SHIFT.......21-100
CABLE ADJUSTMENT (XJ/YJ), THROTTLE
VALVE..............................21-101
CABLE REMOVE/INSTALL, SERVO.......8H-10
CABLE REPLACEMENT, TRANSMISSION
THROTTLE.........................21-193
CABLE REPLACEMENT (XJ), PARKING
BRAKE REAR.........................5-67
CABLE REPLACEMENT (YJ), PARKING
BRAKE FRONT........................5-67
CABLE REPLACEMENT (YJ), PARKING
BRAKE REAR.........................5-68
CABLE REPLACEMENTÐXJ, LATCH
RELEASE...........................23-11
CABLE RESISTANCE, SPARK PLUG......8D-14
CABLE, SERVO.......................8H-1
CABLE, SPEEDOMETER.................0-33
CABLE TENSIONER ADJUSTMENT
(XJ/YJ), PARKING BRAKE...............5-69
CABLE TENSIONER REPLACEMENT (XJ),
PARKING BRAKE......................5-66
CABLE, THROTTLE...................14-17
CABLE/LINKAGE ADJUSTMENT,
GEARSHIFT.........................21-71
CABLES, DISTRIBUTOR CAP AND
ROTOR, IGNITION.....................0-20
CABLES, SPARK PLUG SECONDARY.....8D-14,
8D-24
CABLES, VENT DOOR CONTROL.........24-32
CALIBRATION, COMPASS...............8C-5
CALIPER ASSEMBLY...................5-50
CALIPER CLEANING AND INSPECTION.....5-50
CALIPER DISASSEMBLY................5-48
CALIPER INSTALLATION................5-51
CALIPER OPERATION AND WEAR
COMPENSATION......................5-45
CALIPER REMOVAL....................5-48
CAMSHAFT......................9-32,9-74
CAMSHAFT PIN REPLACEMENT......9-34,9-75
CAMSHAFT POSITION SENSOR; FUEL
SYSTEM............................14-60
CAMSHAFT POSITION SENSOR;
FUEL/IGNITION (XJ)................8W-30-3
CAMSHAFT POSITION SENSOR;
FUEL/IGNITION (YJ)................8W-30-3
CAMSHAFT POSITION SENSOR;
IGNITION SYSTEMS..............8D-17,8D-2
CAMSHAFT POSITION SENSOR;
FUEL/IGNITION (XJ-RHD)............8W-30-3
CAMSHAFT POSITION SENSOR TEST;
FUEL SYSTEM.......................14-46
CAMSHAFT POSITION SENSOR TEST;
IGNITION SYSTEMS
...................8D-6
CAMSHAFT POSITION SENSORÐPCM
INPUT
.............................14-22
(CANADA ONLY)ÐXJ, DAYTIME
RUNNING LIGHTS
....................8L-15
(CANADA ONLY)ÐYJ, DAYTIME
RUNNING LIGHTS
....................8L-30
CANISTER, EVAP
..................25-4,25-7CAP AND ROTOR, IGNITION CABLES,
DISTRIBUTOR........................0-20
CAP, DISTRIBUTOR....................8D-7
CAP, FUEL TANK FILLER TUBE;
EMISSION CONTROL SYSTEMS......25-4,25-7
CAP, FUEL TANK FILLER TUBE; FUEL
SYSTEM............................14-13
CAP, RADIATOR PRESSURE.............7-25
CAPACITIES, COOLING SYSTEM..........7-45
CAPACITIES, FLUID.....................0-3
CAPACITIES, FUEL TANK..........14-13,14-67
CAPACITY TEST, FUEL PUMP............14-7
CAR REPLACEMENT, PITMAN SHAFT
SEALSÐIN.........................19-23
CARDAN (CV), DOUBLE................16-11
CARDAN, SINGLE....................16-10
CARGO BARRIERÐXJ................23-101
CARGO LAMP AND DOME LAMP;
INTERIOR LIGHTING (XJ-RHD)........8W-44-1
CARGO LAMP, COURTESY LAMPS AND
DOME LAMP; INTERIOR LIGHTING (XJ) . 8W-44-1
CARGO LAMPÐXJ...................23-94
CARPET/MATÐXJ, FRONT.............23-99
CARPET/MATÐXJ, REAR.............23-100
CARPETÐYJ.......................23-156
CARPETS AND FLOOR MATSÐXJ.......23-99
CARRIERÐYJ, EXTERNAL SPARE/
WHEEL TIRE.......................23-133
CASE (4WD VEHICLES), TRANSFER........0-24
CASE ASSEMBLY, TRANSFER....21-294,21-319
CASE CHANGES, TRANSFER...........21-307
CASE CLEANING AND INSPECTION,
TRANSMISSION.....................21-125
CASE COVER OIL SEAL REPLACEMENT,
TIMING.........................9-30,9-73
CASE COVER, TIMING..............9-31,9-72
CASE DISASSEMBLY AND OVERHAUL,
TRANSFER...................21-289,21-310
CASE IDENTIFICATION, TRANSFER.....21-284,
21-307
CASE INSTALLATION, TRANSFER . 21-288,21-309
CASE LUBRICANT AND FILL LEVEL,
TRANSFER.........................21-284
CASE, NP231 TRANSFER.......21-283,21-305
CASE, NP242 TRANSFER.......21-307,21-331
CASE OVERHAUL, FIRST-REVERSE
BRAKE PISTON AND TRANSMISSION....21-247
CASE REMOVAL, TRANSFER.....21-287,21-309
CASE SKID PLATE, TRANSFER......13-15,13-3
CASE SPECIFICATIONS, TRANSMISSION/
TRANSFER.........................21-333
CATALYTIC CONVERTER............11-1,11-4
CATALYTIC CONVERTOR................25-1
CAUTIONS, AND WARNINGS, NOTES;
WIRING DIAGRAMSÐGENERAL
INFORMATION (XJ)...................8W-1
CCD BUS; FUEL/IGNITION (XJ)........8W-30-5
CENTER HIGH MOUNTED STOP LAMP
(CHMSL)ÐXJ.......................8L-12
CENTER HIGH MOUNTED STOP LAMP
(CHMSL)ÐYJ.......................8L-28
CERTIFICATION LABEL, VEHICLE SAFETY . Intro.-4
CHAIN AND SPROCKETS, TIMING....9-31,9-73
CHANGE AND FILTER REPLACEMENT,
ENGINE OIL
..........................0-16
CHANGE, LUBRICANT; FRONT
SUSPENSION AND AXLE
................2-23
CHANGE, LUBRICANT; REAR
SUSPENSION AND AXLES
...........3-13,3-31
CHANGE, REFILLING AFTER OVERHAUL
OR FLUID/FILTER
..............21-100,21-182
CHANGES AND PARTS
INTERCHANGEABILITY, TRANSMISSION
. . . 21-67
CHANGES, TRANSFER CASE
...........21-307
CHANNEL REPLACEMENTÐYJ, DOOR
FRAME GLASS
......................23-142
CHARGING, BATTERY
..................8A-7
CHARGING REFRIGERANT SYSTEM
......24-11
CHARGING SYSTEM; BATTERY/
STARTING/CHARGING SYSTEMS
DIAGNOSTICS
.......................8A-17
CHARGING SYSTEM; CHARGING
SYSTEM (XJ)
.....................8W-20-1
CHARGING SYSTEM; CHARGING
SYSTEM (XJ-RHD)
.................8W-20-1
CHARGING SYSTEM; CHARGING
SYSTEM (YJ)
.....................8W-20-1CHARGING SYSTEM INDICATOR LAMP;
INSTRUMENT CLUSTER (XJ).........8W-40-3
CHARGING SYSTEM SPECIFICATIONS....8A-23
CHARGING TIME TABLE, BATTERY........8A-8
CHART, MAIN BEARING FITTING......9-48,9-90
CHART, XJ PERFORMANCE
TEMPERATURE AND PRESSURE.........24-13
CHART, YJ PERFORMANCE
TEMPERATURE AND PRESSURE.........24-13
CHARTÐAX 15 MANUAL
TRANSMISSION, SELECTIVE SNAP
RING.............................21-334
CHARTS, BRAKELINE..................5-12
CHARTS, DIAGNOSIS GUIDES...........21-77
CHARTS, GEARTRAIN OPERATION AND
APPLICATION.......................21-169
CHARTS, INSPECTION AND DIAGNOSIS.....6-4
CHASSIS AND BODY COMPONENTS.......0-28
CHASSIS COMPONENT AND WHEEL
BEARING LUBRICANTS.................0-28
CHECK VALVE TEST, POWER BOOSTER.....5-9
CHECKING FLUID LEVEL AND
CONDITION........................21-182
CHECKS, PRELIMINARY.................7-5
CHIME/BUZZER MODULE; INTERIOR
LIGHTING (XJ)....................8W-44-2
CHIME/BUZZER MODULE; INTERIOR
LIGHTING (XJ-RHD)................8W-44-2
CHMSL LAMPS, STOP LAMPS; REAR
LIGHTING (XJ)....................8W-51-1
CHMSL LAMPS, STOP LAMPS; REAR
LIGHTING (XJ-RHD)................8W-51-1
CHMSL LAMPS, STOP LAMPS; REAR
LIGHTING (YJ)....................8W-51-1
(CHMSL)ÐXJ, CENTER HIGH MOUNTED
STOP LAMP.........................8L-12
(CHMSL)ÐYJ, CENTER HIGH MOUNTED
STOP LAMP.........................8L-28
CIGAR LIGHTER; HORN/CIGAR LIGHTER . . . 8E-1
CIGAR LIGHTER; HORN/CIGAR LIGHTER
(YJ).............................8W-41-1
CIGAR LIGHTER; INSTRUMENT CLUSTER
(XJ).............................8W-40-1
CIRCUIT IDENTIFICATION; WIRING
DIAGRAMSÐGENERAL INFORMATION
(XJ)...............................8W-1
CIRCUIT REMOVE/INSTALL, PRINTED....8E-19,
8E-40
CIRCUIT SENSEÐPCM INPUT, IGNITION . . 14-23
CIRCUIT VOLTAGE, OPEN...............8A-6
CLAMPS, FUEL TUBES/LINES/HOSES . 14-62,14-9
CLASSIFICATION OF LUBRICANTS.........0-2
CLASSIFICATIONS AND RATINGS,
BATTERY...........................8A-23
CLEANER, AIR.......................14-29
CLEANER ELEMENT, AIR; EMISSION
CONTROL SYSTEMS...................25-7
CLEANER ELEMENT, AIR; FUEL SYSTEM . . 14-59
CLEANER ELEMENT, AIR; LUBRICATION
AND MAINTENANCE...................0-18
CLEANER HOUSING, AIR...............14-58
CLEANING AND INSPECTION, CALIPER....5-50
CLEANING AND INSPECTION, GEAR......19-42
CLEANING AND INSPECTION,
TRANSMISSION CASE................21-125
CLEANING OF TIRES...................22-2
CLEANING/INSPECTION; FRONT
SUSPENSION AND AXLE
................2-37
CLEANING/INSPECTION; REAR
SUSPENSION AND AXLES
...............3-20
CLEANING/REVERSE FLUSHING,
COOLING SYSTEM
....................7-22
CLEARANCE AND RAMP ANGLE,
GROUND
............................0-11
CLEARANCE, AW-4 BUSHING AND
PISTON
...........................21-339
CLOCKSPRING
.......................19-51
CLUSTER AND GAUGE HOUSINGSÐYJ,
INSTRUMENT
......................23-151
CLUSTER ASSEMBLY REMOVE/INSTALL
. . 8E-17,
8E-35
CLUSTER BEZELÐXJ, INSTRUMENT
.....23-80
CLUSTER BEZELÐYJ, INSTRUMENT
....23-151
CLUSTER CONNECTORS (RHD)
.........8E-11
CLUSTER, GAUGE PACKAGE
.......8E-31,8E-43
CLUSTER GROUND; INSTRUMENT
CLUSTER (XJ)
.....................8W-40-3
4 INDEXJ
Description Group-Page Description Group-Page Description Group-Page

PANEL (GOP)ÐXJ, GRILLE AND GRILLE
OPENING............................23-3
PANEL ILLUMINATION LAMPS,
INSTRUMENT; INTERIOR LIGHTING
(XJ).............................8W-44-1
PANEL ILLUMINATION LAMPS,
INSTRUMENT; INTERIOR LIGHTING
(XJ-RHD).........................8W-44-1
PANEL, INSTRUMENT.............8E-24,8E-1
PANEL INSULATOR PANELÐXJ, DASH....23-12
PANEL LAMP, ACCESSORY LAMP AND
HEATER CONTROL; INTERIOR
LIGHTING (YJ)....................8W-44-1
PANEL OUTLET VACUUM MOTOR
REPLACEMENT, HEATER/DEFROSTER/
INSTRUMENT.......................24-26
PANEL REMOVE/INSTALL, INSTRUMENT . . 8E-20
PANELÐXJ, DASH PANEL INSULATOR....23-12
PANELÐXJ, DOOR TRIM..............23-31
PANELÐXJ, FRONT INNER SCUFF
PLATE/COWL SIDE TRIM...............23-86
PANELÐXJ, LIFTGATE TRIM............23-59
PANELÐYJ, FULL-METAL DOOR TRIM . . . 23-137
PANELÐYJ, HOOD INSULATOR........23-107
PANELÐYJ, INSTRUMENT............23-151
PANELS AND SCUFF PLATESÐXJ,
INTERIOR TRIM......................23-84
PANELSÐXJ, QUARTER AND
WHEELHOUSE TRIM..................23-87
PARK GEAR OVERHAUL, GOVERNOR....21-127
PARK GEAR SERVICE, GOVERNOR......21-105
PARK INTERLOCK CABLE ADJUSTMENT . 21-195
PARK INTERLOCK CABLE ADJUSTMENT
(XJ)..............................21-101
PARK LOCK COMPONENT OVERHAUL,
ADAPTER/EXTENSION HOUSING
INSPECTION.......................21-127
PARK LOCK COMPONENT
REPLACEMENT.....................21-108
PARK NEUTRAL SWITCH..............14-63
PARK ROD AND PAWL SERVICE........21-190
PARKING BRAKE CABLE TENSIONER
ADJUSTMENT (XJ/YJ)..................5-69
PARKING BRAKE CABLE TENSIONER
REPLACEMENT (XJ)...................5-66
PARKING BRAKE FRONT CABLE
REPLACEMENT (YJ)...................5-67
PARKING BRAKE HANDLE COVERÐXJ....23-94
PARKING BRAKE LEVER INSTALLATION
(XJ WITH FULL CONSOLE)..............5-64
PARKING BRAKE LEVER INSTALLATION
(XJ WITH MINI CONSOLE)..............5-63
PARKING BRAKE LEVER INSTALLATION
(XJ WITHOUT CONSOLE)...............5-65
PARKING BRAKE LEVER REMOVAL (XJ
WITH FULL CONSOLE).................5-63
PARKING BRAKE LEVER REMOVAL (XJ
WITH MINI CONSOLE).................5-62
PARKING BRAKE LEVER REMOVAL (XJ
WITHOUT CONSOLE)...................5-64
PARKING BRAKE MALFUNCTIONS,
DIAGNOSING..........................5-8
PARKING BRAKE OPERATION............5-60
PARKING BRAKE PEDAL INSTALLATION
(YJ)................................5-66
PARKING BRAKE PEDAL REMOVAL (YJ) . . . 5-66
PARKING BRAKE REAR CABLE
REPLACEMENT (XJ)...................5-67
PARKING BRAKE REAR CABLE
REPLACEMENT (YJ)...................5-68
PARKING BRAKE SWITCH...............5-68
PARKING BRAKES.....................5-60
PARKING LAMPS; FRONT LIGHTING
(XJ).............................8W-50-1
PARKING LAMPS; FRONT LIGHTING
(XJ-RHD).........................8W-50-2
PARKING LAMPS; FRONT LIGHTING
(YJ).............................8W-50-1
PARK/NEUTRAL POSITION SWITCH;
FUEL/IGNITION (XJ)
................8W-30-4
PARK/NEUTRAL POSITION SWITCH;
FUEL/IGNITION (YJ)
................8W-30-4
PARK/NEUTRAL POSITION SWITCH;
TRANSMISSION AND TRANSFER CASE
. . 21-183
PARK/NEUTRAL POSITION SWITCH;
FUEL/IGNITION (XJ-RHD)
............8W-30-4
PARK/NEUTRAL POSITION SWITCH
SERVICE
..........................21-109PARK/NEUTRAL SWITCHÐPCM INPUT . . . 14-24
PARK/TURN SIGNAL LAMP BULB
REPLACEMENTÐXJ, FRONT.............8L-9
PARK/TURN SIGNAL LAMP BULB
REPLACEMENTÐYJ, FRONT............8L-25
PARTS INTERCHANGEABILITY,
TRANSMISSION CHANGES.............21-67
PARTS RECOMMENDATION,
LUBRICATION AND REPLACEMENT........0-2
PASSENGER'S POWER LOCK SWITCH.....8P-6
PASSENGER'S POWER WINDOW
SWITCH.............................8S-6
PATTERN ANALYSIS, BACKLASH AND
CONTACT; FRONT SUSPENSION AND
AXLE...............................2-45
PATTERN ANALYSIS, BACKLASH AND
CONTACT; REAR SUSPENSION AND
AXLES..............................3-27
PATTERN, SHIFT......................21-2
PATTERN, TRANSMISSION SHIFT........21-34
PATTERNS, TIRE WEAR................22-4
PAWL SERVICE, PARK ROD...........21-190
PCM SYSTEM SCHEMATICS............14-41
PEDAL, ACCELERATOR................14-17
PEDAL AND THROTTLE CABLE,
ACCELERATOR.................14-17,14-58
PEDAL BUSHINGS, CLUTCH AND BRAKE . . . 0-22
PEDAL INSTALLATION, BRAKE...........5-31
PEDAL INSTALLATION, CLUTCH..........6-15
PEDAL INSTALLATION (YJ), PARKING
BRAKE...............................5-66
PEDAL REMOVAL, BRAKE...............5-31
PEDAL REMOVAL, CLUTCH..............6-15
PEDAL REMOVAL (YJ), PARKING BRAKE . . . 5-66
PEDAL TRAVEL SENSOR, BRAKE;
ANTI-LOCK BRAKES (YJ)............8W-32-1
PEDALÐBRAKELIGHT SWITCH, POWER
BRAKE BOOSTERÐBRAKE..............5-22
PERFORMANCE, ENGINE.................9-2
PERFORMANCE TEMPERATURE AND
PRESSURE CHART, XJ................24-13
PERFORMANCE TEMPERATURE AND
PRESSURE CHART, YJ................24-13
PERFORMANCE TEST, REFRIGERANT
SERVICE...........................24-11
PERFORMANCE TESTS, AIR
CONDITIONING......................24-12
PILLAR TRIM COVERSÐXJ, B/C-PILLAR
AND LIFTGATE.......................23-88
PILOT BEARING REPLACEMENT..........6-12
PIN REPLACEMENT, CAMSHAFT......9-34,9-75
PIN REPLACEMENTÐXJ, DOOR
HINGE/HINGE.......................23-52
PINION GEAR ASSEMBLY/INSTALLATION . . . 2-42
PINION GEAR DEPTH INFORMATION;
FRONT SUSPENSION AND AXLE..........2-39
PINION GEAR DEPTH INFORMATION;
REAR SUSPENSION AND AXLES..........3-21
PINION GEAR DEPTH VARIANCE; FRONT
SUSPENSION AND AXLE................2-40
PINION GEAR DEPTH VARIANCE; REAR
SUSPENSION AND AXLES...........3-22,3-39
PINION MEASUREMENT AND ASSEMBLY . . . 3-22
PINION MEASUREMENT, DIFFERENTIAL....2-40
PINION REMOVAL/DISASSEMBLY; FRONT
SUSPENSION AND AXLE................2-36
PINION REMOVAL/DISASSEMBLY; REAR
SUSPENSION AND AXLES...............3-19
PINION SEAL REPLACEMENT; FRONT
SUSPENSION AND AXLE................2-25
PINION SEAL REPLACEMENT; REAR
SUSPENSION AND AXLES...............3-33
PINION SHAFT SEAL REPLACEMENT......3-15
PIPEÐXJ VEHICLES, EXHAUST..........11-3
PIPEÐYJ VEHICLES, EXHAUST..........11-4
PISTON AND TRANSMISSION CASE
OVERHAUL, FIRST-REVERSE BRAKE....21-247
PISTON AND WORM SHAFT
REPLACEMENT, RACK.................19-32
PISTON CLEARANCE, AW-4 BUSHING . . . 21-339
PISTON SPECIFICATIONS, AW-4
RETAINER.........................21-340
PISTONS AND CONNECTING RODS
. . . 9-39,9-81
PISTONS AND SPRINGS, ACCUMULATOR
. 21-189
PITMAN ARM
..................19-17,19-20
PITMAN SHAFT AND SIDE COVER
REPLACEMENT
......................19-28
PITMAN SHAFT SEAL REPLACEMENT
.....19-37PITMAN SHAFT SEALS AND BEARING
REPLACEMENT......................19-34
PITMAN SHAFT SEALSÐIN CAR
REPLACEMENT......................19-23
PIVOTS REMOVE/INSTALL, WINDSHIELD
WIPER LINKAGE.....................8K-17
PLANETARY GEAR AND CLUTCH
OVERHAUL, OVERDRIVE..............21-218
PLANETARY GEAR OVERHAUL, FRONT . . . 21-237
PLANETARY GEAR TRAIN OVERHAUL . . . 21-141
PLASTIC COMPONENT INSPECTION,
RUBBER............................0-20
PLASTIC HOSES/TUBING, RUBBER........0-26
PLASTIC INSERTÐXJ, REAR QUARTER
WINDOW GLASS/REAR QUARTER.......23-73
PLASTIGAGE, MEASURING WITH..........9-3
PLATE, FRONT SKID...................13-1
PLATE, FUEL TANK SKID...........13-15,13-3
PLATE LAMP HOUSINGÐXJ, LIFTGATE
LICENSE...........................23-65
PLATE LAMPÐXJ, LICENSE............8L-12
PLATE LAMPS, TAIL LAMPS AND
LICENSE.........................8W-51-1
PLATE LAMPS, TAIL LAMPS AND REAR
LICENSE; REAR LIGHTING (XJ).......8W-51-1
PLATE LAMPS, TAIL LAMPS AND REAR
LICENSE; REAR LIGHTING (XJ-RHD) . . . 8W-51-1
PLATE REPLACEMENT, SUPPORT.........5-58
PLATE SCREW ANCHOR AND BUMPERÐ
XJ, LIFTGATE LICENSE................23-65
PLATE SERVICE, CONVERTERÐPUMP
SEALÐDRIVE......................21-116
PLATE SPECIFICATIONS, 30RH/32RH
SNAP RING/THRUST WASHER/THRUST . . 21-335
PLATE THICKNESS, AW-4 CLUTCH DISC . 21-338
PLATE, TRANSFER CASE SKID......13-15,13-3
PLATE, VEHICLE CODE...............Intro.-4
PLATE, VEHICLE IDENTIFICATION
NUMBER (VIN).....................Intro.-4
PLATE/COWL SIDE TRIM PANELÐXJ,
FRONT INNER SCUFF.................23-86
PLATESÐXJ, INTERIOR TRIM PANELS
AND SCUFF.........................23-84
PLATESÐXJ, OUTER SCUFF............23-89
PLATESÐXJ, VEHICLE, LABELS........Intro.-2
PLATESÐYJ, VEHICLE, LABELS........Intro.-3
PLATFORMÐXJ, BUCKET SEAT.........23-82
PLUG ASSEMBLY REPLACEMENT,
ADJUSTER..........................19-29
PLUG CABLE RESISTANCE, SPARK......8D-14
PLUG, HOUSING END.................19-28
PLUG LOCATIONS, TRANSMISSION
SWITCH............................21-34
PLUG SECONDARY CABLES, SPARK.....8D-14,
8D-24
PLUGS, SPARK; IGNITION SYSTEMS....8D-12,
8D-23,8D-32
PLUGS, SPARK; LUBRICATION AND
MAINTENANCE.......................0-20
POLISHING, WET SANDING,BUFFING....23-158
POOR CONNECTIONS, INTERMITTENT;
WIRING DIAGRAMSÐGENERAL
INFORMATION (XJ)
...................8W-4
POSITION SENSOR, CAMSHAFT; FUEL
SYSTEM
............................14-60
POSITION SENSOR, CAMSHAFT;
FUEL/IGNITION (XJ)
................8W-30-3
POSITION SENSOR, CAMSHAFT;
FUEL/IGNITION (YJ)
................8W-30-3
POSITION SENSOR, CAMSHAFT;
IGNITION SYSTEMS
..............8D-17,8D-2
POSITION SENSOR, CAMSHAFT;
FUEL/IGNITION (XJ-RHD)
............8W-30-3
POSITION SENSOR, CRANKSHAFT; FUEL
SYSTEM
............................14-60
POSITION SENSOR, CRANKSHAFT;
FUEL/IGNITION (XJ)
................8W-30-3
POSITION SENSOR, CRANKSHAFT;
FUEL/IGNITION (YJ)
................8W-30-3
POSITION SENSOR, CRANKSHAFT;
IGNITION SYSTEMS
..............8D-17,8D-3
POSITION SENSOR, CRANKSHAFT;
FUEL/IGNITION (XJ-RHD)
............8W-30-3
POSITION SENSOR TEST, CAMSHAFT;
FUEL SYSTEM
.......................14-46
POSITION SENSOR TEST, CAMSHAFT;
IGNITION SYSTEMS
...................8D-6
20 INDEXJ
Description Group-Page Description Group-Page Description Group-Page

REPLACEMENTÐXJ VEHICLES, DRIVE
AXLE ASSEMBLY; REAR SUSPENSION
AND AXLES......................3-14,3-31
REPLACEMENTÐXJ, WINDSHIELD
GLASS.............................23-69
REPLACEMENTÐYJ, BACK-UP/REAR
TURN SIGNAL/TAIL LAMP BULB.........8L-28
REPLACEMENTÐYJ, DOOR FRAME
GLASS CHANNEL...................23-142
REPLACEMENTÐYJ, DOOR
WEATHERSTRIP SEAL................23-142
REPLACEMENTÐYJ, DRL MODULE......8L-30
REPLACEMENTÐYJ, FOG LAMP.........8L-25
REPLACEMENTÐYJ, FOG LAMP SWITCH . 8L-26
REPLACEMENTÐYJ, FRONT PARK/TURN
SIGNAL LAMP BULB..................8L-25
REPLACEMENTÐYJ, HEADLAMP BULB . . . 8L-23
REPLACEMENTÐYJ, HEADLAMP
DIMMER SWITCH....................8L-26
REPLACEMENTÐYJ, LIFTGATE GLASS
WEATHERSTRIP SEAL................23-125
REPLACEMENTÐYJ, SIDE MARKER
LAMP BULB.........................8L-25
REPLACEMENTÐYJ, UNDERHOOD LAMP . 8L-29
REPLACEMENTÐYJ, UNDERHOOD LAMP
BULB..............................8L-29
REPLACEMENTÐYJ VEHICLES, DRIVE
AXLE ASSEMBLY; FRONT SUSPENSION
AND AXLE...........................2-24
REPLACEMENTÐYJ VEHICLES, DRIVE
AXLE ASSEMBLY; REAR SUSPENSION
AND AXLES..........................3-14
REPLACEMENTÐYJ VEHICLES,
HARDTOP DOME/CARGO LAMP BULB....8L-31
REQUIREMENTS, FUEL..................0-1
REQUIRING NO LUBRICATION,
COMPONENTS.........................0-2
RESERVE/OVERFLOW SYSTEM,
COOLANT............................7-24
RESERVOIR REPLACEMENT (2-PIECE
MASTER CYLINDER)...................5-19
RESERVOIR, VACUUM.................8H-1
RESISTANCE, IGNITION COIL............8D-9
RESISTANCE (OHMS)ÐCOOLANT
TEMPERATURE SENSOR/MANIFOLD
AIR TEMPERATURE, SENSOR...........14-46
RESISTANCE, SPARK PLUG CABLE......8D-14
RESISTORS REPLACEMENT, BLOWER
MOTOR............................24-31
RESTRAINT REPLACEMENTÐXJ, DOOR . . . 23-41
RETAINER AND PISTON
SPECIFICATIONS, AW-4...............21-340
RETAINING BRACKETÐYJ, REARVIEW
MIRROR..........................23-144
RETURNÐPCM INPUT, SENSOR.........14-25
REVEAL MOLDINGÐXJ, WINDSHIELD....23-66
REVEAL MOLDINGÐYJ, WINDSHIELD . . . 23-144
RHD, STEERING.....................19-74
RIGHT HAND DRIVE, AUTOMATIC BELT
TENSIONERÐXJ MODELS WITH.........7-42
RIGHT HAND DRIVE, BELT SERVICEÐ
EXCEPT.............................7-40
RIGHT HAND DRIVE, BELT SERVICEÐXJ
MODELS WITH.......................7-42
RIGHT HAND DRIVE (RHD), BELT
TENSIONÐEXCEPT....................7-38
RIGHT HAND DRIVE (RHD) MODELS,
BELT TENSIONÐEXCEPT...............7-45
RIGHT HAND DRIVE VEHICLES...........23-1
RIGHT TURN RELAY; TRAILER TOW
(XJ).............................8W-54-1
RIGHT TURN RELAY; TRAILER TOW
(XJ-RHD).........................8W-54-1
RING CHARTÐAX 15 MANUAL
TRANSMISSION, SELECTIVE SNAP......21-334
RING/THRUST WASHER/THRUST PLATE
SPECIFICATIONS, 30RH/32RH SNAP.....21-335
ROCKER ARMS AND PUSH RODS....9-23,9-65
ROD AND PAWL SERVICE, PARK.......21-190
ROD BALL STUD REPLACEMENTÐXJ,
LIFTGATE SUPPORT
..................23-63
ROD BEARING FITTING CHART,
CONNECTING
.....................9-41,9-83
ROD CYLINDER DISPOSALÐXJ,
LIFTGATE SUPPORT
..................23-63
ROD CYLINDERÐXJ, LIFTGATE
SUPPORT
..........................23-62
ROD, TIE
......................19-16,19-19RODS, PISTONS AND CONNECTING . . . 9-39,9-81
RODS, ROCKER ARMS AND PUSH....9-23,9-65
RODSÐXJ, DOOR INSIDE LATCH
RELEASE AND LOCK..................23-50
ROOF VENTÐYJ, HARD TOP..........23-127
ROTOR, DISTRIBUTOR.................8D-8
ROTOR, IGNITION CABLES,
DISTRIBUTOR CAP....................0-20
ROTOR INSTALLATION.................5-51
ROTOR REFINISHING, DISC BRAKE.......5-53
ROTOR REMOVAL.....................5-51
ROTOR RUNOUT, DISC BRAKE...........5-52
ROTOR THICKNESS, DISC BRAKE........5-52
ROTORÐSPEEDOMETER DRIVE GEAR,
SPEED SENSOR.....................21-193
ROUGH AND/OR HAS A MISS, INJECTOR
DIAGNOSISÐVEHICLE RUNS...........14-52
ROUTING SCHEMATICÐ2.5L 4
CYLINDER ENGINE, VACUUM............25-3
ROUTING SCHEMATICÐ4.0L 6
CYLINDER ENGINE, VACUUM............25-3
ROUTING SCHEMATICS, VACUUM HOSE . . . 25-2
ROUTING, SYSTEM COOLANT.............7-1
RUBBER AND PLASTIC COMPONENT
INSPECTION.........................0-20
RUBBER AND PLASTIC HOSES/TUBING....0-26
RUNNING LAMP (DRL) MODULE,
DAYTIME.........................8W-50-2
RUNNING LAMP (DRL) MODULEÐ
CANADIAN VEHICLES ONLY, DAYTIME. . . 8W-50-2
RUNNING LIGHTS (CANADA ONLY)ÐXJ,
DAYTIME...........................8L-15
RUNNING LIGHTS (CANADA ONLY)ÐYJ,
DAYTIME...........................8L-30
RUNOUT............................16-4
RUNOUT, CLUTCH COVER AND DISC.......6-3
RUNOUT, DISC BRAKE ROTOR...........5-52
RUNOUT, FLYWHEEL....................6-3
RUNOUT SPECIFICATIONS..............16-4
RUNOUT, TIRE AND WHEEL.............22-8
RUNS ROUGH AND/OR HAS A MISS,
INJECTOR DIAGNOSISÐVEHICLE........14-52
SAFETY CERTIFICATION LABEL, VEHICLE . Intro.-4
SAFETY LATCH STRIKER
REPLACEMENTÐXJ..................23-11
SAFETY LATCHÐYJ, HOOD............23-109
SAFETY PRECAUTIONS AND WARNINGS . . 13-10
SAFETY PRECAUTIONS, BRAKE...........5-2
SAFETY PRECAUTIONS, CLUTCH.........6-10
SANDING,BUFFING AND POLISHING,
WET..............................23-158
SCAN TOOL, DRB; BRAKES...............5-3
SCAN TOOL, DRB; COOLING SYSTEM......7-5
SCAN TOOL, DRB; EMISSION CONTROL
SYSTEMS...........................25-2
SCAN TOOL, DRB; FUEL SYSTEM........14-54
SCAN TOOL, DRB; IGNITION SYSTEMS....8D-8
SCHEDULES, MAINTENANCE.............0-4
SCHEMATIC - YJ, BUZZER MODULE......8U-4
SCHEMATICÐ2.5L 4 CYLINDER ENGINE,
VACUUM ROUTING....................25-3
SCHEMATICÐ4.0L 6 CYLINDER ENGINE,
VACUUM ROUTING....................25-3
SCHEMATICÐXJ, AIR CONDITIONING.....24-5
SCHEMATICÐXJ, HEATING..............24-2
SCHEMATICS, BELT....................7-38
SCHEMATICS, PCM SYSTEM............14-41
SCHEMATICS, VACUUM HOSE ROUTING . . . 25-2
SCI RECEIVEÐPCM INPUT.............14-24
SCI TRANSMITÐPCM OUTPUT.........14-29
SCREENÐXJ, COWL GRILLE...........23-12
SCREENÐXJ, HEADLAMP/FOG LAMP
ADJUSTMENT USING ALIGNMENT........8L-7
SCREENÐYJ, COWL GRILLE..........23-109
SCREENÐYJ, HEADLAMP/FOG LAMP
ADJUSTMENT USING ALIGNMENT.......8L-23
SCREW ANCHOR AND BUMPERÐXJ,
LIFTGATE LICENSE PLATE..............23-65
SCUFF PLATE/COWL SIDE TRIM
PANELÐXJ, FRONT INNER.............23-86
SCUFF PLATESÐXJ, INTERIOR TRIM
PANELS
............................23-84
SCUFF PLATESÐXJ, OUTER
............23-89
SEAL AND BEARING, AXLE SHAFT
........3-17
SEAL AND BEARING SERVICE, AXLE
SHAFT
..............................3-32
SEAL AND SPRING REPLACEMENT,
VALVE STEM
.........................9-65SEAL REPLACEMENT, INNER AXLE
SHAFT OIL...........................2-35
SEAL REPLACEMENT, MANUAL VALVE
SHAFT............................21-187
SEAL REPLACEMENT, OIL PUMP.......21-199
SEAL REPLACEMENT, PINION; FRONT
SUSPENSION AND AXLE................2-25
SEAL REPLACEMENT, PINION; REAR
SUSPENSION AND AXLES...............3-33
SEAL REPLACEMENT, PINION SHAFT......3-15
SEAL REPLACEMENT, PITMAN SHAFT....19-37
SEAL REPLACEMENT, TIMING CASE
COVER OIL......................9-30,9-73
SEAL REPLACEMENTÐYJ, DOOR
WEATHERSTRIP....................23-142
SEAL REPLACEMENTÐYJ, LIFTGATE
GLASS WEATHERSTRIP..............23-125
SEAL/CROSSMEMBER AIR
DEFLECTORÐXJ, COWL
WEATHERSTRIP.....................23-11
SEALÐDRIVE PLATE SERVICE,
CONVERTERÐPUMP.................21-116
SEALÐXJ, LIFTGATE OPENING
WEATHERSTRIP.....................23-64
SEALÐYJ, BELTLINE.................23-142
SEALÐYJ, COWL WEATHERSTRIP......23-109
SEALÐYJ, TAILGATE WEATHERSTRIP . . . 23-123
SEALÐYJ, WINDSHIELD FRAME
WEATHERSTRIP....................23-146
SEALS AND BEARING REPLACEMENT,
PITMAN SHAFT......................19-34
SEALS, REAR MAIN OIL..............9-49,9-89
SEALS, VALVE SPRINGS AND OIL........9-23
SEALSÐIN CAR REPLACEMENT, PITMAN
SHAFT.............................19-23
SEALSÐXJ, DOOR WINDOW GLASS
AND DOOR OPENING WEATHERSTRIP....23-55
SEALSÐYJ, FULL-METAL DOOR
WEATHERSTRIP....................23-141
SEAT ADJUSTER/MOTORS, POWER . . . 8R-1,8R-2
SEAT ADJUSTER/MOTORS REMOVE/
INSTALL, POWER.....................8R-3
SEAT BELT INDICATOR WARNING LAMP;
INSTRUMENT CLUSTER (XJ).........8W-40-2
SEAT BELT INDICATOR WARNING LAMP;
INSTRUMENT CLUSTER (XJ-RHD).....8W-40-2
SEAT BELT SWITCH, DRIVER'S......8U-1,8U-3
SEAT CUSHION AND COVERÐXJ,
BUCKET............................23-81
SEAT CUSHION COVERÐXJ, REAR......23-82
SEAT CUSHIONÐXJ, REAR.............23-82
SEAT PLATFORMÐXJ, BUCKET.........23-82
SEAT, POWER; POWER SEAT (XJ).....8W-63-1
SEAT, POWER; POWER SEAT (XJ-RHD) . 8W-63-1
SEAT SWITCH CONTINUITY, POWER......8R-2
SEAT SWITCH, POWER............8R-1,8R-2
SEAT SWITCH REMOVE/INSTALL,
POWER.............................8R-3
SEATBACK COVER AND FRAMEÐXJ,
BUCKET............................23-81
SEATBACK COVERÐXJ, REAR..........23-84
SEATBACK LATCH STRIKER AND
BUMPERÐXJ, REAR..................23-84
SEATBACKÐXJ, REAR................23-83
SEATÐYJ, REAR BENCH..............23-153
SEATSÐXJ, FRONT BUCKET............23-81
SEATSÐYJ........................23-153
SEATSÐYJ, BUCKET.................23-153
SECOND (2) RANGE, HYDRAULIC FLOW
IN MANUAL.........................21-96
SECOND BRAKE OVERHAUL...........21-241
SECONDARY CABLES, SPARK PLUG.....8D-14,
8D-24
SECONDARY CIRCUIT DIAGNOSIS,
IGNITION...........................8D-10
SECTION IDENTIFICATION; WIRING
DIAGRAMS (XJ)......................8W-1
SECTION IDENTIFICATION; WIRING
DIAGRAMS (XJ-RHD)..................8W-1
SECTION IDENTIFICATION; WIRING
DIAGRAMS (YJ)
......................8W-1
SELECTIVE SNAP RING CHARTÐAX 15
MANUAL TRANSMISSION
.............21-334
SELF-DIAGNOSTIC TEST, COMPASS/
DISPLAY
............................8C-2
SENDING UNIT, FUEL GAUGE
...........14-16
SENSEÐPCM INPUT, AUTOMATIC
SHUTDOWN (ASD)
...................14-21
24 INDEXJ
Description Group-Page Description Group-Page Description Group-Page

SHUTDOWN (ASD) RELAY, AUTOMATIC;
FUEL SYSTEM.......................14-59
SHUTDOWN (ASD) RELAY, AUTOMATIC;
IGNITION SYSTEMS..............8D-17,8D-1
SHUTDOWN (ASD) RELAY TEST,
AUTOMATIC.........................8D-6
SHUTDOWN (ASD) RELAY TESTING,
AUTOMATIC.........................14-46
SHUTDOWN (ASD) RELAYÐPCM
OUTPUT, AUTO......................14-26
SHUTDOWN (ASD) SENSEÐPCM INPUT,
AUTOMATIC.........................14-21
SIDE COVER REPLACEMENT, PITMAN
SHAFT.............................19-28
SIDE MARKER LAMP BULB
REPLACEMENTÐXJ..................8L-10
SIDE MARKER LAMP BULB
REPLACEMENTÐYJ..................8L-25
SIDE MOLDING/CLADDINGÐXJ, BODY . . . 23-20
SIDE MOLDINGÐXJ, WINDSHIELD......23-86
SIDE STEP MOLDINGÐYJ, BODY.......23-115
SIDE TRIM PANELÐXJ, FRONT INNER
SCUFF PLATE/COWL..................23-86
SIGNAL INDICATOR LAMPS, TURN;
INSTRUMENT CLUSTER (XJ).........8W-40-2
SIGNAL INDICATOR LAMPS, TURN;
INSTRUMENT CLUSTER (XJ-RHD).....8W-40-2
SIGNAL LAMP BULB REPLACEMENTÐ
XJ, FRONT PARK/TURN.................8L-9
SIGNAL LAMP BULB REPLACEMENTÐ
YJ, FRONT PARK/TURN................8L-25
SIGNAL RELAY, TURN; TURN SIGNALS
(XJ-RHD)..........................8W-52-1
SIGNAL SYSTEM - YJ, TURN............8J-3
SIGNAL SYSTEM, TURN................8J-1
SIGNAL, TACHOMETER; FUEL/IGNITION
(XJ).............................8W-30-5
SIGNAL, TACHOMETER; FUEL/IGNITION
(YJ).............................8W-30-5
SIGNAL, TACHOMETER; FUEL/IGNITION
(XJ-RHD).........................8W-30-4
SIGNAL/HAZARD WARNING SWITCH
REMOVE/INSTALL - YJ, TURN............8J-5
SIGNAL/HAZARD WARNING SYSTEM -
XJ, TURN............................8J-3
SIGNALS, TURN; TURN SIGNALS (YJ) . . 8W-52-1
SIGNALS, WHEEL/TIRE SIZE AND INPUT....5-3
SIGNAL/TAIL LAMP BULB
REPLACEMENTÐXJ, BACK-UP/REAR
TURN..............................8L-12
SIGNAL/TAIL LAMP BULB
REPLACEMENTÐYJ, BACK-UP/REAR
TURN..............................8L-28
SINGLE CARDAN.....................16-10
SIZE AND INPUT SIGNALS, WHEEL/TIRE....5-3
SKID PLATE, FRONT...................13-1
SKID PLATE, FUEL TANK...........13-15,13-3
SKID PLATE, TRANSFER CASE......13-15,13-3
SLIP DIFFERENTIAL, LIMITED............3-10
SNAP, DRIVELINE; FRONT SUSPENSION
AND AXLE...........................2-19
SNAP, DRIVELINE; REAR SUSPENSION
AND AXLES..........................3-10
SNAP RING CHARTÐAX 15 MANUAL
TRANSMISSION, SELECTIVE...........21-334
SNAP RING/THRUST WASHER/THRUST
PLATE SPECIFICATIONS, 30RH/32RH....21-335
SOFT TOP DOORÐYJ, HALF-METAL.....23-134
SOFT TOP SERVICE INFORMATIONÐYJ . . 23-127
SOFT TOP SERVICEÐYJ..............23-129
SOLENOID AND RELAY, TORQUE
CONVERTER CLUTCH (TCC);
FUEL/IGNITION (XJ)................8W-30-4
SOLENOID AND RELAY, TORQUE
CONVERTER CLUTCH (TCC);
TRANSMISSION CONTROLS (YJ)......8W-31-1
SOLENOID AND RELAYÐ2.5L ENGINE
ONLY, TORQUE CONVERTER CLUTCH
(TCC); TRANSMISSION CONTROLS
(XJ)
.............................8W-31-1
SOLENOID TESTING SPECIFICATIONS,
2.5L STARTER
.......................8A-23
SOLENOID TESTING SPECIFICATIONS,
4.0L STARTER
.......................8A-23
SOLENOIDS, TRANSMISSION VALVE
BODY
.............................21-184
SOLVENTS, BRAKE FLUID/LUBRICANTS/
CLEANING
............................5-2SOUND BAR REMOVE/INSTALL - XJ.......8F-8
SOUND BAR REMOVE/INSTALL - YJ......8F-10
SOUND BARÐXJ....................23-94
SPACER BLOCKSÐTWO-DOOR
VEHICLES, FRONT DOOR..............23-53
SPARE TIRE/WHEEL HOLDDOWN AND
FLOOR BRACKETSÐXJ................23-98
SPARE/WHEEL TIRE CARRIERÐYJ,
EXTERNAL.........................23-133
SPARK PLUG CABLE RESISTANCE.......8D-14
SPARK PLUG SECONDARY CABLES . 8D-14,8D-24
SPARK PLUGS; IGNITION SYSTEMS.....8D-12,
8D-23,8D-32
SPARK PLUGS; LUBRICATION AND
MAINTENANCE.......................0-20
SPEAKERS; AUDIO SYSTEMS........8F-1,8F-2
SPEAKERS; RADIO (XJ).............8W-47-1
SPEAKERS; RADIO (XJ-RHD).........8W-47-1
SPEAKERS; RADIO (YJ).............8W-47-1
SPEAKERS REMOVE/INSTALL - XJ........8F-6
SPEAKERS REMOVE/INSTALL - YJ........8F-9
SPECIFICATION NOTATIONS..........Intro.-11
SPECIFICATIONS; BATTERY/STARTER/
GENERATOR SERVICE..................8B-8
SPECIFICATIONS; BATTERY/STARTING/
CHARGING SYSTEMS DIAGNOSTICS.....8A-23
SPECIFICATIONS; BRAKES..............5-70
SPECIFICATIONS; COOLING SYSTEM......7-45
SPECIFICATIONS; ENGINES...........9-52,9-93
SPECIFICATIONS; FUEL SYSTEM........14-67
SPECIFICATIONS; HORNS...............8G-5
SPECIFICATIONS; IGNITION SYSTEMS....8D-32
SPECIFICATIONS; INSTRUMENT PANEL
AND GAUGESÐXJ..............8E-23,8E-43
SPECIFICATIONS; WHEELS AND TIRES....22-12
SPECIFICATIONS, 2.5L STARTER AND
SOLENOID TESTING..................8A-23
SPECIFICATIONS, 2.5L STARTING
SYSTEM COLD CRANKING.............8A-23
SPECIFICATIONS, 30RH/32RH GENERAL . 21-335
SPECIFICATIONS, 30RH/32RH PRESSURE
TEST.............................21-336
SPECIFICATIONS, 30RH/32RH TORQUE . . 21-336
SPECIFICATIONS, 4.0L STARTER AND
SOLENOID TESTING..................8A-23
SPECIFICATIONS, 4.0L STARTING
SYSTEM COLD CRANKING.............8A-23
SPECIFICATIONS, AW-4 GENERAL......21-337
SPECIFICATIONS, AW-4 TORQUE.......21-344
SPECIFICATIONS, AXLE; FRONT
SUSPENSION AND AXLE................2-49
SPECIFICATIONS, AXLE; REAR
SUSPENSION AND AXLES...............3-51
SPECIFICATIONS, BATTERY; BATTERY/
STARTER/GENERATOR SERVICE..........8B-8
SPECIFICATIONS, BATTERY; BATTERY/
STARTING/CHARGING SYSTEMS
DIAGNOSTICS.......................8A-23
SPECIFICATIONS, BELT TENSION.........7-38
SPECIFICATIONS, BODY LUBRICANT......0-33
SPECIFICATIONS, BRAKE TORQUE........5-70
SPECIFICATIONS, CHARGING SYSTEM....8A-23
SPECIFICATIONS (CONT.), ENGINE....9-53,9-54,
9-94,9-95
SPECIFICATIONS, ENGINE...........9-52,9-93
SPECIFICATIONS, GENERATOR...........8B-8
SPECIFICATIONS, LUBRICANT; FRONT
SUSPENSION AND AXLE................2-22
SPECIFICATIONS, LUBRICANT; REAR
SUSPENSION AND AXLES...........3-13,3-31
SPECIFICATIONS, MANUAL STEERING
GEAR..............................19-46
SPECIFICATIONS, MEASUREMENT AND
TORQUE.........................Intro.-11
SPECIFICATIONS, NP231/NP242 TORQUE . 21-344
SPECIFICATIONS, OUTPUT VOLTAGE.....8A-23
SPECIFICATIONS, POWER STEERING
GEAR..............................19-36
SPECIFICATIONS, PUMP OPERATING......19-3
SPECIFICATIONS, RUNOUT..............16-4
SPECIFICATIONS, STARTER.............8B-8
SPECIFICATIONS, STARTING SYSTEM
....8A-23
SPECIFICATIONS, TORQUE; CLUTCH
......6-17
SPECIFICATIONS, TORQUE; ENGINES
. . 9-54,9-95
SPECIFICATIONS, TORQUE; EXHAUST
SYSTEM AND INTAKE MANIFOLD
........11-10
SPECIFICATIONS, TORQUE; FRONT
SUSPENSION AND AXLE
................2-49SPECIFICATIONS, TORQUE; HEATING
AND AIR CONDITIONING...............24-37
SPECIFICATIONS, TORQUE;
INTRODUCTION............Intro.-11,Intro.-12
SPECIFICATIONS, TORQUE; PROPELLER
SHAFTS............................16-15
SPECIFICATIONS, TORQUE; REAR
SUSPENSION AND AXLES...............3-51
SPECIFICATIONS, TORQUE; STEERING....19-78
SPECIFICATIONS, TRAILER TOWING....Intro.-5,
Intro.-9
SPECIFICATIONS, TRANSMISSION/
TRANSFER CASE....................21-333
SPECIFICATIONSÐACCESSORIES,
TORQUE...........................23-162
SPECIFICATIONSÐMANUAL
TRANSMISSION, TORQUE.............21-333
SPECIFICATIONSÐXJ VEHICLES,
ALIGNMENT..........................2-10
SPECIFICATIONSÐXJ VEHICLES,
TORQUE...........................23-161
SPECIFICATIONSÐYJ VEHICLES,
ALIGNMENT..........................2-10
SPEED CONTROL DIAGNOSTIC TROUBLE
CODE...............................8H-5
SPEED CONTROL SERVO...........8H-1,8H-6
SPEED CONTROL SERVO REMOVE/
INSTALL............................8H-9
SPEED CONTROL SWITCH..........8H-1,8H-6
SPEED CONTROL SWITCH REMOVE/
INSTALL............................8H-9
SPEED CONTROL, VEHICLE; VEHICLE
SPEED CONTROL (XJ)................8W-33-1
SPEED CONTROL, VEHICLE; VEHICLE
SPEED CONTROL (XJ-RHD)..........8W-33-1
SPEED CONTROLÐPCM INPUT.........14-25
SPEED CONTROLÐPCM OUTPUT........14-29
SPEED KNOCK, LOW; FRONT
SUSPENSION AND AXLE................2-19
SPEED KNOCK, LOW; REAR
SUSPENSION AND AXLES...............3-10
SPEED SENSOR.....................21-192
SPEED SENSOR AIR GAP...............5-37
SPEED SENSOR OPERATION, WHEEL......5-37
SPEED SENSOR, PUMP MOTOR;
ANTI-LOCK BRAKES (XJ)............8W-32-2
SPEED SENSOR, PUMP MOTOR;
ANTI-LOCK BRAKES (XJ-RHD)........8W-32-2
SPEED SENSOR, PUMP MOTOR;
ANTI-LOCK BRAKES (YJ)............8W-32-1
SPEED SENSOR ROTORÐ
SPEEDOMETER DRIVE GEAR..........21-193
SPEED SENSOR TEST, VEHICLE.........14-48
SPEED SENSOR, VEHICLE; FUEL
SYSTEM............................14-66
SPEED SENSOR, VEHICLE; FUEL/
IGNITION (XJ).....................8W-30-2
SPEED SENSOR, VEHICLE; FUEL/
IGNITION (YJ).....................8W-30-3
SPEED SENSOR, VEHICLE; VEHICLE
SPEED CONTROL SYSTEM..........8H-1,8H-5
SPEED SENSOR, VEHICLE; FUEL/
IGNITION (XJ-RHD)................8W-30-2
SPEED SENSORÐPCM INPUT, VEHICLE . . 14-25
SPEED SENSORS, WHEEL; ANTI-LOCK
BRAKES (XJ)......................8W-32-1
SPEED SENSORS, WHEEL; ANTI-LOCK
BRAKES (XJ-RHD).................8W-32-1
SPEED SENSORS, WHEEL; ANTI-LOCK
BRAKES (YJ)
......................8W-32-1
SPEED SENSORS, WHEEL; BRAKES
.......5-34
SPEEDOMETER; INSTRUMENT CLUSTER
(XJ)
.............................8W-40-2
SPEEDOMETER; INSTRUMENT CLUSTER
(XJ-RHD)
.........................8W-40-1
SPEEDOMETER CABLE
.................0-33
SPEEDOMETER SERVICE
. . 21-109,21-287,21-309
SPLASH APRONSÐYJ, FENDER
........23-115
SPLASH LINERSÐYJ, WHEELHOUSE
....23-115
SPLASH SHIELD, GENERATOR
..........13-13
SPLASH SHIELDÐXJ VEHICLES, FUEL
FILLER HOSE
.........................13-4
SPLASH SHIELDSÐYJ, FENDER INNER
. . 23-116
SPLICE INDEX; SPLICE INFORMATION
(XJ)
.............................8W-70-1
SPLICE INDEX; SPLICE INFORMATION
(XJ-RHD)
.........................8W-70-1
26 INDEXJ
Description Group-Page Description Group-Page Description Group-Page
