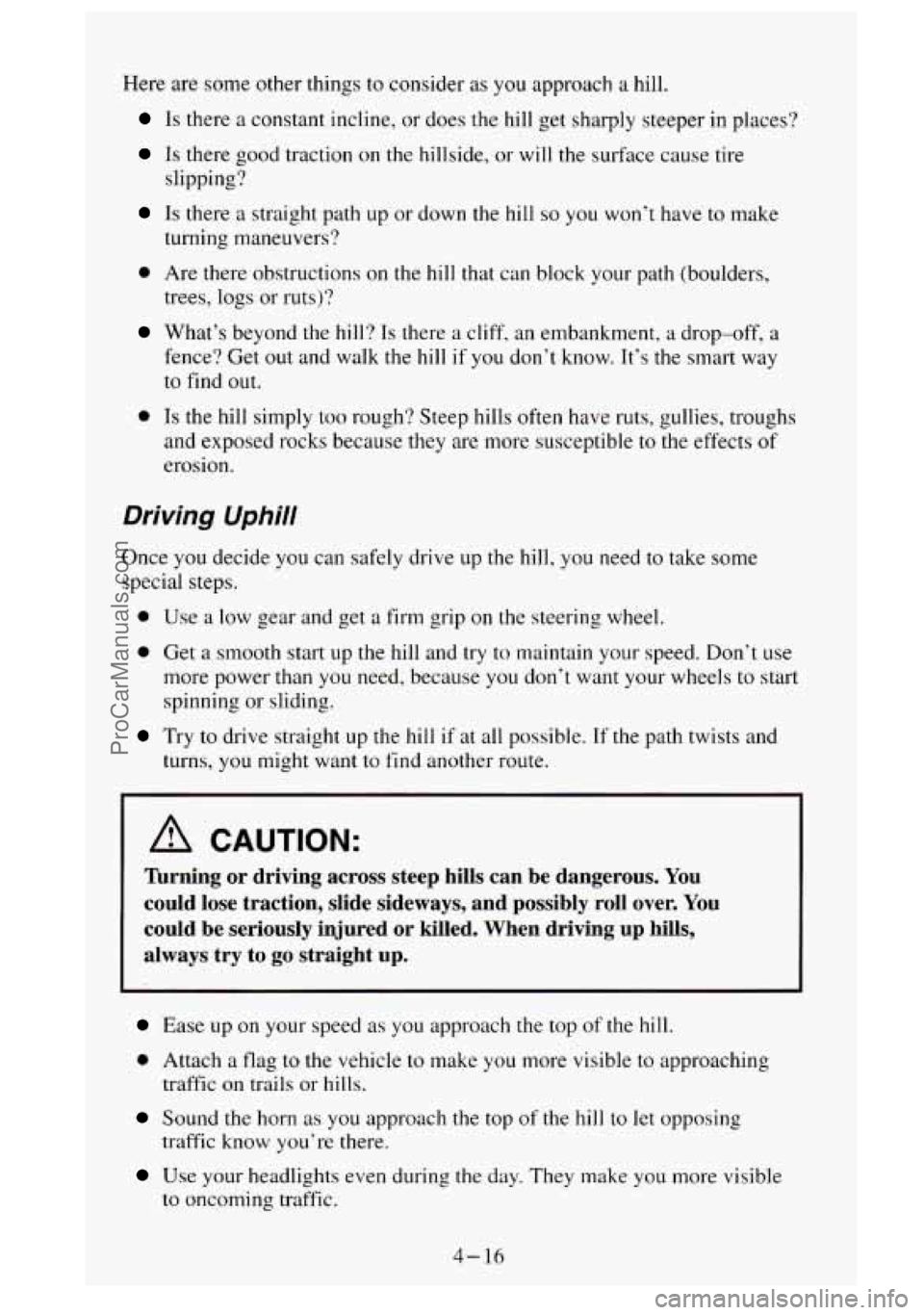

Here  are  some  other things to consider as you approach  a hill.
Is  there a constant incline,  or  does  the hill get sharply steeper  in places?
Is there  good traction on the hillside,  or will  the  surface cause tire
slipping?
Is there a straight path  up or down the hill so you won’t have to make
0 Are there obstructions on the  hill that can  block your path (boulders,
turning maneuvers?
trees,
logs or  ruts)?
What’s  beyond  the  hill? Is there a cliff, an  embankment, a drop-off,  a
fence?  Get  out and walk
the hill if you  don’t know.  It’s the smart  way
to find out.
Is the hill simply too  rough?  Steep  hills often have ruts, gullies, troughs
and  exposed  rocks because they are more  susceptible
to the effects of
erosion.
Driving Uphi//
Once you decide  you can safely  drive up the hill,  you  need  to take some
special  steps.
0 Use  a low gear and get  a firm  grip on the  steering  wheel.
0 Get  a smooth start  up the hill and  try to maintain your speed.  Don’t use
more  power  than  you need, because  you don’t want your wheels
to start
spinning  or  sliding.
Try to  drive  straight up the hill  if  at  all  possible. If the path twists and
turns,  you might want to find  another route.
1 A CAUTION:
nrning or driving  across  steep  hills  can  be  dangerous.  You
could  lose  traction,  slide  sideways,  and  possibly
roll over. You
could  be  seriously  injured  or  killed.  When  driving  up hills,
always  try  to
go straight up.
Ease  up on your speed  as you  approach the top of the hill.
0 Attach  a  flag to the vehicle to make  you more visible to approaching
traffic  on trails
or hills.
Sound the horn as you  approach the top of the hill to let opposing
traffic
know you’re  there.
to  oncoming  traffic.
Use your headlights even  during the day. They make  you more visible
4- 16
ProCarManuals.com

Hydroplaning  doesn’t happen often. But it can if your tires haven’t much
tread  or
if the pressure  in one  or  more is low. It  can  happen  if a lot of water
is  standing  on
the road. If you can  see  reflections  from trees, telephone
poles,  or other  vehicles, and raindrops “dimple” the water’s surface, there
could  be hydroplaning.
Hydroplaning  usually happens at higher speeds.  There  just isn’t
a hard and
fast  rule  about hydroplaning.  The best  advice is
to slow  down  when it is
raining.
Some  Other  Rainy  Weather  Tips
Turn on your  low-beam headlights - not just  your parking  lights - to
help  make
you more visible to  others.
Besides slowing  down, allow some  extra  following distance.  And be
especially  careful  when  you pass another vehicle.  Allow yourself more
clear  room  ahead,  and be prepared  to have your view restricted  by road
spray.
Have  good tires  with proper tread  depth.  (See “Tires” in the Index.)
City Driving
One  of the biggest  problems with city streets  is the  amount of traffic  on
them.  You’ll  want
to watch out  for what the  other  drivers  are  doing and pay
attention to traffic signals.
Here
are ways to increase your safety in city driving:
0 Know  the best way  to  get  to where you are  going.  Get a city map and
plan  your  trip into an unknown  part of the city  just  as  you would  for a
cross-country  trip.
4-26
ProCarManuals.com

c
Run your  engine  only as long  as you  must.  This saves  fuel. When  you  run
the  engine,  make
it go a little faster than  just  idle.  That  is, push  the
accelerator  slightly. This uses less fuel  for the heat that
you get  and  it keeps
the battery  (or batteries)  charged. You will need  a well-charged  battery (or
batteries)  to  restart the vehicle,  and possibly  for signaling later on  with your
headlights.  Let the heater  run for awhile.
If you  have  a  diesel engine,  you  may  have to run it at a higher speed to get
enough  heat.  Then,  shut  the engine  off and  close  the window  almost all the
way
to preserve  the heat.  Start the engine  again and repeat this only when
you feel really uncomfortable  from the cold.  But do it as  little  as possible.
Preserve  the  fuel  as long
as you can. To help keep warm,  you can get out of
the vehicle  and do some  fairly vigorous  exercises every half hour or so until
help  comes.
Power  Winches
If  you wish  to use  a power winch  on your vehicle, only  use it when your
vehicle
is stationary  or anchored.
NOTICE:
Using  a  power  winch  with  the  transmission  in  gear  may  damage
the  transmission.  When  operating  a  power  winch,  always  leave
the  transmission  in  NEUTRAL
(N).
Use the  regular brakes, set the parking brake, or block  the wheels to keep
your  vehicle
from rolling.
4-34
ProCarManuals.com

H
Halogen  Bulbs (See "Bulb  Replacement")
Hazard  Warning  Flashers
........................................... 5-1
Head Restraints  (See "Seats")
Headlamps  and  Vehicle Lighting
.................................... 2-48
Replacement  (See "Bulb  Replacement")
High  Beam  Indicator  Light  (See "Lights")
High-Low  Beam  Changer
...................................... 240
Reminder .................................................... 2-49
Heater Controls .................................................. 3-1
Refrigerant  Capacity ........................................... 6-85
Heater/Air  Conditioning  Controls ............................... 3-2 . 6-46
Highway  Hypnosis (See "Driving-Highway  Hypnosis")
Hitches  (See "Towing-Hitches")
Hood
Checking  Under:  Hood  Release .................................. 6-13
Horn .......................................................... 2-38
Hydraulic  Clutch ................................................ 6-31
When to Check and  What to Use ................................. 6-32
Howtocheck ................................................ 6-32
Hydroplaning  (See "Driving in the Rain")
I
If You're  Stuck in Sand . Mud.  Ice . or Snow ........................... 5-39
Ignition Switch .................................................. 2-10
Intlation-Tire Prussure (See "Tires")
Instrument  Cluster
............................................... 2-68
InstrumentPanel ................................................ 2-68
J
Jacking  Equipment  Storage ................................... 5-27 . 5-28
Jump Starting .................................................... 5-2
K
Key Lock Cylinders ......................................... 6-46.7-94
Key Release Button .............................................. 2-11
Keyless  Entry System ............................................. 2-7
Keys
........................................................... 2-1
L
Labe 1 s
Lamps
Certification/Tire  (See  "CertificaticdTire  Label")
CargdCenter  High Mounted  Stop  Lamp
...................... 2.52, 2.83
Daytime  Running Lamps ....................................... 2-50
Dome
....................................................... 2-51
Fog ........................................................ 2-49
Headlights
(See "Headlamps")
5
ProCarManuals.com

Lamps (continued)
Lamp  and Bulb  Data
........................................... 6-88
Reading
..................................................... 2-51
Replacement  (See “Bulb  Replacement“)
Underhood  Reel Lamp
......................................... 2-52
Lights ......................................................... 2-70
Air Bag Readiness Light
................................... 1-20,  2-71
Anti-.  Lock  Brake System  Warning  Light
........................... 2-73
Brake System  Warning Light
.................................... 2-72
Charging  System  Warning Light
.................................. 2-76
Daytime  Running  Lamps (DRL) Indicator Light
................ 2-50,  2-77
Check
Gages Light
............................................ 2-77
Glow  Plugs Light
............................................. 2-75
Headlamp  High Beam Indicator Light
............................. 2-78
Headlights  (See  “Headlamps”)  Low Coolant  Warning Light
................................ 2-75,  6-38
Malfunction  Indicator
..................................... 2-76,  6-57
Safety  Belt Reminder  Light
..................................... 2-71
Service  Throttle  Soon
.......................................... 2-74
ShiftLight
.............................................. 2-25, 2-78
Turn Signal  and Lane Change  Indicator Light .................. 240,  2-79
Water
in Fuel  (Diesel  Engine) .................................... 2-74
Loading  Your  Vehicle
............................................ 4-37
Trailering  Package
............................................ 4-39
Truck-Camper  Loading
........................................ 4-39
Lock  Cylinders  (See “Key Lock Cylinders“)
Loss of  Control  (See “Driving-Loss
of Control”)
Lubrication  (See  “Recommended Fluids and Lubricants“)
M
Malfunction  Indicator  Lamp  (See “Lights”)
Maintenance  (See “Scheduled  Maintenance  Services”)
Master  Cylinder  (See  “Brakes”)
Mirrors  Convexoutside
............................................... 2-56
Electric  Outside  Rearview  Mirrors
................................ 2-56
Electrochromic  Inside  Rearview  Mirror
............................ 2-54
Inside
....................................................... 2-53
Outside
..................................................... 2-56
ModelReference
.................................................. iv
Multifunction  Lever .............................................. 2-39
N
Noise  Control  System ............................................ 6-14
0
Odometer  (See “Gages“)
Off-Road  Driving (See  ”Driving-Off  Road  Driving”)
Off-Road  Recovery
............................................... 4-9
