1995 CHEVROLET TAHOE bulb

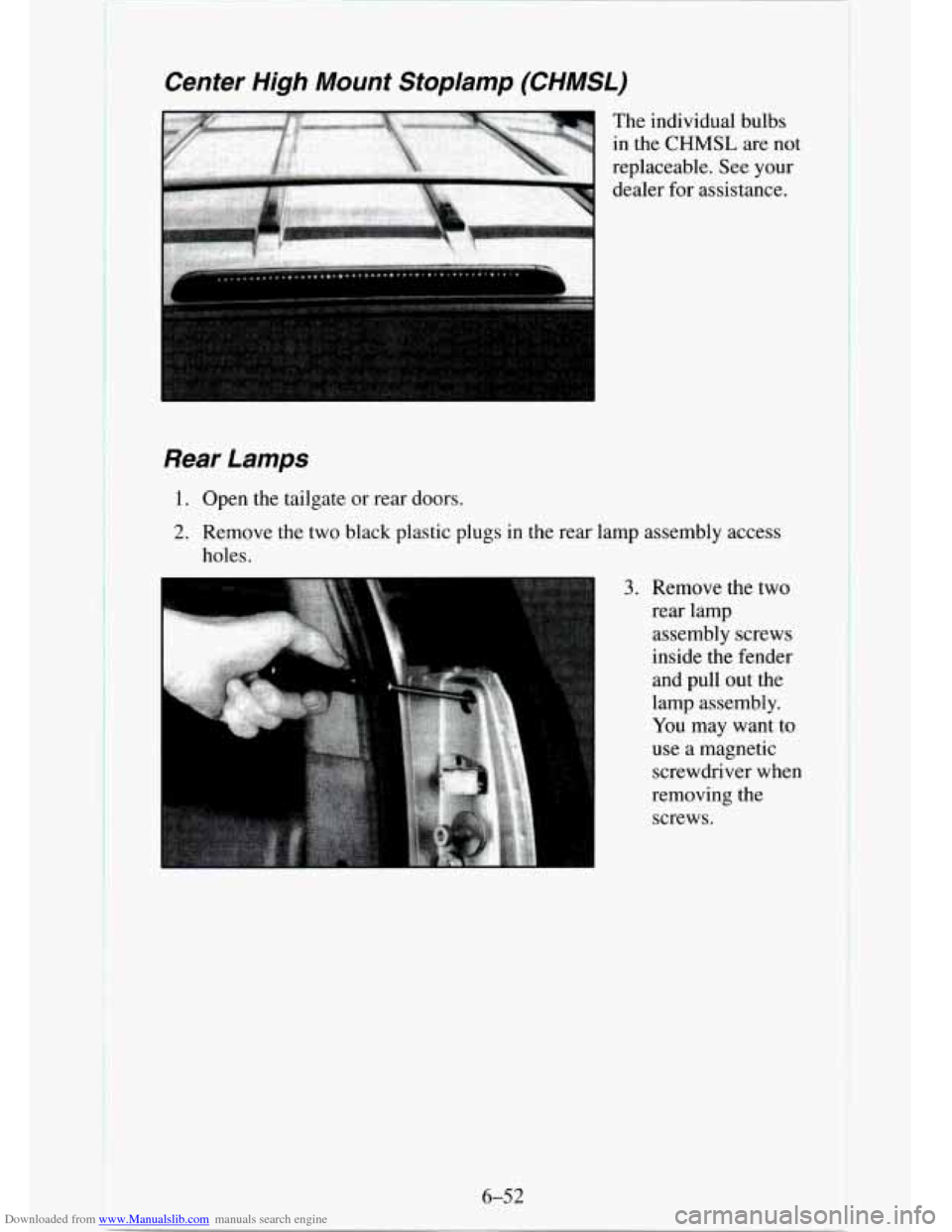

Downloaded from www.Manualslib.com manuals search engine Center High Mount Stoplamp (CHMSL)
The individual bulbs
in the
CHMSL are not
replaceable. See your
dealer for assistance.
Rear Lamps
1. Open the tailgate or rear doors.
2. Remove the two black plastic plugs in the rear lamp assembly access
holes.
3. Remove the two
rear lamp assembly screws
inside the fender
and pull out the
lamp assembly.
You may want to
use a magnetic
screwdriver
when
removing the
screws.
6-52 I !

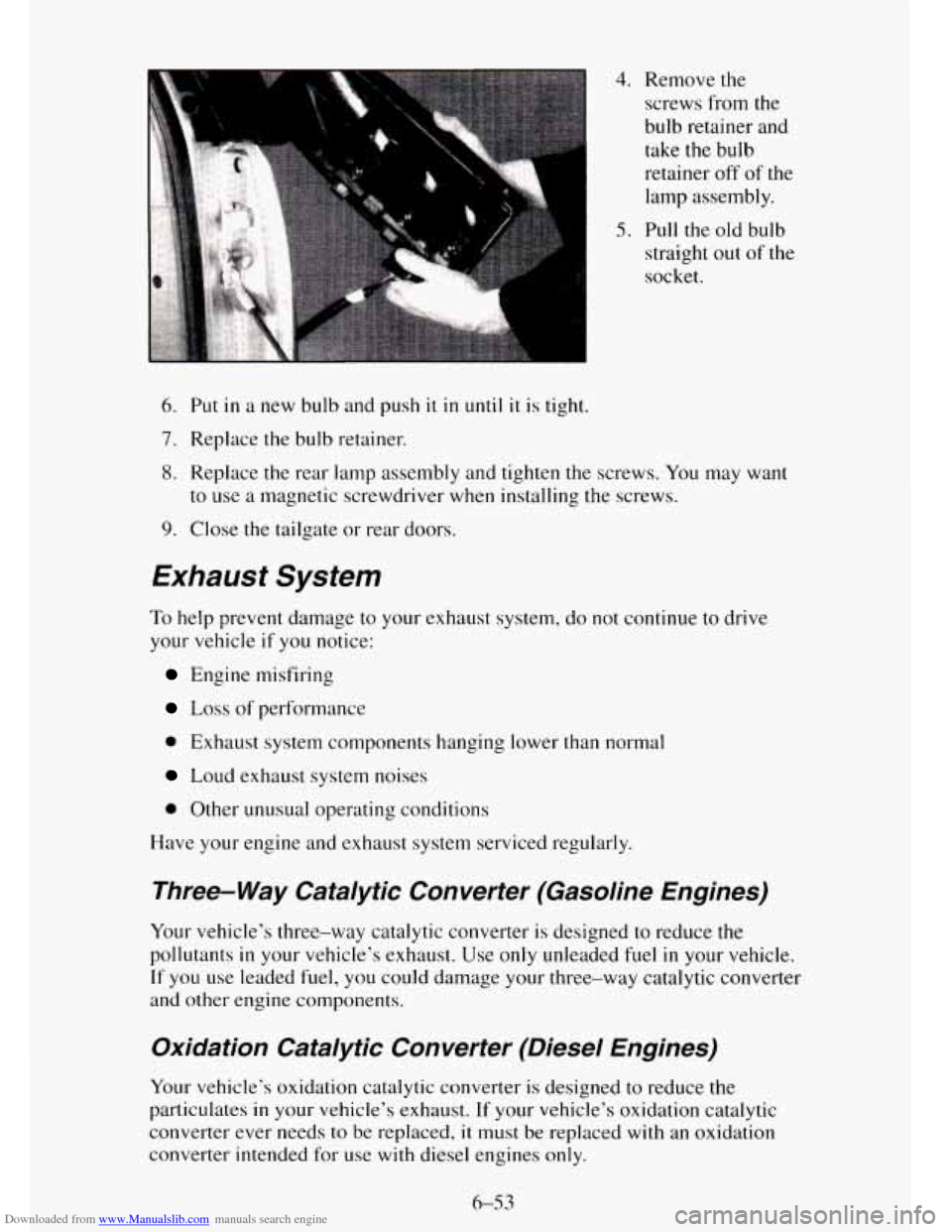

Downloaded from www.Manualslib.com manuals search engine 4. Remove the screws from the
bulb retainer and take the bulb
retainer off
of the
lamp assembly.
straight out of the
socket
.
5. Pull the old bulb
6. Put in a new bulb and push it in until it is tight.
7. Replace the bulb retainer.
8. Replace the rear lamp assembly and tighten the screws. You may want
to use a magnetic screwdriver when installing the screws.
9. Close the tailgate or rear doors.
Exhaust System
To help prevent damage to your exhaust system, do not continue to drive
your vehicle
if you notice:
Engine misfiring
Loss of performance
0 Exhaust system components hanging lower than normal
Loud exhaust system noises
0 Other unusual operating conditions
Have your engine and exhaust system serviced regularly.
Three- Way Catalytic Converter (Gasoline Engines)
Your vehicle’s three-way catalytic converter is designed to reduce the
pollutants
in your vehicle’s exhaust. Use only unleaded fuel in your vehicle.
If you use leaded fuel, you could damage your three-way catalytic converter
and other engine components.
Oxidation Catalytic Converter (Diesel Engines)
Your vehicle’s oxidation catalytic converter is designed to reduce the
particulates
in your vehicle’s exhaust. If your vehicle’s oxidation catalytic
converter ever needs to be replaced,
it must be replaced with an oxidation
converter intended for use
with diesel engines only.
6-53

Downloaded from www.Manualslib.com manuals search engine POSITION NAME CIRCUITS PROTECTED
RR Wiper Rear Wiper, Rear Wash Pump
4WD Frt Axle, 4WD Indicator Lamp
PWR ACCY Pwr Door Lock, 6-Way Pwr Seat, Keyless
Entry Module 23.
24.
A3
B.? PWR
WDOS Power Windows
?Circuit Breaker
Lamp and Bulb Data
LAMP OR
BULB TRADE NO. POWER
RATING AT
12.8V, WATTS
HEADLAMPS
2 Headlamp
System (Sealed
Beam)
H6054 35/65 2 Low/High Beam
4 Headlamp
System
(Composite)
Low/High Beam
High Beam 6052
9005 55/65
65 2 2
TRADE NO. LAMP
OR BULB
EXTERIOR
194
2357NA 2
4
Front
Marker Lamp
Front Park and Turn
Lamp
Rear Parking Lamp
Rear Stop and Turn
Lamp
Backup Lamp
Roof Marker Lamp"
License Plate Lamp
Underhood Lamp 3057
3057
2
2
3156
194
194
232
232
Reel
Lamp
*Suburban Only

Downloaded from www.Manualslib.com manuals search engine LAMP OR BULB
INTERIOR
Dome Lamps
Reading
Lamps
Roof Console Lamps'$
Door Courtesy Lamp
LAMP OR BULB
INTERIOR
Four Wheel Drive
Indicator
Four Wheel Drive Shift
Lever
Instrument Panel
Compartment
Lamp
Ashtray Lamp
Sunshade Vmity
Mirror
'$Suburban Only
LAMP OR BULB
INSTRUMENT
PANEL
Daytime Running Lamps Indicator?
Charging System Indicator Lamp
Instrument Cluster
Illurnination -Gage
Cluster
Instrument Cluster
Illumination
-Tachometer Cluster
Headlamp Beam
Indicator
Directional Signal
Indicator
Brake Warning Indicator
TRADE NO.
21 1-2
21 1-2
168
I94
TRADE NO.
194
I94 194
194
74
TRADE NO.
74
74
194
194
74
74 74
2
4
2
2/4*
QTY
1
I
1
1
4
I
1
4
6
I
2
1
6-83

Downloaded from www.Manualslib.com manuals search engine LAMP OR BULB
INSTRUMENT
PANEL
SIR (Air Bag)
Safety Belt Warning
Check Gages Indicator
Malfunction Indicator (”Service Engine
Soon”) Lamp
Upshift Indicator
Glow
Plugs Lamp**
Low Coolant Lamp**’
Water
in Fuel Lamp**
Service Throttle Soon
Lamp**
**Diesel only
?Canadian Vehicles only
TRADE NO.
74
74
74
74
74
74
74
74
74
