1995 CHEVROLET CORVETTE windshield wipers

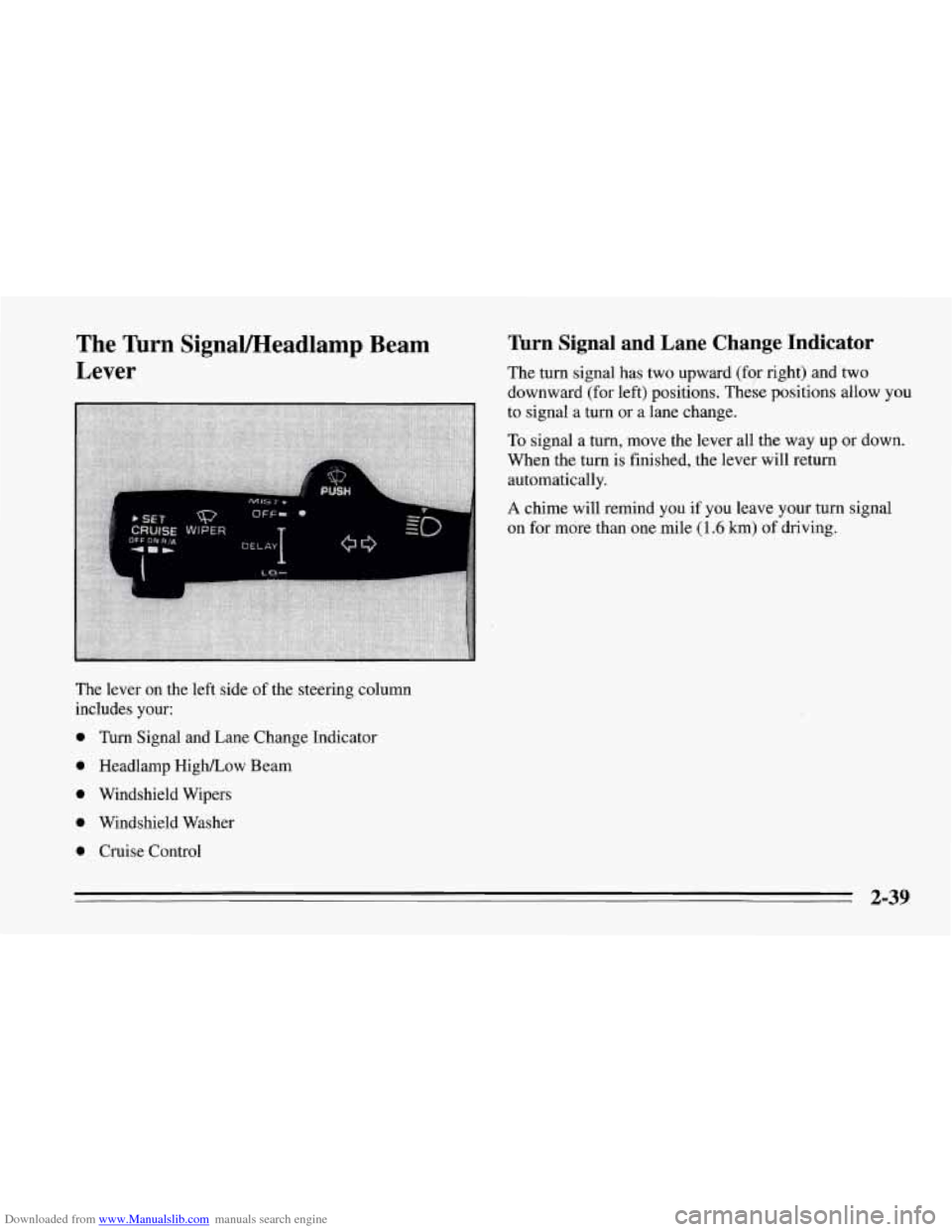

Downloaded from www.Manualslib.com manuals search engine The Turn SignaVHeadlamp Beam
Lever
The lever on the left side of the steering column
includes your:
0 Thm Signal and Lane Change Indicator
0 Headlamp HighPLow Beam
0 Windshield Wipers
0 Windsheld Washer
0 Cruise Control
Tbrn Signal and Lane Change Indicator
The turn signal has two upward (for right) and two
downward (for left) positions. These positions allow you
to signal a tum or a lane change.
To signal a turn, move the lever all the way up or down.
When the turn
is finished, the lever will return
automatically.
A chime will remind you if you leave your turn signal
on for more than one mile
(1.6 km) of driving.
2-39

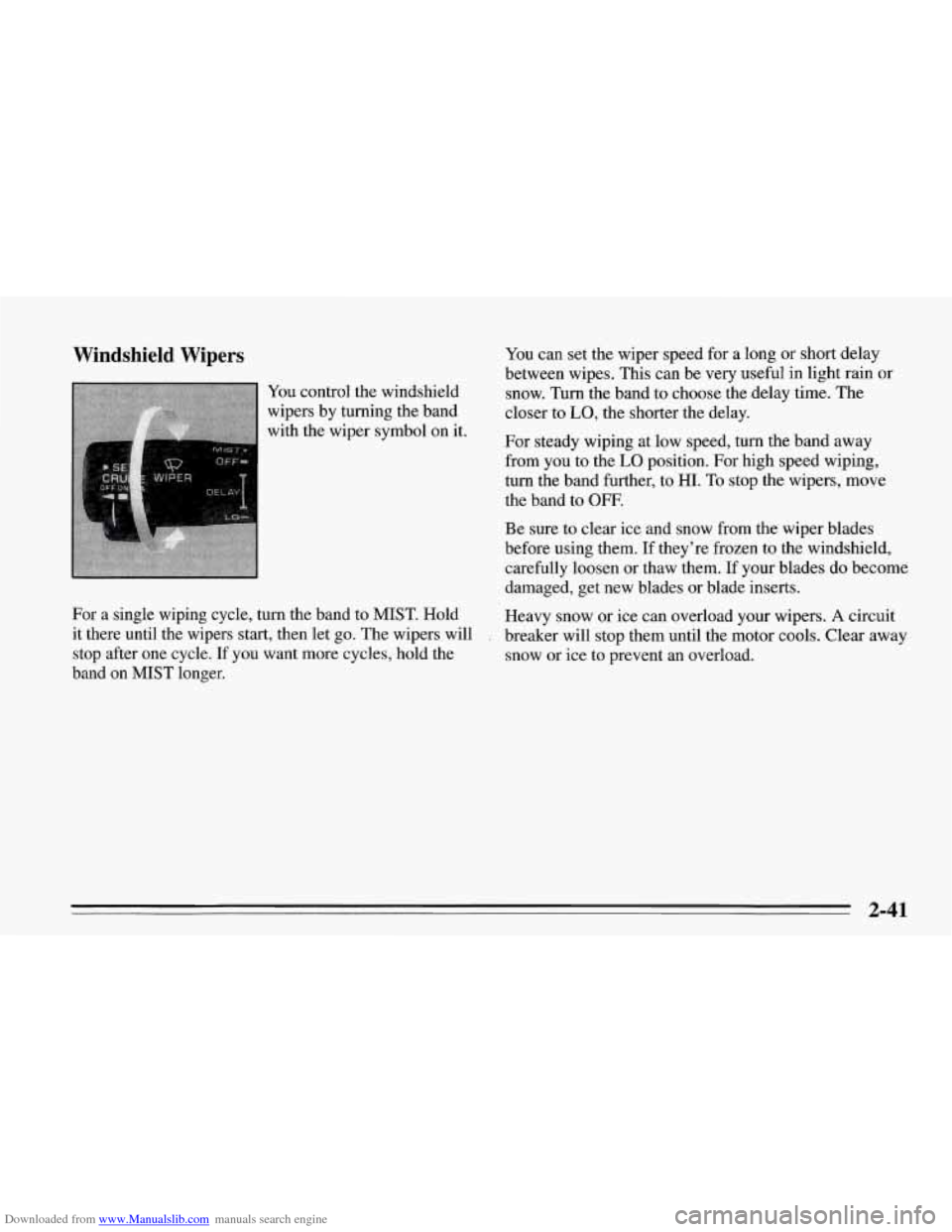

Downloaded from www.Manualslib.com manuals search engine Windshield Wipers
You control the windshield
wipers by turning the band
with the wiper symbol on it.
For
a single wiping cycle, turn the band to MIST. Hold
it there until the wipers start, then let go. The wipers will
stop after one cycle.
If you want more cycles, hold the
band
on MIST longer. You
can set the wiper speed for a long or short delay
between wipes. This can be very useful in light rain or
snow. Turn the band to choose the delay time. The
closer to
LO, the shorter the delay.
For steady wiping at low speed, turn the band away
from you to the
LO position. For high speed wiping,
turn the band further, to HI. To stop the wipers, move
the band to OFF.
Be sure to clear ice and snow from the wiper blades
before using them.
If they’re frozen to the windshield,
carefully loosen or thaw them. If your blades
do become
damaged, get new blades or blade inserts.
Heavy snow or ice can overload your wipers.
A circuit
breaker will stop them until the motor cools. Clear away
snow or ice to prevent an overload.
2-41

Downloaded from www.Manualslib.com manuals search engine Windshield Washer
At the top of the turn signal
lever there’s a paddle with
the word
PUSH on it. To
spray washer fluid on the
The wipers will clear the window and stop or return to
the previous setting. If you hold the paddle for more
than a second, the washer will spray until you release
the paddle.
NOTICE:
When using concentrated washer fluid,
follow the manufacturer’s instructions for
adding water.
Don’t mix water with ready-to-use washer
fluid. Water can cause the solution to freeze
and damage your washer fluid tank and
other parts of the washer system.
Also,
water doesn’t clean as well as washer fluid.
Fill your washer fluid tank only 3/4 full
when
it’s very cold. This allows for
expansion, which could damage the tank
if
it is completely full.
windshield washer. It can damage your
washer system and paint.
..
Don’t use radiator antifreeze in your
2-42

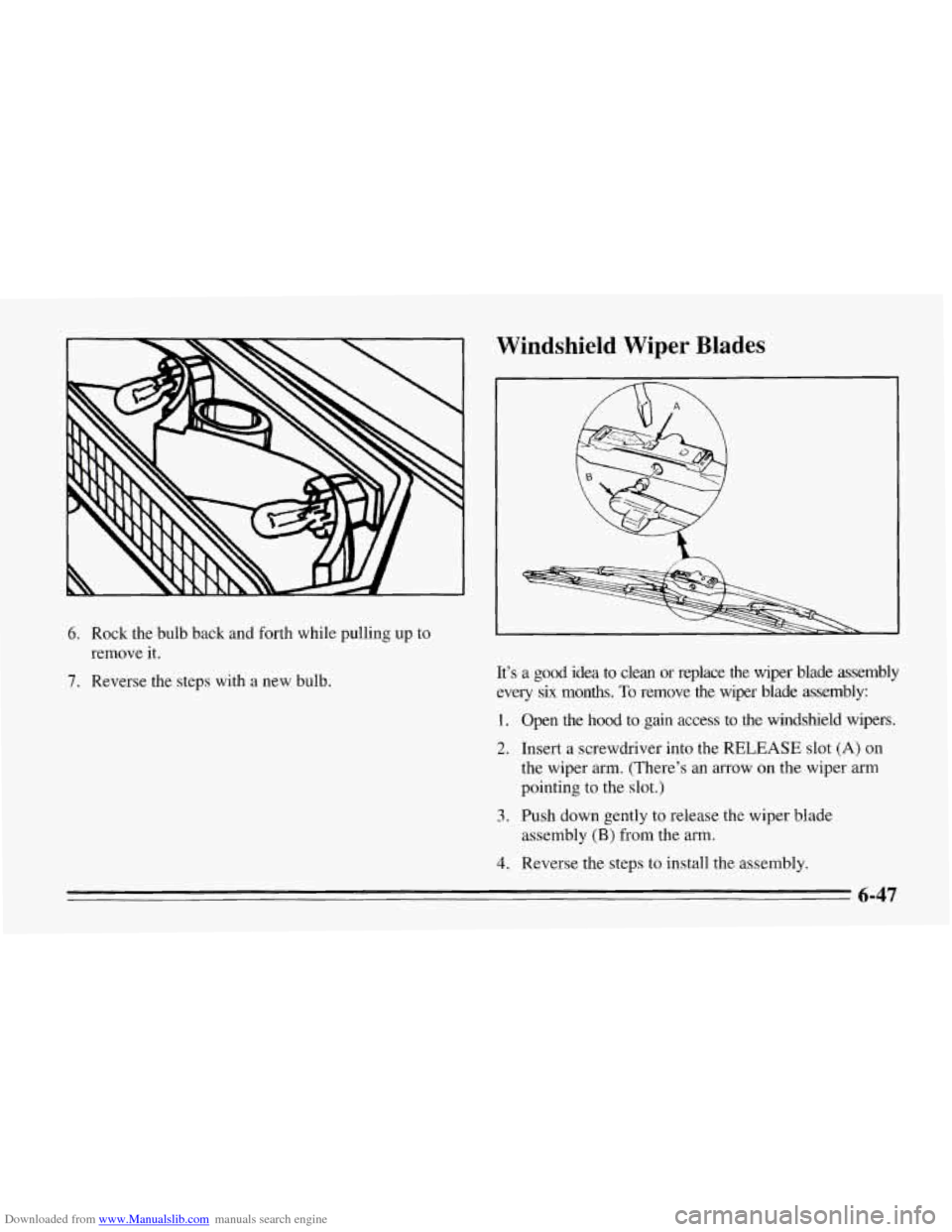

Downloaded from www.Manualslib.com manuals search engine Windshield Wiper Blades
6. Rock the bulb back and forth while pulling up to
remove it.
7. Reverse the steps with a new bulb. It’s a good idea to clean or replace the wiper blade assembly
every
six months. To remove the wiper blade assembly:
1. Open the hood to gain access to the windshield wipers.
2. Insert a screwdriver into the RELEASE slot (A) on
the wiper arm. (There’s an arrow on the wiper arm
pointing
to the slot.)
3. Push down gently to release the wiper blade
assembly
(B) from the arm.
4. Reverse the steps to install the assembly.
6-47

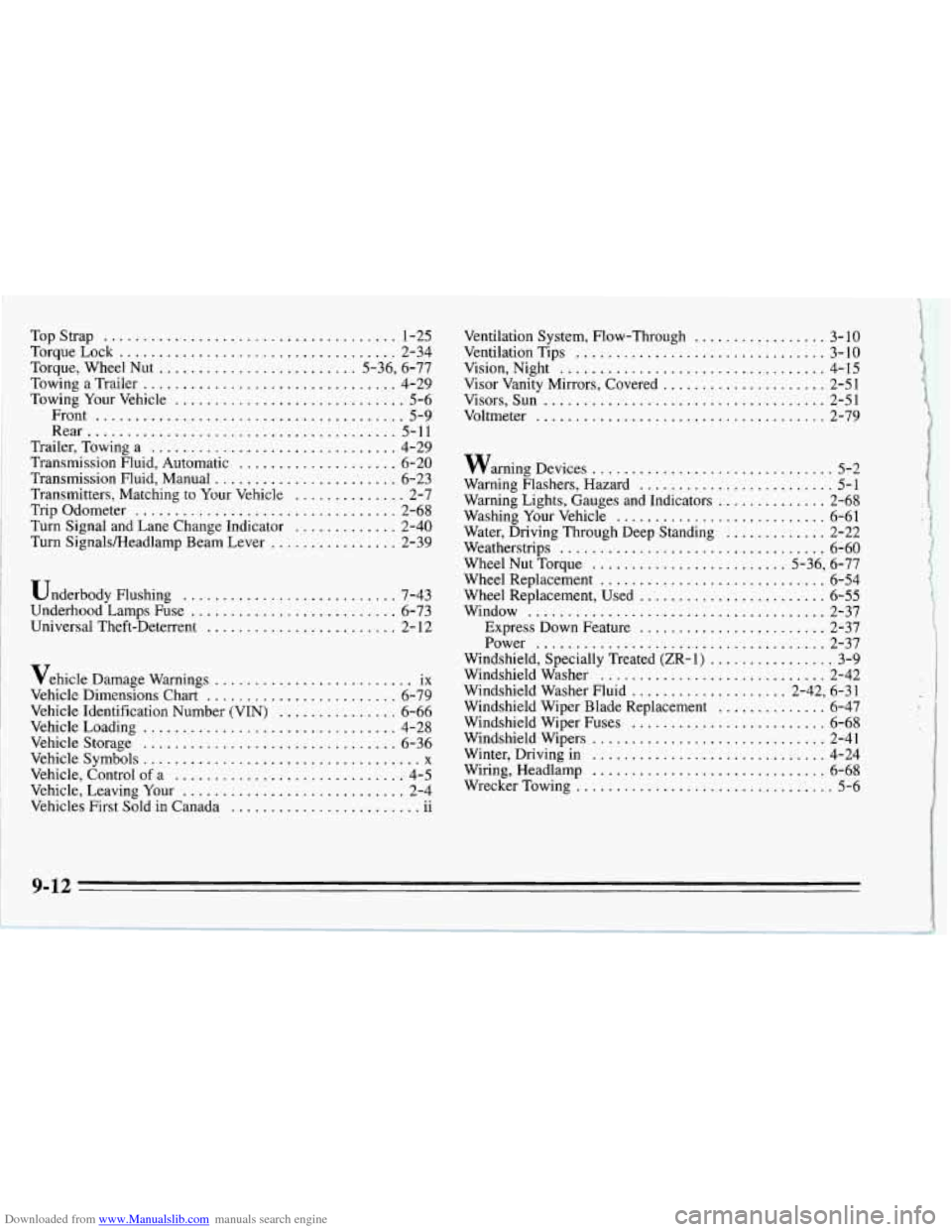

Downloaded from www.Manualslib.com manuals search engine TopStrap ..................................... 1-25
TorqueLock
................................... 2-34
Torque. Wheel Nut
......................... 5.36. 6.77
Towing a Trailer
................................ 4-29
Towing Your Vehicle
............................. 5-6
Trailer, Towing a
............................... 4-29
Transmission Fluid, Automatic
.................... 6-20
Transmission Fluid, Manual
....................... 6-23
Transmitters, Matching to Your Vehicle
.............. 2-7
Trip Odometer
................................. 2-68
Turn Signal and Lane Change Indicator
............. 2-40
Turn Signals/Headlamp Beam Lever
................ 2-39
Front
....................................... 5-9
Rear
....................................... 5-11
Underbody Flushing
........................... 7-43
Underhood Lamps Fuse
.......................... 6-73
Universal Theft-Deterrent
...................... 2- 12
Vehicle Damage Warnings
......................... ix
Vehicle Dimensions Chart
........................ 6-79
Vehicle Identification Number (VIN)
............... 6-66
Vehicle Loading
................................ 4-28
Vehicle Storage
................................ 6-36
Vehicle Symbols ................................... x
Vehicle. Leaving Your
............................ 2-4
Vehicle.
Control of a
............................. 4-5
Vehicles First
Sold in Canada 11 .. ........................
Ventilation System. Flow-Through ................. 3- 10
Ventilation Tips
................................ 3-10
Visor Vanity Mirrors, Covered
..................... 2-51
Visors, Sun
.................................... 2-51
Vision.
Night
.................................. 4-15
Voltmeter
..................................... 2-79
warning Devices
............................... 5-2
Warning Flashers. Hazard
......................... 5-1
Washing Your Vehicle ........................... 6-61
Weatherstrips
.................................. 6-60
Wheel Nut Torque
......................... 5-36. 6-77
Wheel Replacement
............................. 6-54
Wheel Replacement. Used
........................ 6-55
Window
...................................... 2-37
Express Down Feature
........................ 2-37
Power
..................................... 2-37
Windshield, Specially Treated (ZR-
1) ................ 3-9
Windshield Washer ............................. 2-42
Windshield Washer Fluid
.................... 2-42. 6-31
Windshield Wiper Blade Replacement
.............. 6-47
Windshield Wiper Fuses
......................... 6-68
Windshield Wipers
.............................. 2-41
Winter, Driving in
.............................. 4-24
Wiring, Headlamp
.............................. 6-68
Wrecker Towing
................................. 5-6
Warning
Lights. Gauges and Indicators
.............. 2-68
Water. Driving Through Deep Standing
............. 2-22
9-12
