1995 CHEVROLET CAMARO child restraint

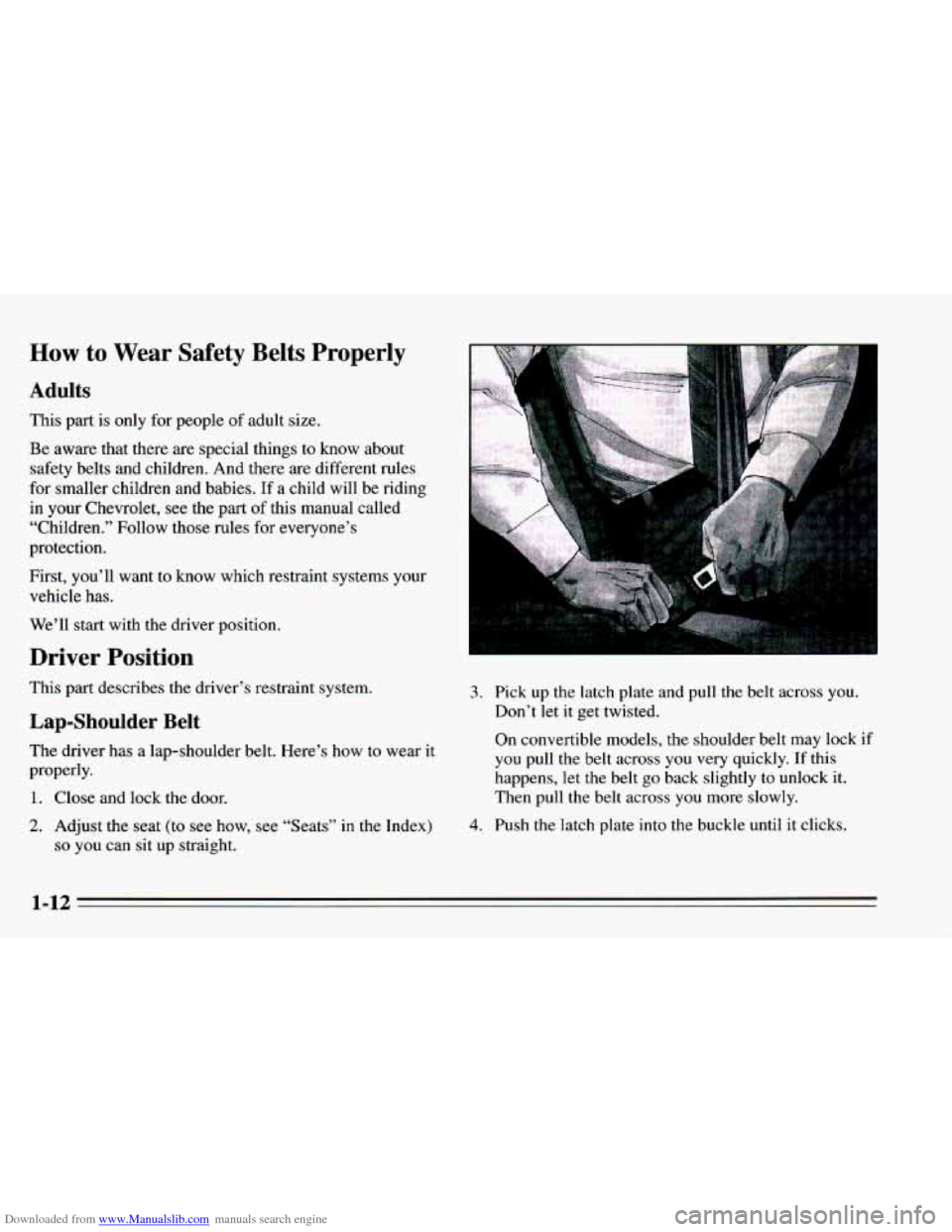

Downloaded from www.Manualslib.com manuals search engine How to Wear Safety Belts Properly
Adults
This part is only for people of adult size.
Be aware that there are special things to know about
safety belts and children. And there are different rules
for smaller children and babies. If
a child will be riding
in your Chevrolet, see the part
of this manual called
“Children.” Follow those rules for everyone’s
protection.
First, you’ll want to know which restraint systems your
vehicle
has.
We’ll start with the driver position.
Driver Position
This part describes the driver’s restraint system.
Lap-Shoulder Belt
The driver has a lap-shoulder belt. Here’s how to wear it
properly.
1. Close and lock the door.
2. Adjust the seat (to see how, see “Seats” in the Index)
so you can sit up straight.
3. Pick up the latch plate and pull the belt across you.
Don’t let
it get twisted.
On convertible models, the shoulder belt may lock if
you pull the belt across you very quickly.
If this
happens, let the belt go back slightly to unlock it.
Then pull the belt across
you more slowly.
4. Push the latch plate into the buckle until it clicks.
1-12

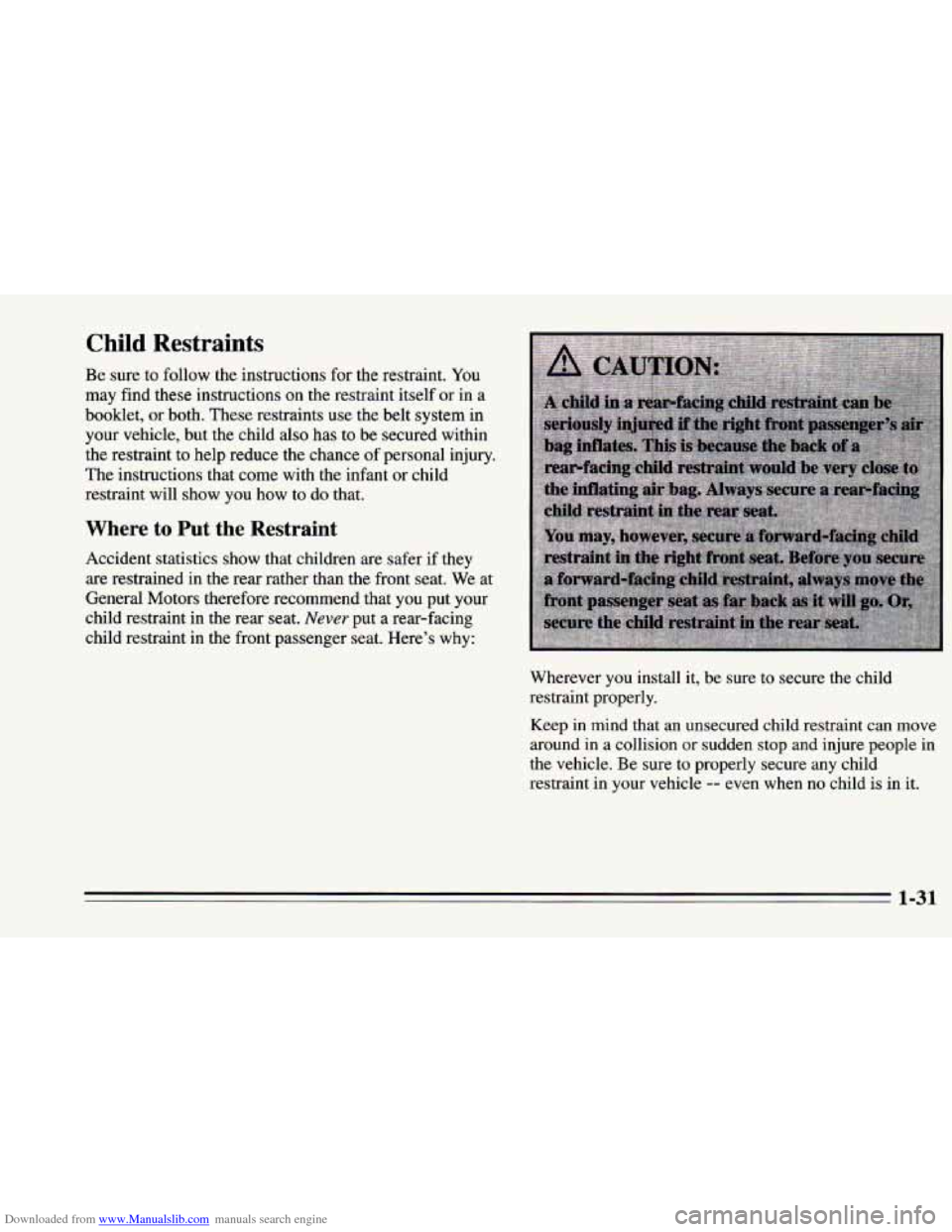

Downloaded from www.Manualslib.com manuals search engine Child Restraints
Be sure to follow the instructions for the restraint. You
may find these instructions on
the restraint itself or in a
booklet,
or both. These restraints use the belt system in
your vehicle, but the child also has to be secured within
the restraint to help reduce the chance of personal injury.
The instructions that come with the infant or child
restraint will show you how to do that.
Where to Put the Restraint
Accident statistics show that children are safer if they
are restrained
in the rear rather than the front seat. We at
General Motors therefore recommend that you put your
child restraint in the rear seat.
Never put a rear-facing
child restraint
in the front passenger seat. Here’s why:
Wherever you install it, be sure to secure the child
restraint properly.
Keep
in mind that an unsecured child restraint can move
around
in a collision or sudden stop and injure people in
the vehicle.
Be sure to properly secure any child
restraint in your vehicle
-- even when no child is in it.
1-31

Downloaded from www.Manualslib.com manuals search engine Top Strap
If your child restraint has a top strap, it should be
anchored.
If you need
to have an anchor installed, you can ask
your Chevrolet dealer to put it in for you. If you want to
install an anchor yourself, your dealer can tell you how
to do it. If
you have
a convertible, don’t use a restraint that has a
top strap in your vehicle because the top strap anchor
cannot be installed properly.
For cars first sold in Canada, child restraints with a top
strap must be anchored according to Canadian Law.
Your dealer can obtain the hardware kit and install it for
you, or you may install it yourself using the instructions
provided in the kit.
Use the tether hardware kit available from the dealer.
The hardware and installation instructions were
specifically designed for
this vehicle.
1-32

Downloaded from www.Manualslib.com manuals search engine Securing a Child Restraint in a Rear Seat
Position
You’ll be using the lap-shoulder belt. See the earlier part
about the top strap if the child restraint has one.
1. Put the restraint on the seat. Follow the instructions
for the child restraint.
2. Secure the child in the child restraint as the
instructions
say.
3. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through
or
around the restraint. The child restraint instructions
will show
you how. Tilt the latch plate to adjust the
belt if needed.
If the shoulder belt goes in front of the child’s face
or
neck, put it behind the child restraint.
.,. .
4. Buckle the belt. Make sure the release button is
positioned
so you would be able to unbuckle the
safety belt quickly if you ever had to.
1-33

Downloaded from www.Manualslib.com manuals search engine I
5. To tighten the belt, pull up on the shoulder belt while
6. Push and pull the child restraint in different
you push
down on the child restraint.
directions
to be sure it is secure.
To remove the child restraint, just unbuckle the vehicle’s
safety belt and let it
go back all the way. The safety belt
will move freely again and be ready to work for an adult
or larger child passenger.
Securing a Child Restraint in the Right
Front Seat Position
Your vehicle has a right front passenger air bag. Never
put a rear-facing child restraint in this seat. Here’s why:

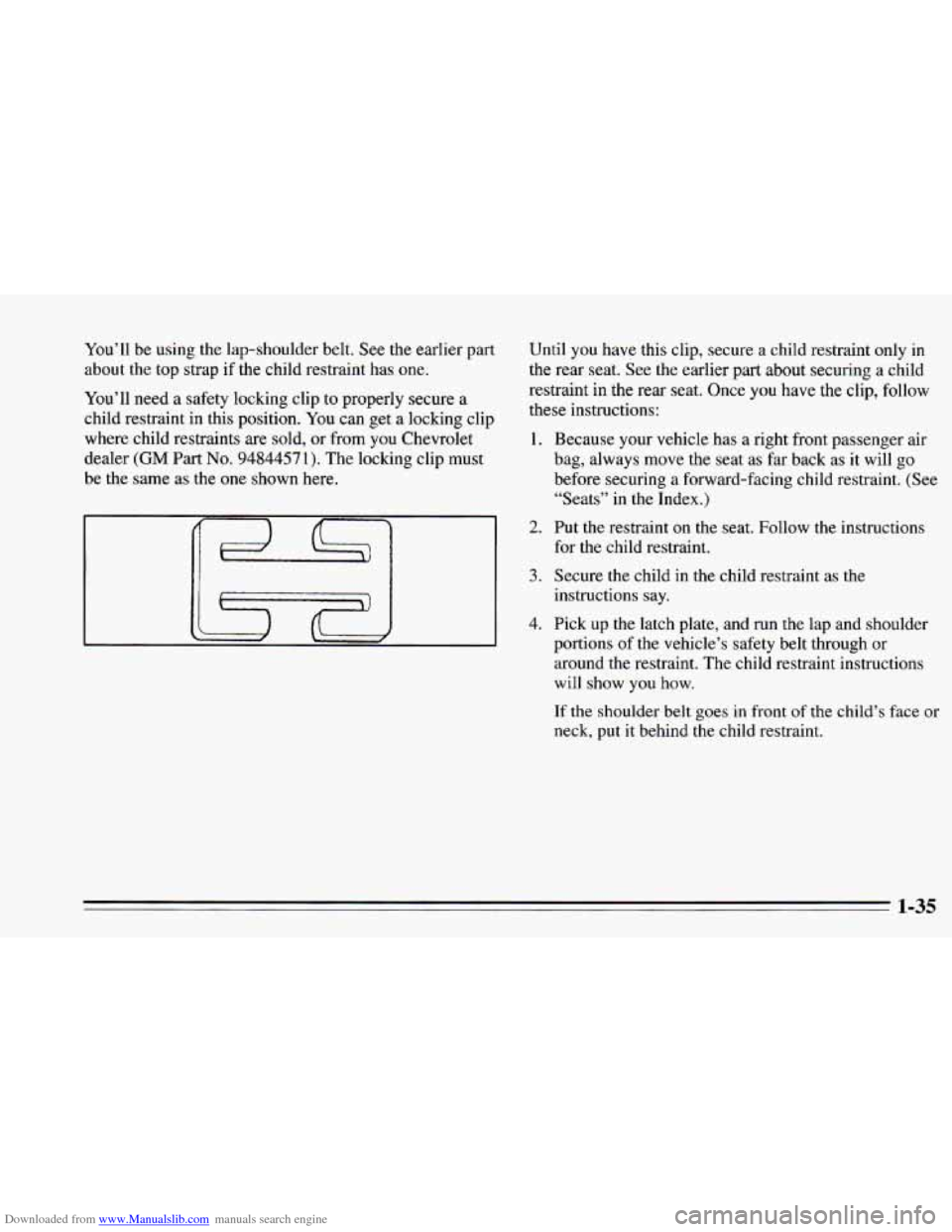

Downloaded from www.Manualslib.com manuals search engine You’ll be using the lap-shoulder belt. See the earlier part
about
the top strap if the child restraint has one.
You’ll need a safety locking clip to properly secure a
child restraint in this position. You can get a locking clip
where child restraints are sold, or from
you Chevrolet
dealer
(GM Part No. 94844571). The locking clip must
be the same as the one shown here. Until
you have this clip, secure
a child restraint only in
the rear seat. See the earlier
part about securing a child
restraint in
the rear seat. Once you have the clip, follow
these instructions:
1.
2.
3.
4.
Because your vehicle has a right front passenger air
bag, always move the seat
as far back as it will go
before securing a forward-facing child restraint. (See
“Seats” in the Index.)
Put the restraint on the seat. Follow the instructions
for the child restraint.
Secure the child in the child restraint as the
instructions say.
Pick up the latch plate, and run the lap and shoulder
portions
of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show
you how.
If
the shoulder belt goes in front of the child’s face or
neck, put it behind the child restraint.
1-35

Downloaded from www.Manualslib.com manuals search engine Larger Children
I
Accident statistics show that children are safer if they
are restrained in the rear seat. But they need to use the
safety belts properly.
0 Children who aren't buckled up can be thrown out in
Children who aren't buckled up can strike other a crash.
people who are.
Children who have outgrown child restraints should wear the vehicle's safety belts.
1-38

Downloaded from www.Manualslib.com manuals search engine Q: What if a child is wearing a lap-shoulder belt,
but the child is
so small that the shoulder belt is
very close to the child’s face or neck?
be sure that the shoulder belt still is on the child’s
shoulder,
so that in a crash the child’s upper body
would have the restraint that belts provide.
A: Move the child toward the center of the vehicle, but
1-39
