1995 CHEVROLET BLAZER headlamp

Downloaded from www.Manualslib.com manuals search engine Bulb Replacement
Before you replace any bulbs, be sure that all the lamps are off and the
engine isn’t running.
c
2. Pull the headlamp
out and remove
the retainer.
3. Unplug and
remove the
headlamp.

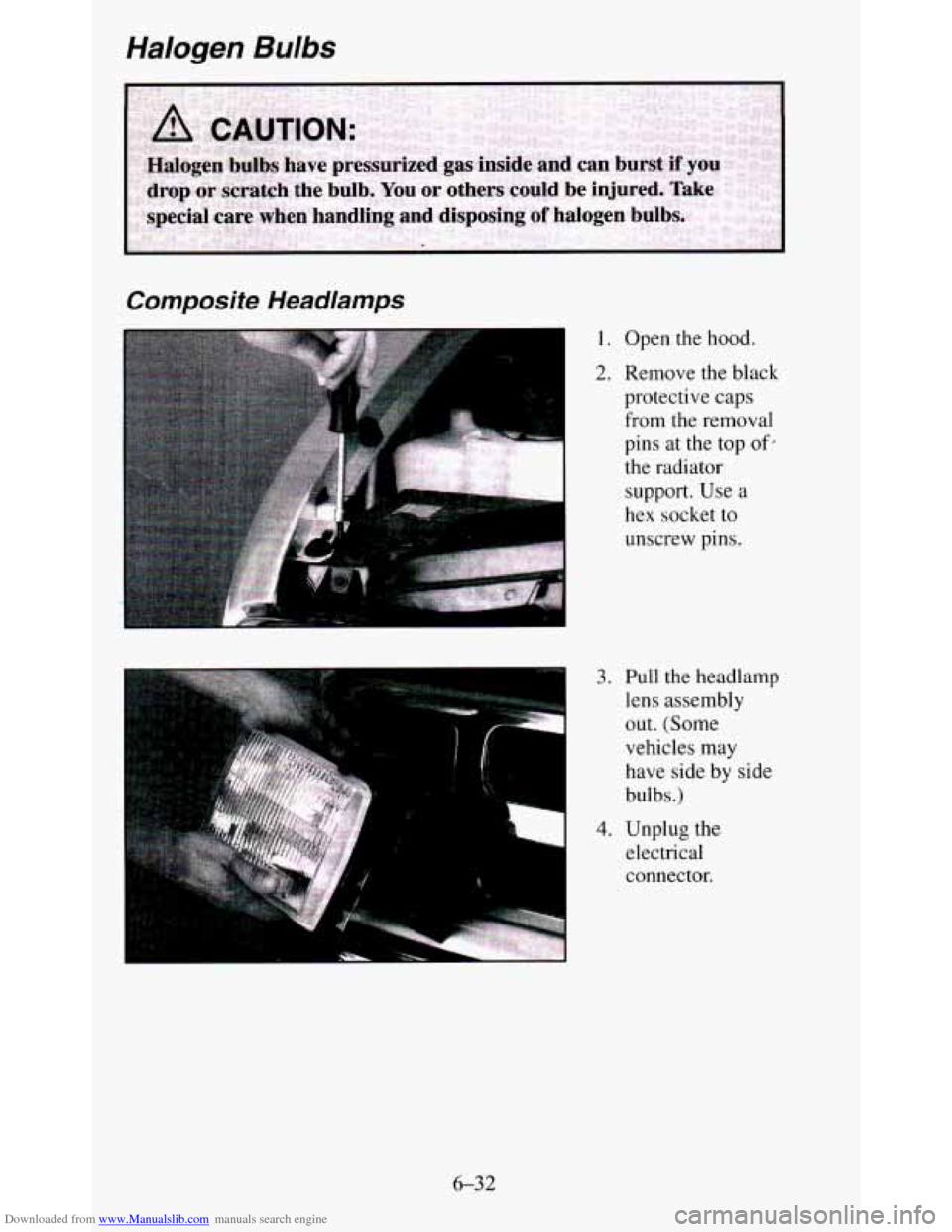

Downloaded from www.Manualslib.com manuals search engine Halogen Bulbs
Composite Headlamps
I. Open the hood.
2. Remove the black
protective caps
from the removal
pins at the top
of-
the radiator support.
Use a
hex socket
to
unscrew pins.
3. Pull the headlamp
lens assembly
out. (Some
vehicles may
have side by side
bulbs.)
4. Unplug the electrical
connector.
6-32

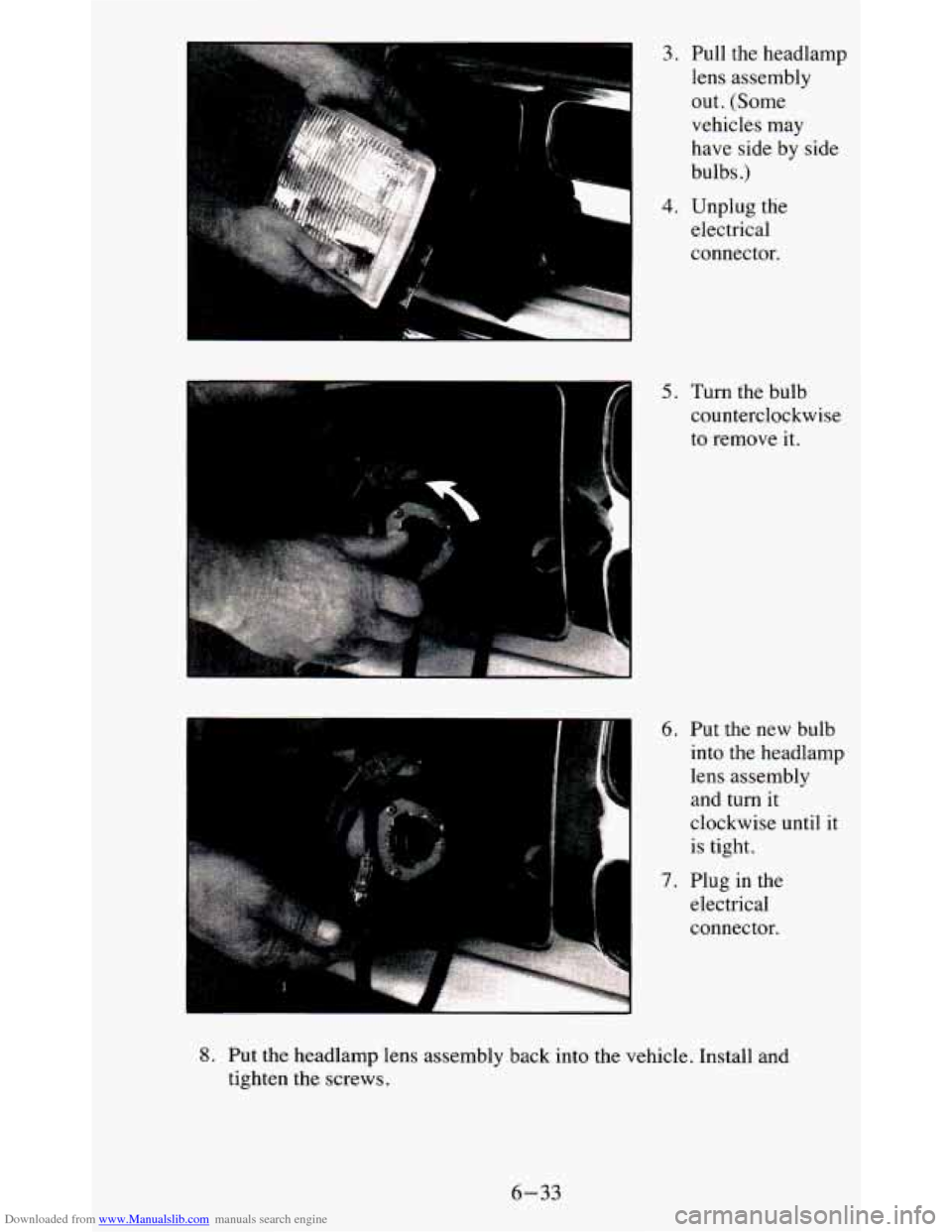

Downloaded from www.Manualslib.com manuals search engine 3. Pull the headlamp .. lens assembly
out. (Some
vehicles may
have side by side
bulbs
.)
4. Unplug the
electrical
connector.
_I , .
I 5. Turn the bulb
counterclockwise
to remove it.
6. Put the new bulb
I into the headlamp
lens assembly
and turn it
clockwise until it
is tight.
7. Plug in the
electrical
connector.
L
8. Put the headlamp lens assembly back into the vehicle. Install and
tighten the screws.
6-33

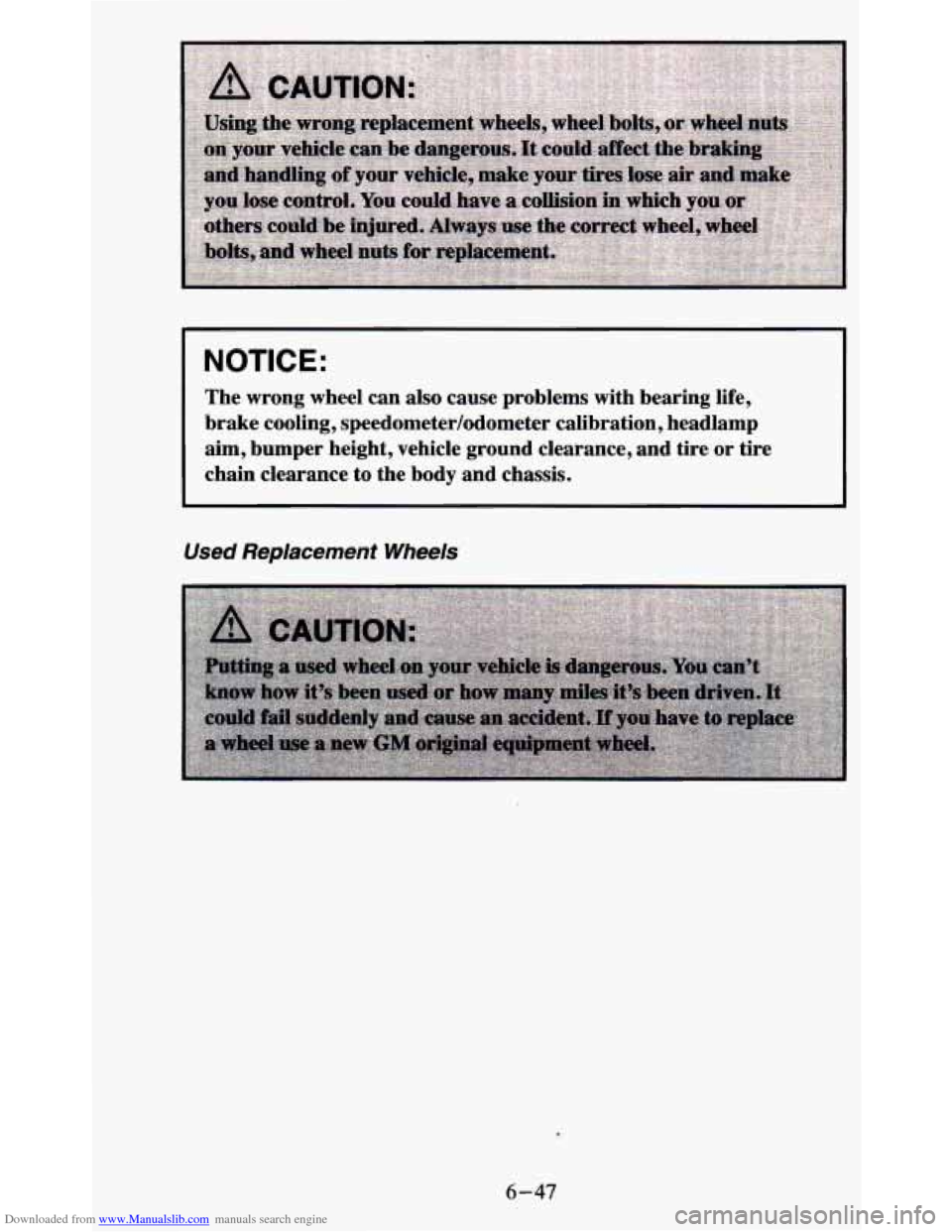

Downloaded from www.Manualslib.com manuals search engine I NOTICE:
The wrong wheel can also cause problems with bearing life,
brake cooling, speedometer/odometer calibration, headlamp
aim, bumper height, vehicle ground clearance, and
tire or tire
chain clearance
to the body and chassis.
Used Replacement Wheels
6-47

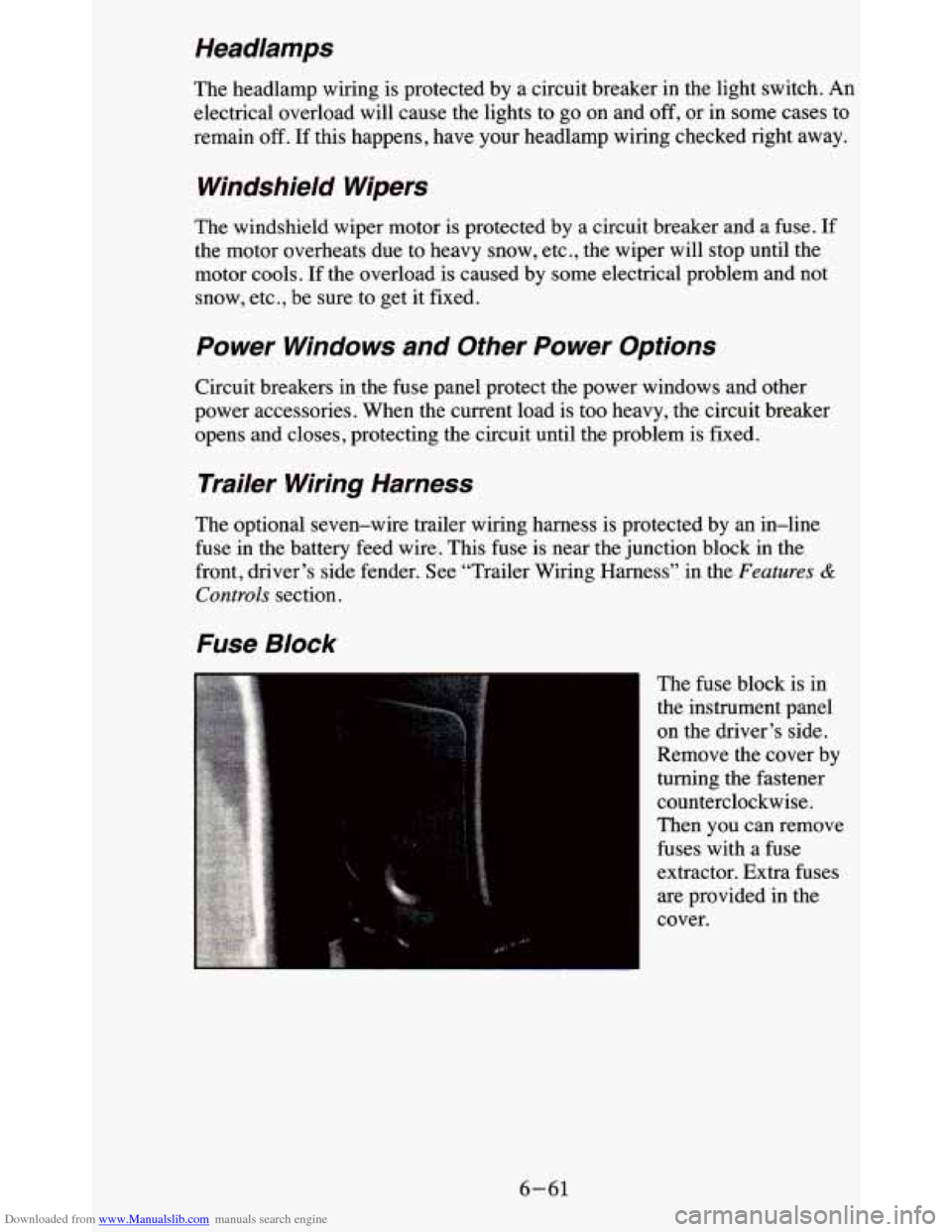

Downloaded from www.Manualslib.com manuals search engine Headlamps
The headlamp wiring is protected by a circuit breaker in the light switch. An
electrical overload will cause the lights to go on and off, or in some cases to
remain
off. If this happens, have your headlamp wiring checked right away.
Windshield Wipers
The windshield wiper motor is protected by a circuit breaker and a fuse. If
the motor overheats due to heavy snow, etc., the wiper will stop until the
motor cools. If the overload is caused by some electrical problem and not
snow, etc., be sure to get it fixed.
Power Windows and Other Power Options
Circuit breakers in the fuse panel protect the power windows and other
power accessories. When the current load is too heavy, the cir\
cuit breaker
opens and closes, protecting the circuit until the problem is fixed.
Trailer Wiring Harness
The optional seven-wire trailer wiring harness is protected by an in-line
fuse in the battery feed wire. This fuse is near the junction block in the
front, driver’s side fender. See “Trailer Wiring Harness” in the
Features &
Controls section.
Fuse B/ock
The fuse block is in
the instrument panel
on the driver’s side.
Remove the cover by
turning the fastener
counterclockwise.
Then you can remove
fuses with a fuse
extractor. Extra fuses
are provided in the
cover.
6-61

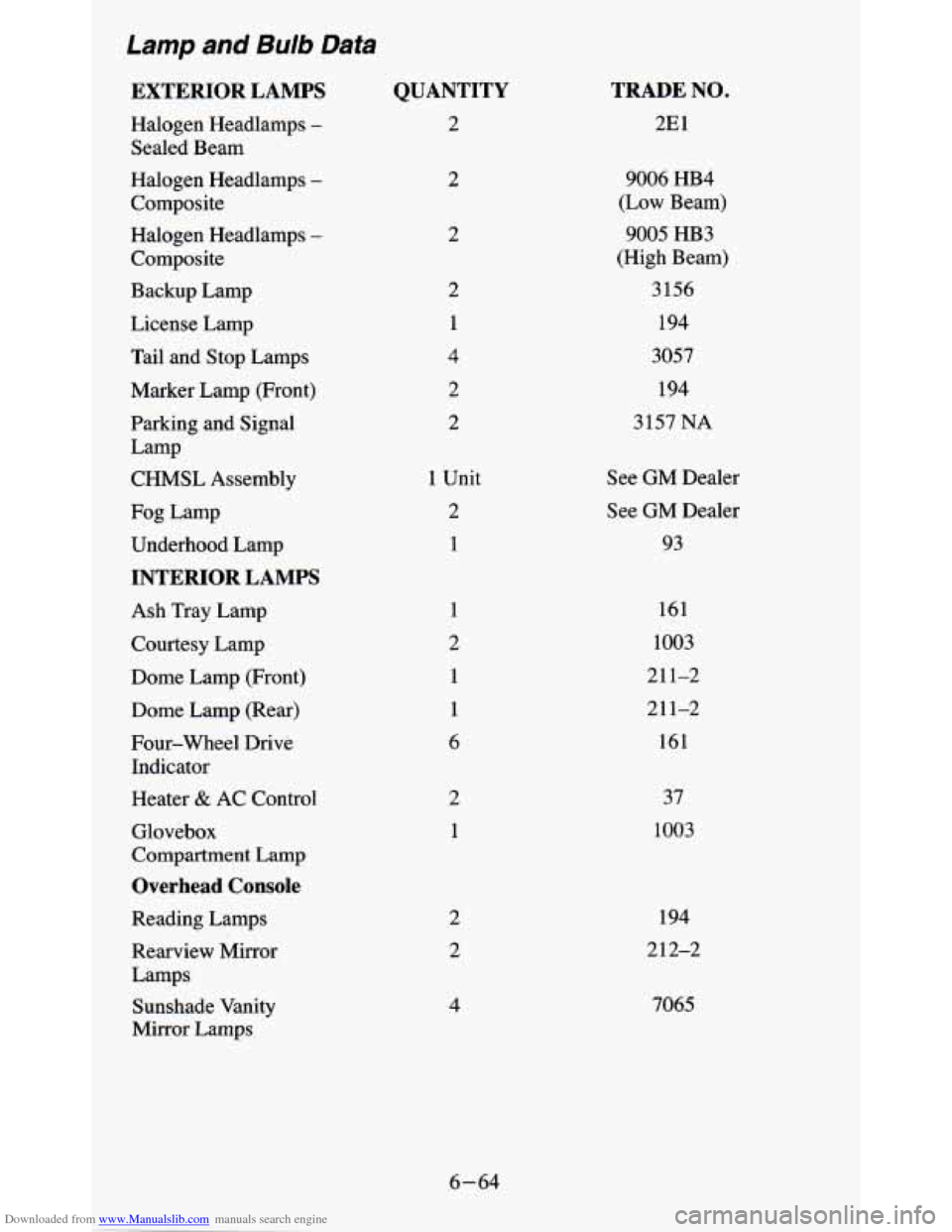

Downloaded from www.Manualslib.com manuals search engine Lamp and Bulb Dafa
EXTERIOR LAMPS
Halogen Headlamps -
Sealed Beam
Halogen Headlamps
-
Composite
Halogen Headlamps
-
Composite
Backup Lamp
License Lamp
Tail and Stop Lamps
Marker Lamp (Front)
Parking and Signal
CHMSL Assembly
Lamp
Fog Lamp
Underhood Lamp
INTERIOR LAMPS
Ash Tray Lamp
Courtesy Lamp
Dome Lamp (Front)
Dome Lamp (Rear)
Four-wheel Drive Indicator
Heater
& AC Control
Glovebox
Compartment Lamp
Overhead Console
Reading Lamps
Rearview Mirror
Lamps
Sunshade Vanity
Mirror Lamps
QUANTITY
2
2
2
2
1
4
2
2
1 Unit 2
1
1
2 1
1
6
2
1
2
2
4
TRADE NO.
2E1
9006 HB4
(Low Beam)
9005 HB3
(High Beam)
3 156
194
3057
194
3157
NA
See GM Dealer
See GM Dealer
93
161
1003
211-2
211-2 161
37
1003
194
212-2
7065
6-64

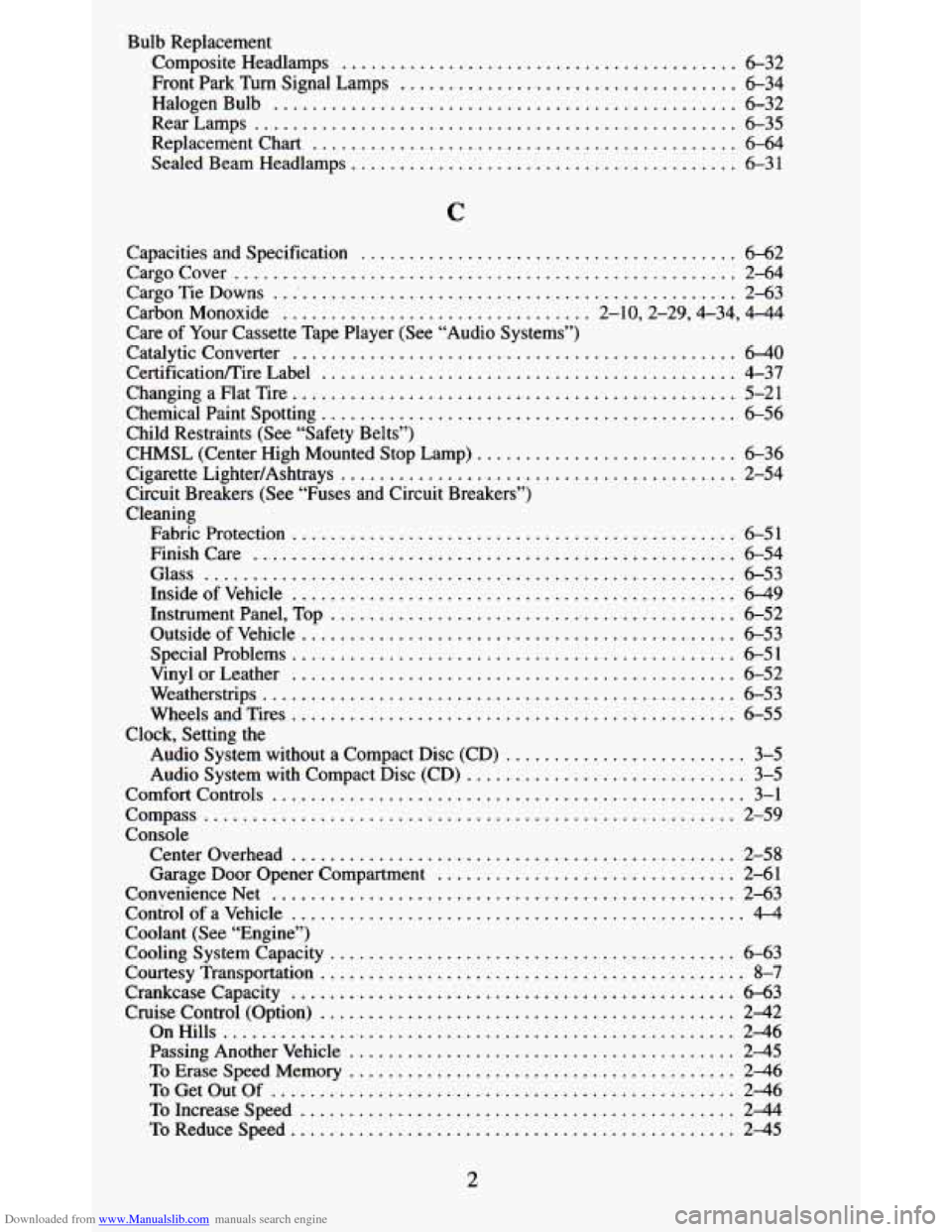

Downloaded from www.Manualslib.com manuals search engine Bulb Replacement Composite Headlamps
......................................... 6-32
Front Park Turn Signal Lamps ................................... 6-34
Halogen Bulb ................................................ 6-32
RearLamps .................................................. 6-35
Replacementchart ............................................ 6-64
Sealed Beam Headlamps ........................................ 6-31
C
Capacities and Specification ....................................... 6-62
Cargocover .................................................... 2-64
Cargo Tie Downs ................................................. 2-63
Carbon Monoxide ................................ 2-10.2-29.4-34. 4-44
Care of Your Cassette Tape Player (See “Audio Systems”)
Catalytic Converter
.............................................. 640
Certificatiomire Label ........................................... 4-37
Changing a Flat Tire .............................................. 5-21
Chemical Paint Spotting ........................................... 6-56
Child Restraints (See “Safety Belts”)
CHMSL (Center High Mounted Stop Lamp)
........................... 6-36
Cigarette LightedAshtrays ......................................... 2-54
