1995 CADILLAC DEVILLE washer fluid

Downloaded from www.Manualslib.com manuals search engine NOTICE:
When using concentrated washer fluid, follow the
manufacturer's instructions for adding water.
Don't mix water with ready-to-use washer iluid. Water can
cause the solution to freeze and damage your washer fluid
tank and other parts of the washer system.
Also, water
doesn't clean as
well as washer fluid.
Fill your washer fluid tank only 3/4 full when it's very cold.
This allows
for expansion, which could damage the tank if it
is completely
full.
Don't use radiator antifreeze in your windshield washer. It
can damage your washer system and paint.
4
c

Downloaded from www.Manualslib.com manuals search engine LOW OIL LEVEL - 36
For correct operation of the low oil sensing system, the vehicle should be
on a level surface.
A false LOW OIL LEVEL mcssage may appear if the
vehicle is parked
on grades. The oil level sensing svstem does not check
for actual oil
level if the engine has been off for a short period of time,
and the oil level is never sensed while the engine is running. If the LOW
OIL LEVEL message appears, and your vehicle has been parked on levcl
ground with the engine off for at least 30 minutcs, vour oil level should be
checked
by observing the oil dipstick. Prior to cheiking your oil level be
sure your engine has been
off for five minutes and your vehicle is on a
level surface. Then check your dipstick and add oil if necessary. See
“Engine
Oil” in the Index.
CHECK WASHER FLUID - 25
This message will appear for a few seconds indicating that you need
washer solvent.
CHANGE OIL SOON - 40
This message will appear when you have used 90%- of the engine oil’s
expected life, based on your driving patterns.
CHANGE ENGINE OIL - 82
This means that the life of your engine oil has expired and it should be
changed within
300 miles. See enginc oil and filter recommendations in
the Maintenance Schedule. After an oil change the Oil Life Index must be
reset. See “Oil Life Indicator” in the Index on how to reset it.
CRUISE ENGAGED - 43
This message will appear for a few seconds when you select a speed at
which
to cruise.
ENGINE COOLANT HOT - 41
This message will appcar whcn your engine coolant temperature is over
248’ F (126” C). To avoid added strain on a hot engine turn off your
Climate Control system. Stop and
allow your vehicle to idle until*it cools
down or the message is removed. If it does mt cool down, turn off your
engine and
have it sewiced before driving it again. Severe engine damage
can result
from an overheated engine. See “Engine Overheating“ in the
Index.
2-89

Downloaded from www.Manualslib.com manuals search engine c
n
P
P
r-
i
c
r
I !
f-
WINTER DWNG
Here are some tips for winter driving:
a Have vour
Cadiliac in good
shape for winter.
Be sure your
engine coolant
mix
is correct.
You may want to
put winter
emergency
supplies
in your
trunk.
Include an ice scraper, a
small brush or broom, a supply of windshield
washer fluid,
a rag, some winter outer clothing, a small shovel, a
flashlight, a red cloth, and a couple of reflective warning triangles. And, if
you will be driving under severe conditions, include a small bag of sand, a
piece
of old carpet or a couple of burlap bags to help provide traction. Be
sure
you properly secure these items in your vehicle.
F
4-27

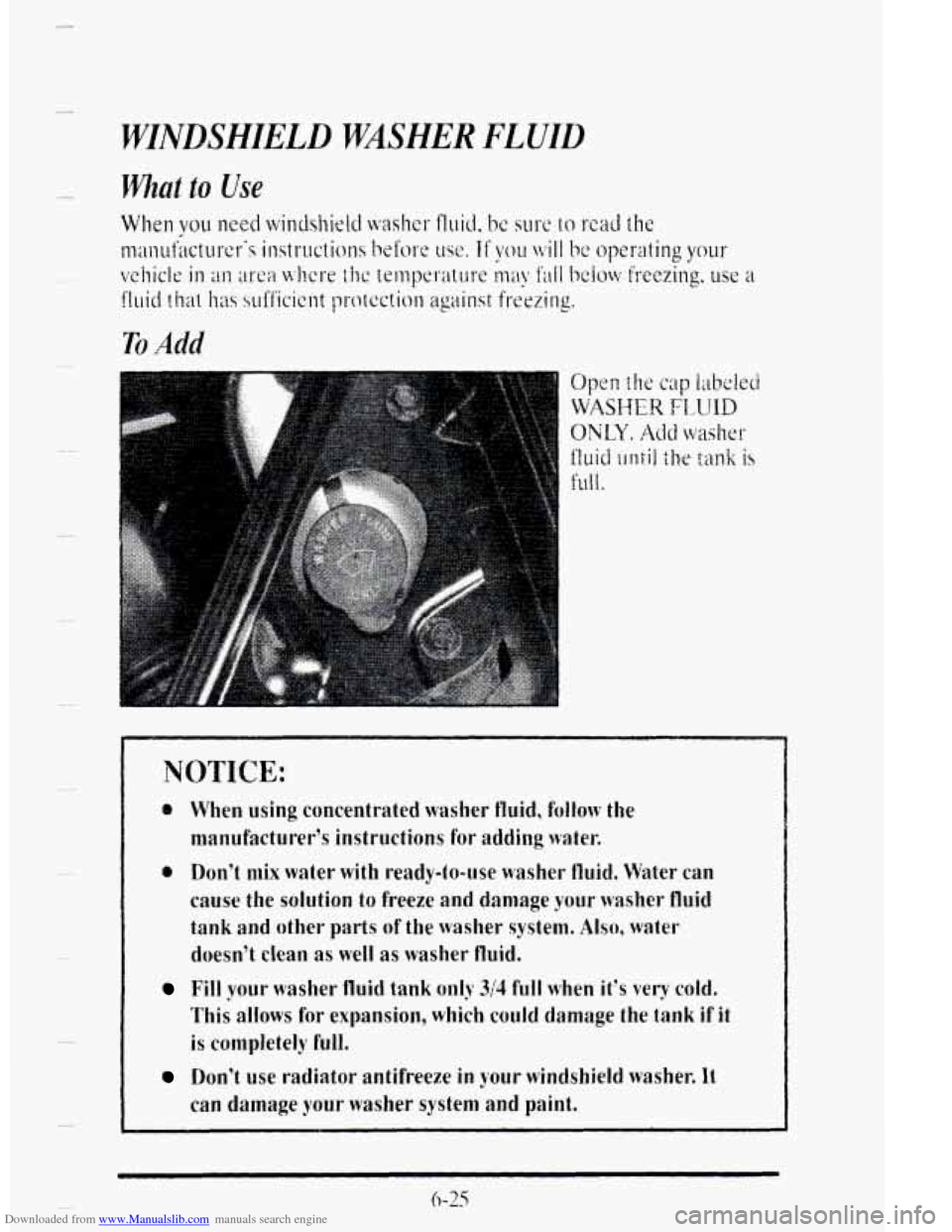

Downloaded from www.Manualslib.com manuals search engine WINDSHIELD WASHER FLUID
TQ Add
When using concentrated washer fluid, follow the
manufacturer’s instructions for adding water.
e Don’t mix water with ready-to-use washer fluid. Water can
cause the solution to freeze and damage your washer fluid tank and other parts
of the washer system. Also, water
doesn’t clean as
well as washer fluid.
Fill your washer fluid tank only 314 full when it’s very cold.
This allows for expansion, which could damage the tank if it
is completely full.
can damage your washer system and paint.
Don’t use radiator antifreeze in your windshield washer. It
6-25

Downloaded from www.Manualslib.com manuals search engine EMISSION CONTROL SYSTEMS
Exhaust Gas Recirculation .................... Controlled Flow
Catalytic Convertrr ......................... Ceramic Monolith
Evaporative Emission Control ................ Charcoal Canister
Crankcasc
Emission Control ........................ PCV Valve
Elec.tronic
System ...................... Open and Closed Loop
EXHAUSl’SYSTEM
Tvpe ............................... Single with Crossover Pipe
Muffler .................................. One-Reverse Flow
Resonator ............................................ None
Exhaust Pipe .................................. Stainless Steel
Intermediate
Pipe .............................. Stainlcss Steel
‘hi1 Pipc ...................................... Stainless Steel
ELECTRICAL SYSTEM
Voltage ................................................ 12
Ground ........................................... Negative
Alternator ........................................ 140 Amp
AIR CONDITIONING SYSTEM
Refrigerant-R134a ............................
FLUID CAPACITIES
2.0 Ibs. (31 kg)
Ransaxle (4TGOE) ............................. 20 pts. (9.5 L)
Engine Oil ................................... 5.0 qts. (4.73 L)
With Filter Change ............................. 5.5 qts. (5.2 L)
Engine Cooling System ..................... 10.68 qts. (10. I 1 L)
Fuel Tank ................................... 20 gal. (75.76 L)
Power Steering ................................ 1.3 qts (1.2 Lj
Windshield Washer Reselwir .................... 3.2 qts (4.1 L)
6-73

Downloaded from www.Manualslib.com manuals search engine .
r
r I
r
1
I
r 1
r
L
LEs3
DEVILLE INDEX
A
A/C Overheat-A/C Off Message ...................... 2-87
Accessory Power. Retained .......................... 6-61
Adding
Automatic Transaxle
Fluid ........................ 6-19
Brake Fluid ................................ 6.26. 6.27
Engine Coolant ................................. 6-21
Engine Oil ...................................... 6-11
Power Steering Fluid ............................. 6-24
Sound Equipment ............................... 3-22
Windshield Washer Fluid .................... 2.43. 6.25
Adjuster. Seat ...................................... 1-2
Air Bag ........................................... 1-21
How Does It Restrain ............................ 1-26
How It Works ................................... 1-24
Location ....................................... 1-25
Readiness Light ............................ 1.23. 2.76
Servicing ....................................... 1-28
What Makes It Inflate ............................ 1-26
What Will You See After It Inflates ................. 1-26
When Should It Inflate ........................... 1-25
Air Cleaner ....................................... 6-16
Air Conditioning .................................... 3-4
Air Conditioning Refrigerants ........................ 6-74
Air Outlets ......................................... 3-1
Alarm. Theft Deterrent System ....................... 2-17
Alignment and Balance. Tires ........................ 6-45
Aluminum Wheels. Cleaning ......................... 6-55
AM Radio ......................................... 3-8
Antenna. Care ..................................... 3-24
Antifreeze ........................................ 6-20
Anti-Lock Brakes ................................... 4-7
Anti-Lock Brake System Warning Light ............ 2.78. 4.7
Anti-Lockout Feature ................................ 2-7
Appearance Care ................................... 6-48
Appearance Care Materials Chart ..................... 6-58
Apply Brake to Shift Message ........................ 2-87
Electrical Equipment .................... 2.23.3.22. 6-61
F
f:
1

Downloaded from www.Manualslib.com manuals search engine .
.
.
.
.
.
.
.
.
.
.
.
C
Capacities and Specifications ......................... 6-71
Carbon Monoxide ......................... 2.34.4.31. 4.38
Cassette Tape Player Care ........................... 3-23
Center High-Mounted Stop Lamp Bulb Replacement .... 6-36
Center Passenger Position ........................... 1-30
Certificationmire Label ............................. 4-32
Chains. Safety ..................................... 4-38
Chains. Tire ....................................... 6-47
Change Engine Oil Message ......................... 2-89
Change Oil Soon Message ........................... 2-89
Change Trans Fluid Message ......................... 2-88
Changing a Flat Tire ................................ 5-24
Check Brake Fluid Message .......................... 2-88
Check Coolant Level Message ........................ 2-88
Check Fuel Gage Message ........................... 2-88
Check Washer Fluid Message ........................ 2-89
Checking
Automatic Transaxle Fluid
........................ 6-17
Brake Fluid ..................................... 6-27
Engine Coolant ................................. 6-21
Engine Oil ...................................... 6-10
Power Steering Fluid ............................. 6-23
Restraint Systems ................................ 1-54
Things Under the Hood ........................... 6-7
Chemical Paint Spotting
Child Restraints
....................................
.
.............................
Securing in a Rear Outside Seat Position ............
Securing in the Center Rear Seat Position ...........
Securing in the Right Front Seat Position ............
Top Strap .......................................
Where to Put ...................................
Cigarette Lighter ...................................
Circuit Breaker. Power Windows and Other
Cleaner. Air
.......................................
Cleaning Aluminum Wheels
...............................
Fabric ..........................................
Glass ..........................................
Leather ........................................
Power Options ....................................
Outside of the Windshield and Wiper Blades .........
Speaker Covers ..................................
Special Problems. Stains ..........................
The Inside of Your Cadillac .......................
6-57
1-40 1-43
1-45
1-48 1-42
1-40
2-72
6-69
6-16
6-55
6-49
6-53
6-51
6-53
6-52
6-50
6-49
.
.
.... 2 ...
3

Downloaded from www.Manualslib.com manuals search engine r
r I i i
f-
1 :
r t
. L
1 n .
f
I
i
Underbody Maintenance ............................. 6-56
Underhood Lamp .................................. 2-53
V
Vanity Mirrors ..................................... 2-66
Vehicle
Control
of a ...................................... 4-5
Damage Warnings ................................. iv
Dimensions Chart
............................... 6-74
Leaving Your .................................... 2-7
Loading ........................................ 4-32
Storage ........................................ 6-30
Symbols ........................................... v
Very Low Refrigerant A/C Compressor Off Message ..... 2-92
Vision. Night ...................................... 4-17
Visor. Front and Auxiliary System ..................... 2-65
Identification Number (VIN) ...................... 6-59
Warning
Devices
......................................... 5-3
Flashers. Hazard ................................. 5-1
Lights .......................................... 2-75
Washing Your Vehicle ............................... 6-54
Weatherstrips ...................................... 6-53
Wheel Nut Torque .................................. 5-32
Wheel Replacement ........................... 6.45. 6.47
Windows ..................................... 2.36. 2.37
Windshield
Heated
.......................................... 3-7
Washer Fluid ............................... 2.44. 6.25
Washers ........................................ 2-43
Wiper. Blade Replacement ........................ 6-37
Wipers ......................................... 2-42
Winter Driving ..................................... 4-27
Wiring. Headlamp .................................. 6-69
Wood Panels. Care of ............................... 6-52
Wrecker Towing ..................................... 5-9
15
