BMW 740il 1995 E38 System Wiring Diagrams SYSTEM WIRING DIAGRAMS
Front Seat Heater Circuit
1995 BMW 740iL
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC

Page 39 of 60

BMW 740il 1995 E38 System Wiring Diagrams SYSTEM WIRING DIAGRAMS
Memory Seats Circuit
1995 BMW 740iL
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
Thurs

Page 40 of 60

BMW 740il 1995 E38 System Wiring Diagrams SYSTEM WIRING DIAGRAMS
Passenger Seat Circuit (1 of 2)
1995 BMW 740iL
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company

Page 41 of 60

BMW 740il 1995 E38 System Wiring Diagrams SYSTEM WIRING DIAGRAMS
Passenger Seat Circuit (2 of 2)
1995 BMW 740iL
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company

Page 52 of 60

BMW 740il 1995 E38 System Wiring Diagrams SYSTEM WIRING DIAGRAMS

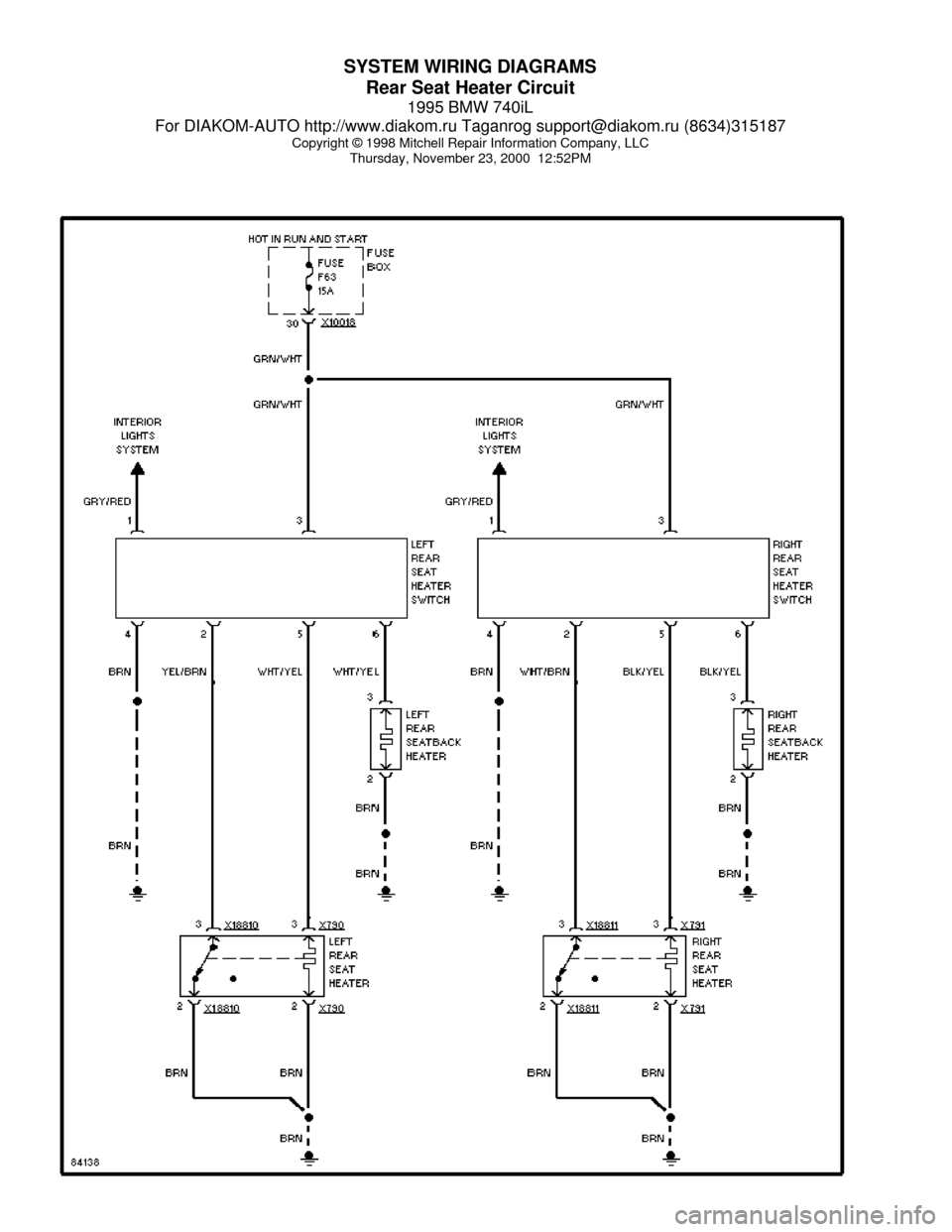

Rear Seat Heater Circuit
1995 BMW 740iL
For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187
Copyright © 1998 Mitchell Repair Information Company, LLC
