Page 7 of 50
21-6
Test conditions:
Check DTC memory Repair Manual, 1.8
Liter 4-Cyl. 5V Turbo Fuel Injection &
Ignition, Repair Group 01
Perform output diagnostic test mode
(function 03)
Minimum engine oil temperature: 60 C
(140 F)
All vacuum connections are free of leaks
Test procedure
- Using T-fitting, connect VAG1397A turbocharger tester test hose to
front of intake manifold.
- Guide test hose over rear corner of hood through right window opening
into vehicle interior.
Pa
ge 7 of 50 Turbochar
ger s
ystem
11/18/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE02.21.1

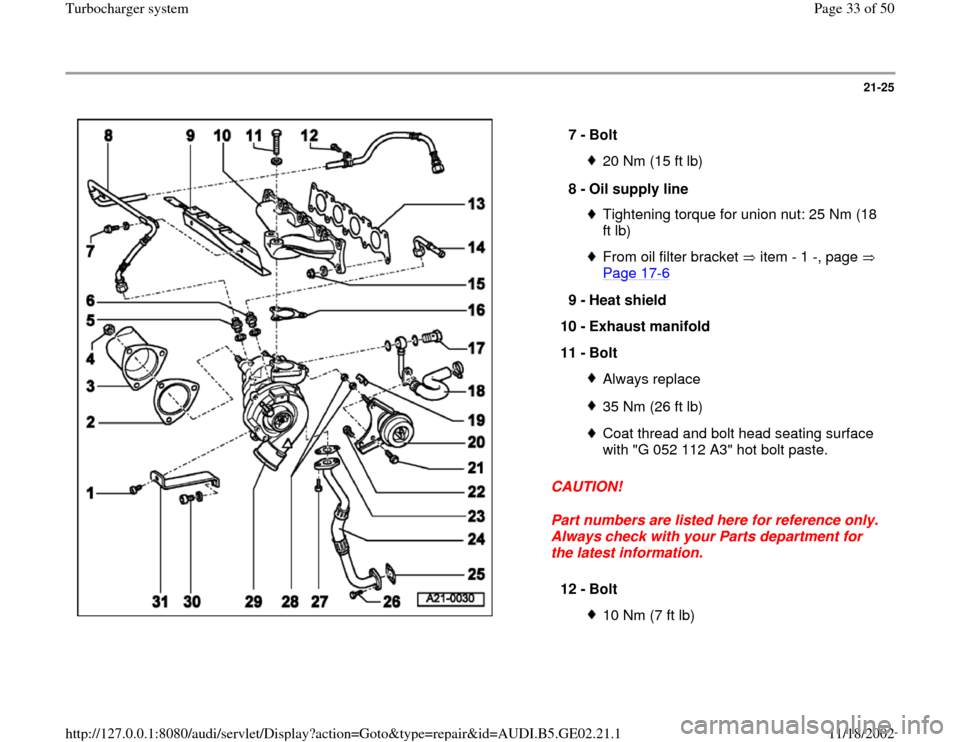

Page 33 of 50
21-25
CAUTION!
Part numbers are listed here for reference only.
Always check with your Parts department for
the latest information. 7 -
Bolt
20 Nm (15 ft lb)
8 -
Oil supply line Tightening torque for union nut: 25 Nm (18
ft lb) From oil filter bracket item - 1 -, page
Page 17
-6
9 -
Heat shield
10 -
Exhaust manifold
11 -
Bolt
Always replace35 Nm (26 ft lb)Coat thread and bolt head seating surface
with "G 052 112 A3" hot bolt paste.
12 -
Bolt 10 Nm (7 ft lb)
Pa
ge 33 of 50 Turbochar
ger s
ystem
11/18/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE02.21.1

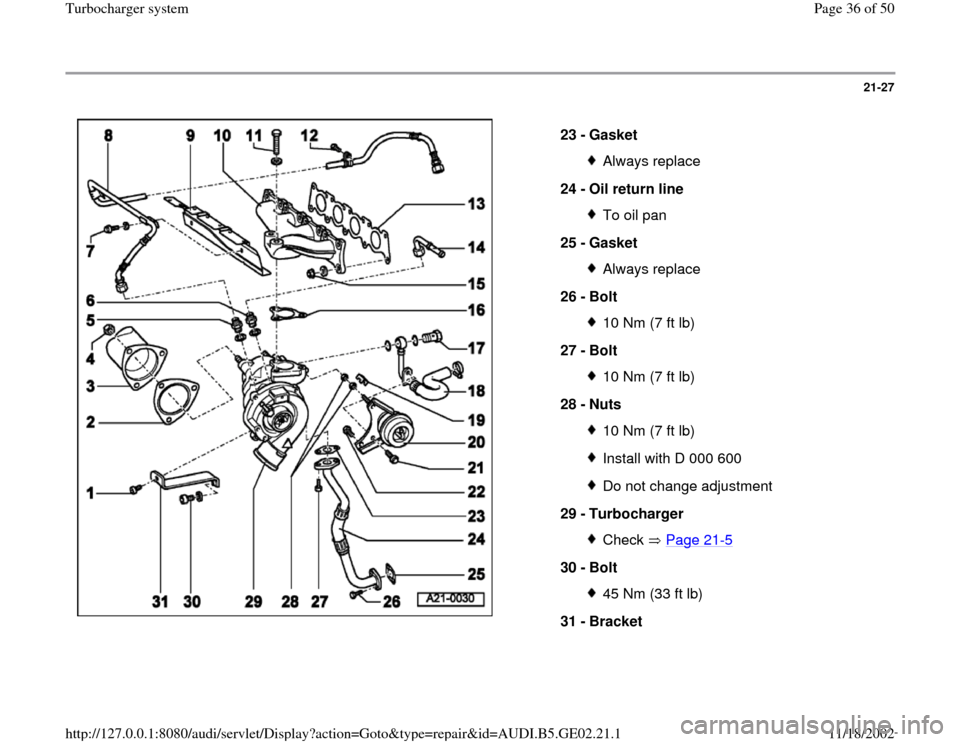

Page 36 of 50
21-27
23 -
Gasket
Always replace
24 -
Oil return line To oil pan
25 -
Gasket Always replace
26 -
Bolt 10 Nm (7 ft lb)
27 -
Bolt 10 Nm (7 ft lb)
28 -
Nuts 10 Nm (7 ft lb)Install with D 000 600Do not change adjustment
29 -
Turbocharger Check Page 21
-5
30 -
Bolt
45 Nm (33 ft lb)
31 -
Bracket
Pa
ge 36 of 50 Turbochar
ger s
ystem
11/18/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE02.21.1
Page 45 of 50
21-33
Note:
Add oil to turbocharger through oil supply line
connection flange.
- Fill up coolant Page 19
-4 .
WARNING!
The cooling system is pressurized when the
engine is warm. When opening the expansion
tank, wear gloves and other appropriate
protection, cover the cap with a cloth and
open carefully to relieve system pressure
slowly.
Note:
After installing the turbocharger, let engine idle
for approx. 1 minute without increasing engine
speed. This ensures adequate oil supply to the
turbocharger.
- Check engine oil level Page 17
-27
.
