2. Press SET. The SET indicator will
appear on the digital screen for five
seconds.
pushbuttons while the
SET indicator
is displayed. The station is now
preset. You can tune to it
immediately by pressing the same
numbered pushbutton.
4. Repeat these steps for up to five AM
and five FM stations.
To Play a Compact Disc:
Your compact disc player is designed
for full-size compact discs only.
Do not
use the mini-discs that are called
singles. They won’t eject.
1. Press PWR to turn the unit on.
2. Insert a disc partway into the slot,
3. Press one of the numbered
label side up. The player will pull it in.
In a few seconds, the disc should play.
If the disc comes back out without
playing:
The disc may be upside down.
The disc may be dirty, scratched or wet.
The road may be too rough.
There may be too much moisture in
the air. Wait about one hour and
try
again.
The player may be too hot. If so,
HOT will appear on the display.
When the compact disc player cools,
it should play again. Press
RCL to
remove
HOT from the display.
In addition
to the normal tone and
volume controls, you can use the
following controls while the compact
disc player is playing:
RCL (Recall): Press to see which
track is playing. Its number will be
displayed. Press again to see how long
it has been playing.
The track number will also be displayed
whenever you change the volume or a
new track begins to play.
EJCT (Eject): Press to eject the disc.
The radio will play.
ST-PL (Stop-Play): Press to stop the
compact disc player and play the radio.
Press again to stop the radio and play
the compact disc. It will begin playing
at the point where you stopped it.
COMP (Compression): Press to make
soft and loud passages more equal in
volume. Press again to resume normal
RDM (Random): Press to play a disc’s
tracks in random order. Press again to
play them in numbered sequence.
REV (Reverse): Press and hold to
rapidly back up within a track. Release
to play from that point.
FWD (Fast Forward): Press and hold
to rapidly move forward within a track.
Release to play from that point.
SCAN: Press to sample all tracks
briefly, one at a time. Press again to
continue the track that’s playing.
PREV (Previous): Press to back up to
the previous track. Pressing more than
once backs up more than one track.
Press and hold to scroll backward
through the tracks.
NEXT: Press to move up to the next
track. Pressing more than once moves
up more than one track. Press and hold
to scroll forward through the tracks.
Play-
99
ProCarManuals.com
Page 106 of 248
Comfort Controls &Audio Systems

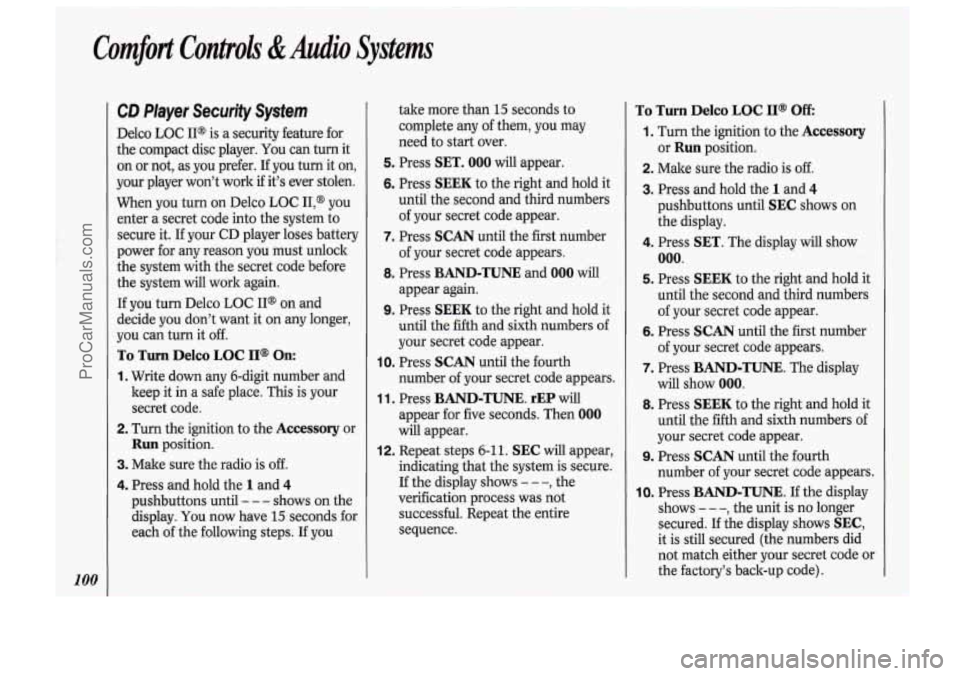

CD Player Security System
Delco LOC II@ is a security feature for
the compact disc player. You can turn it
on or not, as you prefer. If you turn it on,
your player won’t work
if it’s ever stolen.
When you turn on Delco LOC II,@
you
enter a secret code into the system to
secure it. If your CD player loses battery
power for any reason you must unlock
the system with the secret code before
the system will work again.
If you turn Delco LOC IP on and
decide you don’t want it on any longer,
you can turn it off.
To Turn Delco LOC II@ On:
1. Write down any 6-digit number and
keep it in a safe place. This is your
secret code.
2. Turn the ignition to the Accessory or
Run position.
3. Make sure the radio is off.
4. Press and hold the 1 and 4
pushbuttons until - - - shows on the
display.
You now have 15 seconds for
each of the following steps. If you take
more than 15 seconds to
complete any of them, you may
need to start over.
5. Press SET. 000 will appear.
6. Press SEEK to the right and hold it
until the second and third numbers
of your secret code appear.
7. Press SCAN until the first number
of your secret code appears.
8. Press BAND-TUNE and 000 will
appear again.
9. Press SEEK to the right and hold it
until the fifth and sixth numbers of
your secret code appear.
10. Press SCAN until the fourth
number of your secret code appears.
1 1. Press BAND-TUNE. rEP will
appear for five seconds. Then
000
will appear.
12. Repeat steps 6-11. SEC will appear,
indicating that the system is secure.
If the display shows
- - -, the
verification process was not
successful. Repeat the entire
sequence.
To Turn Delco LOC II@ Off
1. Turn the ignition to the Accessory
2. Make sure the radio is off.
3. Press and hold the 1 and 4
or Run position.
pushbuttons until
SEC shows on
the display.
4. Press SET. The display will show
000.
5. Press SEEK to the right and hold it
until the second and third numbers
of your secret code appear.
6. Press SCAN until the first number
of your secret code appears.
7. Press BAND-TUNE. The display
will show
000.
8. Press SEEK to the right and hold it
until the fifth and sixth numbers of
your secret code appear.
number of your secret code appears.
10. Press BAND-TUNE. If the display
shows
- - -, the unit is no longer
secured.
If the display shows SEC,
it is still secured (the numbers did
not match either your secret code or
the factory’s back-up code).
9. Press SCAN until the fourth
ProCarManuals.com
Page 108 of 248
Comfort Controls &Audio Systems
102
Care of Your Cassette Tape
Player
A tape player that is not cleaned
regularly is subject to reduced sound
quality, ruining the cassette, or
damaging the mechanism. Tape
cassettes that are not properly stored in
their plastic cases away from
contaminants, direct sunlight, and
extreme heat may not operate properly
and could cause premature failure of
the tape player.
Your tape player should be cleaned
monthly or with every
15 hours of use,
as regular maintenance. If you notice a
reduction in sound quality,
try a good
cassette to see if the tape or the tape
1
player is at fault. If the second cassette
results in no improvement in sound
quality, try cleaning the tape player.
Proper tape player cleaning should be
done with a
wiping action nonabrasive
cleaner cassette.
To properly clean your
tape player,
you should follow the
directions on the cleaning cassette.
Cassettes are subject to wear and the
sound quality may degrade over time.
Always verify that the cassette tape is in
good condition before obtaining service
on your tape player.
Care of Your Compact Discs
Handle discs carefully. Store them in
their original cases or other protective
cases and away from direct sunlight and
dust. If the surface of a disc is soiled,
dampen a clean, soft cloth in a mild,
neutral detergent solution and clean it,
wiping from the center to the edge.
Be sure never to touch the signal
surface when handling discs. Pick up
discs by grasping the outer edges or the
edge of the hole and the outer edge.
ProCarManuals.com
Page 203 of 248
INST LPS PWR ACC
HORNIDM IGNIGAU BRAKE STOPIHAZ
h TAIL LPS TURNIBU HTR A/C RADIO
%se Usage
Position
INST LPS
PWR ACC
HORN/DM
IGN/GAU BRAKE
STOP/HAZ
TAIL LPS
TURNDU HTR A/C RADIO
ECM B
ECM I
PWR WDO
WIPER
CRANK
TRAILER*
Rating
(AMP.)
5
30
20
20
15
15
20
15
25
15
15
10
30
25
3
30
UNDERHOOD':' 4
CD PLAYER 10
"In-line fuse.
Circuitry
Instrument Panel Lights, Headlight Warning Buzzer, Heater
Light, Ashtray Light, Radio Illumination Light, Rear Wiper
Switch Light
Power Door Locks, Rear Defogger, Console Accessory
Receptacles, CD Player
Horn, Dome Lights, Glove
Box Light, Clock, Lighter, Lighted
Vanity Mirror, Outside Rearview Mirror, Courtesy Lights
Indicator Lights and Gages, Rear Defogger Relay, Cruise
Control, Rear Defogger Switch, Seat Belt Timer
Four Wheel Anti-lock Brake Module, Digital Ratio Adapter
Module (Speedometer)
Stop Lights, Hazard Warning Lights, Chime Module, Center
High Mounted Stop Light (CHMSL)
Light Switch, TaiVPark Lights, Electronic Cluster, License Light
Turn Signals
& Back-up Lights
Heating and Air Conditioning
Radio, Inside Rearview Mirror Map Lights, Rear Wiper, Rear
Washer, Compass
Electronic Control Module, Fuel Pump
Electronic Control Module
Power Windows
Windshield Wipers and Washer
Electronic Control Module
Trailer Wiring Harness
Underhood Light
CD Player (attached to fuse block)
197
ProCarManuals.com
Page 239 of 248
Index
ABS Warning Light ......................... 88
Accelerator Control System ............. 185
Accessory Belt Drive ........................ 184
Accessory Power Outlets
................... 71
Fluid
............................ 176. 199. 201
Adding
Automatic Transmission
Brake Fluid
............................. 178. 201
Electrical Equipment
......... 46. 95. 196
Engine Coolant
...... 174. 177. 199. 201
Engine Oil
...................... 168. 199. 201
Power Steering Fluid
............. 176. 201
Windshield Washer Fluid
...... 177. 201
Add-on Equipment
.......................... 184
Air Cleaner
................................ 171. 200
Air Conditioner
.......................... 92. 184
Alcohol. Driving Under the
Influence of
.................................... 106
Alcohol in Gasoline
.......................... 163
All-Wheel Drive
................................ 108
Aluminum Wheels. Cleaning
........... 194
Antenna
............................................ 103
Anti-Lock Brakes (ABS)
Antifreeze
......................... 174.
199. 201
Using ABS
...................................... 110
Warning Light
.................................. 88
Appearance Care .............................. 190
Ashtrays and Lighter
.......................... 73 Audio
Systems
.................................... 95
AM/FM Stereo Radio with
Cassette Player
& Equalizer ......... 96
AM/FM Stereo Radio with
Compact Disc Player
..................... 98
Care of Compact Discs .................. 102
Care of Cassette Player
.................. 102
Radio Reception. For the Best
....... 101
Setting the Clock
.............................. 95
Automatic Transmission Adding Fluid
.................................. 173
Checking Fluid
............................... 172
Shifting
............................................. 48
Battery
........................................... 180
Jump Starting
................................. 140
Light
........................................... 87. 90
Belt. Accessory Drive
....................... 184
Blizzard
............................................. 13 1
Block Heater. Engine ................. 47. 170
Blowout. Tire
.................................... 15 1
Brake
Adjustment
..................................... 179
Fluid
....................................... 178. 201
Master Cylinder
............................. 178
Parking
............................................. 51
Rear Drum ...................................... 179
Replacing Brake System Parts
....... 179
Warning Light
.................................. 88
Wear Indicators .............................. 179 Brake
System Warning Light
............. 88
Braking .............................................. 109
Braking in Emergencies
.................... 111
Break.1n. New Vehicle ............... 44. 132
Buckling Up (see
Safety Belts)
Bulb Replacement Brakes. Anti-Lock
............................ 110
Braking Technique
........................... 109
Fog Light
........................................ 182
Headlight ........................................ 181
Taillight .......................................... 182
Bulbs. Replacement
.......................... 202
Capacities
& Specscations .......... 199
Carbon Monoxide in
Exhaust
...................... 53. 54. 131. 135
Cargo Bed Liner .................................. 75
Cassette Tape Player
(see
Audio Systems )
CD Player (see Audio Systems)
Center Passenger Position
Certificatioflire Label
.................... 186
Chains. Tire ...................................... 190
Changing a Flat Tire
......................... 151
Checking
Brake Fluid
..................................... 178
Engine
Oil ...................................... 168
(see Safety Belts )
Engine Coolant .............................. 174
233
ProCarManuals.com
Page 240 of 248
234
Power Steering Fluid ..................... 176
Safety Belt Systems
.......................... 34
Transmission Fluid
........................ 172
Child Restraints
.................................. 26
Children and Safety Belts
................... 25
Cigarette Lighter
................................. 73
Circuit Breakers
& Fuses ................. 196
Checking Things Under
the Hood
.... 165
City Driving
...................................... 126
Cleaner. Air
............................... 171. 200
Cleaning Aluminum Wheels
......................... 194
Antenna
.......................................... 103
Cassette Player
............................... 102
Fabric .............................................. 191
Glass
............................................... 192
Inside
of Your Vehicle ................... 190
Outside
of Your Vehicle ................ 193
Safety Belts
.................................... 192
Special Problems
............................ 191
Vinyl or Leather
............................. 192
Warnings
................ 192. 193. 194. 196
Weatherstrips
................................. 194
Underbody
Maintenance
............... 194
Windshield
..................................... 193
Climate Controls
................................. 92
Clock. Setting the
............................... 95
Clusters. Instrument Panel
................. 78
Coin Holder
........................................ 72
Comfort Controls
................................ 92 Air Conditioner
........................ 92.
184
Heater
............................................... 92
Ventilation 94 .. ........................................
Compass .............................................. 64
Control
of a Vehicle .......................... 108
Convex Outside Mirror
...................... 70
Coolant
..................................... 176. 203
Console
Storage
............................ 64. 71
Checking
& Adding ............... 149. 177
Proper Mixture to
Use ........... 149. 177
Safety Warnings About ..... 149.177. 178
Temperature Gage ..................... 85. 88
Cruise Control .................................... 59
Curves. Driving on
........................... 111
Customer Assistance Information ...... 221
Cup
Holder
......................................... 71
Dead Battery: What to Do
............ 140
Defensive Driving
............................. 106
Defogger. Rear Window
..................... 94
Defrosting
........................................... 93
Dome Lights
....................................... 68
Door Locks
......................................... 39
Driver Position
...................... ............ 18
Driving At Night
.......................................... 124
City
................................................. 126
Controlling a Slid
.......................... 114
Defensively
..................................... 106
Drunken
......................................... 106 Freeway
.......................................... 127
Guidelines
...................................... 115
Hill and Mountain ................. 118. 129
In a Foreign Country
..................... 164
In Mud. Sand. Snow. or Ice
.......... 122
In the Rain
...................................... 125
In Water
......................................... 123
Loss of Control
.............................. 114
Off-Road
................................. 115. 123
On Curves
...................................... 111
On Inclines ..................................... 121
Through Deep Standing Water
....... 46
Winter Driving
............................... 130
With a Trailer
................................. 132
Drunken Driving
.............................. 106
Long
Distance
................................ 128
Passing.,
.......................................... 113
Electric Outside Mirror Control ..... 70
Electrical Equipment.
Adding
................................ 46. 95. 196
Electronic Cluster
............................... 79
Emergencies on the Road
................. 139
Emergencies. Braking
in
................... 111
Emergencies. Steering in .................. 112
Emergency Starting
.......................... 140
Emergency Towing
........................... 144
Engine Coolant
......................... 174. 201
E/M Switch ......................................... 83
Engine Block Heater
.................. 47. 170
.
ProCarManuals.com
Page 244 of 248
238
Top Strap ......................................... 27
Torn
.................................................. 35
Twisted
............................................. 20
Why
You Should Wear
Safety Belts
.................................... 14
Safety Defects. Reporting
................. 224
Scheduled Maintenance Services
.... 205
Seat Adjustment
................................. 12
Seat Belts (see
Safety Belts)
Seat Controls ...................................... 12
Lumbar Controls
.............................. 12
Manual Front Seat
........................... 13
Power Front Seat ............................. 12
Rear Seat. Folding
............................ 14
Reclining Seatback ........................... 13
Service Engine Soon Light
................. 89
Service Information
.......................... 162
Service Parts Identification Label
.... 195
Service Publications
......................... 225
Service Station Information
............. 240
Setting the Clock
................................ 95
Setting the Trip Odometer
........... 81. 82
Shifting Into Park
............................... 5 1
Single Belt Accessory Drive ............. 184
Skidding
............................................ 114
Snowstorm. If You’re Caught in a
... 131
Sockets. Accessory Power .................. 71
Shifting
the Automatic Transmission
.... 48
Sound Equipment. Adding
................. 95
Sound System (see
Audio Systems)
Spare Tire ................................... 43. 152
Inside-Mounted
.............................. 152
Tailgate-Mounted
........................... 154
Spare Tire Carrier
............................... 43
Spark Plugs
....................................... 200
Specifications
& Capacities ............. 199
Speed Control (see
Cruise Control )
Speedometer ................................. 80. 81
Stains. Removing .............................. 193
Stalling on an Incline
....................... 122
Starting Your Engine
.......................... 45
Starting Your Vehicle
if the Battery
Steering is
“Dead”
(see Jump Starting)
In Emergencies ............................... 112
Off-Road Recovery ......................... 112
Tips
................................................. 111
Steering Wheel. Tilt ............................ 55
Stereo Sound System
Storage (see
Audio
Systems )
Console ............................................. 71
Door Compartment/Coin Holder
.... 72
Garage Door Opener
....................... 65
Glove Box
......................................... 44
Luggage Carrier
................................ 74
Overhead
.......................................... 67
Sunglasses
........................................ 67
Storing Your Vehicle
........................ 180
Cup Holder ....................................... 71 Stuck.
If
You Are .............................. 158
Sun Visors ........................................... 69
T achometer ...................................... 83
Tailgate ......................................... 42. 43
Tape Player (see
Audio Systems)
Technical Facts & Specifications
Bulbs
............................................... 202
Electrical Equipment. Add-on
................................. 46. 95. 196
Fluid Capacities
& Types ...... 199. 201
Fuses
& Circuit Breakers .............. 196
Service Parts Identification
Label
............................................ 195
Vehicle Identification Number
(VIN)
........................................... 195
Temperature Warning
.................. 85. 88
Theft .................................................... 42
Thermostat
........................................ 176
Tilt Steering Wheel
............................. 55
Time. Setting the ................................ 95
Tires
.................................................. 185
Blow Out ........................................ 151
Buying New .................................... 188
Chains ............................................. 190
Flat. Changing
................................ 151
Inflation .......................................... 186
Inspection
& Rotation ................... 187
Loading
.......................................... 185
Pressure .......................................... 186
ProCarManuals.com
