1994 CHEVROLET TRACKER light

Service and Appearance Care
3. Turn the lock ring to the left to release
the bulb. 4. Pull the lock ring and the headlight
bulb straight out. Save the lock ring
and use with
the new bulb.
5. Reverse the steps with a new bulb.
Front Parking and Turn Signal Lights
ro replace the parking and turn signal
mlb:
I. Open the hood.
2. Turn the bulb socket to the left and
pull
it out of light housing.
. . .178
ProCarManuals.com

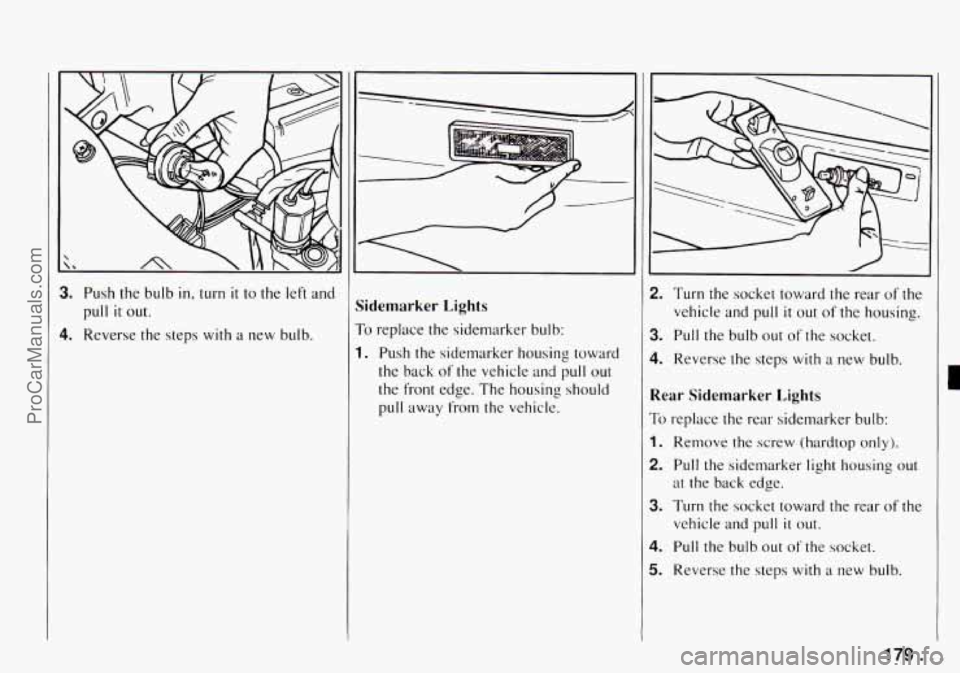

3. Push the bulb in, turn it to the left and
4. Reverse the steps with a new bulb.
pull it out. Sidemarker Lights
ro replace the sidemarker bulb:
I. Push the sidemarker housing toward
the back
of the vehicle and pull out
the front edge. The housing should
pull away from the vehicle.
2. Turn the socket toward the rear of the
vehicle and pull
it out of the housing.
3. Pull the bulb out of the socket.
4. Reverse the steps with a new bulb.
Rear Sidemarker Lights
To replace the rear sidemarker bulb:
1. Remove the screw (hardtop only).
2. Pull the sidemarker light housing out
3. Turn the socket toward the rear of the
at the back edge.
vehicle and pull
it out.
4. Pull the bulb out ofthe socket.
5. Reverse the steps with a new bulb.
179 ... ProCarManuals.com

Service and Appearance Care
Rear Combination Lights
To remove the rear combination bulbs:
1. Remove the two screws from the
combination lights.
2. Pull the combination light out Fdr
enough to reach the bulb socket. 1. Turn the socket to the right and pull it
1. Pull the bulb out of the socket.
i. Reverse the steps with a new bulb.
out.
. . .I80
ProCarManuals.com

:enter High-Mounted Stoplight
Hardtop)
i, remove the bulb:
. Remove the side pins.
!. Pull the housing forward.
1. Turn the socket counterclockwise and
pull
it out.
I. Pull the bulb out of the socket.
i. Reverse the steps with a new bulb.
ll TIRE PLACARD
GVWR ~GAWR FRT GAWR RR
I TIRES I
I PRESSURE COLD PSl!kPa I
IJ
Center High-Mounted Stoplight
(Convertible)
To remove the bulb:
1, Remove the two screws and the lens
housing.
pull
it out.
2. Turn the socket counterclockwise and
3. Pull the bulb out of the socket.
4. Reverse the steps with a new bulb.
Loading Your Vehicle
Two labels on your vehicle show how
much weight
it may properly carry. The
Tire-Loading Information label found
on
the driver’s door lock pillar tells you the
proper size, speed rating and
recommended inflation pressures for the
tires on your vehicle.
It also gives you
important information about the number
of people that can be
in your vehicle and
the total weight that
you can carry. This
weight is called the Vehicle Capacity
Weight and includes the weight
of all
occupants, cargo, and all
nonfactory-installed options.
181 . . .
ProCarManuals.com

Service and Appearance Care
If you need to replace any of your wheels,
wheel bolts, or wheel nuts, replace them
only
with new GM original equipment
parts. This way, you
will be sure to have
the right wheel, wheel bolts, and wheel
nuts for your Geo model.
NOTICE:
The wrong wheel can also cause
problems
with bearing life, brake
cooling, speedometer/odometer
calibration, headlight aim, bumper
height, vehicle ground clearance,
and
tire or tire chain clearance to the
body and chassis.
Used Replacement Wheels
A CAUTION:
Putting a used wheel on your vehicle
is dangerous. You can’t know how
it’s been used or how many miles it’s
been driven. It could
fail suddenly
and cause an accident.
If you have
to replace a wheel
use a new GM
original equipment wheel.
Tire Chains
NOTICE:
Use tire chains only where legal and
only when you must. Use only SAE
Class “S” type chains that are the
proper size for your tires. Install them
on the tires of the drive axle (four-
wheel drive vehicles can use chains
on both axles). Tighten them
as
tightly as possible with the ends
securely fastened. Drive slowly and
follow the chain manufacturer’s
instructions.
If you can hear the
chains contacting your vehicle, stop
and retighten them.
If the contact
continues, slow down until
it stops.
Driving too fast with chains
on will
damage your vehicle.
. . .188 ProCarManuals.com

Service and Appearance Care
Use a clean cloth or sponge, and
change to
a clean area often. A soft
brush
may be used if stains are
stubborn.
Use solvent-type cleaners
in a
well-ventilated area only. If you use
them, don’t saturate the stained area.
If a ring forms after spot cleaning,
clean the entire area immediately or
it
will set.
Using Foam-Type Cleaner on Fabric
Vacuum and brush the area to remove
any loose dirt.
Always clean a whole trim panel or
section. Mask surrounding trim along
stitch or welt lines.
Mix Multi-Purpose Powdered Cleaner
following the directions on the
container label.
Use suds only and apply with a clean
sponge.
Don’t saturate the material.
Don’t rub
it roughly.
As soon as you’ve cleaned the section,
use a sponge to remove the suds.
Rinse the section
with a clean, wet
sponge.
Wipe off what’s left with a slightly
0 Then dry it immediately with a blow
damp
paper towel or cloth.
dryer or
a heat lamp.
I NOTICE:
I
Be careful with a hair dryer or heat
lamp. You could scorch the fabric.
Wipe with a clean cloth.
Using Solvent-Type Cleaner an Fabric
First, see if you have to use solvent-type
cleaner at all. Some spots and stains
will
clean off better with just water and mild
soap.
If you need to use a solvent:
0 Gently scrape excess soil from the
trim material with a clean, dull knife
or scraper. Use very
little cleaner, light
pressure and clean cloths (preferably
cheesecloth). Cleaning should start
at
the outside of the stain, “feathering”
toward the center. Keep changing
to a
clean section of the cloth.
0 When you clean a stain from fabric,
immediately dry the area
with an air
hose, hair dryer, or heat
lamp to help
prevent a cleaning ring.
(See the
previous
NOTICE.)
Fabric Protection
Your Geo has upholstery that has been
treated
with Scotchgard Fabric
Protector,
a 3M product. Scotchgard”
protects fabrics by repelling
oil and water,
which are the carriers of most
stains.
Even with this protection, you still need
to clean your upholstery often to keep
it
looking new.
Further information on cleaning
is
available by calling 1-800-433-3296
(in Minnesota, 1-800-642-6167).
Special Cleaning Problems
Greasy or
oily stains: Such as grease,
oil, butter, margarine, shoe polish, coffee
with cream, chewing gum, cosmetic
creams, vegetable oils, wax crayon, tar
and asphalt.
0 Carefully scrape off excess stain.
Follow the solvent-type instructions
described earlier.
. . .I90 ProCarManuals.com

0 Shoe polish, wax crayon, tar and
asphalt will stain if left on a vehicle
seat fabric. They should be removed
as soon as possible. Be eareful,
because the cleaner
will dissolve
them and may cause them to spread.
Non-greasy stains: Such as catsup,
coffee (black), egg, fruit, fruit juice, milk,
soft drinks, wine, vomit, urine and blood.
Carefully scrape off excess stain, then
sponge the soiled area
with cool water.
If a stain remains, follow the
foam-type instructions described
earlier.
If an odor lingers after cleaning
vomit or urine, treat the area with
a waterhaking soda solution:
1 teaspoon (5 ml) of baking soda to
1 cup (250 ml) of lukewarm water.
solvent-type cleaner.
If needed, clean lightly with
Combination stains: Such as candy,
ice cream, mayonnaise, chili sauce and
unknown stains.
Carefully scrape off excess stain, then
0 If a stain remains, clean it with
clean with cool water and allow to dry.
solvent-type cleaner.
Cleaning Vinyl
Use warm water and a clean cloth.
0 Rub with a clean, damp cloth to
remove dirt.
You may have to do it
more than once.
Things like tar, asphalt and shoe
polish will stain
if yoa don’t get them
off quickly. Use a clean cloth and
solvent-type
vinyl cleaner.
Cleaning Leather
Use a soft cloth with lukewarm water and
a mild soap or saddle soap.
For stubborn stains, use a mild
solution of
10% isopropyl alcohol
(rubbing alchohol) and 90% water.
solvent-based or abrasive cleaners,
furniture polish
or shoe polish on
leather.
immediately.
If dirt is allowed to work
into finish,
it can harm the leather.
Never use oils, varnishes,
Soiled leather should be cleaned
ueaning the Top of the Instrument
Panel
Use only mild soap and water to clean
the top surfaces of the instrument panel.
Sprays containing silicones or waxes
may cause annoying reflections in the
windshield and even make it difficult to
see through the windshield under certain
conditions.
Care of Safety Belts
Keep belts clean and dry.
Do not; bleach or dye safety belts.
If you do, it may severely weaken
them, In a crash they might not be
able to provide adequate protection.
Clean safety belts only with mild
soap
and lukewarm water.
Glass
Glass should be cleaned often. GM Glass
Cleaner
(GM Part No. 1050427) or a
liquid household glass cleaner will
remove normal tobacco smoke and dust
films.
191 ... ProCarManuals.com

Special Care for Canvas Top
To protect the canvas top:
0 After you wash the vehicle, make sure
the top is completely dry before you
open or remove it.
vehicle’s painted finish; it could leave
streaks.
Don’t go through automatic car
washes; the canvas top could be
damaged.
The plastic windows are pliable and can
be scratched if you don’t take these
precautions when you clean them:
0 Don’t get any vinyl cleaner on the
0
0
0
Wipe off dust with a soft cotton cloth
moistened with clean, cool or
lukewarm water. Don’t use a “dry”
cloth. Wipe in one direction only, not
back and forth.
To remove frost, snow or ice, use
lukewarm water. Don’t use a scraper
or any de-icing fluids.
Wash the windows with a soft cloth
and clean, cool or lukewarm water.
Never use a dry cloth, hot water,
strong soap or detergent, solvents or
harsh cleaning agents. Rinse
thoroughly and wipe with a slightly
moist soft, clean cloth.
1
Don’t put any labels, stickers or tape
on windows. It’s hard to remove
adhesives left on the window when
such items are removed.
If a sticker or
label must be removed, remove any
adhesive left on the window while the
adhesive is still soft and sticky. Press
on a new sticker or piece of tape and
then lift it off again; keep doing this
until all the adhesive lifts off with
the sticker or tape.
Aluminum Wheels (If So Equipped)
Your aluminum wheels have a protective
zoating similar to the painted surface
3f your vehicle. Don’t use strong soaps,
:hemicals, chrome polish, abrasive
cleaners or abrasive cleaning brushes
on them because you could damage this
coating. After rinsing thoroughly, a wax
mi ay be applied.
NOTICE:
If you have aluminum wheels, don’t
use an automatic car wash that has
hard silicon carbide cleaning brushes.
These brushes can take
off the
protective coating.
Tires
Your Geo dealer has a GM White Sidewall
Tire Cleaner. You can use a stiff brush
with the cleaner.
When applying a tire dressing, always
take care to wipe
off any overspray
or splash from painted surfaces.
Petroleum-based products may damage
the paint finish.
Weatherstrips
Silicone grease on weatherstrips will
make them last longer, seal better, and
not stick or squeak. Apply silicone
grease with a clean cloth at least every
six months. During very cold, damp
weather more frequent application may
be required. (See “Recommended Fluids
and Lubricants” in the Index.)
Sheet Metal Damage
If your vehicle is damaged and requires
sheet metal repair or replacement,
make sure the body repair shop applies
anti-corrosion material
to the parts
repaired or replaced to restore corrosion
protection.
193 ... ProCarManuals.com
