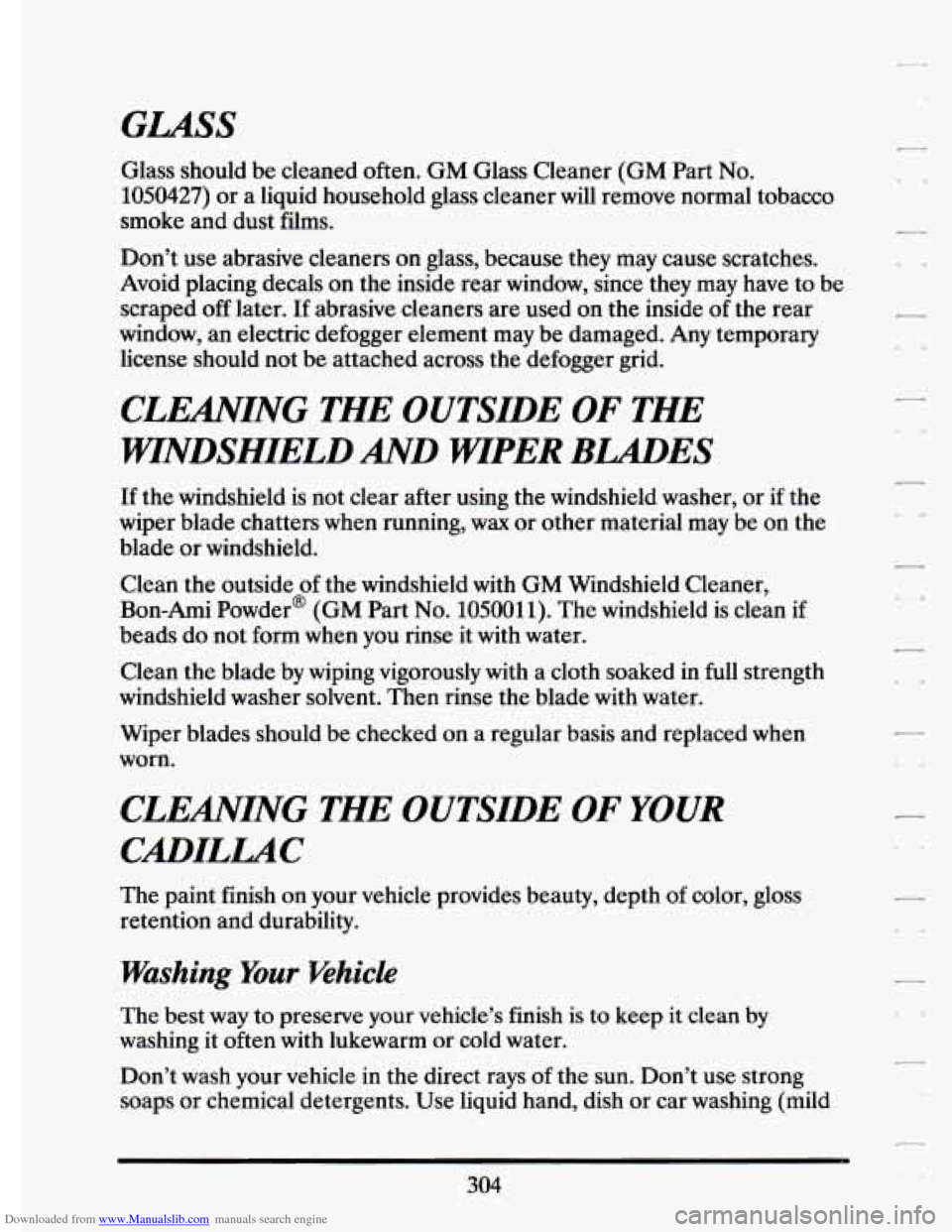

Glass should be cleaned often. GM .Glass Cleaner (GM Part No.
1050427) or a liquid household glass cleaner will remove normal tobacco
smoke and dust films.
Don’t use abrasive cleaners on glass, because they may cause scratches.
Avoid placing decals on the inside -rear window, since they may have to be
scraped
off later. If abrasive cleaners are used on the inside of the rear
window, an electric defogger element may be damaged. Any temporary
license should not be attached across the defogger grid.
CLEANING THE OUTSIDE OF THE
WN.DSHIELD AND WZPER
BLADES
If the windshield is not clear after using the windshield washer, or if the
wiper blade chatters when running,
wax or other material may be on the
blade or windshield,
Clean the outside of the windshield
with GM Windshield Cleaner,
Bon-Ami Powder@ (GM Part
No. 1050011). The windshield is clean if
beads do not form when you rinse it with water.
Clean the blade by wiping vigorously with a cloth soaked in full strength
windshield washer solvent. Then rinse the blade with water.
Wiper blades should be checked
on a regular basis and replaced when
worn.
CLEANING THE OUTSIDE OF YOUR
CADILLAC
The paint finish on your vehicle provides beauty, depth of color, gloss
retention and durability.
Washing Your Khicle
The best way to preserve your vehicle’s finish is to keep it clean by
washing it often with lukewarm or cold water.
Don’t wash your vehicle in the direct rays of the sun. Don’t use strong
soaps or chemical detergents. Use liquid hand, dish
or car washing (mild
304

Downloaded from www.Manualslib.com manuals search engine r
I r
r
r
r i
r
P I
I
r

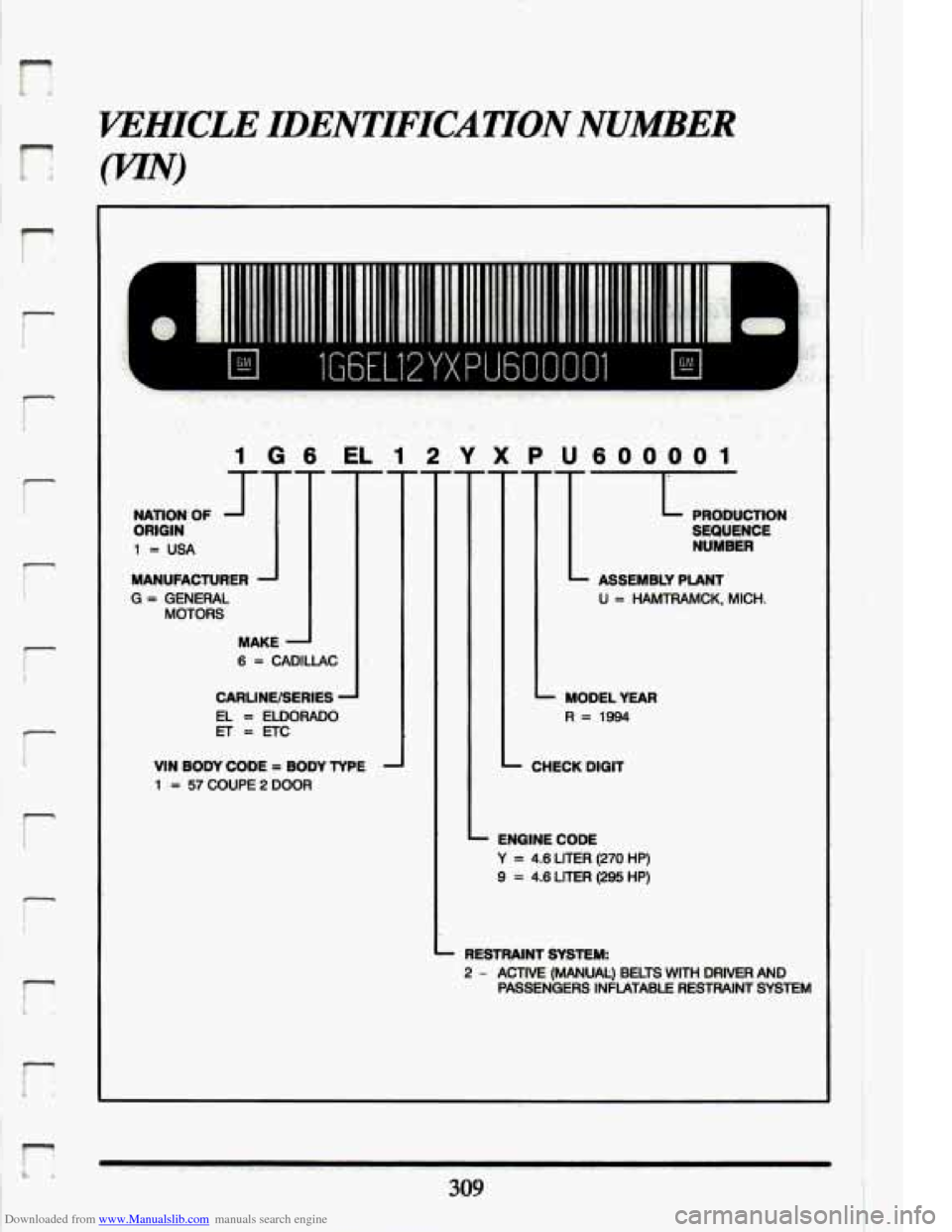

WHICLE IDENTIFICATION NUMBER
WN)
El lG6EL12YXPU600001 HA . . .. - __ ,. --
I G 6 EL 12 Y X P U600001
NATIONOF ORIGIN *T
1 = USA I
MANUFACTURER
G = GENERAL MOTORS
MAKE - 6 = CADILIAC 1
CARLINE/SERIES
EL = ELDORADO
ET = ETC
VIN BODY CODE = BODY TYPE
1 = 57 COUPE 2 DOOR
I-
PRODUCTION
SEQUENCE NUMBER
ASSEMBLY PLANT
U = HAMTRAMCK, MICM.
- MODELYEAR
R= 1994
- CHECK DlGlT
- ENGINE CODE
Y = 4.6 LITER (270 HP)
9 = 4.6 LITER (295 HP)
- RESTRAINT SYSTEM:
2 - ACTIVE (MANUAL) BELTS WITH DRIVER AND
PASSENGERS INFLATABLE RESTRAINT SYSTEM

Downloaded from www.Manualslib.com manuals search engine Fi
r
r 1
i
I
r !
r
r

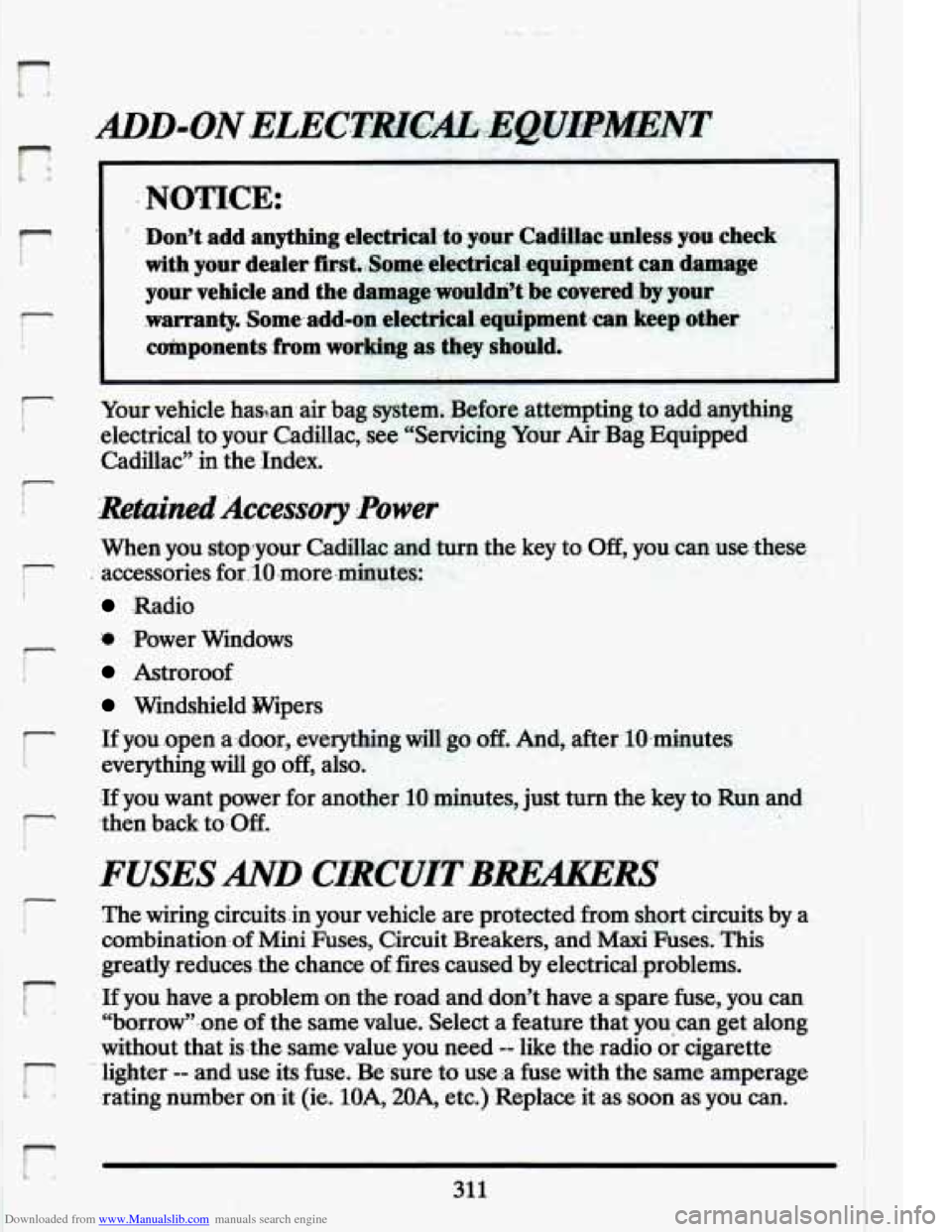

..NOTICE:
..
..
. '' Don't add anything electrical-to your Cadillacunless you check
with your dealer fiist.Some. electrical equipment can damage
your vehicle and the damage wouldn't be covered by your
.warranty. Some-add-an electrical equipmentam keepdmr
.ceinponents
.from worwng as they should.
Your vehicle hasan. air bag system;. Before attempting to ,add.anything ;, -
electrical to your Cadillac, see "Servicing Yaur Air Big Equipped
Cadillac"
in the Index.
'I:
Retained Accessory :Power
When you stop:your Cadillac and. turn the key to Off, you .can. use -these
accessories far.lO.more.minutes:
.Radio
:. .'Power .Windows
Astroroof
Windshield Wipers
.,
If you .open a:.do.or, everything will go off. And, after- 10mhutes
everything will go
off, also.
:If you want power for another .lO minutes, just turn the key.to Run and
.then back to:Off.
..
The wiring circuitsin your vehicle are protected from short circuits by a
combination:of
.Mini Fuses, Circuit Breakers, and Maxi Fuses:'This
greatly reduces.the chance
of fires caused by electricd.problems.
If you have a problem ,owthe road and don't have a:spare fuse, you can
"borrow"me
of the same value. Select a feature that you can get along
without that isthe same.value you need
-- like .the radio or cigarette
" lighter -- and use its fuse. Re sure .tu use :a fuse with the same amperage
-rating number onit (ie.
104 204 etc.),Repl-ace it .as soon as you can.
311

Downloaded from www.Manualslib.com manuals search engine r

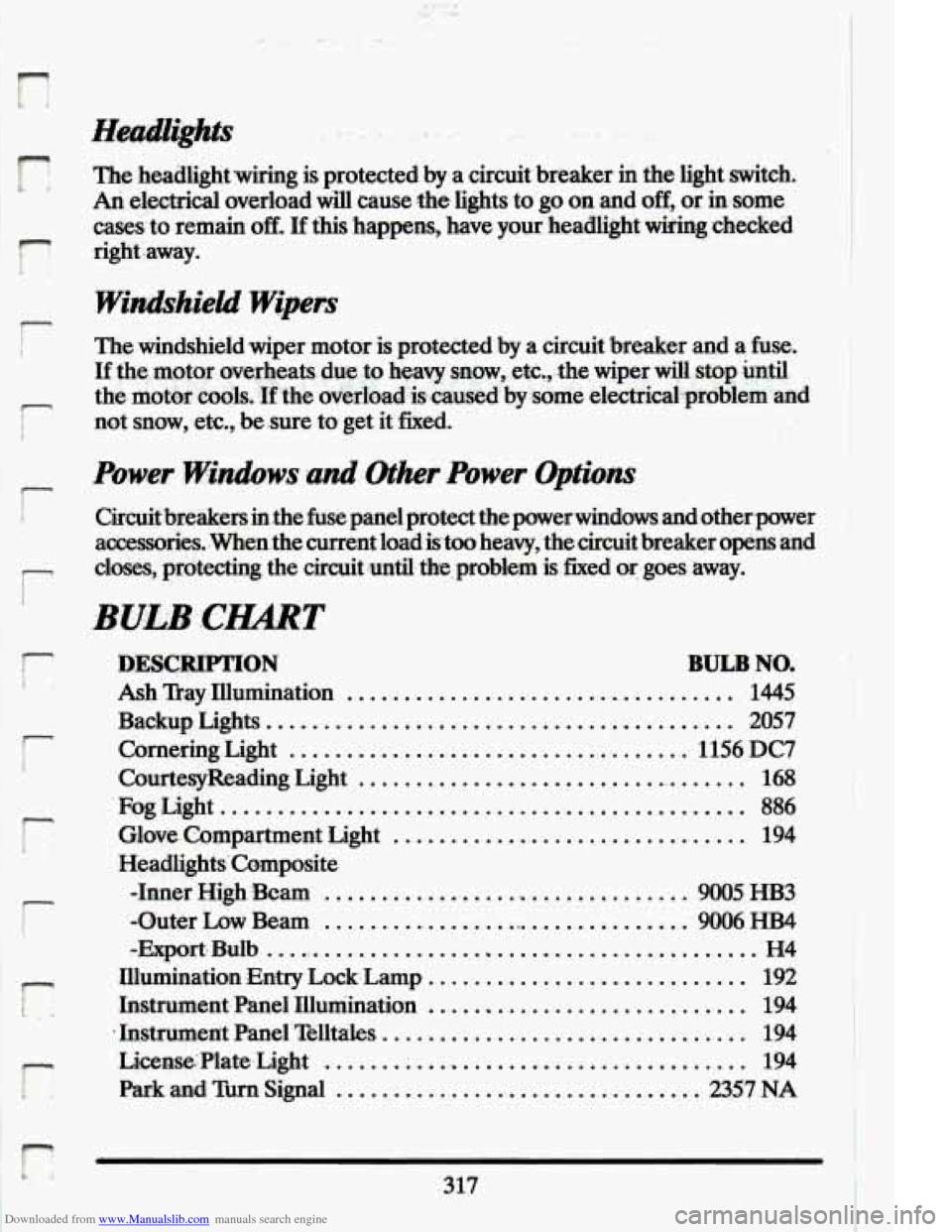

The.head1ightwiring is protected by,a circuit breaker in the light switch.
An electrical overload will cause the lights to .go on and off, or in.. some
cases: to -remain-
off. If this happens, have your headlight wiring checked
rightaway.
.Wiradshiekl Wipem
The windshield wiper motor is protected by a circuit breaker and a fuse.
If the..motor overheats due to heavy snow, .etc.,-.the wiper will stop imtil
the
motor mls. If the overload iscaused by some electrical problem and
not snow, etc., be sure to get it fixed.
Power Widbws andother Power Options
F I ! Circuit breakers in .the fuse panel protect the power windows and other power
accessories. .whensthe current load islm heavy, the circuit breaker
qens .and
closes, protecting the circuit until the, problem is. fixed or goes. away.
I r,
r
r
/r: I
r' LJ
DESCRIPTION BULB NO.
Ash ?i.ay.Illuninatio.n .................................... .1445
Backup Lights ......................................... 2057
Cornering Light ................................... 1156 ,DC7
CowtesyReading Light
.................................... 168
Glove. Compartment Light ................................ 194
Headlights'Composite -Inner High Beam
................................ 9005 HB3
.-Outer Low Beam
................................... ,9006 HB4
Illumination Entry~Lock~Lamp
............................. .192
Instrument. Panel Illuniinatian ............................ ' 194
. 1.nstrumeIlit Panel'T'llt&s ................................ 194
LicenseP1ate.Ligh.t ....................................... 194
Park and Tim Signal ................................ 2357.NA
. Fog Light ............................................... 886
-Errport.Bulb ............................................ H4
317
I

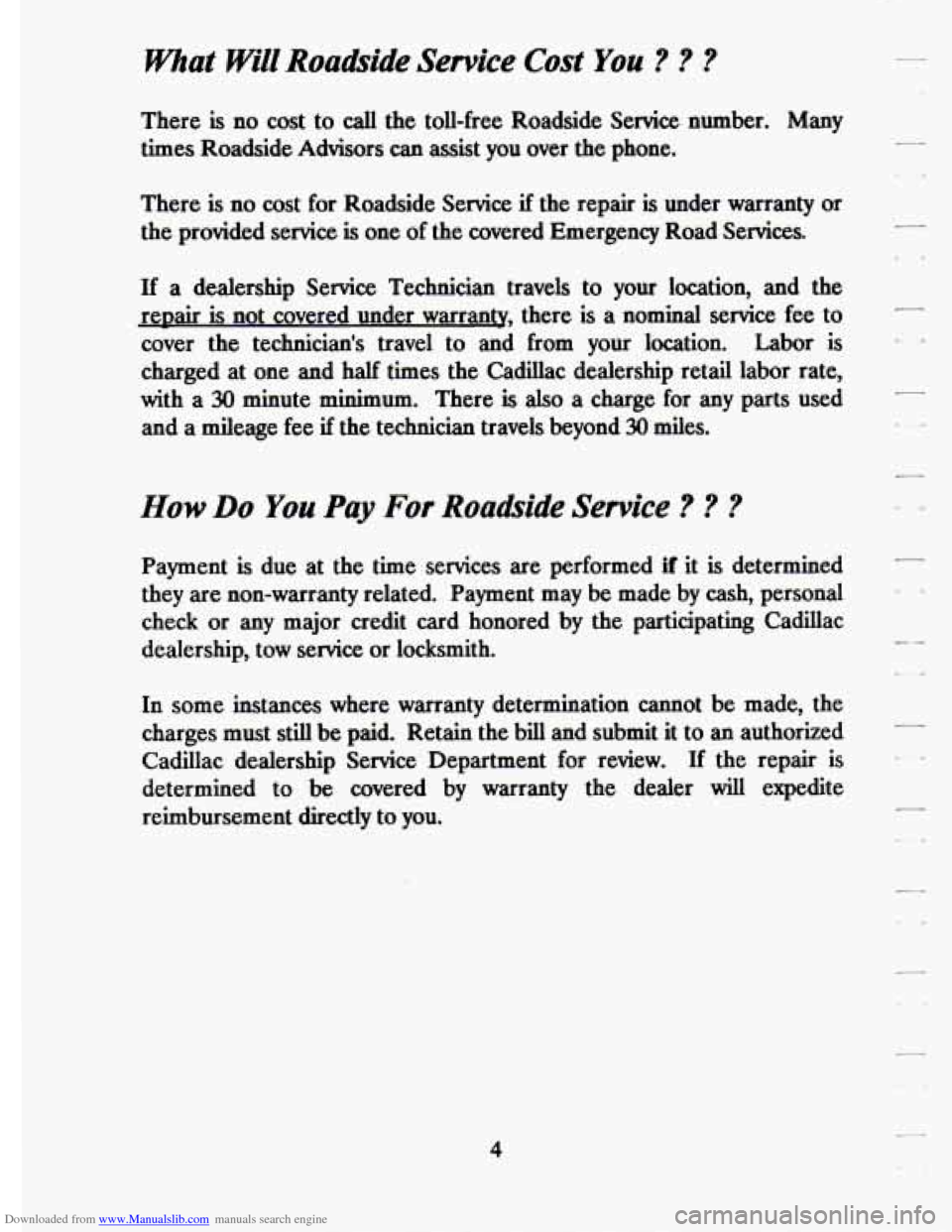

Downloaded from www.Manualslib.com manuals search engine What Will Roadbide Service Cost You ? ? ?
There is no cost to call the toll-free Roadside Service number. Many
times Roadside Advisors
can assist you over the phone.
There is
no cost for Roadside Service if the repair is under warranty or
the provided service
is one of the covered Emergency Road Services.
If a dealership Service Technician travels to your location, and the
reDair is not covered under warranty, there is a
nominal service fee to
cover the technician's travel to and from your location. Labor is
charged at one and half times the Cadillac dealership retail labor rate,
with a
30 minute minimum. There is also a charge for any parts used
and a mileage fee
if the technician travels beyond 30 miles.
How Do You Pay For Roadside Service 3 ? ?
Payment is due at the time services are performed if it is determined
they are non-warranty related. Payment may be made by cash, personal
check or any major credit
card honored by the participating Cadillac
dealership, tow service or locksmith.
In some instances where warranty determination cannot be made, \
the
charges must still be paid. Retain the
bill and submit it to an authorized
Cadillac dealership Service Department for review.
If the repair is
determined
to be covered by warranty the dealer will expedite
reimbursement directly to you.
c-
t-
L
4

Downloaded from www.Manualslib.com manuals search engine r
r
F I
r
i
r
f-
1
"
r I
T

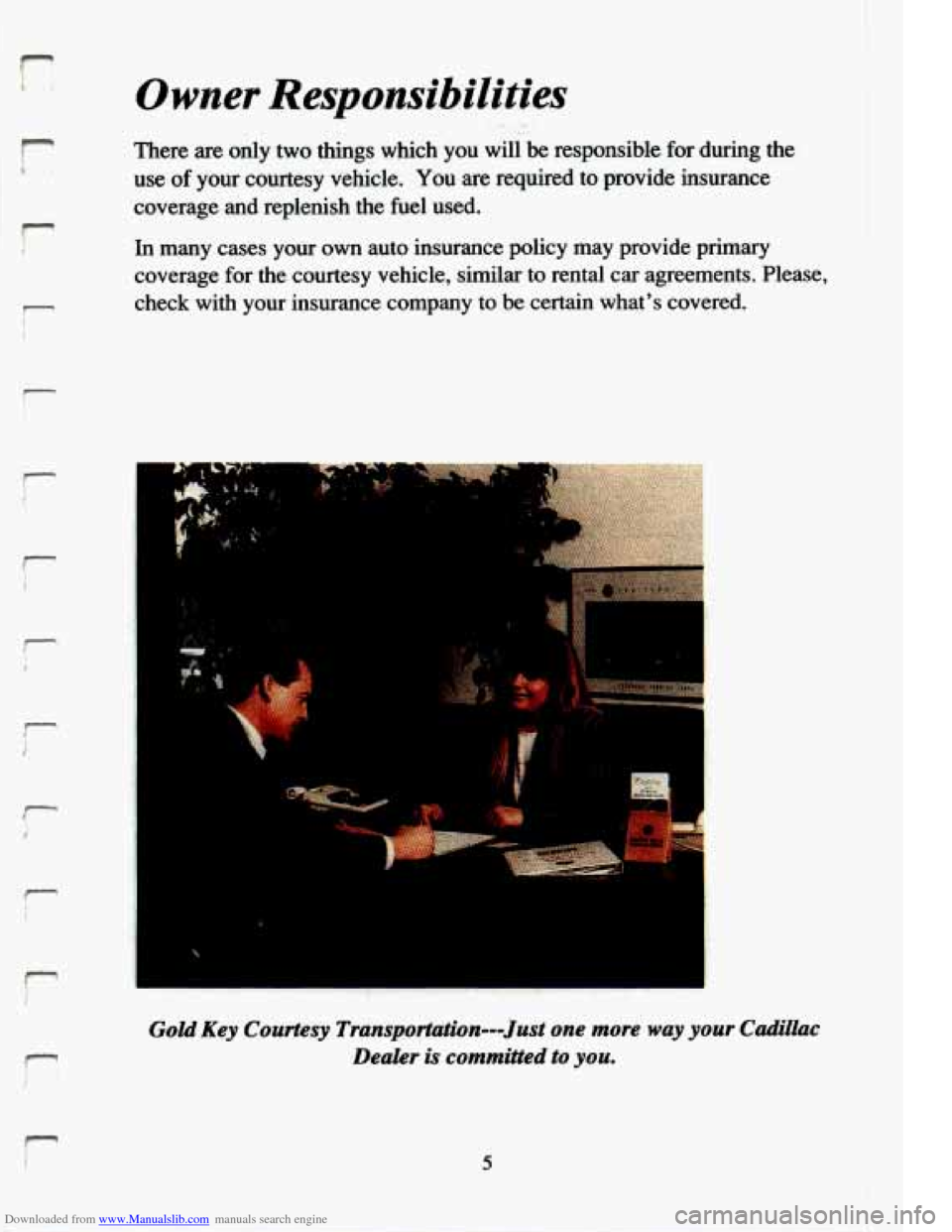

Owner Responsibilities
,. ..
There are only two things which you wilibe responsible for during the
use
of your courtesy vehicle. You are required to provide insurance
coverage and replenish the fuel used.
In many cases your own auto insurance policy may provide primary
coverage for the courtesy vehicle, similar to rental car agreem\
ents. Please,
check with your insurance company to be certain what's covered.\

I
c
!I
R
i
A
Gold Key Courtesy Transportation--- Just one more way your Cadillac
Dealer is committed
to you.
I r 5

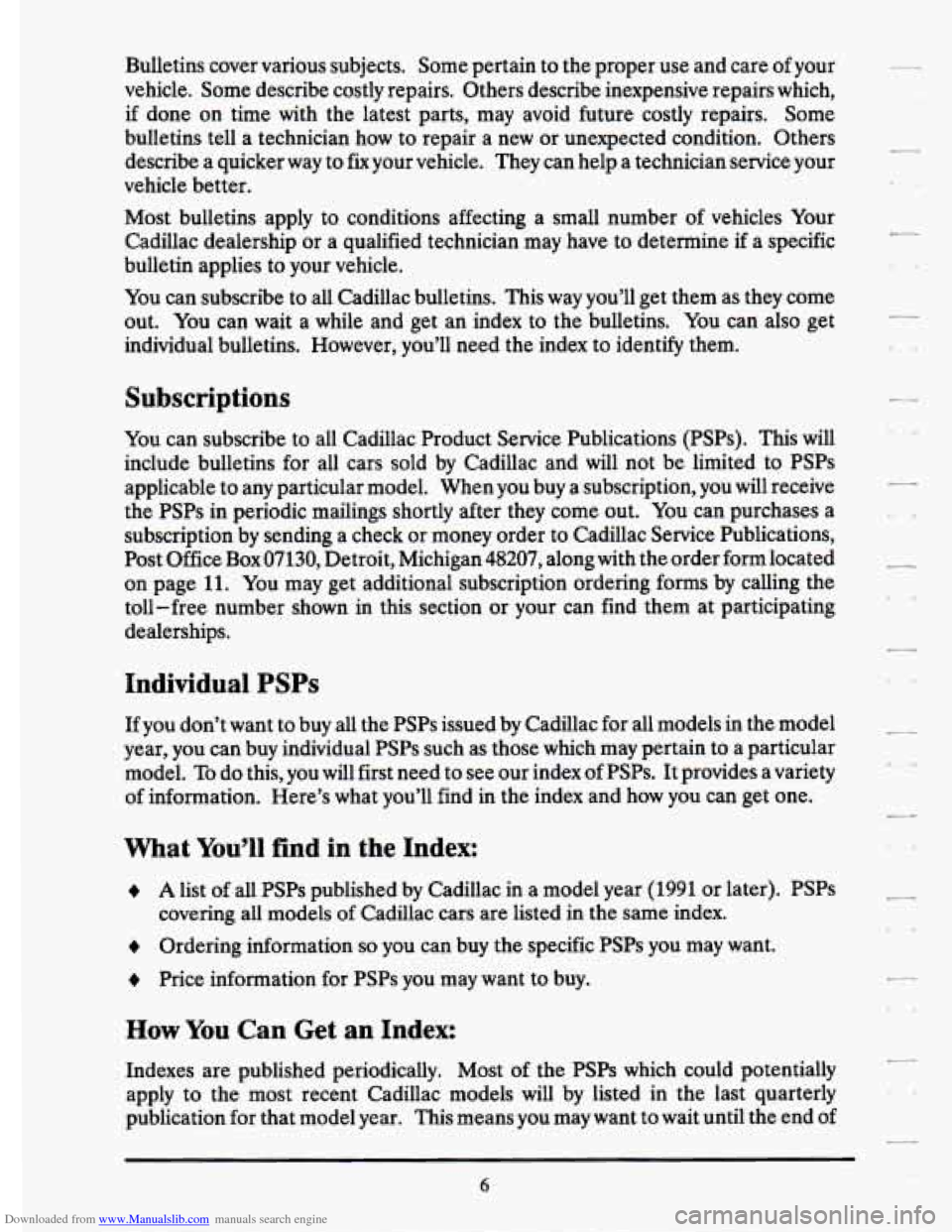

Downloaded from www.Manualslib.com manuals search engine Bulletins cover various subjects. Some pertain to the proper use and care of your
vehicle. Some describe costly repairs. Others describe inexpensive repairs which,
if done on time with the latest parts, may avoid future costly repairs. Some
bulletins tell a technician how
to repair a new or unexpected condition. Others
describe a quicker way to fix your vehicle. They can help a technician service your
vehicle better.
Most bulletins apply to conditions affecting a small number of vehicles Your
Cadillac dealership or a qualified technician may have to determine if a specific
bulletin applies
to your vehicle.
You can subscribe to all Cadillac bulletins. This way you’ll
get them as they come
out. You can wait a while and get an index to the bulletins. You can also get
individual bulletins. However, you’ll need the index to identify them.
Subscriptions
You can subscribe to all Cadillac Product Service Publications (PSPs). This will
include bulletins for all cars sold by Cadillac and will not be limited to PSPs
applicable to any particular model. When you buy a subscription,
you will receive
the PSPs in periodic mailings shortly after they come out. You can purchases a
subscription by sending a check or money order to Cadillac Service Publications,
Post Office
Box07130, Detroit, Michigan 48207, alongwith the order form located
on page
11. You may get additional subscription ordering forms by calling the
toll-free number shown in this section or your can find them at participating
dealerships.
Individual PSPs
If you don’t want to buy all the PSPs issued by Cadillac for all models in the model
year, you can buy individual PSPs such as those which may pertain to a particular
model. To do this, you will first need to see our index
of PSPs. It provides a variety
of information. Here’s what you’ll find in the index and how you can get one.
What You’ll find in the Index:
+ A list of all PSPs published by Cadillac in a model year (1991 or later). PSPs
+ Ordering information so you can buy the specific PSPs you may want.
+ Price information for PSPs you may want to buy.
covering all models
of Cadillac
cars are listed in the same index.
How You Can Get an Index:
Indexes are published periodically. Most of the PSPs which could potentially
apply to the most recent Cadillac models will by listed in the last quarterly
publication for that model year. This means you may want to wait until the end of
6

Downloaded from www.Manualslib.com manuals search engine f
r
r
r- 1
i !
r
r
r,

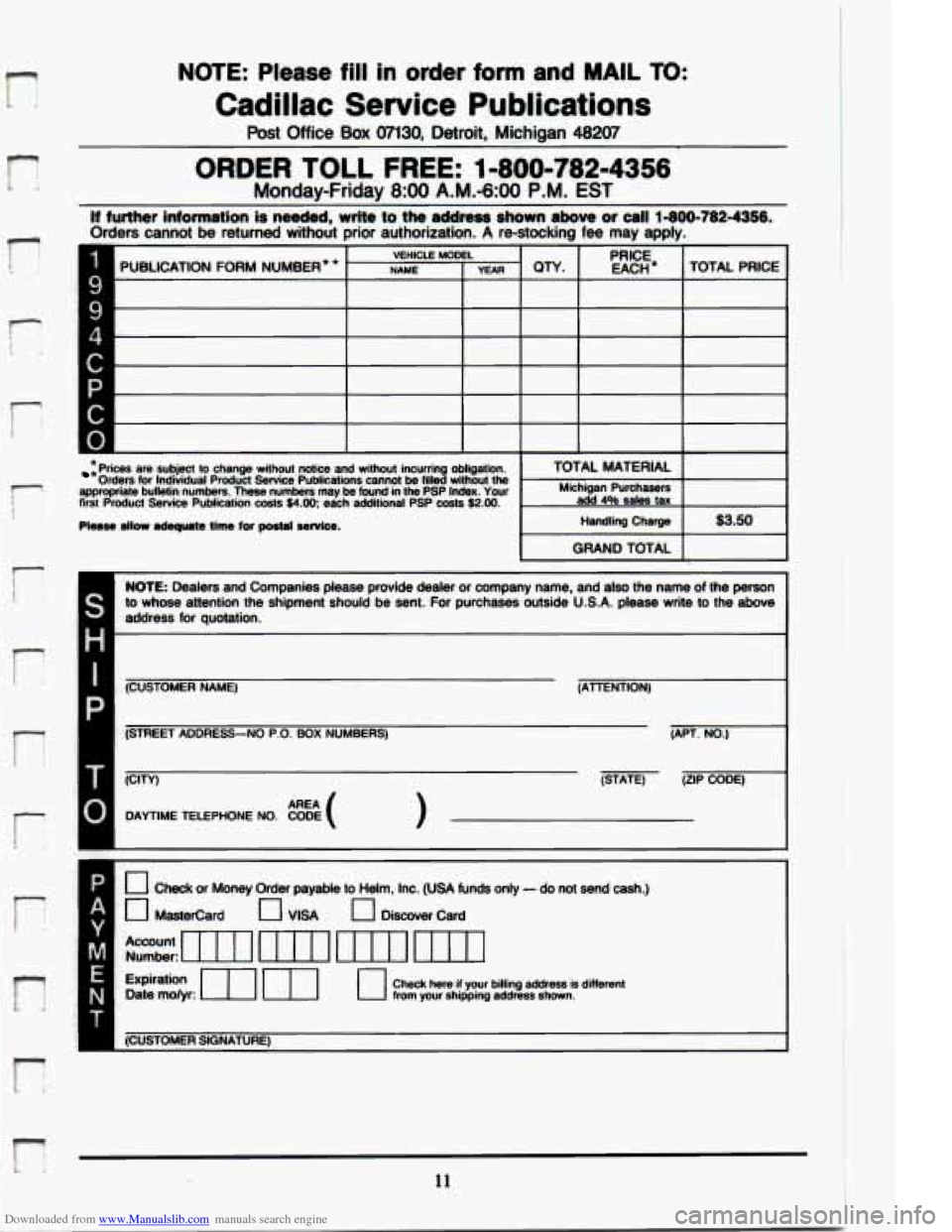

NOTE: Please fill in order form and MAIL TO:
Cadillac Sservice Publications
Post Office Box 07l30, Detroit, Michigan 48207
ORDER TOLL F,R,EE: 1-800=782-4356
Monday-Friday 8:OO A.M.-6:00 P.M. EST
If further information is needed, write to the address shown above or call 1-800-7824356. Orders cannot be returned without prior authorization. A restocking fee may apply.
:Prices are subject to change without notice and without incurring oblion. TOTAL MATERIAL
appropriate bullebn numbers. These numbers may be found in the PSP Index. Your Orders for lndvidual Product Service Publications cannot be filled without the Michigan Purchasers
first Product Service Publication costs S4.00; each additiial'PSP costs $2.00. add446salestax
Piease allow .doquote time for postal service. Handling Charge
I GRAND TOTAL I I
NOTE: Dealers and Companies please provide dealer or company name, an\
d also the name of the person ' to whose attention the shipment should be sent. For purchases outside U.S.A. please write to the above address for quotation.
(CUSTOMER NAME) (ATENTION)
(STREET ADDRESS-NO P.O.
BOX NUMBERS) (APT. NO.)
T
P
A
Y
M
E
N
T
r
(CITY) ~~ (STATE) (ZIP CODE)
DAYTIME TELEPHONE NO. CODE
0 Check or Money Order payable to Helm, Inc. (USA funds only - do not send cash.)
0 MasterCard 0 VISA 0 Discover,Card
Number:
m m m rrrn
Expiration m rl 0 Check here if your billing address is different Date mdyr: from your shipping address shown.
(CUSTOMER SIGNATURE)
