1993 CADILLAC DEVILLE check engine light

Downloaded from www.Manualslib.com manuals search engine How To Reset the Oil Life Indicator: After the oil has been changed,
press and hold the
“RANGE” and “RESET” buttons between 5 and 60
seconds. Once the buttons are released the “CHANGE OIL SOON”
light will flash 4 times to indicate it has reset to 100. If the “CHANGE
OIL SOON” light comes on for 5 seconds it did not reset. You will need
to reset the system again. The percentage
of oil life remaining may be
checked at any time by pressing the
“RANGE” and “FUEL USED” on
the Fuel Data center.
Engine Block Heater: An engine block heater can be a big help if you
have to park outside
in very cold weather, O°F (-18OC) or colder. If your
vehicle has this option, see “Engine Block Heater” in the Index.
What to Do with Used Oil:
’
A CAUTION:
Used engine oil contains things that have caused skin cancer in
laboratory animals. Don’t let used oil stay
on your skin for very
long. Clean your skin and nails with soap and water, or a good
hand cleaner. Wash or properly throw away clothing or rags
containing used engine oil.
Used oil can be a real threat to the environment. If you change your own
oil, be sure to drain all free-flowing oil from the filter before disposal.
Don’t ever dispose
of oil by pouring it on the ground, into sewers, or into
streams or bodies
of water. Instead, recycle it by taking it to a place that
collects used oil.
If you have a problem properly disposing of your used
oil, ask your dealer, a service station or
a local recycling center for help.

Downloaded from www.Manualslib.com manuals search engine put in, the fluid level goes back up. The other reason is that fluid is
leaking out
of the brake system. If it is, you should have your brake
system fixed, since a leak means that sooner
or later your brakes won’t
work well, or won’t work at all.
So, it isn’t a good idea to “top off” your
brake fluid. Adding brake fluid won’t correct a leak.
If you add fluid when
your linings are worn, then you’ll have too much fluid when you get new
brake linings.
You should add (or remove) brake fluid, as necessary, only
when work is done on the brake hydraulic system.
I
I A= CAUTION
I
I only when work is done on the brake hydraulic system.
If you have too much brake fluid, it can spill on the engine. The
fluid will burn if the engine is hot enough. You or others could
be burned, and your vehicle could be damaged. Add brake fluid
U
When your brake fluid falls to a low level, your brake warning light will
come on. See “Brake System Warning Light” in the Index.
To Check Brake Fluid:
You can check the brake fluid without taking off the cap. If it’s low, fill it
to the maximum “FLUID LEVEC’ indicator.
285

Downloaded from www.Manualslib.com manuals search engine Headlights
The headlight wiring is protected by a circuit breaker in the light switch.
An electrical overload
will cause the lights to go on and off, or in some
cases to remain off.
If this happens, have your headlight wiring checked
right away.
Windshield Wipers
r
The windshield wiper motor is protected by a circuit breaker and a fuse.
If the motor overheats due to heavy snow, etc., the wiper will stop until
the motor cools. If the overload is caused by some electrical problem and
not snow, etc.,
be sure to get it fixed.
I_
Power Windows and Other Power Options
Circuit breakers in the fuse panel protect the power windows and other
power accessories. When the current load is too heavy, the circuit breaker
-
opens and closes, protecting the circuit until the problem is fixed or goes
away.
BULB CHART
DESCRIPTION BULB NO.
Ash Tray Illumination .................................. 1445
Backup Lights.
........................................ 3057
Center High Mount Stop Light .......................... 1141
CorneringLight ........................................ 881
Courtesy Light
-Doors (White)
....................................... 12864
-Rear Courtesy/Reading
.............................. .562/561
-Doors Warning (Red)
................................. 12864
Courtesy/Maplight
-Without Astroroof
..................................... 906
-With Astroroof
........................................ 56'1
Cruise Control Illumination .............................. 194
Cruise
Control Indicator ................................. 141
ECC Head Illumination .................................. 37
Fuel Data Center Illumination ............................ 194
Glove Compartment Light
............................... 194
Headlights Composite
.-
c-

Downloaded from www.Manualslib.com manuals search engine SERVICE PUBLICATIONS
-
Information on how to obtain Product Service Publications, subscriptions, Indexes and
summaries
as describedbelow is applicable only in the fifty US. states (and the District
fo Columbia) and only for cars and light trucks with GVWR less than 10,OOO pounds
(4 536 kg).
In Canada, information pertaining to Product Service Bulletins and Indexes can be
obtained by writing to: General Motors of Canada Limited, Service Publications
Department,
1908 Colonel Sam Drive Oshawa, Ontario L1H 8P7.
Cadillac regularly sends its dealers useful service bulletins ab\
out Cadillac products.
Cadillac monitors product performance
in the field. We then prepare bulletins for
servicing
our products better, Now, you can get these bulletins too.
Bulletins cover various subjects. Some pertain to the proper use and care of your
vehicle. Some describe costly repairs. Others describe inexpensiv\
e repairs which,
if
done on time with the latest parts, may avoid future costly r\
epairs. Some bulletins tell a
technician how to repair a new or unexpected condition. Others describe a quicker\
way
to fix your vehicle. They can help a technician service your \
vehicle better.
Most bulletins apply
to conditions affecting a small number of vehicles Your Cadillac
dealership
or a qualified technician may have to determine if a specific bulletin applies
to your vehicle.
You can subscribe to all Cadillac bulletins. This way you’ll get them as they come out.
You can wait a while and get
an index to the bulletins. You can also.get individual
bulletins. However, you’ll need the index to identify them.
Subscriptions
You can subscribe to all Cadillac Product Service Publications (PSPs). This will include
bulletins for all cars sold by Cadillac and will not
be limited to PSPs applicable to any
particular model. When you buy a subscription, you will receive\
the PSPs in periodic
mailings shortly
after they come out. A subscription costs $100.00 U.S. ($110.00
including a special binder) and it entitles you to all PSPs published by Cadillac during
that model
year. You can purchases a subscription by sending acheck or money order to
Cadillac Service Publications, Post Office Box 07130, Detroit, Michigan 48027, along
with the order form located on page
15. Your may get additions subscription ordering
forms by calling the toll-free number shown in this section or your can find them at
participating dealerships.
Individual PSPs
If you don’t want to buy all the PSPs issued by Cadillac for all models in the model year,
you can buy individual
PSPs such as those which may pertain to a particular model. To
do this, you will first need to see our index of PSPs. It provides avariety of information.
Here’s what you’ll find
in the index and how you can get one.
7

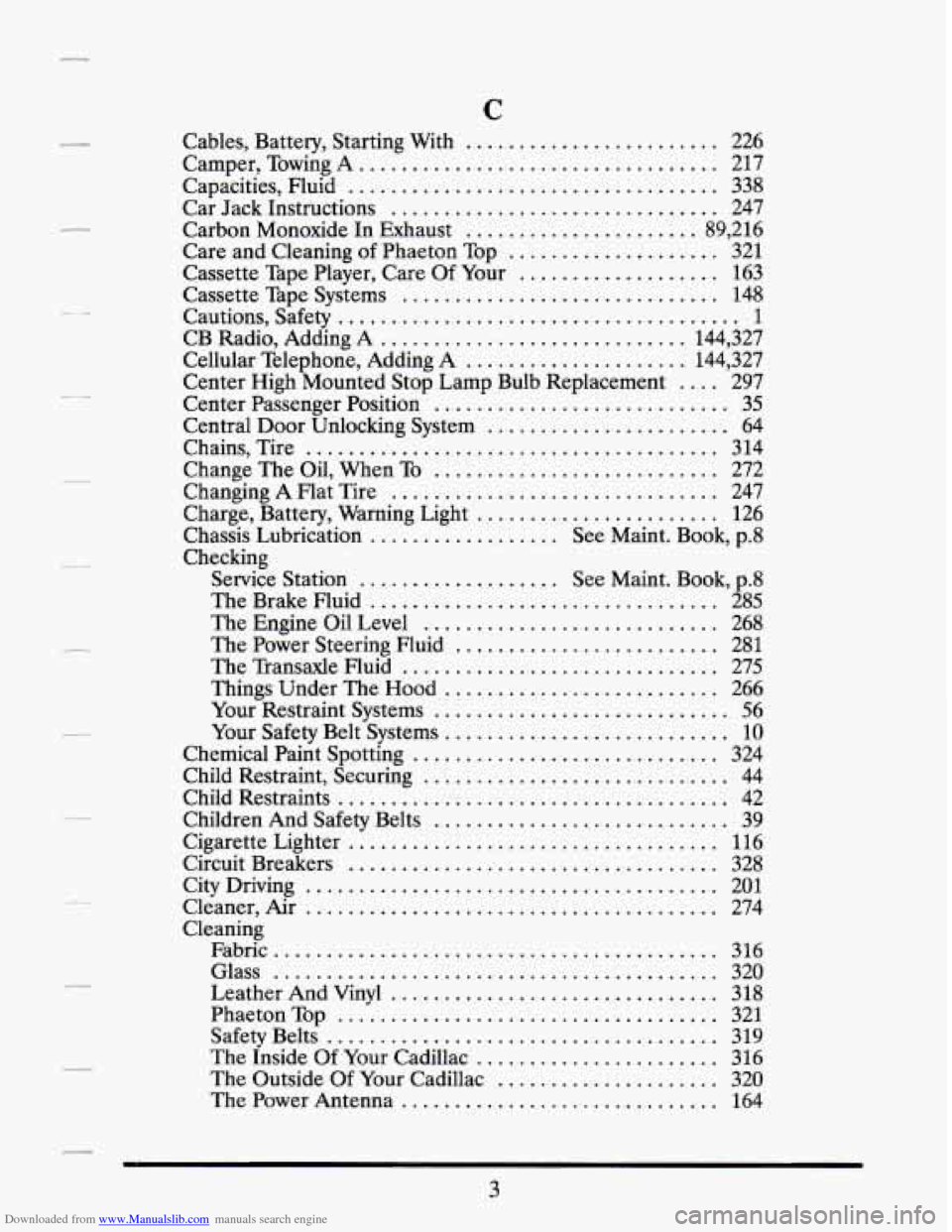

Downloaded from www.Manualslib.com manuals search engine .
.
c-
.
.
.
.
.
C
Cables. Battery. Starting With ........................
Capacities. Fluid ...................................
Car Jack Instructions ...............................
Camper. Towing A ..................................
226
217
338 247
Carbon Monoxide In Exhaust
...................... 89. 216
Care and Cleaning
of Phaeton Top .................... 321
Cassette Tape Player. Care
Of Your ................... 163
Cassette Tape Systems
.............................. 148
Cautions. Safety
...................................... 1
CB Radio. Adding A ............................. 144. 327
Center High Mounted Stop Lamp Bulb Replacement
.... 297
Cellular
Telephone. Adding A
..................... 144. 327
Center Passenger Position
............................ 35
Central Door Unlocking System
....................... 64
Chains. Tire
....................................... 314
Change The Oil. When To
........................... 272
Changing A Flat Tire
............................... 247
Charge. Battery. Warning Light
....................... 126
Checking Chassis Lubrication
.................. See Maint . Book. p.8
Service Station ................... See Maint . Book. p.8
The Brake Fluid
................................. 285
The Engine Oil Level
............................ 268
The Power Steering Fluid
......................... 281
The Transaxle Fluid
.............................. 275
Things Under The
Hood .......................... 266
Your Restraint Systems
............................ 56
Your Safety Belt Systems ........................... 10
Chemical Paint Spotting ............................. 324
Child Restraint. Securing
.. .. .......................... 44
Child Restraints
..................................... 42
Children And Safety Belts
............................ 39
Cigarette Lighter
...................................
Circuit Breakers ...................................
CityDriving .......................................
Cleaner. Air .......................................
Cleaning
Fabric
..........................................
Glass ..........................................
Leather And Vinyl ...............................
Safety Belts .....................................
The Inside Of Your Cadillac .......................
The Outside Of Your Cadillac .....................
The Power Antenna ..............................
PhaetonTop ....................................
116
328
201
274
316
320
318
321
319
316
320 164
.
3

Downloaded from www.Manualslib.com manuals search engine .
.
.
.
.
.
.
.-
Leather. Cleaning .................................. 318
Light. Air Bag System
................................ 29
Light. Change Oil Soon
............................. 128
Light. Charge
...................................... 126
Light. Coolant Temp
................................ 125
Light. Oil
......................................... 127
Light. Safety Belt Reminder
......................... 11. 17
Light. Security
...................................... 71
Light. Service Air
Cond ............................. 129
Light. Service Engine Soon
.......................... 126
Light. Service
SSS .................................. 129
Light. Service Vehicle Soon
.......................... 126
Light. Stop Engine Temp
............................ 125
Light. Traction Active
............................... 123
Light. Traction
Off .................................. 123
Light. Turn Signal Indicator
........................... 93
Lighter. Cigarette
.................................. 116
Lights
............................................ 104
Lights. Operation
of ................................. 94
Lights. Traffic
...................................... 173
Lights. Warning. On Instrument Panel
................. 120
Loading
.. Tires .................................... 305
Loading Your Vehicle
............................... 303
Lock. Rear Door Security
............................. 63
Locks. Door
........................................ 60
Log. Operating Record
.............. See Maint . Book. p.44
Long Distance Driving
.............................. 204
Loss
Of Control .................................... 192
Low Battery. What
To Do About A .................... 226
Low Oil Pressure. Warning Light For
.................. 127
Low Windshield Washer Fluid Warning Light
............ 97
Lubricants. Recommended
........... See Maint . Book. p.38
Maintenance A Word About
................... See Maint . Book. p.2
Coupons
........................ See Maint . Book. All
Explanation
of Services .... See Maint . Book. p.18,20,22,24
Oil Change
...................... See Maint . Book. p.2
Owner Checks
............. See Maint . Book. p.26,28,30
Operating Record Log
.......... See Maint . Book. p.44-80
Recommended Fluids
....... See Maint . Book. p.38,40,42
Schedules
............... See Maint . Book. p.10,12,14,16
Service Ctr
. Inspec . & Sew ... See Maint . Book. p.32,34,36
Service Station Owner Checks
...... See Maint . Book. p.8
Maintenance Record
................ See Maint . Book. p.44
9

Downloaded from www.Manualslib.com manuals search engine .
Maplights ......................................... 107
Markings. Pavement ................................ 174
Master Cylinder. Brake .............................. 284
Matching Transmitters ............................... 66
Methanol In Gasoline ............................... 261
Mileage Indicator .................................. 119
Mirrors. Front Seat Vanity ........................... 111
Mirrors. Inside Daymight ........................... 109
Mirrors. Outside ................................... 111
Mist. Driving In .................................... 199
Mobile Telephone. Adding A ...................... 144. 327
Monitors. Lamp .................................... 108
Mountain Driving .................................. 206
MTBE In Gasoline ................................. 262
Mud. If You’re Stuck In ............................. 257
N
“N” (Neutral) Gear Position .......................... 80
New Vehicle “Break-In” .............................. 74
Night. Driving At ................................... 193
Night Vision ....................................... 194
Notices About Damage ................................ 2
0
Occupant Restraint .................................. 10
Octane Required For Your Car ....................... 261
Odometer And Speedometer ......................... 118
Odometer. Trip .................................... 119
Off (Ignition Key Position) ............................ 74
Off Road Recovery ................................. 189
Oil. Engine ........................................ 268
Oil. When To Change Your Engine .................... 272
Oil Life Indicator ................................... 133
Oil Light .......................................... 127
OilQuality ........................................ 272
Oil Thickness (Viscosity) ............................ 270
Operation In Foreign Countries ...................... 263
Outside Air ....................................... 137
Outside Mirrors .................................... 111
Overdrive. Automatic ................................ 80
Overheating. Engine ................................ 236
Owner Checks & Services ............ See Maint . Book. p.26
Operating Record .................. See Maint . Book. p.44
Overheated Engine Coolant. Warning Light For ......... 125
.
L-d
- .
I.)
.
‘L -.
.
.
u
.
Ld
..
.
c
.
10

Downloaded from www.Manualslib.com manuals search engine Rear Towing Hook-Ups ............................. 235
Rear Window Defogger ............................. 142
Recovery. Off Road ................................. 189
Recreational Vehicle. Towing A
....................... 217
Remote Fuel Door ................................. 264
Remote Trunk Release ............................... 69
Replacement Fasteners .............................. 260
Replacing Brake System Parts ........................ 286
Replacing Safety Belts ............................... 56
Replacing Tires .................................... 310
Replacing Wheels .................................. 312
to Canadian Gov’t ................ See Owner Assistance
to General Motors
................ See Owner Assistance
to U.S. Gov’t ..................... See Owner Assistance
Restarting Your Car When It’s Moving
................. 75
Restraint. Infant ..................................... 40
Restraint. Occupant ................................. 10
Restraint Systems. Checking Your ...................... 56
Restraints. Child .................................... 42
Restraints. Head ..................................... 9
Restraints. Larger Children ........................... 52
Retained Accessory Power ........................... 328
Reverse Gear Position ............................... 78
“Riding” The Brakes ................................ 181
Road Signs ........................................ 166
Roads. Hill and Mountain ........................... 206
Rocking Your Car Out Of Snow. Ice. Sand Or Mud ...... 257
Rotation. Tire ..................................... 308
Rotate. If You’re Stuck And Your Front Wheels Can’t ..... 82
Run (Ignition Key Position) ........................... 75
Running Your Engine While Parked .................... 89
Reclining Front Seatbacks ............................. 7
Recommended Fluids & Lubricants ... See Maint . Book. p.38
Reporting Safety Defects
Sa
Sa
Sa
Sa
Sa
Sa
Sa
Sa
Sa
Sa
S
rety Belt Extender ................................. 55
rety Belt Reminder Light ......................... 11. 17
rety Belt Replacement. Need For .................... 56
!ety Belt Use During Pregnancy ..................... 33
rety Belt Usage By Adults ........................... 18
rety Belt Usage By Children ......................... 39
rety Belts. Center Passenger’s Position ................ 34
rety Belts. Cleaning ............................... 319
rety Belts. How To Wear Properly .................... 18
retyBelts ........................................ 10
12
