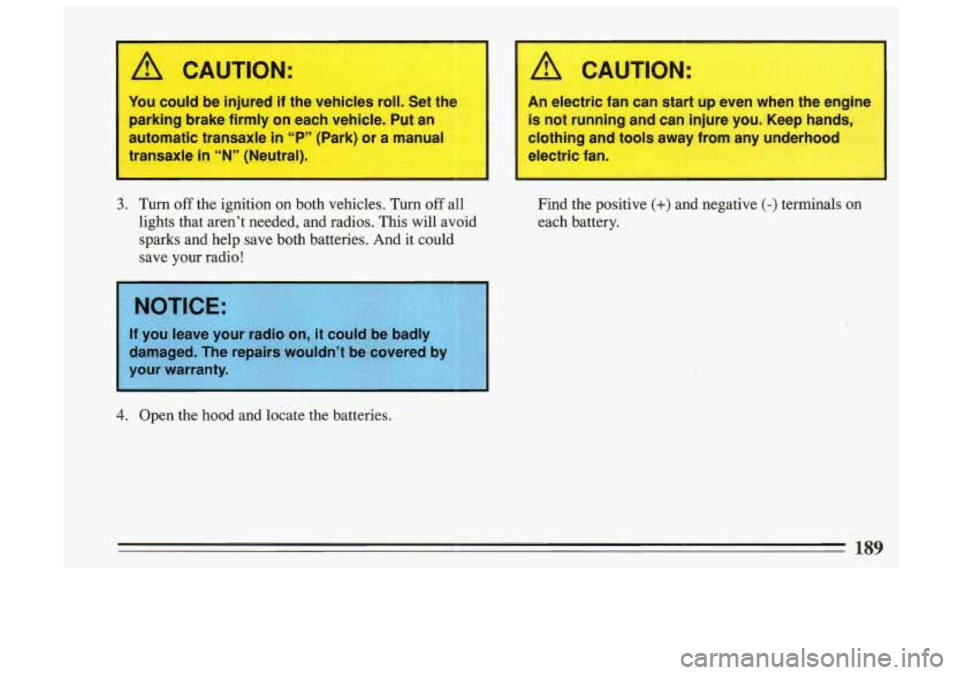

You could be injured if the whicles rd. Sat ths
parking brake firmly on each ve,hicle, ‘Put an
automatic tra’nsaxle in “P*” (Pa~k) or a. ._,an#ual
transaxle in ‘W’ (Neutral).
3. Turn off the ignition on both vehicles. Turn off all
lights that aren’t needed, and radios. This will avoid
sparks and help save both batteries. And it could
save your radio!
4. Open the hood and locate the batteries.
/1 CAUTION:
An electric fan can start up even when the eng
is not running and can injure you. Keep hands
clothing and tools away from
electric fan.
Find the positive (+) and negative (-) terminals on
each battery.
189
Before you connect the cables, here are some things
you should know. Positive (+ ) will go to positive (+)
and negative (-) will go to negative (-) or a metal
engine part. Don't connect
(+) to (-) or you'll get a
short that would damage the battery and maybe other
parts, too.
I
5. Check that the jumper cables don't have loose or
missing insulation. If they do, you could get a shock.
The vehicles could
be damaged, too.
190
r

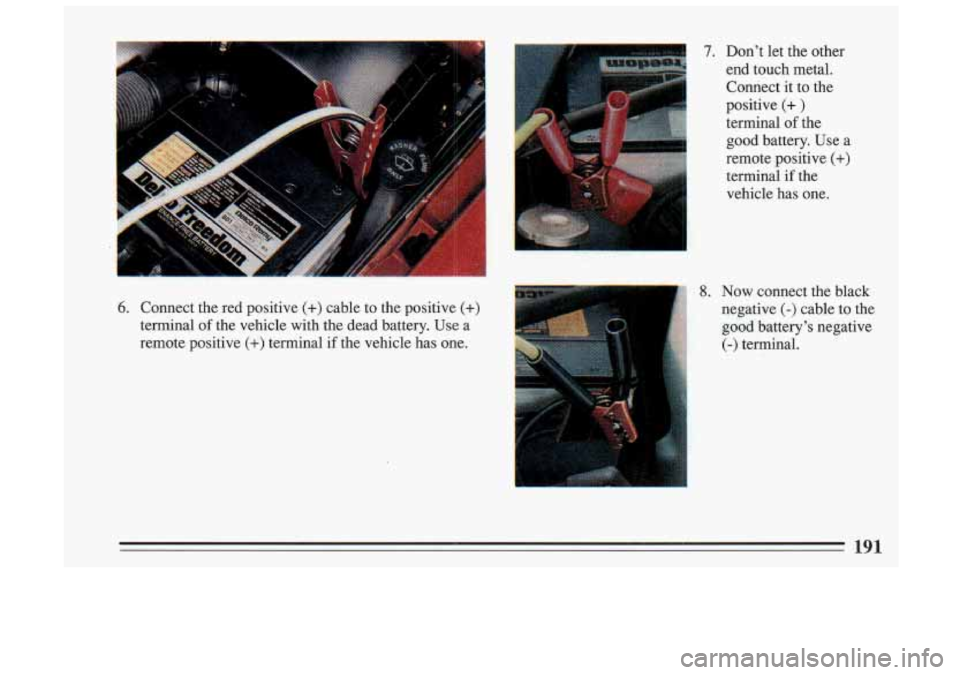

7. Don’t let the other
end touch metal. Connect it to the
positive
(+ )
terminal of the
good battery. Use a
remote positive
(+)
terminal if the
vehicle has one.
6. Connect the red positive (+) cable to the positive (+)
terminal of the vehicle with the dead battery. Use a
remote positive
(+) terminal if the vehicle has one.
8. Now connect the black
negative
(-) cable to the
good battery’s negative
(-) terminal.
191

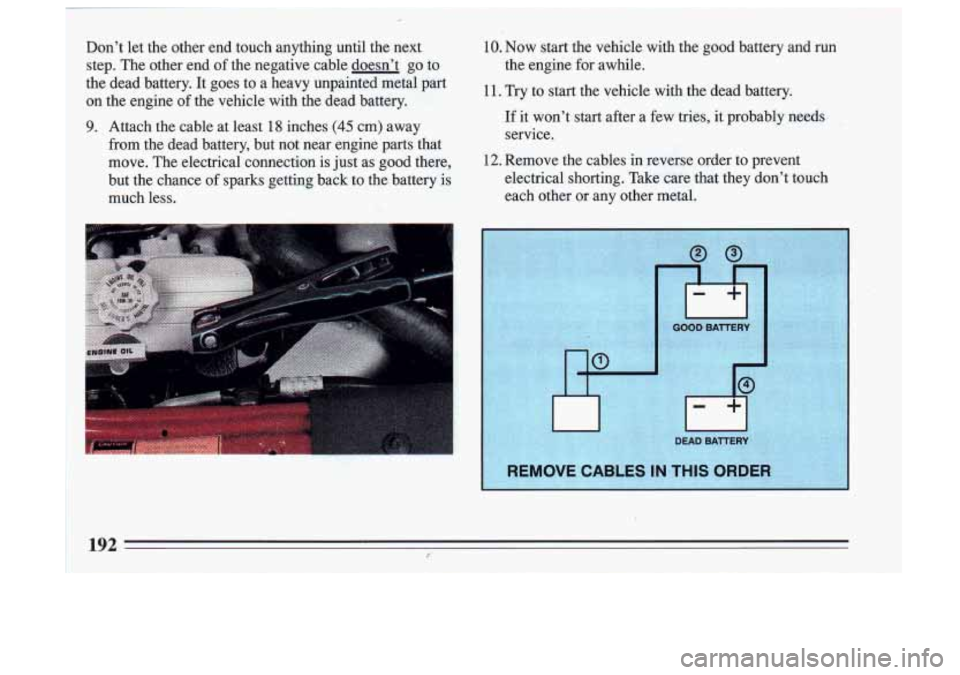

Don't let the other end touch anything until the next
step. The other end of the negative cable doesn't go to
the dead battery. It goes to a heavy unpainted metal part
on the engine of the vehicle with the dead battery.
9. Attach the cable at least 18 inches (45 cm) away
from the dead battery, but not near engine parts that
move. The electrical connection is just as good there,
but the chance
of sparks getting back to the battery is
much less.
10. Now start the vehicle with the good battery and run
the engine for awhile.
11. Try to start the vehicle with the dead battery.
If it won't start after a few tries, it probably needs
service.
'-? - ' * < :.!. , .,_. = , .::.t, ._ .. . . c_
12. Remove the cables in reverse order to prevent
electrical shorting. Take care that they don't touch each other or any other metal.
Replacing Brake System Parts
The braking system on a modern vehicle is complex. Its
many parts have to be of top quality and work well
together
if the vehicle is to have really good braking.
Vehicles we design and test have top-quality GM brake balance between
your front
and rear brakes can change,
for the worse. The braking performance you’ve come to
expect. can change in many other ways
if someone puts
in the wrong replacement brake parts.
Battery
Every new Buick has a Delco Freedoms battery. You
never have to add water to one
of these. Whenit’s time
for a new battery, we recommend
a Delco Freedoms
battery. Get one that has the catalog number shown on
the original battery’s label.
Vehicle Storage
If you’re not going to drive your vehicle for 25 days or
more, take
off the black, negative (-) cable from the
battery. This will help keep your battery from running
parts in them, as your Buick does when it is new. When
4 A CAUTION:
you replace parts of your braking system -- for example,
when your brake linings wear down and you have to
have new ones put in
-- be sure you get new genuine
GM replacement parts. If you don’t, your brakes may no
longer work properly. For example, if someone puts in
brake linings that are wrong for your vehicle, the
1 Batteries have acid that can burn you and gas
that can explode. You can be badly hurt
if you
aren’t careful. See “Jump Starting” in the Index
for tips on working around a battery without
getting hurt.
237
Part 9 Index
Acc (Ignition Key Position) ........................ 72 Antifreeze ...................................... 231
Adding Antilock Brakes
................................. 150
Brake Fluid
.................................. 236 Antilock Brake System Warning Light ............... 111
Coolant
..................................... 231 Anti-Theft Tips ................................... 70
Electrical Equipment
.......................... 257 Anti-Theft Feature. Delco Loc I1 .................... 131
Engine Oil
................................... 223 Appearance Care ................................ 249
Power Steering Fluid
.......................... 243 Appearance Care and Materials ..................... 256
Transaxle/Transmission Fluid
.................... 229 Armrest Storage ................................. 107
Windshield Washer Fluid
....................... 235 Ashtrays ....................................... 105
Additives, Engine Oil
.............................. 226 Assist Handles .................................. 107
Adjustable Ride Control
............................ 86 Audio Systems .................................. 122
Adjustment, Brake
............................... 153 Automatic Door Locks ............................. 65
Adult Safety Belt Usage
............................ 28 Automatic Transaxle .............................. 77
Air Cleaner
..................................... 228 Automatic Transaxle Fluid ......................... 229
Air Conditioner
................................. 122 Automatic Transaxle Torque Lock .................... 174
Air Outlets
..................................... 120
Alcohol, Driving Under the Influence of
.............. 145
Alcohol in Gasoline
.............................. 21 7 Baby, Holding a ................................. 45
Aluminum Wheels, Cleaning
....................... 253 Battery ........................................ 237
AM Radio Reception
............................. 122 Battery Cables, Starting With ....................... 188
AM Stereo Radio Reception
....................... 123 Battery Warning Light and Gage .................... 116
Antenna Care
................................... 134 Blizzard. If You’re Caught in a ..................... 177
. ~ .- . ~ .. __ - ~
Starting Your Car if the Battery is “Dead” .............. 188
Steam From Hot (Overheated) Engine ................ 197
Steering ........................................ 154
Steering in Emergencies ........................... 155
Steering Wheel, Tilt ............................... 88
Steering Without Power Assist ..................... 154
Stereo Sound Systems ............................ 122
Storage Console ................................. 106
Storing Your Vehicle ............................. 237
Stuck. If Your Ignition Key is ....................... 73
Stuck. IfYour Car Is ............................. 213
Subscribing to Buick Product Service Publications ...... 288
Surge Tank Pressure Cap .......................... 233
Symbols on Your Car .............................. 12
Table of Contents ................................. 9
Tachometer ..................................... 1 17
Tamper-Resistant Odometer ........................ 108
Tape Player Care ................................ 133
Temperature. Engine Coolant Warning Light .......... 112
Theft ............................................ 70
Thermostat ..................................... 233
Third Gear ...................................... 78
Tilt Steering Wheel ............................... 88
Time. Setting the ......................... 125.127. 129
Tire Balance .................................... 246
Tire Chains ..................................... 248
Tire. Flat ....................................... 204
Tire Inflation ................................... 242
Tire Inspection and Rotation ....................... 243
Tire Quality Grading ............................. 245
Tires .......................................... 241
Tires. When to Replace ........................... 244
Tires. White Sidewall Cleaning ..................... 254
Torn Safety Belts ................................. 60
Torque Lock (Automatic Transaxle) ................. 174
Towing Your Buick .............................. 193
Towing a Trailer ................................. 179
Trademarks. GM ................................ 216
Traffic Lights ................................... 143
Traffic Officer .................................. 144
Trailer Brakes ................................... 182
Trailer Towing .................................. 179
Transaxle/Transmission. Automatic ................... 77
Transaxle Fluid .................................. 227
Trip Odometer .................................. 108
Trunk Release. Remote ............................ 66
Turn Signal and Headlight Beam Lever ................ 88
Turn Signal “On” Chime ............................ 90
Twisted Safety Belts .. I ............................ 35
Two Children Wearing the Same Safety Belt ............ 58
Turn Signal and Lane Change Indicator ............... 89
...... a . c
Underbody Maintenance ......................... 255
Uniform Tire Quality Grading
...................... 245
Unleaded Gasoline
............................... 2 17
Uphill Parking
.................................. 173
Upholstery Care
................................. 249
Used Oil. How to Dispose
of ....................... 227
Used Replacement Wheels
......................... 248
Vehicle Damage Warnings
......................... 11
Vehicle Identification Number ...................... 257
Vehicle Storage
................................. 237
Vehicle Symbols
.................................. 12
Volts Gage
..................................... 116
Vinyl. Cleaning
................................. 251
Visor Vanity Mirror
.............................. 104
warnings Devices
.............................. 187
Warning. Hazard Flasher
.......................... 186
Warning Lights
Antilock Brake System
......................... 11 1
Battery
....................................... 116
Brakesystem
................................ 110
CheckOil
................................... 115
Engine Coolant Temperature
.................... 112
Engine Oil Pressure
............................ 114
Indicators and Gages on Instrument Panel
.......... 109
LowCoolant
................................. 113
Malfunction Indicator (Service Engine Soon)
....... 11 3
I
Warnings. Safety ................................. 10
Washer. Windshield
............................... 92
Wear Indicators. Disc Brake
....................... 152
Weather Strips
.................................. 254
Weight.of a Trailer
............................... 180
Wheel Alignment
................................ 246
Wheel Covers Removal
........................... 206
Wheel Replacement
.............................. 247
White Sidewall Tire Cleaning
...................... 254
Why Wear Safety Belts?
........................... 23
Windows. Power
................................. 87
Windshield
Cleaning
.................................... 252
Washer
..... : ................................ 92
Washer Fluid
.............................. 92. 235
Wipers
................................... 9252 1.
Winter Driving
.................................. 175
Working on Your Car
............................. 216
Worn Tires
..................................... 244
Wrecker Towing
................... ............. 193
Washing Your Vehicle
............................ 253
WheelNutTorque
............................... 211
Your Driving and the Road
....................... 137
Your Own Signals
............................... 144
Your Vehicle and the Environment
.................. 267
