1993 BUICK REGAL ad blue

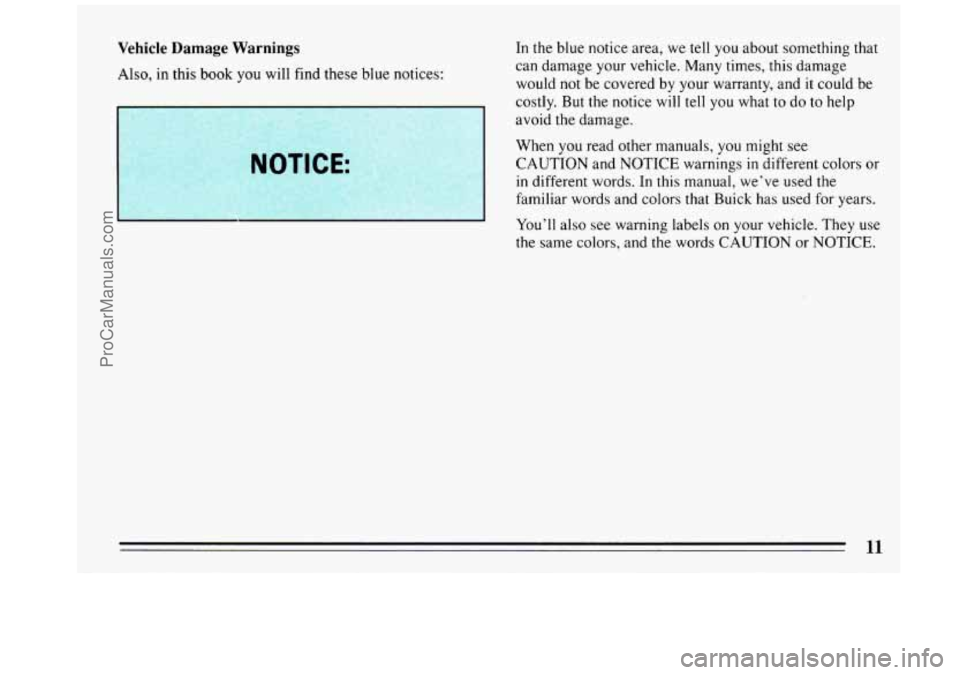

Vehicle Damage Warnings
Also, in this book you will find these blue notices:
NOTICE:
In the blue notice area, we tell you about something that
can damage your vehicle. Many times, this damage
would not be covered by your warranty, and
it could be
costly. But the notice will tell
you what to do to help
avoid the damage.
When you read other manuals, you might see
CAUTION and NOTICE warnings in different colors or
in different words.
In this manual, we’ve used the
familiar words and colors that Buick has used for years.
You’ll also see warning labels on your vehicle. They use
the same colors, and the words CAUTION or NOTICE.
11
ProCarManuals.com

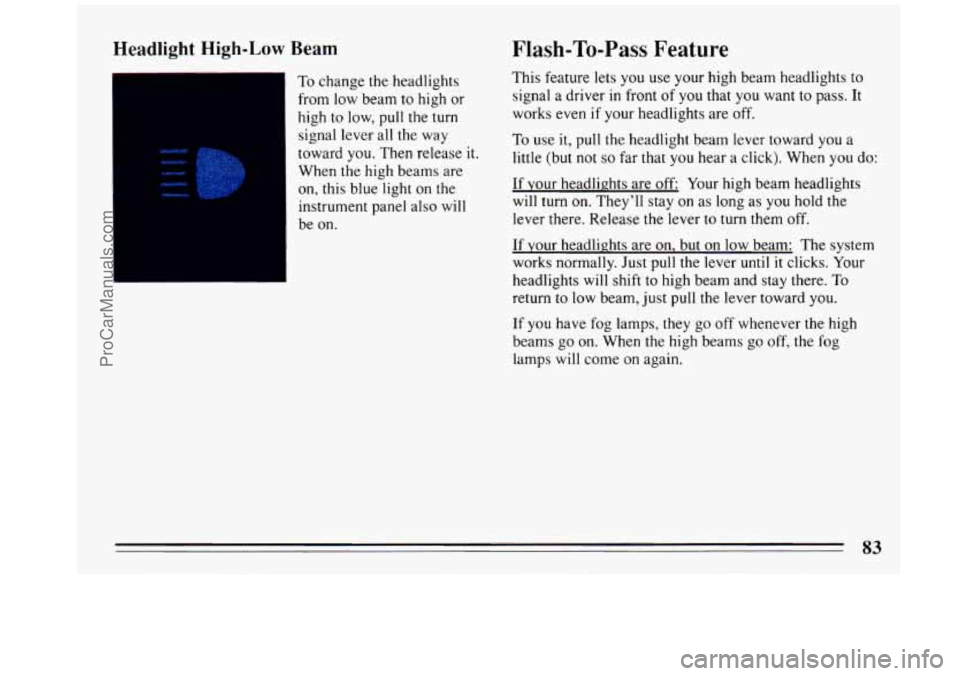

Headlight High-Low Beam
rc
To change the headlights
from low beam to high or
high to low, pull the turn
signal lever all the way
toward you. Then release
it.
When the high beams are
on, this blue light on the
instrument panel also will
be on.
Flash-To-Pass Feature
This feature lets you use your high beam headlights to
signal a driver
in front of you that you want to pass. It
works even if your headlights are off.
To use it, pull the headlight beam lever toward you a
little (but
not so far that you hear a click). When you do:
If your headlights are off Your high beam headlights
will
turn on. They’ll stay on as long as you hold the
lever there. Release the lever
t.o turn them off.
If your headliphts are on, but on low beam: The system
works normally. Just pull the lever until
it clicks. Your
headlights will shift to high beam and stay there.
To
return to low beam, just pull the lever toward you.
If
you have fog lamps, they go off whenever the high
beams go on. When the high beams
go off, the fog
lamps will come
on again.
83
ProCarManuals.com

I
1 SMALLTO
EXIT 1

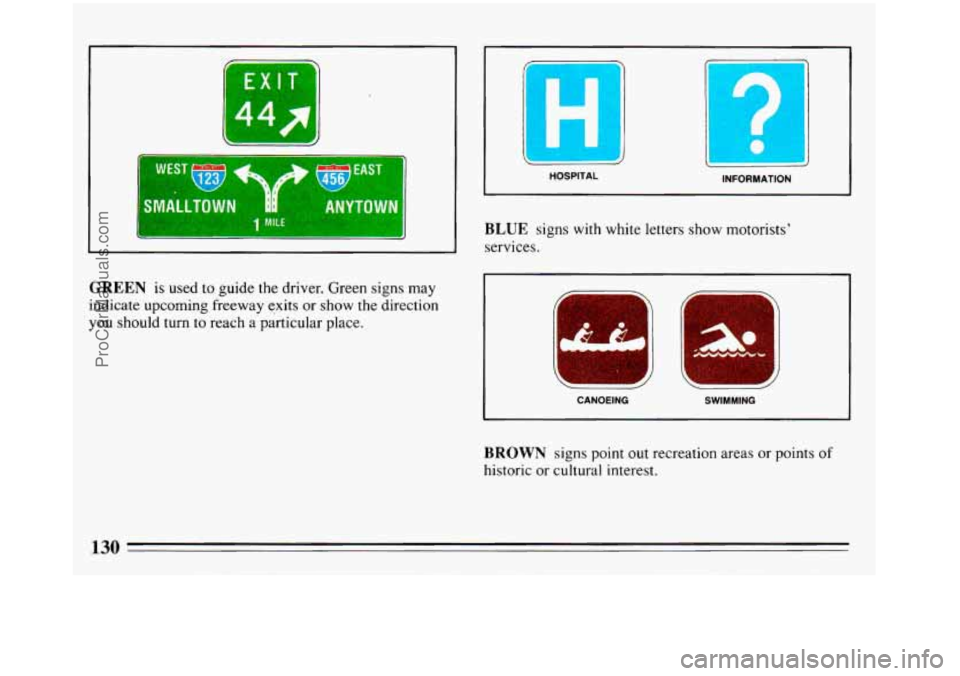

GREEN is used to guide the driver. Green signs may
indicate upcoming freeway exits or show the direction
you should turn to reach a particular place.
I
BLUE signs with white letters show motorists’
services.
1
CANOEING SWIMMING
BROWN signs point out recreation areas or points of
historic or cultural interest.
ProCarManuals.com

The fuse chart, below, shows how to tell a blown fuse
from a good fuse.
... ... .- .
GOOD
FUSE
GM PARTNO. I U RATING ’ COLOR
12004003 ................... 3 AMP VIOLET
12004005
................... 5.AMP TAN
12004006 ................... 7.5 AMP BROWN
12004007
................... 10 AMP RED
12004008
................... 15 AMP LIGHT BLUE
12004009
................... 20 AMP YELLOW
12004010
................... 25 AMP WHITE
12004011 ................... 30 AMP LIGHT GREEN
Headlights
The
headlight wiring is protected by a circuit breaker in
the light switch. An electrical overload will cause the
lights to go on and off, or
in some cases to remain off. If
this happens, have your headlight wiring checked right
away.
Windshield Wipers
The windshield wiper motor is protected by a circuit
breaker and a fuse. If the motor overheats due to heavy
snow, etc., the wiper will stop until the motor cools. If
the overload is caused by some electrical problem and
not snow, etc., be sure to get it fixed.
Power Windows and Other Power Options
Circuit breakers in the fuse panel protect the power
windows and other power accessories. When
the current
load is too heavy,
the circuit breaker opens and closes,
protecting the circuit
until the problem is fixed or goes
away.
260
