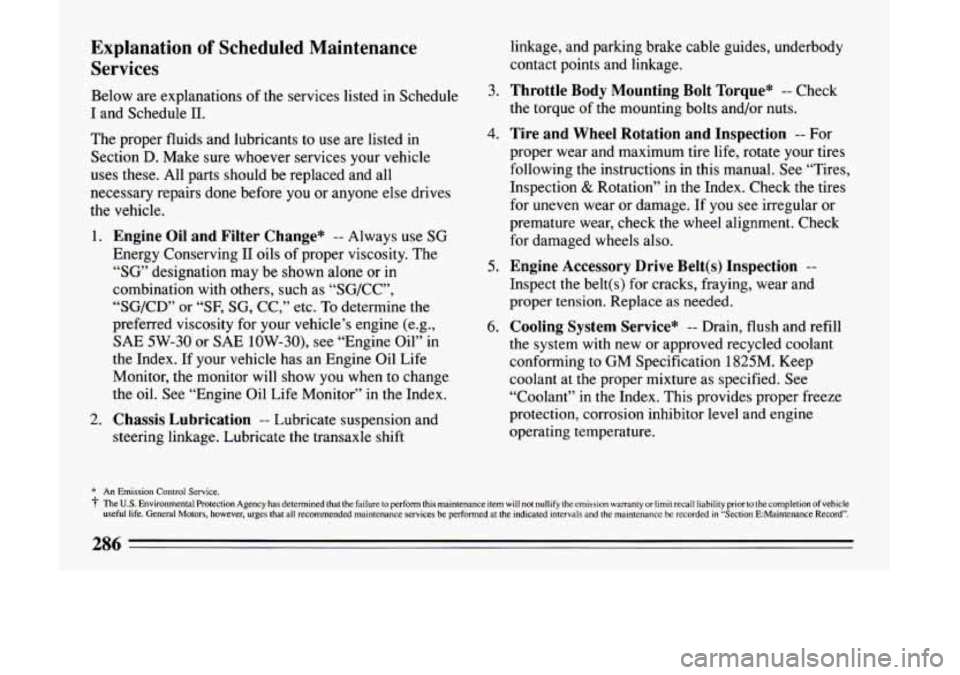

Explanation of Scheduled Maintenance
Services
Below are explanations of the services listed in Schedule
I and Schedule 11.
The proper fluids and lubricants to use are listed in
Section
D. Make sure whoever services your vehicle
uses these. All parts should be replaced and all
necessary repairs done before
you or anyone else drives
the vehicle.
1. Engine Oil and Filter Change* -- Always use SG
Energy Conserving I1 oils of proper viscosity. The
“SG” designation may be shown alone or in
combination with others, such as “SG/CC”,
“SG/CD” or “SF, SG, CC,” etc. To determine the
preferred viscosity for your vehicle’s engine (e.g.,
SAE
5W-30 or SAE 10W-30), see “Engine Oil” in
the Index. If your vehicle has an Engine Oil Life
Monitor, the monitor will show
you when to change
the oil. See “Engine Oil Life Monitor” in the Index.
2. Chassis Lubrication -- Lubricate suspension and
steering linkage. Lubricate the transaxle shift linkage, and parking brake
cable guides, underbody
contact points and linkage.
3. Throttle Body Mounting Bolt Torque* -- Check
the torque of the mounting bolts and/or nuts.
4. Tire and Wheel Rotation and Inspection -- For
proper wear and maximum tire life, rotate your tires
following
the instructions in this manual. See “Tires,
Inspection
& Rotation” in the Index. Check the tires
for uneven wear or damage. If you see irregular or
premature wear, check the wheel alignment. Check
for damaged wheels also.
5. Engine Accessory Drive Belt(s) Inspection --
Inspect the belt(s) for cracks, fraying, wear and
proper tension. Replace as needed.
6. Cooling System Service” -- Drain, flush and refill
the system with new or approved recycled coolant
conforming to GM Specification 1825M. Keep
coolant at the proper mixture as specified. See
“Coolant” in
the Index. This provides proper freeze
protection, corrosion inhibitor level
and engine
operating temperature.
* An Emission Control Service.
3‘ The U.S. Environmental Protection Agency has determined that the failure to perfonn this maintenance item will not nullify the emission warranty or limit recall liability prior to thecompletion of vehicle
useful life. General Motors, however, urges that all recommended maintenance services be performed at the indicated intervals and the maintenance be recorded in “Section E:Maintenance Record”.
286

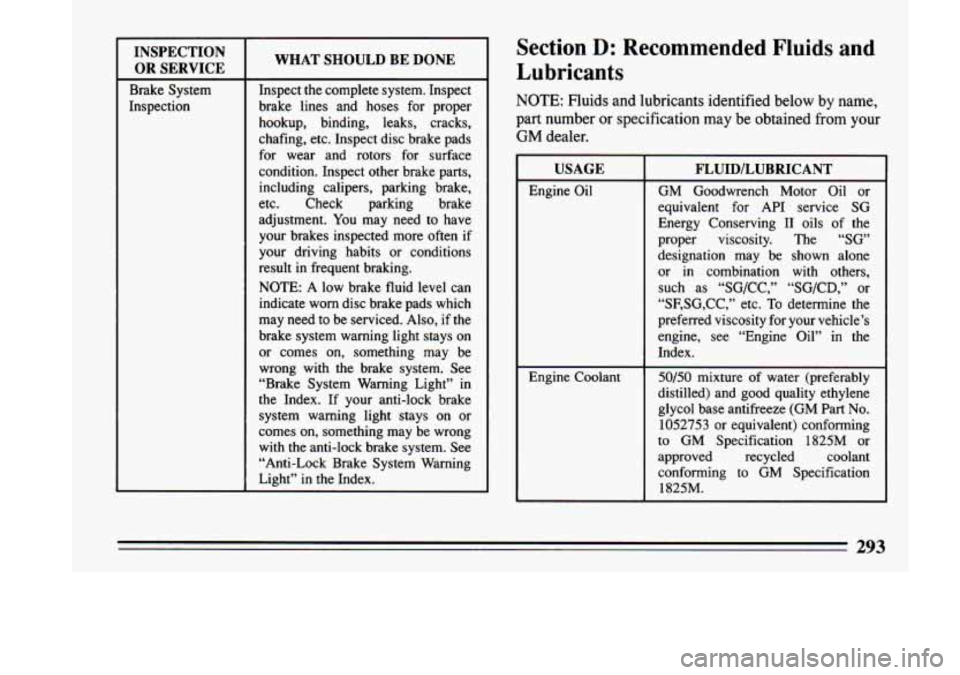

INSPECTION OR SERVICE
Brake System
Inspection
WHAT SHOULD BE DONE
Inspect the complete system. Inspect
brake lines and hoses for proper hookup, binding, leaks, cracks,
chafing, etc. Inspect disc brake pads
for wear and rotors for surface
condition. Inspect other brake parts, including calipers, parking brake,
etc. Check parking brake
adjustment.
You may need to have
your brakes inspected more often
if
your driving habits or conditions
result in frequent braking.
NOTE:
A low brake fluid level can
indicate worn disc brake pads which
may need to be serviced. Also,
if the
brake system warning light stays on
or comes on, something may be
wrong with the brake system. See
“Brake System Warning Light” in
the Index. If your anti-lock brake
system warning light stays
on or
comes on, something may be wrong
with the anti-lock brake system. See
“Anti-Lock Brake System Warning
Light” in the Index.
Section D: Recommended Fluids and
Lubricants
NOTE: Fluids and lubricants identified below by name,
part number
or specification may be obtained from your
GM dealer.
FLUID/LUBRICANT
GM Goodwrench Motor Oil or
equivalent for API service SG
Energy Conserving I1 oils of the
proper viscosity. The
“SG’
designation may be shown alone
or
in combination with others,
such as “SG/CC,” “SG/CD,” or
“SF,SG,CC,” etc.
To determine the
preferred viscosity for your vehicle’s
engine, see “Engine Oil’’ in the
Index.
50/50 mixture of water (preferably
distilled) and good quality ethylene
glycol base antifreeze (GM Part
No.
1052753 or equivalent) conforming
to GM Specification 1825M or
approved recycled coolant
conforming to GM Specification
1825M.
293
-

USAGE FLUID/LUBRICANT
Hydraulic Brake
(GM Part No.
1052535) or
System Delco
Supreme 11
@ Brake Fluid
equivalent
DOT-3 brake fluid.
Parking Brake
Category LB or GC-LB (GM Part
requirements
of NLGI Grade 2,
Guides Chassis
lubricant meeting
No. 1052497 or equivalent).
Power Steering
Transmission Fluid (GM Part No.
Transaxle
DEXRON@ IIE Automatic Automatic
(GM Part No. 1052884) or
System GM Hydraulic Power Steering Fluid
equivalent.
1234588 1).
Key Lock Lubricate with Multi-Purpose
Cylinders Lubricant
(GM Part
No. 12345 120),
synthetic SAE 5W-30 engine oil or
silicone lubricant (GM Part
No.
1052276 or 1052277).
Automatic
Transaxle Shift Engine
oil.
Linkage
USAGE
Chassis
Lubrication
Windshield
Washer Solvent
Hood Latch
Assembly a. Pivots and
Spring
Anchor
b. Release
Pawl
Hood and Door
Hinges, Fuel
Door Hinge
Weatherstrips
FLUID/LUBRICANT
Chassis lubricant meeting
requirements
of NLGI Grade 2,
Category LB or GC-LB (GM Part
No. 1052497 or equivalent).
GM Optikleen@ Washer Solvent
(GM Part
No. 105 15 15) or
equivalent.
a. Engine oil.
b. Chassis lubricant meeting
requirements of NLGI Grade 2,
Category LB or GC-LB (GM Part
No. 1052497 or equivalent).
Engine oil or Lubriplate Lubricant
(GM Part
No. 1050109).
Dielectric Silicone Grease (GM Part
No. 12345579 or equivalent).
See “Specifications Chart” in the Index for
recommended replacement filters. valves and spark
plugs.
294

XI Engineoil ..................................
Power Steering Fluid .........................
Transaxle/Transmission Fluid ................ 24
Windshield Washer Fluid
.........................
Additives . Engine Oil ............................
Acc (Ignition Key Position) ......................... 69
Adding Brake Fluid
.................................. 248
Coolant
................................. 211. 243
Electrical Eauiument
...................... 128. 269
. 236
. 246
1. 277
. 247
I” . 239
Adjustment. Brake
............................... 163
Adult Safety Belt Usage
............................ 24
AirBag
......................................... 33
Aircleaner ..................................... 240
Air Conditioner
............................. 1 19. 125
Air Outlets
..................................... 11 8
Air System
................................. 1 19. 125
Alcohol. Driving Under the Influence
of .............. 155
Alcohol in Gasoline .............................. 231
Aluminum Wheels. Cleaning
....................... 266
AM Radio Reception
............................. 127
AM Stereo Radio Reception
....................... 128
Antenna
....................................... 142
Antifreeze
...................................... 243
@) Part 9 Index
Antilock Brake System ........................... 160
Anti-Theft Tips
................................... 66
Anti-Theft Feature. Delco Loc I1 .................... 139
Appearance Care
................................ 262
Armrest. Storage
................................ 104
Ashtrays ....................................... 102
Audio Systems
.................................. 127
Automatic Air Conditioning System
................. 119
Automatic Overdrive
.............................. 74
Automatic Transaxle
.............................. 73
Automatic Transaxle Fluid
..................... 24 1. 277
Automatic Transaxle Torque
Lock ................... 184
Antilock Braking System Warning Light
.............. 108
Appearance Care and Maintenance Materials .......... 268
Baby. Holding
a ................................. 42
Battery
........................................ 249
Battery Cables. Starting With
....................... 198
Battery Warning Light
............................ 115
Blizzard.
If You’re Caught in a ..................... 187
BloodAlcoholLevel
............................. 156
“Blowout. .. Tire ................................. 216
Boat. Towinga .................................. 189
305

Brake Adjustment
................................... 163
Fluid 248 .......................................
Lining Replacement. How to Drive After .......... 249
Master Cylinder
.............................. 248
Brake-Transaxle Shift Interlock
................... 73. 80
Brake System. Antilock Warning Light ............... 108
Brake System Warning Light
....................... 107
Brake Wear Indicators. Disc
....................... 162
Brakes. Antilock
................................ 160
Braking Emergencies
............................. 163
Braking if Your Engine Stops
...................... 160
Break-In. New Vehicle
............................. 68
Break-In Schedule. When Towing a Trailer
............ 189
Bulb Replacement. Headlamp
...................... 250
Bulb Replacement Taillamp
........................ 252
Bulbs. Halogen
.................................. 250
Bulbs.
Turn Signal ................................ 85
Parking ...................................... 76
PedalTravel
................................. 163
Brakes,Rear
.................................... 163
Braking 158 ........................................
Bulbchart ..................................... 274
Camper. Towing a
.............................. 189
...................................... Capacities 275
Cap. Radiator Pressure 245
Care,Appearance
................................ 262
I ............................ Carbon Monoxide in Exhaust ....................... 81
Cassette Tape Player Care
......................... 141
Cautions, Safety
.................................. 10
CB Radio, Adding a
.............................. 128
I
Cellular Telephone. Adding a ...................... 128
“Change Oil Soon” Light
.......................... 114
Change Oil. When to
............................. *239
Changing a Flat Tire
.............................. 216
Charge.Battery.. Warning Light
..................... 115 .
“Check Oil Level” Light .......................... 113
Engine Coolant
............................... 243
Engine Oil Level
.............................. 236
Power Steering Fluid
.......................... 246
Safety Belt Systems
............................ 55
Transaxle Fluid ............................... 241
Windshield Washer Fluid
.......................... 247
Chemical Paint Spotting
........................... 367
Children and Safety Belts
.......................... 41
Cleaner. Air
............... .................... 240
Aluminum Wheels
............................ 266
Inside Your Car
................................ 262
Outside Your Car
............................. 265
Top of the Instrument Panel ..................... 264
Underbody
of Your Car ........................ 267
Vinyl
or Leather .............................. 264
..................................... Chains. Tie 261
Checking BrakeFluid
.................................. 248
UndertheHood
................................. 234
.................................. Child Restraints 43
Cigarette Lighter
................................ 103
CircuitBreakers
................................. 270
City Driving 175
Cleaning ....................................
Fabric ...................................... 263
Glass
...................................... 265
PowerAntenna
............................... 142
Safety Belts 265 ..................................

Electric Outside Mirror Control .................... 100
Electrical Equipment. Adding
.................. 128. 269
Emergencies. Braking
............................ 163
Emergencies on the Road
.......................... 195
Emergencies. Steering in
......... ; ................ 164
Emergency Starting. Dead Battery
................... 198
Emergency Wrecker Towing
....................... 203
Engine Energy Conserving
Oil ............................ 237
Block Heater
.............................. 72. 239
Coolant
................................. 21 1. 243
Coolant Temperature Warning Light
.............. 110
Exhaust
...................................... 81
Identification
................................. 269
Oil
......................................... 236
Oil Additives
................................. 239
Oil Life Monitor
.............................. 114
Oil Pressure Warning Light
..................... 112
Oil. When to Change
...................... 239. 277
Overheating
.................................. 208
Starting
...................................... 70
Warning Light. Need for Service
................. 111
Ethanol in Gasoline
.............................. 231
Expectant Mothers. Use of Safety Belts
............... 37
Explanation of Scheduled Services
.................. 286
Expressway Driving
.............................. 176
Extender. Safety Belt
.............................. 55
Exterior Appearance ............................. 265 Fasteners.
Replacement
.......................... 230
Features and Controls
............................. 57
Fetus. Risk to
.. From Safety Belt Use ................ 37
Filling Your Fuel Tank
............................ 233
Filter. Oil
...................................... 275
Finish Care
..................................... 266
Finish Damage
.................................. 267
First Gear. When to Use
............................ 75
Flat Tire
....................................... 216
Flooded Engine. Starting a
.......................... 70
Fluid
Capacities
................................... 275
Brake
....................................... 248
Power Steering
........... ; ................... 246
Transaxle/Transmission
........................ 241
Windshield Washer
............................ 247
Fluids and Lubricants Recommended
................ 293
FM Stereo Radio Reception
........................ 127
Fog. Driving
in .................................. 173
Francais. Guide En
................................. 2
Freedom Battery
................................. 249
Freeway Driving
................................ 176
French LanguageManual
........................... 2
Front Brake Disc Wear Indicators
................... 162
Front Towing Hook-Ups
.......................... 206
Fuel
.......................................... 231
Fuel Gage
...................................... 106
Fuel Tank. Filling Your
........................... 233
Fuses and Circuit Breakers
........................ 270
Fuseusage ..................................... 271
Foreign Operation
............................... 232
308

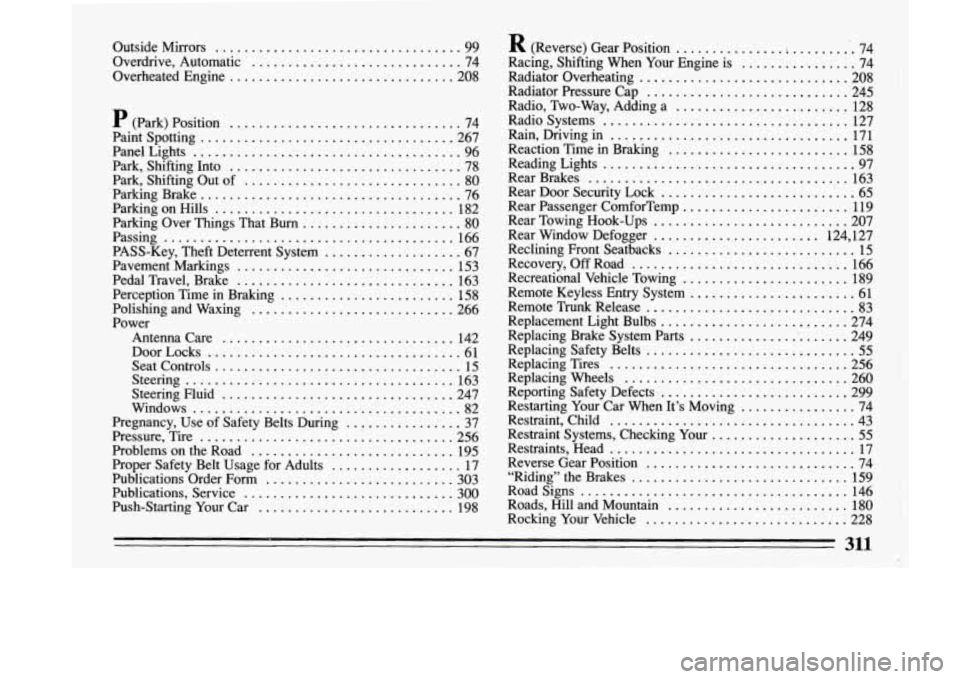

Outside Mirrors .................................. 99
Overdrive. Automatic
............................. 74
Overheated Engine
............................... 208
P (park) Position ................................ 74
PaintSpoaing
................................... 267
Park Shifting Into
................................ 78
Park, Shifting Out of
.............................. 80
Parking Brake .................................... 76
Parking on Hills
................................. 182
Parking Over Things That Burn
...................... 80
PASS-Key, Theft Deterrent System ................... 67
Pavement Markings
.............................. 153
PedalTravel, Brake
.............................. 163
Perception Time in Braking
........................ 158
Polishing and Waxing
............................ 266
Power
Antennacare
................................ 142
Seat Controls
.................................. 15
PanelLights
..................................... 96
passing
........................................ 166
Door Locks
................................... 61
Steering
..................................... 163
Whdows
..................................... 82
Pressure, Tire
................................... 256
Steering Fluid
................................ 247
Pregnancy, Use of Safety Belts During
................ 37
Problems on the Road
............................ 195
proper Safety Belt Usage for Adults
.................. 17
Publications Order Form
.......................... 303
Publications, Service
............................. 300
Push-Starting Your Car
........................... 198
R (Reverse) Gear Position ............... : .......... 74
Racing. Shifting When Your Engine is
................ 74
Radiator Overheating
............................. 208
Radiator Pressure Cap
............................ 245
Radio. Two-way. Adding a
........................ 128
Radio Systems
................................... 127
Rain. Driving in
................................. 171
Reaction Time in Braking
......................... 158
Reading Lights
................................... 97
Rear Door Security Lock
........................... 65
Rear Passenger ComforTemp
....................... 119
Rear Towing Hook-Ups
........................... 207
Rear Window Defogger
....................... 124, 127
Reclining Front Seatbacks
.......................... 15
Recovery,
Off Road .............................. 166
Recreational Vehicle Towing
....................... 189
Remote Keyless Entry System
....................... 61
Remote Trunk Release
............................. 83
Replacement Light Bulbs
.......................... 274
Replacing Safety Belts
............................. 55
Replacing Tires ................................. 256
Replacing Wheels ............................... 260
Reporting Safety Defects
.......................... 299
Restarting Your Car When It’s Moving
................ 74
Restraint, Child
.................................. 43
Restraint Systems, Checking Your
.................... 55
Reverse Gear Position ............................. 74
“Riding” the Brakes
.............................. 159
Road Signs 146
Roads, Hill and Mountain
......................... 180
Rocking Your Vehicle
............................ 228
RearBrakes
.................................... 163
Replacing Brake System Parts
....................... 249
Restraints, Head
.................................. 17
.....................................
311

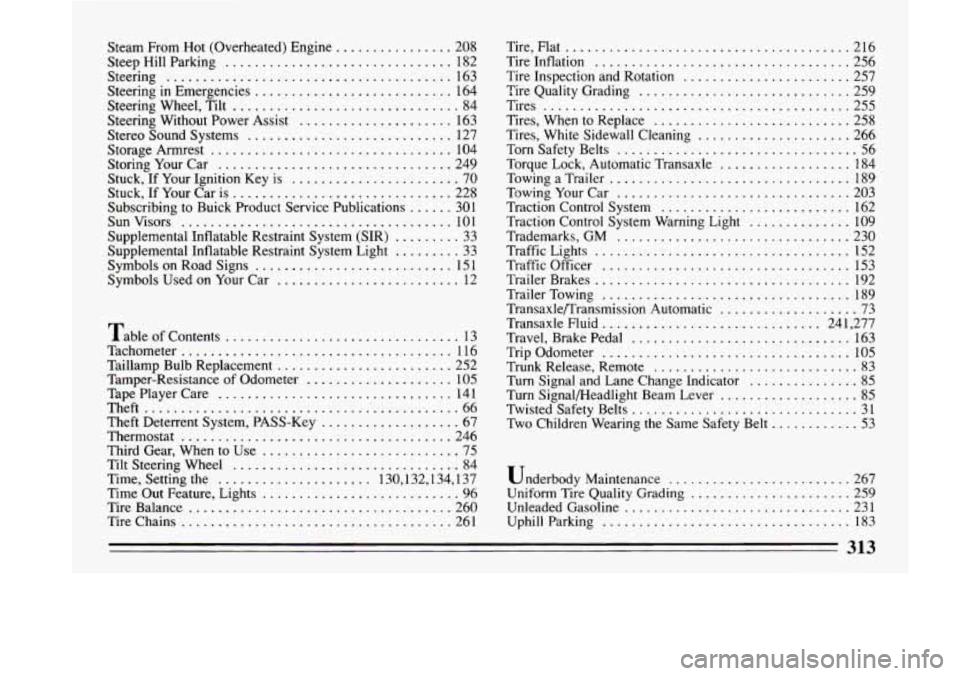

Steam From Hot (Overheated) Engine ................ 208
Steep Hill Parking
............................... 182
Steering
....................................... 163
Steering in Emergencies
........................... 164
Steering Wheel. Tilt
............................... 84
Steering Without Power Assist ..................... 163
Stereo Sound Systems
............................ 127
Storage Armrest
................................. 104
Storing Your Car
................................ 249
Stuck. If Your Ignition Key
is ....................... 70
Stuck. If Your Car is
.............................. 228
SunVisors
..................................... 101
Subscribing to
Buick Product Service Publications
...... 301
Supplemental Inflatable Restraint System
(SIR) ......... 33
Supplemental Inflatable Restraint System Light
......... 33
Symbols on Road Signs
........................... 15 1
Symbols Used
on Your Car ......................... 12
Table of Contents
................................ 13
Tachometer
..................................... 116
Taillamp Bulb Replacement
........................ 252
Tamper-Resistance of Odometer
.................... 105
TapePlayerCare
................................ 141
Theft
........................................... 66
Theft Deterrent System. PASS-Key
................... 67
Thermostat ..................................... 246
Third Gear. When to Use
........................... 75
Tilt Steering Wheel
............................... 84
Time. Setting the
..................... 130.132.134. 137
Time Out Feature. Lights
........................... 96
Tire Balance
.................................... 260
Tire Chains
..................................... 261 Tire. Flat
....................................... 216
Tire Inflation
................................... 256
Tire Inspection and Rotation
....................... 257
Tire Quality Grading
............................. 259
Tires
.......................................... 255
Tires. When
to Replace ........................... 258
Tires. White Sidewall Cleaning
..................... 266
Torn Safety Belts
................................. 56
Torque Lock. Automatic Transaxle
.................. 184
Towing a Trailer
................................. 189
TQwing Your Car ................................ 203
Traction Control System
.......................... 162
Trademarks.
GM ................................ 230
Traffic Lights
................................... 152
Traffic Officer
.................................. 153
Trailer Brakes
................................... 192
Trailer Towing
.................................. 189
Transaxleflransmission Automatic
................... 73
Transaxle Fluid
.............................. 241. 277
Travel. Brake Pedal
.............................. 163
Trip Odometer
.................................. 105
Trunk Release. Remote
............................ 83
Turn Signalmeadlight Beam Lever
................... 85
Twisted Safety Belts ............................... 31
Traction
Control System Warning Light
.............. 109
Turn Signal and Lane Change Indicator
............... 85
Two Children Wearing the Same Safety Belt ............ 53
Underbody Maintenance ......... .... ... ... ...... 267
Uniform Tire Quality Grading
...................... 259
Unleaded Gasoline
............................... 231
Uphill Parking
.................................. 183
. 313
