1993 BUICK CENTURY check engine

Radiator Pressure Cap
ur radiator cap is a 15 psi (105 kPa)
When you replace your radiator pressure cap, an AC@
cap is recommended.
Thermostat
Engine coolant temperature is controlled by a thermostat
in the engine coolant system. The thermostat stops the
flow of coolant through the radiator until the coolant
reaches a preset temperature.
When you replace
your thermostat, an AC@ thermostat is
recommended.
Power Steering Fluid
mp ”-- How to Check Power
Steering Fluid:
I Unscrew the cap and wipe
the dipstick with a clean f rag. Replace the cap and
completely tighten it. Then
remove the cap again and
look at the fluid level on the
dipstick. .1,. ,,
When me engine compartment is hot, the level should
When the engine compartment is cool, the level should
be at the “H” (Hot) mark.
be at the “C” (Cold) mark.
What to Add:
Refer to the Maintenance Schedule to determine what
kind
of fluid to use. See “Recommended Fluids and
Lubricants” in the Index.
241
ProCarManuals.com

I
I
Part 7 Maintenance Schedule
IMPORTANT
KEEP ENGINE OIL
AT THE PROPER
'LEVEL AND CHANGE
AS
RECOMMENDED
This part covers the maintenance
required for your Buick. Your vehicle
needs these services to retain
its safety,
dependability and emission control
performance.
Have you purchased the
GM Protection Plan?
The Plan supplements your
new vehicle warranties.
See your Buick dealer
for details.
part 7 includes:
Introduction
A Word About Maintenance ...................... .276
Your Vehicle and the Environment ................. ,276
How This Part is Organized ...................... .276
A.. Scheduled Maintenance Services
Using Your Maintenance Schedules ................ .278
Selecting the Right Schedule ...................... ,279
Schedule1 ..................................... 280
Schedule I1 ................................... .282
Explanation of Scheduled Maintenance Services .... -284
At Each Fuel Fill .............................. .287
B. Owner Checks and Services
At Least Once a Month ......................... .287
At Least Once a Year ........................... .288
C. Periodic Maintenance Inspections ................ .290
D. Recommended Fluids and Lubricants ............ .292
E. Maintenance Record. .......................... .295
ProCarManuals.com

Explanation of Scheduled Maintenance Services
Below are explanations of the services listed in Schedule
I and Schedule II.
The proper fluids and lubricants to use are listed in
Section
D. Make sure whoever services your vehicle uses
ITEM
NO. SERVICE
1 Engine Oil and Filter Change-Always use
SG Energy Conserving 11 oils of proper viscosity.
The “SG” designation may be shown alone or in
combination with others, such as ‘‘SG/CC:’
“SG/CD” or “SF, SG, CC:’ etc.
To determine the preferred viscosity for your
vehicle’s engine (e.g., SAE
5W-30 or SAE
10W-30), see “Engine Oil” in the Index.
2 Chassis Lubrication-Lubricate the transaxle
shift linkage, parking brake cable guides,
underbody contact points and linkage. If your
vehicle is equipped with grease fittings, lubricate
the suspension and steering linkage. these. All parts should be replaced and all necessary
repairs done before you or anyone else drives the vehicle.
NOTE: To determine your engine’s displacement and
code, see “Engine Identification” in the Index.
ITEM
NO. SERVICE
3 Throttle Body Mounting Bolt Torque (3300 V6
Code N Engine Only)*-Check the,torque of
the mounting bolts and/or nuts.
4 Tire and Wheel Rotation and Inspection-For
proper wear and maximum tire life, rotate your
tires following the instructions
in this manual.
See “Tires, Inspection & Rotation” in the Index.
Check the tires for uneven wear or damage. If
you see irregular or premature wear, check the
wheel alignment. Check for damaged wheels also.’
*An Emission Control Service.
~2 The U.S. Environmental Protection Agency has determined that the failure to perform this maintenance item will not nullify the.emission warranty
or limit recall liability prior
to the completion of vehicle useful life. General Motors, however, urges that all recommended maintenance services be
performed at the indicated intervals and the maintenance be recorded in “Section E: Maintenance Record.”
284
ProCarManuals.com

ITEM
NO. SERVICE
9 Spark Plug Wire Inspection**-Inspect for
bums, cracks or other damage. Check the boot
fit at the distributor and at the spark plugs.
Replace wires as needed.
10 Exhaust Gas Recirculation (EGR) System
Inspection (2.2L Code 4 engine only)**-
Conduct the EGR system service as described in
the service manual.
To purchase a service
manual, see “Service Publications” in the Index.
ITEM
NO. SERVICE
12
Air Cleaner Filter Replacement*-Replace
every
30,000 miles (50 OOO km) or more often
under dusty conditions. Ask your dealer for the
proper replacement intervals for your driving conditions.
Fuel %nk, Cap
and Lines Inspection* A-
Inspect fuel tank, cap and lines (including fuel
rails and injection assembly, if equipped) for
damage or leaks. Inspect fuel cap gasket for an
even filler neck imprint or any damage. Replace
parts as needed. Periodic replacement of the fuel
filter is not required.
*An Emission Control Service.
*The
U.S. Environmental Protection Agency has determined that the failure to perform this maintenance item will not nullify the emission warranty
or limit
recall liability prior to the completion of vehicle useful life. General Motors, however, urges that all recommended maintenance services be
performed at the indicated intervals and the maintenance be recorded in “Section E: Maintenance Record.”
286
ProCarManuals.com

Section B: Owner Checks and Services
Listed below are owner checks and services which should be performed at the intervals specified to help
ensure the safety, dependability and emission control
performance of your vehicle. Be
sure any necessary repairs are completed at once.
Whenever any fluids or lubricants are added to your
vehicle, make sure they are the proper ones, as shown in
Section
D.
At Each Fuel Fill (It is important for you or a service station attendant to perform these undechd checks at each fuel fill.)
CHECK
I OR SERVICE I WHAT TO DO
Engine Oil Level
Check the engine oil level and add the proper oil if necessar\
y. See “Engine Oil” in the
Index for further details.
Engine Coolant Level Check the engine coolant level in the coolant recovery tank and add \
the proper coolant mix
I if necessary. See “Engine Coolant” in the Index for furth\
er details. I
Windshield Washer Check the windshield washer fluid level in th\
e windshield washer tank and add the proper
Fluid Level
I fluid if necessary. See “Windshield Washer Fluid” in the \
Index for further details. I
At Least Once a Month
CHECK
I OR SERVICE I WHAT TO DO
Tire Inflation Check tire inflation. Make sure they are inflate\
d to the pressures specified on the Tire-
Loading Information label located on the rear edge of the driv\
er’s door. See “Tires”
in the
Index
for further details.
287
ProCarManuals.com

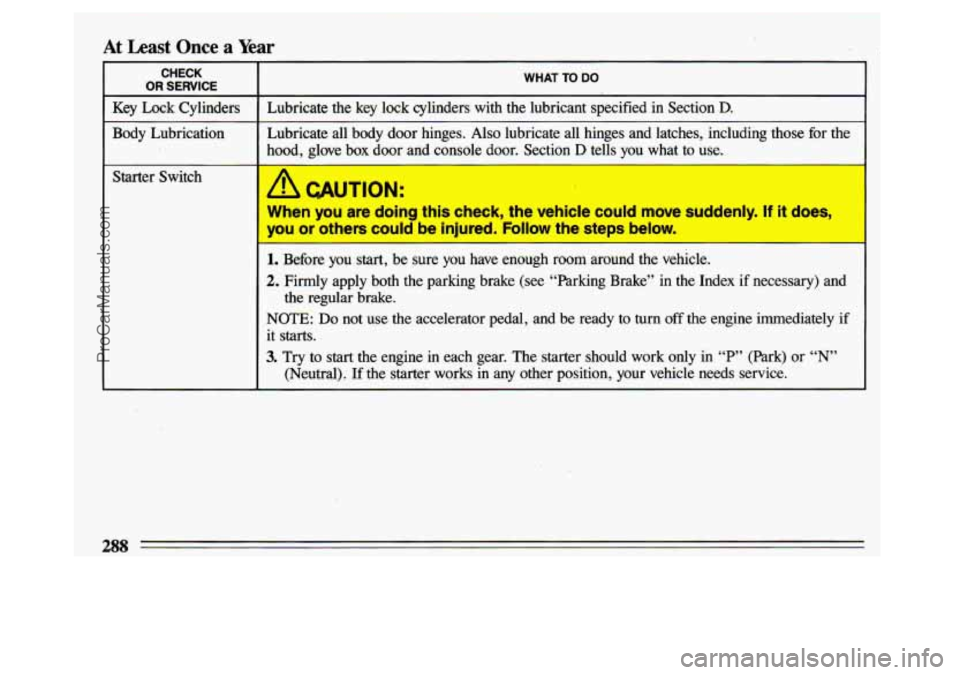

At Least Once a Year
CHECK
OR SERVICE I WHAT TO DO
I
Key Lock Cylinders I Lubricate the key lock cylinders with the lubricant specified in Section D.
Body Lubrication Lubricate all body door hinges. Also lubricate all hinges and \
latches, including those for the
hood, glove box door and console door. Section
D tells you what to use. I
Starter Switch
When you are doing this check, the vehicle could move suddenly\
. If it does,
1. Before you start, be sure you have enough room around the vehicle.
2. Firmly apply both the parking brake (see “Parking Brake” \
in the Index if necessary) and
NOTE: Do not use the accelerator pedal, and be ready to turn off the engine immediately if
it starts.
3. Try to start the engine in each gear. The starter should work onl\
y in “P” (Park) or “N”
the regular brake.
(Neutral). If the starter works in any other position, your \
vehicle needs service.
288
ProCarManuals.com

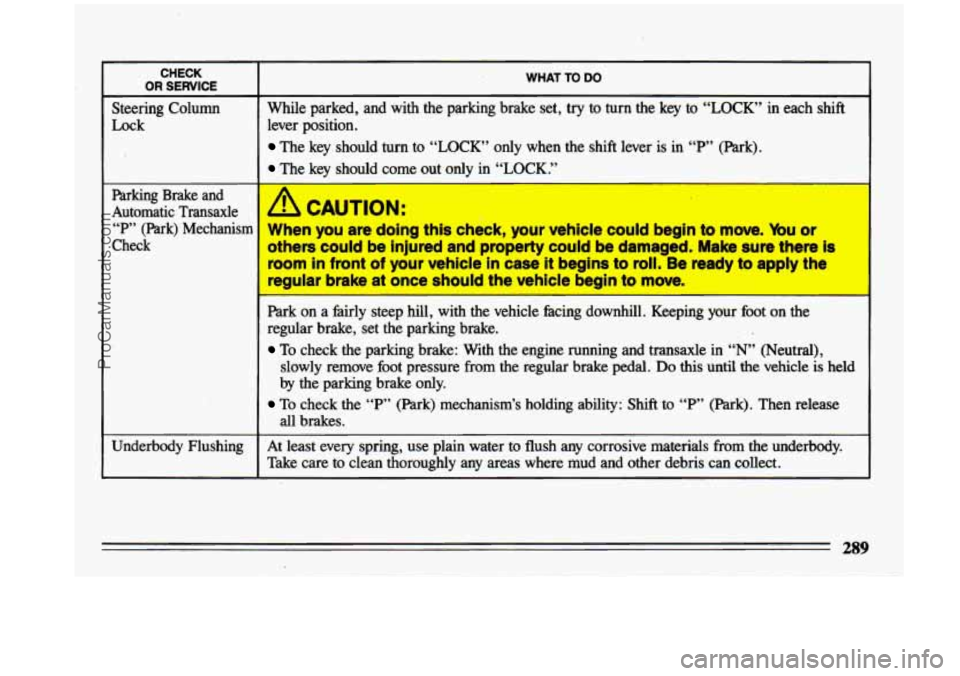

CHECK
OR SERVICE WHAT TO DO
Steering Column While parked, and with the parking brake set, try to turn the key to “LOCK’ in each shift
Lock lever position.
The key should turn to “LOCK’ only when the shift lever is in “P” (Park).
The key should come out only in “LOCK.”
Parking Brake and
Automatic Transaxle
“P” (Park) Mechanism
Check
Underbody Flushing
/t! CAUTION:
When you are doing this chick, your vehicle could begin to mow. Mu or
others could be injured and property could be damaged. Make sure there is
room in front of your vehicle In case it begins to roll. Be ready to apply the
-gular
bWe at wce ahauld +he vehicle hmnin +* m-
Park on a 1 ply steep hill, with the vehicle facing downhill. Keeping your foot\
on the
regular brake, set the parking brake.
To check the parking brake: With the engine running and transaxle in “N” (Neutral),
---
slowly remove foot pressure from the regular brake pedal. Do this until the vehicle is held
by the parking brake only.
all brakes.
To check the “P” (Park) mechanism’s holding ability: Shift to “P” (Park). Then release
At least every spring, use plain water to flush any corrosive materials from
the underbody.
Take care to clean thoroughly any areas where mud and other debris can \
collect.
289
ProCarManuals.com

Brake Fluid ................................ .243. 292
Electrical Equipment
..................... .75. 117. 265
Engine Coolant
................ .195. 239. 270. 272. 292
Engine Oil
........................ .227. 270. 272. 292
Sound Equipment
................................ 117
Power Steering Fluid
................ .241. 271. 273. . 292
Transaxle Fluid
.................... .236. 271. 273. 292
Windshield Washer Fluid
.................... .242. 293
AirBag(S1R)
..................................... 35
Air Cleaner
............................. .233. 271. 273
Air Conditioner
.......................... .114. 270. 272
Alcohol in Gasoline
................................ 223
Aluminum Wheels. Cleaning
........................ 262
Antenna Care
..................................... 131
Antifreeze
.......................... .239. 270. 272. 292
Ashtrays and Lighter
............................... 104
Audiosystems
.................................... 116
AM/FM Stereo Radio
............................. 118
Alcohol. Driving Under the Influence
of
............... 143
Appearance Care and Maintenance Materials
....... .258. 264
AM/FM Stereo Radio with Cassette Player
............ EO
AM/FM Stereo with Compact Disc Player ............ 123
Care
of Audio Systems ............................ 129 Radio Reception. Understanding
.............. 117
Setting the Clock
.................. .118. 121. 124
Automatic Door Locks
........................ 66
Automatic Lap-Shoulder Belt (see “Safety Belts”)
Automatic Transaxle Adding Fluid
................ .236. 271. 273. 292
Checking Fluid
........................... 236
Shifting
.................................. 77
Starting Your Engine
........................ 74
Batteries. Remote Lock Control
............... 66
Battery
.................................... 244
Jump Starting
............................. 185
Warnings
....................... .185, 186, 244
Battery Warning Light
........................ 108
Blizzard
................................... 173
Block Heater, Engine
.................... .76, 232
Blowout, Tire
............................... 205
Brake Adjustment
............................... 149
Fluid ............................... 243, 292
Master Cylinder
.......................... 243
Parking
.................................. 80
307
.
ProCarManuals.com
