PRE-DELIVERY INSPECTION
PRE-DELIVERY INSPECTION
PRE-DELIVERY INSPECTION TABLE
Following items may be done at any time prior to delivery to your customer.
INSPECT and ADJUST, if necessary, the following items to
the specifications:
0 Glass, exterior bright metal and paint for damage
Cl Wheel lug nuts, and locks (if equipped)
88-118 N.m (9-12 m-kg, 65-87 ft-lb)
q All weatherstrips for damage or detachment
0 Operation of hood release and lock
0 Operation of trunk lid, rear hatch, and fuel lid opener
Cl With trunk open, check for spare jack, tire, tools, and
fasteners securing these items in place.
Cl Door operation and alignment
Cl Headlight aim
INSTALL the following parts:
Cl Wheel caps or rings (if equipped)
q Outside rearview mirror(s)
1 UNDER HOOD-ENGINE OFF )
INSPECT and ADJUST, if necessary, the following items to
the specifications:
0 Fuel, coolant and hydraulic lines, fittings, connections and
components for leaks
Cl Engine oil level
0 Power steering fluid level
0 Brake and clutch master cylinder fluid level
El Windshield washer reservoir fluid level
Cl Radiator coolant level
Cl Tightness of battery terminals
Cl Manual transaxle oil level
riizmiq
INSTALL the following parts:
Cl Rubber stopper for inside rearview mirror
CHECK operation of the following items:
0 Seat controls (sliding and reclining) and head restraint
Cl Folding rear seat
0 Door locks, including childproof door locks (if equipped)
Seat belts and warning system
Cl Ignition switch and steering lock
0 Inhibitor switch (ATX only)
U Starter interlock switch (clutch pedal, MTX only)
Cl All lights, including warning and indicator lamps
Cl Sound warning system
Cl Horn, wipers and washers (front and rear, if equipped)
0 Audio system (if equipped) 0 Cigarette lighter and clock
0 Sunroof (if equipped)
II Remote control outside rearview mirrors (if equipped)
Cl Power windows (if equipped)
q Heater, defroster and air conditioner at various mode
selections (if equipped)
CHECK the following items:
Cl Presence of spare fuse
0 Upholstery and interior finish
CHECK and ADJUST, if necessary, the following items:
0 Pedal height and free play of brake and clutch pedal
Pedal height mm (in) Free play mm (in)
0 Parking brake
5-7 notches/98 N (10 kg, 22lb)
UNDER HOOD-ENGINE RUNNING AT
OPERATING TEMPERATURE
CHECK the following items:
q Automatic transaxle fluid level
[I
CHECK the following items:
Cl Underside fuel, coolant and hydraulic lines, fittings, con-
nections and components for leaks
0 Tires for cuts or bruises
0 Steering linkage, suspension, exhaust system and all un-
derside hardware for looseness or damage
[I
CHECK the following items:
0 Brake operation
0 Clutch operation
Cl Steering control
Cl Operation of gauges
q Squeaks, rattles or unusual noise
Cl Emergency locking retractors
0 Cruise control system (if equipped)
1 AFTER ROAD TEST (
CHECK for necessary owner information materials.
Following items must be done just before the delivery to your customer.
q Load test battery and charge if necessary
1 Volts 1 0 Install fuses for accessories
i.. _
0 Adjust tire pressure to the specification
Load test result cl Remove seat and floor mat protective covers
(Refer to door label) 0 Vacuum and clean interior of vehicle
0 Clean outside of vehicle q Inspect installation of option parts with invoice
23UOAX-002
A-2

ENGINE TUNE-UP PROCEDURE Bl
ENGINE TUNE-UP PROCEDURE
PREPARATION
-.
SST
drive belt tension
m :
I 1 2311081-058
- 03UOBX-20
---
OSUOBX-OC
V-BELT
LhEd
V-RIBBED BELT
OSJOBX-00
ENGINE OIL
Inspection
1. Be sure the vehicle is on level ground.
2. Warm up the engine to normal operating temperature and
stop it.
3. Wait for 5 minutes.
4. Remove the oil level gauge and check the oil level and con-
dition.
5. Add or replace oil if necessary.
Note
l The distance between the L and F marks on the level
gauge represents 0.8 liter (0.85 US qt, 0.70 Imp qt).
ENGINE COOLANT
Inspection
Coolant level (engine cold)
Warning
l Never remove the radiator cap while the engine is
hot.
l Wrap a thick cloth around the cap when removing it.
1. Verify that the coolant level is near the radiator filler neck.
2. Remove the coolant level gauge and check the coolant level.
3. Add coolant if necessary.
Coolant quality
1. Verify that there is no buildup of rust or scale around the
radiator cap or radiator filler neck.
2. Verify that the coolant is free of oil.
3. Replace the coolant if necessary.
DRIVE BELT
Inspection
1, Remove the air intake pipe.
2. Check the drive belts for wear, cracks, and fraying. Replace
if necessary.
3. Verify that the drive belts are correctly mounted on the
pulleys.
Bl--5

.

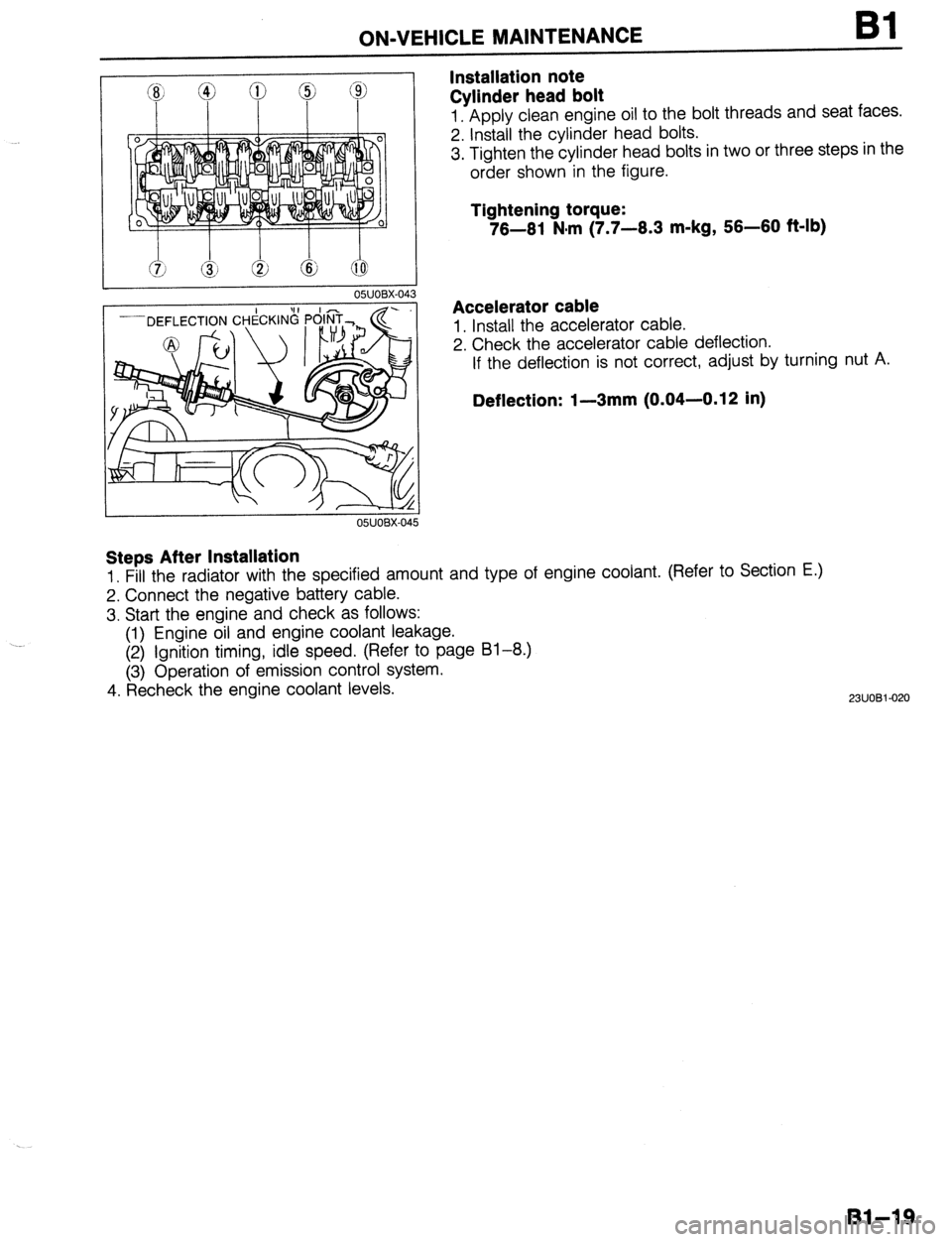

ON-VEHICLE MAINTENANCE
Installation note
Cylinder head bolt Bl
1. Apply clean engine oil to the bolt threads and seat faces.
2. Install the cylinder head bolts.
3. Tighten the cylinder head bolts in two or three steps in the
order shown in the figure.
Tightening torque:
76-61 N#m (7.7-6.3 m-kg, 56-60 f&lb)
Accelerator cable
1. Install the accelerator cable.
2. Check the accelerator cable deflection.
If the deflection is not correct, adjust by turning nut A.
Deflection: I-3mm (0.04-0.12 in)
Steps After Installation
1. Fill the radiator with the specified amount and type of engine coolant. (Refer to Section E.)
2. Connect the negative battery cable.
3. Start the engine and check as follows:
(1) Engine oil and engine coolant leakage.
(2) Ignition timing, idle speed. (Refer to page 81-8.)
(3) Operation of emission control system.
4. Recheck the engine coolant levels.
2311081-020
Bl-19

REMOVAL
REMOVAL
Warning
l Release the fuel pressure. (Refer to Section F.)
PROCEDURE
1. Disconnect the negative battery cable.
2. Drain the engine coolant and transaxle oil.
3. Remove in the order shown in the figure, referring to Removal Note,
Step 1
1. Undercover and side cover
2. Air cleaner assembly 10. Cooling fan connector
3. Battery and battery cover 11. Oil cooler hose (ATX)
4. Battery carrier 12. Radiator and cooling fan assembly
13. P/S and/or A/C drive belt
5. Battery duct
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6. Accelerator cable page Bl- 6
7. Resonance chamber 14. P/S oil pump and bracket
8. Radiator hose Removal Note . . . . . . . . . . . . . . . . . . . . . . . . . . . page 81-29
9. Coolant reservoir hose 15. A/C compressor (if equipped)
Removal Note . . . . . . . . . . . . . . . . . . . . . . . . . . . page 81-29
81-28

INSTALLATION Bl
I I
03UOBl-193
03UOBl-19
1
PULLEY
P/S AND A/C
OWOBl-19
03UOBl-15
A/C compressor
1. Install the A/C compressor.
Tightening torque:
24-35 N-m (2.4-3.6 m-kg, 17-26 ft-lb)
P/S oil pump and bracket
1. Install the P/S oil pump and bracket.
Tightening torque:
37-52 N-m (3.6-5.3 m-kg, 27-36 ft-lb)
Drive belt
1. Install the P/S and/or A/C drive belt.
2. Adjust the drive belt deflections. (Refer to page Bl-6.)
Radiator and cooling fan assembly
1. Install the radiator and cooling fan assembly.
Tightening torque:
7.6-11 N#m (60-110 cm-kg, 69-95 in-lb)
2. Tighten the A/C pipe bracket to the radiator.
Tightening torque:
6.4-9.3 N*rn (65-95 cm-kg, 56-62 in-lb)
3. Connect the upper and lower radiator hoses.
Caution
l Position the hose clamp in the original location on
the hose, and squeeze the clamp lightly with large
pliers to ensure a good fit.
4. Connect the coolant reservoir hose.
5. Connect the cooling fan connector.
6. Connect the oil cooler hose. (ATX)
Bl-=lOl

INSTALLATION
OWOBX-27!
Resonance chamber
1. Install the resonance chamber.
Tightening torque:
7.8-l 1 N-m (80-I 10 cm-kg, 69-95 in-lb)
Undercover and side cover
1. Install the undercover and side cover.
Steps After Installation
1. If the engine oil was drained, fill with the specified amount and type of engine oil.
(Refer to Section D.)
Accelerator cable
1. Install the accelerator cable.
2. Adjust the cable deflection by turning nut @.
Deflection: I-3mm (0.04-0.12 in)
Battery duct, battery carrier, and battery
1. Install the battery duct.
Tightening torque:
7.8-l 1 N-m (80-l 10 cm-kg, 69-95 in-lb)
2. Install the battery carrier.
Tightening torque:
7.8-11 N.m (80-110 cm-kg, 69-95 in-lb)
3. Install the battery and the battery bracket.
Tightening torque:
2.9-5.9 N*m (30-60 cm-kg, 26-52 in-lb)
Air cleaner assembly
1. Install the air cleaner assembly.
lightening torque
@: 19-25 N-m (1.9-2.6 m-kg, 14-19 ft-lb)
@: 7.8-l 1 N-m (80-I 10 cm-kg, 69-95 in-lb)
2. Connect the airflow sensor connector.
2. Fill the radiator with the specified amount and type of engine coolant.
(Refer to Section E.)
3. If the transaxle oil was drained, fill with the specified amount and type of transaxle oil.
(Refer to Sections J, K.)
4. Connect the negative battery cable.
5. Start the engine and check the following
(1) Engine oil, transaxle oil, and engine coolant leakage.
(2) Ignition timing, idle speed. (Refer to page 61-8.)
(3) Operation of emission control system.
6. Perform a road test,
7. Recheck the engine oil and engine coolant levels.
.-’
23UOBl-057
81-102

ENGINE TUNE-UP PROCEDURE 82
ENGINE TUNE-UP PROCEDURE
PREPARATION
SST
49 BO19 9AO
drive belt tension
23UOB2-048
OBUOBX-158
I’ ,
OSJOBX-001
V BELT
V RIBBED BELT
_
x 0 x
3
L
03UOB2-005
ENGINE OIL
Inspection
1. Be sure the vehicle is on level ground.
2. Warm up the engine to normal operating temperature and
stop it.
3. Wait for 5 minutes.
4. Remove the oil level gauge and check the oil level and con-
dition.
5. Add or replace oil if necessary.
Note
l The distance between the L and F marks on the level
gauge represents 0.8 liter (0.85 US qt, 0.70 Imp qt).
ENGINE COOLANT
Inspection
Coolant level (engine cold)
Warning
l Never remove the radiator cap while the engine is
hot.
l Wrap a thick cloth around the cap when removing it.
1. Verify that the coolant level is near the radiator filler neck.
2. Remove the coolant level gauge and check the coolant level.
3. Add coolant if necessary.
Coolant quality
1. Verify that there is no buildup of rust or scale around the
radiator cap or radiator filler neck.
2. Verify that the coolant is free of oil.
3. Replace the coolant if necessary.
DRIVE BELT
Inspection
1. Check the drive belts for wear, cracks, and fraying. Replace
if necessary.
2. Verify that the drive belts are correctly mounted on the
pulleys.
B2-5

ON-VEHICLE MAINTENANCE
DEFLECTION CHECKING POINT
05UOBX-03 3 10. Measure the timing belt deflection by applying moderate
pressure (98 N, 10 kg, 22 lb) midway between the two cam-
shaft pulleys.
If the deflection is not correct, repeat from Step 7 above.
Deflection:
9.0-11.5mm (0.35-0.45 in) at 98 N (10 kg, 22 lb)
Harness
1. Connect the harness connectors. (Refer to page 82-l 8.)
Hose
1. Connect the hoses. (Refer to page 82-17.)
03UOB2-035
Accelerator cable
1. Install the accelerator cable.
2. Check the accelerator cable deflection.
If the deflection is not correct, adjust by turning nut A.
Deflection: l-3mm (0.04-0.12 In)
Steps After Installation
1. Fill the radiator with the specified amount and type of engine coolant. (Refer to Section E.)
2. Connect the negative battery cable.
3. Start the engine and check as follows:
(1) Engine oil and engine coolant leakage.
(2) Ignition timing, idle speed. (Refer to page B2-8.)
(3) Operation of emission control system.
4. Recheck the engine coolant levels.
2311082-022
B2-21
